#include <GLViewer_Widget.h>

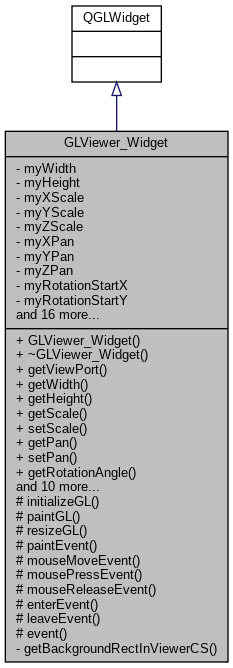

Inheritance diagram for GLViewer_Widget:

Public Member Functions
	GLViewer_Widget (QWidget theParent, const char theName=0)
	A constructor. More...

	~GLViewer_Widget ()
	A destructor. More...

GLViewer_ViewPort2d *	getViewPort () const
	Returns parent GLViewer_ViewPort2d. More...

GLint	getWidth () const
	Returns width of OpenGl Window. More...

GLint	getHeight () const
	Returns height of OpenGl Window. More...

void	getScale (GLfloat &xScale, GLfloat &yScale, GLfloat &zScale)
	Returns scales on OpenGL scene along 3 directions. More...

void	setScale (GLfloat xScale, GLfloat yScale, GLfloat zScaleGLfloat)
	A function for installing the scales of OpenGL scene. More...

void	getPan (GLfloat &xPan, GLfloat &yPan, GLfloat &zPan)
	Returns offset parameters of Window in OpenGL global scene. More...

void	setPan (GLfloat xPan, GLfloat yPan, GLfloat zPan)
	A function for installing the offset parameters of Window in OpenGL global scene. More...

GLfloat	getRotationAngle () const
	Returns rotation angle of Window in OpenGL global scene in degree. More...

void	setRotationAngle (GLfloat a)
	A function for installing the rotation angle of Window in OpenGL global scene in degree. More...

void	getRotationStart (GLfloat &rotationStartX, GLfloat &rotationStartY, GLfloat &rotationStartZ)
	Returns start point of curren rotation of Window in OpenGL global scene. More...

void	setRotationStart (GLfloat rotationStartX, GLfloat rotationStartY, GLfloat rotationStartZ)
	A function for installing the start point of curren rotation of Window in OpenGL global scene. More...

void	getRotation (GLfloat &rotationAngle, GLfloat &rotationCenterX, GLfloat &rotationCenterY, GLfloat &rotationCenterZ)
	Returns parameters of current rotation. More...

void	setRotation (GLfloat, GLfloat, GLfloat, GLfloat)
	A function for installing the parameters of current rotation. More...

void	setBackground (QString theFileName)
	A function load picture from file with name theFileName and post it in center of global OpenGL scene. More...

void	addToolTip (QString theTTText, QRect theTTRect)
	A function add the tool tip with text theTTText on theTTRect rect to the widget window. More...

void	removeToolTip ()
	A function remove tool tip form widget window. More...

virtual void	translateBackgroundToPS (QFile &hFile, GLViewer_CoordSystem aViewerCS, GLViewer_CoordSystem aPSCS)
	A function translate background of window in to PostScript file on disk. More...

void	exportRepaint ()
	A function repaints OpenGL scene in export mode. More...

Protected Member Functions
virtual void	initializeGL ()
	A function is called before first display of window (create OpenGL scene) More...

virtual void	paintGL ()
	A function is called in earch paint event of window. More...

virtual void	resizeGL (int, int)
	A function is called in earch resize event of window. More...

virtual void	paintEvent (QPaintEvent *)

virtual void	mouseMoveEvent (QMouseEvent *)

virtual void	mousePressEvent (QMouseEvent *)

virtual void	mouseReleaseEvent (QMouseEvent *)

virtual void	enterEvent (QEvent *)

virtual void	leaveEvent (QEvent *)

virtual bool	event (QEvent *)

Private Member Functions
void	getBackgroundRectInViewerCS (double &left, double &top, double &right, double &bottom)
	Auxiliary function. Returns rect of window background in viewer coordinate system. More...

Private Attributes
GLint	myWidth
	width of window More...

GLint	myHeight
	height of window More...

GLfloat	myXScale
	Scale along X direction. More...

GLfloat	myYScale
	Scale along Y direction. More...

GLfloat	myZScale
	Scale along Z direction. More...

GLfloat	myXPan
	Window offset along X direction. More...

GLfloat	myYPan
	Window offset along Y direction. More...

GLfloat	myZPan
	Window offset along Z direction. More...

GLfloat	myRotationStartX

GLfloat	myRotationStartY

GLfloat	myRotationStartZ

GLfloat	myRotationAngle

GLfloat	myRotationCenterX

GLfloat	myRotationCenterY

GLfloat	myRotationCenterZ

GLfloat	myRotationAnglePrev

GLboolean	myStart

GLViewer_ViewPort2d *	myViewPort

bool	isLoadBackground
	True if background is loaded. More...

QString	myBackgroundFile
	File name of background image. More...

GLuint	texName
	Texture id of loaded background image. More...

int	myIW
	Width of background image. More...

int	myIH
	Height of background image. More...

int	myBackgroundSize
	Size of background image. More...

QRect	myToolTipRect

bool	isExportMode
	Needs for export repaint. More...

Detailed Description

Widget for visualization of OpenGL scene

Constructor & Destructor Documentation

◆ GLViewer_Widget()

GLViewer_Widget::GLViewer_Widget	(	QWidget *	parent,
		const char *	theName = `0`
	)

A constructor.

Parameters using for QOGLWidget as is

A constructor Parameters using for QOGLWidget as is

References isExportMode, myRotationAngle, myRotationAnglePrev, myRotationCenterX, myRotationCenterY, myRotationCenterZ, myStart, myViewPort, myXPan, myXScale, myYPan, myYScale, myZPan, and myZScale.

◆ ~GLViewer_Widget()

GLViewer_Widget::~GLViewer_Widget ( )

A destructor.

Destructor

Member Function Documentation

◆ addToolTip()

void GLViewer_Widget::addToolTip	(	QString	theString,
		QRect	theRect
	)

A function add the tool tip with text theTTText on theTTRect rect to the widget window.

Adds tooltip

Parameters

theString	- tooltip text
theRect	- tooltip rectangle

References myToolTipRect.

◆ enterEvent()

void GLViewer_Widget::enterEvent ( QEvent * )

protectedvirtual

Custom enter event handler

◆ event()

bool GLViewer_Widget::event ( QEvent * e )

protectedvirtual

Custom leave event handler

References myToolTipRect.

◆ exportRepaint()

void GLViewer_Widget::exportRepaint ( )

A function repaints OpenGL scene in export mode.

Provides repaint in export mode

References isExportMode, and paintGL().

◆ getBackgroundRectInViewerCS()

void GLViewer_Widget::getBackgroundRectInViewerCS	(	double &	left,
		double &	top,
		double &	right,
		double &	bottom
	)

private

Auxiliary function. Returns rect of window background in viewer coordinate system.

Returns: background rectangle in viewer CS

References myIH, and myIW.

◆ getHeight()

GLint GLViewer_Widget::getHeight ( ) const

inline

Returns height of OpenGl Window.

◆ getPan()

void GLViewer_Widget::getPan	(	GLfloat &	xPan,
		GLfloat &	yPan,
		GLfloat &	zPan
	)

Returns offset parameters of Window in OpenGL global scene.

Returns: offset parameters of Window in OpenGL global scene

References myXPan, myYPan, and myZPan.

◆ getRotation()

void GLViewer_Widget::getRotation	(	GLfloat &	rotationAngle,
		GLfloat &	rotationCenterX,
		GLfloat &	rotationCenterY,
		GLfloat &	rotationCenterZ
	)

Returns parameters of current rotation.

Returns: parameters of rotation

Parameters

rotationAngle	- angle
rotationCenterX	- center x
rotationCenterY	- center y
rotationCenterZ	- center z

References myRotationAngle, myRotationCenterX, myRotationCenterY, and myRotationCenterZ.

◆ getRotationAngle()

GLfloat GLViewer_Widget::getRotationAngle ( ) const

inline

Returns rotation angle of Window in OpenGL global scene in degree.

Only in 2D

◆ getRotationStart()

void GLViewer_Widget::getRotationStart	(	GLfloat &	rotationStartX,
		GLfloat &	rotationStartY,
		GLfloat &	rotationStartZ
	)

Returns start point of curren rotation of Window in OpenGL global scene.

Returns: start point of curren rotation of Window in OpenGL global scene

References myRotationStartX, myRotationStartY, and myRotationStartZ.

◆ getScale()

void GLViewer_Widget::getScale	(	GLfloat &	xScale,
		GLfloat &	yScale,
		GLfloat &	zScale
	)

Returns scales on OpenGL scene along 3 directions.

in 2d scene zScale = 1.0

Returns: scales on OpenGL scene along 3 directions in 2d scene zScale = 1.0

References myXScale, myYScale, and myZScale.

◆ getViewPort()

GLViewer_ViewPort2d* GLViewer_Widget::getViewPort ( ) const

inline

Returns parent GLViewer_ViewPort2d.

ViewPort2d because this class is not use for 3D Viewer

◆ getWidth()

GLint GLViewer_Widget::getWidth ( ) const

inline

Returns width of OpenGl Window.

◆ initializeGL()

void GLViewer_Widget::initializeGL ( )

protectedvirtual

A function is called before first display of window (create OpenGL scene)

Initialization (redefined virtual from QGLWidget)

References Qtx::getenv(), isLoadBackground, and setBackground().

◆ leaveEvent()

void GLViewer_Widget::leaveEvent ( QEvent * )

protectedvirtual

Custom leave event handler

◆ mouseMoveEvent()

void GLViewer_Widget::mouseMoveEvent ( QMouseEvent * e )

protectedvirtual

Custom mouse move event handler

References myViewPort.

◆ mousePressEvent()

void GLViewer_Widget::mousePressEvent ( QMouseEvent * e )

protectedvirtual

Custom mouse press event handler

References myViewPort.

◆ mouseReleaseEvent()

void GLViewer_Widget::mouseReleaseEvent ( QMouseEvent * e )

protectedvirtual

Custom mouse release event handler

References myViewPort.

◆ paintEvent()

void GLViewer_Widget::paintEvent ( QPaintEvent * e )

protectedvirtual

Custom paint event handler

References myViewPort.

◆ paintGL()

void GLViewer_Widget::paintGL ( )

protectedvirtual

A function is called in earch paint event of window.

Paints content

References GLViewer_Grid::draw(), GLViewer_ViewPort2d::getGrid(), GLViewer_ViewFrame::getViewer(), GLViewer_ViewPort2d::getViewFrame(), getViewPort(), isExportMode, isLoadBackground, myBackgroundSize, myIH, myIW, myRotationAngle, myRotationCenterX, myRotationCenterY, myRotationCenterZ, myViewPort, myXPan, myXScale, myYPan, myYScale, myZPan, myZScale, GLViewer_Viewer2d::repaintView(), texName, and GLViewer_Viewer2d::updateDrawers().

◆ removeToolTip()

void GLViewer_Widget::removeToolTip ( )

A function remove tool tip form widget window.

Removes tooltip

◆ resizeGL()

void GLViewer_Widget::resizeGL	(	int	w,
		int	h
	)

protectedvirtual

A function is called in earch resize event of window.

Resets OpenGl parameters after resize

Parameters

w	- new width
h	- new height

References GLViewer_ViewPort2d::initResize(), myHeight, myStart, myViewPort, and myWidth.

◆ setBackground()

void GLViewer_Widget::setBackground ( QString filename )

A function load picture from file with name theFileName and post it in center of global OpenGL scene.

Sets image as background

Parameters

filename - name of file

References isLoadBackground, myBackgroundFile, myBackgroundSize, myIH, myIW, and texName.

◆ setPan()

void GLViewer_Widget::setPan	(	GLfloat	xPan,
		GLfloat	yPan,
		GLfloat	zPan
	)

A function for installing the offset parameters of Window in OpenGL global scene.

A function for installing the offset parameters of Window in OpenGL global scene

References myXPan, myYPan, and myZPan.

◆ setRotation()

void GLViewer_Widget::setRotation	(	GLfloat	rotationAngle,
		GLfloat	rotationCenterX,
		GLfloat	rotationCenterY,
		GLfloat	rotationCenterZ
	)

A function for installing the parameters of current rotation.

Sets parameters of rotation

Parameters

rotationAngle	- angle
rotationCenterX	- center x
rotationCenterY	- center y
rotationCenterZ	- center z

References myRotationAngle, myRotationCenterX, myRotationCenterY, and myRotationCenterZ.

◆ setRotationAngle()

void GLViewer_Widget::setRotationAngle ( GLfloat a )

inline

A function for installing the rotation angle of Window in OpenGL global scene in degree.

Only in 2D

◆ setRotationStart()

void GLViewer_Widget::setRotationStart	(	GLfloat	rotationStartX,
		GLfloat	rotationStartY,
		GLfloat	rotationStartZ
	)

A function for installing the start point of curren rotation of Window in OpenGL global scene.

A function for installing the rotation angle of Window in OpenGL global scene in degree (Only in 2D)

References myRotationStartX, myRotationStartY, and myRotationStartZ.

◆ setScale()

void GLViewer_Widget::setScale	(	GLfloat	xScale,
		GLfloat	yScale,
		GLfloat	zScale
	)

A function for installing the scales of OpenGL scene.

A function for installing the scales of OpenGL scene

References myXScale, myYScale, and myZScale.

◆ translateBackgroundToPS()

void GLViewer_Widget::translateBackgroundToPS	(	QFile &	hFile,
		GLViewer_CoordSystem *	aViewerCS,
		GLViewer_CoordSystem *	aPSCS
	)

virtual

A function translate background of window in to PostScript file on disk.

Parameters

hFile	the name of PostScript file chosen by user
aViewerCS	the GLViewer_CoordSystem of window
aPSCS	the GLViewer_CoordSystem of PostScript page

Translates background to PostScript

Parameters

hFile	- PostScript file
aViewerCS	- viewer co-ordinate system
aPSCS	- paper co-ordinate system

References AddImagePart(), getBackgroundRectInViewerCS(), isLoadBackground, myBackgroundFile, and GLViewer_CoordSystem::transform().

Member Data Documentation

◆ isExportMode

bool GLViewer_Widget::isExportMode

private

Needs for export repaint.

◆ isLoadBackground

bool GLViewer_Widget::isLoadBackground

private

True if background is loaded.

◆ myBackgroundFile

QString GLViewer_Widget::myBackgroundFile

private

File name of background image.

◆ myBackgroundSize

int GLViewer_Widget::myBackgroundSize

private

Size of background image.

◆ myHeight

GLint GLViewer_Widget::myHeight

private

height of window

◆ myIH

int GLViewer_Widget::myIH

private

Height of background image.

◆ myIW

int GLViewer_Widget::myIW

private

Width of background image.

◆ myRotationAngle

GLfloat GLViewer_Widget::myRotationAngle

private

◆ myRotationAnglePrev

GLfloat GLViewer_Widget::myRotationAnglePrev

private

◆ myRotationCenterX

GLfloat GLViewer_Widget::myRotationCenterX

private

◆ myRotationCenterY

GLfloat GLViewer_Widget::myRotationCenterY

private

◆ myRotationCenterZ

GLfloat GLViewer_Widget::myRotationCenterZ

private

◆ myRotationStartX

GLfloat GLViewer_Widget::myRotationStartX

private

◆ myRotationStartY

GLfloat GLViewer_Widget::myRotationStartY

private

◆ myRotationStartZ

GLfloat GLViewer_Widget::myRotationStartZ

private

◆ myStart

GLboolean GLViewer_Widget::myStart

private

◆ myToolTipRect

QRect GLViewer_Widget::myToolTipRect

private

◆ myViewPort

GLViewer_ViewPort2d* GLViewer_Widget::myViewPort

private

◆ myWidth

GLint GLViewer_Widget::myWidth

private

width of window

◆ myXPan

GLfloat GLViewer_Widget::myXPan

private

Window offset along X direction.

◆ myXScale

GLfloat GLViewer_Widget::myXScale

private

Scale along X direction.

◆ myYPan

GLfloat GLViewer_Widget::myYPan

private

Window offset along Y direction.

◆ myYScale

GLfloat GLViewer_Widget::myYScale

private

Scale along Y direction.

◆ myZPan

GLfloat GLViewer_Widget::myZPan

private

Window offset along Z direction.

◆ myZScale

GLfloat GLViewer_Widget::myZScale

private

Scale along Z direction.

◆ texName

GLuint GLViewer_Widget::texName

private

Texture id of loaded background image.

The documentation for this class was generated from the following files:

src/GLViewer/GLViewer_Widget.h
src/GLViewer/GLViewer_Widget.cxx

Public Member Functions

Protected Member Functions

Private Member Functions

Private Attributes

Detailed Description

Constructor & Destructor Documentation

◆ GLViewer_Widget()

◆ ~GLViewer_Widget()

Member Function Documentation

◆ addToolTip()

◆ enterEvent()

◆ event()

◆ exportRepaint()

◆ getBackgroundRectInViewerCS()

◆ getHeight()

◆ getPan()

◆ getRotation()

◆ getRotationAngle()

◆ getRotationStart()

◆ getScale()

◆ getViewPort()

◆ getWidth()

◆ initializeGL()

◆ leaveEvent()

◆ mouseMoveEvent()

◆ mousePressEvent()

◆ mouseReleaseEvent()

◆ paintEvent()

◆ paintGL()

◆ removeToolTip()

◆ resizeGL()

◆ setBackground()

◆ setPan()

◆ setRotation()

◆ setRotationAngle()

◆ setRotationStart()

◆ setScale()

◆ translateBackgroundToPS()

Member Data Documentation

◆ isExportMode

◆ isLoadBackground

◆ myBackgroundFile

◆ myBackgroundSize

◆ myHeight

◆ myIH

◆ myIW

◆ myRotationAngle

◆ myRotationAnglePrev

◆ myRotationCenterX

◆ myRotationCenterY

◆ myRotationCenterZ

◆ myRotationStartX

◆ myRotationStartY

◆ myRotationStartZ

◆ myStart

◆ myToolTipRect

◆ myViewPort

◆ myWidth

◆ myXPan

◆ myXScale

◆ myYPan

◆ myYScale

◆ myZPan

◆ myZScale

◆ texName
