OCCViewer_ToolTip Class Reference

Custom tooltip for AIS_InteractiveObjects and SelectMgr_EntityOwners in the OCC Viewer. More...

#include <OCCViewer_ToolTip.h>

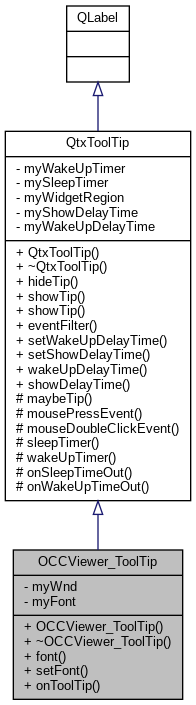

Inheritance diagram for OCCViewer_ToolTip:

Public Slots
void	onToolTip (QPoint, QString &, QFont &, QRect &, QRect &)

Signals
void	toolTipFor (const Handle_SelectMgr_EntityOwner &, QString &)
void	toolTipFor (const Handle_AIS_InteractiveObject &, QString &)
Signals inherited from QtxToolTip
void	maybeTip (QPoint, QString &, QFont &, QRect &, QRect &)

Public Member Functions
	OCCViewer_ToolTip (OCCViewer_ViewWindow *)
virtual	~OCCViewer_ToolTip ()
QFont	font () const
void	setFont (const QFont &)
Public Member Functions inherited from QtxToolTip
	QtxToolTip (QWidget *=0)
virtual	~QtxToolTip ()
void	hideTip ()
virtual void	showTip (const QPoint &aPos, const QString &text, const QRect &aWidgetRegion)
virtual void	showTip (const QRect &aRegion, const QString &text, const QRect &aWidgetRegion)
virtual bool	eventFilter (QObject *o, QEvent *e)
void	setWakeUpDelayTime (int)
void	setShowDelayTime (int)
int	wakeUpDelayTime () const
int	showDelayTime () const

Private Attributes
OCCViewer_ViewWindow *	myWnd
QFont	myFont

Additional Inherited Members
Protected Slots inherited from QtxToolTip
void	onSleepTimeOut ()
void	onWakeUpTimeOut ()
Protected Member Functions inherited from QtxToolTip
virtual void	maybeTip (const QPoint &)
virtual void	mousePressEvent (QMouseEvent *)
virtual void	mouseDoubleClickEvent (QMouseEvent *)
QTimer *	sleepTimer () const
QTimer *	wakeUpTimer () const

Detailed Description

Custom tooltip for AIS_InteractiveObjects and SelectMgr_EntityOwners in the OCC Viewer.

Constructor & Destructor Documentation

OCCViewer_ToolTip()

OCCViewer_ToolTip::OCCViewer_ToolTip

(

OCCViewer_ViewWindow *

wnd

)

Constructor

Parameters

wnd	- window where the tooltip should be assigned

References QtxToolTip::maybeTip(), and onToolTip().

~OCCViewer_ToolTip()

OCCViewer_ToolTip::~OCCViewer_ToolTip ( )

virtual

Destructor

Member Function Documentation

font()

QFont OCCViewer_ToolTip::font

(

)

const

Returns

font of the tooltip

References myFont.

onToolTip

void OCCViewer_ToolTip::onToolTip ( QPoint  p, QString &  str, QFont &  , QRect &  txtRect, QRect &  rect  )

slot

Tooltip handler

Parameters

p	- current point
str	- returned tooltip text
f	- returned tooltip font
txtRect	- returned tooltip text rectangle
rect	- returned tooltip rectangle

References SUIT_ViewWindow::getViewManager(), SUIT_ViewManager::getViewModel(), Handle(), myFont, myWnd, and toolTipFor().

setFont()

void OCCViewer_ToolTip::setFont

(

const QFont &

f

)

Change font of the tooltip

Parameters

f	- new font

References myFont.

toolTipFor [1/2]

void OCCViewer_ToolTip::toolTipFor ( const Handle_AIS_InteractiveObject &  , QString &    )

signal

Called when object is detected; allows to redefine tooltip text for object

toolTipFor [2/2]

void OCCViewer_ToolTip::toolTipFor ( const Handle_SelectMgr_EntityOwner &  , QString &    )

signal

Called when owner is detected; allows to redefine tooltip text for owner

Member Data Documentation

myFont

QFont OCCViewer_ToolTip::myFont

private

myWnd

OCCViewer_ViewWindow* OCCViewer_ToolTip::myWnd

private

---

The documentation for this class was generated from the following files:

• src/OCCViewer/OCCViewer_ToolTip.h
• src/OCCViewer/OCCViewer_ToolTip.cxx
