Plot2d_FitDataDlg Class Reference

#include <Plot2d_FitDataDlg.h>

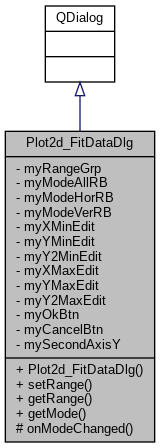

Inheritance diagram for Plot2d_FitDataDlg:

Public Member Functions
	Plot2d_FitDataDlg (QWidget *parent, bool secondAxisY)
void	setRange (const double xMin, const double xMax, const double yMin, const double yMax, const double y2Min=0, const double y2Max=0)
int	getRange (double &xMin, double &xMax, double &yMin, double &yMax, double &y2Min, double &y2Max)
int	getMode ()

Protected Slots
void	onModeChanged (int)

Private Attributes
QGroupBox *	myRangeGrp
QRadioButton *	myModeAllRB
QRadioButton *	myModeHorRB
QRadioButton *	myModeVerRB
QLineEdit *	myXMinEdit
QLineEdit *	myYMinEdit
QLineEdit *	myY2MinEdit
QLineEdit *	myXMaxEdit
QLineEdit *	myYMaxEdit
QLineEdit *	myY2MaxEdit
QPushButton *	myOkBtn
QPushButton *	myCancelBtn
bool	mySecondAxisY

Constructor & Destructor Documentation

Plot2d_FitDataDlg()

Plot2d_FitDataDlg::Plot2d_FitDataDlg	(	QWidget *	parent,
		bool	secondAxisY
	)

Constructor

References MARGIN_SIZE, MIN_EDIT_SIZE, myCancelBtn, myModeAllRB, myModeHorRB, myModeVerRB, myOkBtn, myRangeGrp, mySecondAxisY, myXMaxEdit, myXMinEdit, myY2MaxEdit, myY2MinEdit, myYMaxEdit, myYMinEdit, onModeChanged(), and SPACING_SIZE.

Member Function Documentation

getMode()

int Plot2d_FitDataDlg::getMode

(

)

Gets mode : 0 - Fit all; 1 - Fit horizontal, 2 - Fit vertical

References myModeAllRB, myModeHorRB, and myModeVerRB.

getRange()

int Plot2d_FitDataDlg::getRange	(	double &	xMin,
		double &	xMax,
		double &	yMin,
		double &	yMax,
		double &	y2Min,
		double &	y2Max
	)

Gets range, returns mode (see getMode())

References myModeAllRB, myModeHorRB, myModeVerRB, mySecondAxisY, myXMaxEdit, myXMinEdit, myY2MaxEdit, myY2MinEdit, myYMaxEdit, and myYMinEdit.

onModeChanged

void Plot2d_FitDataDlg::onModeChanged ( int  mode )

protectedslot

Called when range mode changed

References mySecondAxisY, myXMaxEdit, myXMinEdit, myY2MaxEdit, myY2MinEdit, myYMaxEdit, and myYMinEdit.

setRange()

void Plot2d_FitDataDlg::setRange	(	const double	xMin,
		const double	xMax,
		const double	yMin,
		const double	yMax,
		const double	y2Min = 0,
		const double	y2Max = 0
	)

Sets range

References mySecondAxisY, myXMaxEdit, myXMinEdit, myY2MaxEdit, myY2MinEdit, myYMaxEdit, and myYMinEdit.

Member Data Documentation

myCancelBtn

QPushButton* Plot2d_FitDataDlg::myCancelBtn

private

myModeAllRB

QRadioButton* Plot2d_FitDataDlg::myModeAllRB

private

myModeHorRB

QRadioButton* Plot2d_FitDataDlg::myModeHorRB

private

myModeVerRB

QRadioButton* Plot2d_FitDataDlg::myModeVerRB

private

myOkBtn

QPushButton* Plot2d_FitDataDlg::myOkBtn

private

myRangeGrp

QGroupBox* Plot2d_FitDataDlg::myRangeGrp

private

mySecondAxisY

bool Plot2d_FitDataDlg::mySecondAxisY

private

myXMaxEdit

QLineEdit* Plot2d_FitDataDlg::myXMaxEdit

private

myXMinEdit

QLineEdit* Plot2d_FitDataDlg::myXMinEdit

private

myY2MaxEdit

QLineEdit* Plot2d_FitDataDlg::myY2MaxEdit

private

myY2MinEdit

QLineEdit* Plot2d_FitDataDlg::myY2MinEdit

private

myYMaxEdit

QLineEdit* Plot2d_FitDataDlg::myYMaxEdit

private

myYMinEdit

QLineEdit* Plot2d_FitDataDlg::myYMinEdit

private

---

The documentation for this class was generated from the following files:

• src/Plot2d/Plot2d_FitDataDlg.h
• src/Plot2d/Plot2d_FitDataDlg.cxx
