QVTK_GenericRenderWindowInteractor Class Reference

#include <SVTK_GenericRenderWindowInteractor.h>

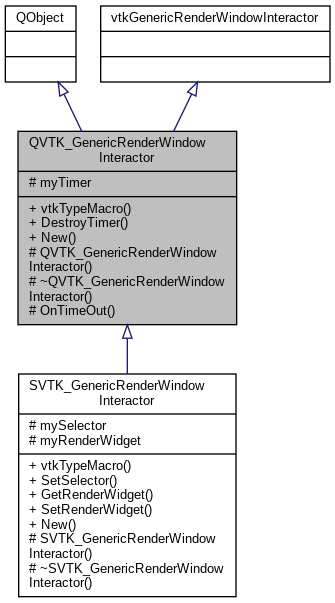

Inheritance diagram for QVTK_GenericRenderWindowInteractor:

Public Member Functions
	vtkTypeMacro (QVTK_GenericRenderWindowInteractor, vtkGenericRenderWindowInteractor) virtual int CreateTimer(int)
	Starts the QTimer instance on defined microseconds. More...
virtual int	DestroyTimer ()
	Stops the QTimer instance. More...

Static Public Member Functions
static QVTK_GenericRenderWindowInteractor *	New ()

Protected Slots
void	OnTimeOut ()
	The slot connects to QTimer::timeout signal to invoke vtkCommand::TimerEvent. More...

Protected Member Functions
	QVTK_GenericRenderWindowInteractor ()
	Instatiate QTimer. More...
	~QVTK_GenericRenderWindowInteractor ()
	Destroy the instance of QTimer. More...

Protected Attributes
QTimer *	myTimer
	Qt timer device. More...

Detailed Description

Introduction of the class is intended to implement Qt based #CreateTimer and DestroyTimer functionality. The class intendes to implement platform indepenedant subclass of vtkRenderWindowInteractor. This is done by usage of Qt library.

Note

The Signal/Slot mechanism used by Qt requires that QObject appear as the first class when using multiple inheritance. Hence the order of the two classes QObject and vtkRenderWindowInteractor matters here. So, be careful, not to change the sequence of the inheritance by accident.

Constructor & Destructor Documentation

QVTK_GenericRenderWindowInteractor()

QVTK_GenericRenderWindowInteractor::QVTK_GenericRenderWindowInteractor ( )

protected

Instatiate QTimer.

~QVTK_GenericRenderWindowInteractor()

QVTK_GenericRenderWindowInteractor::~QVTK_GenericRenderWindowInteractor ( )

protected

Destroy the instance of QTimer.

Destructor

Member Function Documentation

DestroyTimer()

int QVTK_GenericRenderWindowInteractor::DestroyTimer ( void  )

virtual

Stops the QTimer instance.

Stops the QTimer instance

New()

static QVTK_GenericRenderWindowInteractor* QVTK_GenericRenderWindowInteractor::New ( )

static

OnTimeOut

void QVTK_GenericRenderWindowInteractor::OnTimeOut ( )

protectedslot

The slot connects to QTimer::timeout signal to invoke vtkCommand::TimerEvent.

The slot connects to QTimer::timeout signal to invoke vtkCommand::TimerEvent

vtkTypeMacro()

QVTK_GenericRenderWindowInteractor::vtkTypeMacro	(	QVTK_GenericRenderWindowInteractor	,
		vtkGenericRenderWindowInteractor
	)

Starts the QTimer instance on defined microseconds.

Member Data Documentation

myTimer

QTimer* QVTK_GenericRenderWindowInteractor::myTimer

protected

Qt timer device.

---

The documentation for this class was generated from the following files:

• src/SVTK/SVTK_GenericRenderWindowInteractor.h
• src/SVTK/SVTK_GenericRenderWindowInteractor.cxx
