The QtxPathListEdit class represents a widget for files or directories paths list preference items editing. More...

#include <QtxPathListEdit.h>

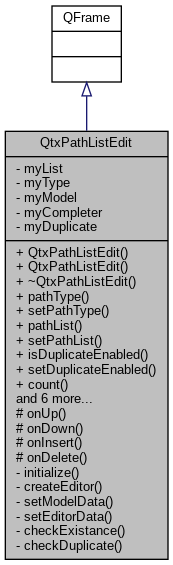

Inheritance diagram for QtxPathListEdit:

Classes
class	Delegate
	Custom item delegate for the paths list widget. More...

class	Editor
	Path editor widget. More...

Public Member Functions
	QtxPathListEdit (const Qtx::PathType, QWidget *=0)
	Constructor. More...

	QtxPathListEdit (QWidget *=0)
	Constructor. More...

virtual	~QtxPathListEdit ()
	Destructor. More...

Qtx::PathType	pathType () const
	Get widget mode. More...

void	setPathType (const Qtx::PathType)
	Set widget mode. More...

QStringList	pathList () const
	Get currently selected paths list. More...

void	setPathList (const QStringList &)
	Set paths list. More...

bool	isDuplicateEnabled () const
	Check if the duplication of paths is enabled. More...

void	setDuplicateEnabled (const bool)
	Enable/disable paths duplication. More...

int	count () const
	Get number of currently entered paths. More...

bool	contains (const QString &) const
	Check if the specified path already exists in the paths list. More...

void	clear ()
	Clear paths list. More...

void	remove (const int)
	Remove path from the paths list. More...

void	remove (const QString &)
	Remove path from the paths list. More...

void	insert (const QString &, const int=-1)
	Add path to the list of paths. More...

bool	eventFilter (QObject , QEvent )
	Customize child widget events processing. More...

Protected Slots
void	onUp (bool=false)
	Called when <Up> button is clicked. More...

void	onDown (bool=false)
	Called when <Down> button is clicked. More...

void	onInsert (bool=false)
	Called when <Insert> button is clicked. More...

void	onDelete (bool=false)
	Called when <Delete> button is clicked. More...

Private Member Functions
void	initialize ()
	Perform internal widget initialization. More...

QWidget *	createEditor (QWidget *)
	Create editor widget. More...

void	setModelData (QWidget *, const QModelIndex &)
	Set modified data from the editor to the list widget. More...

void	setEditorData (QWidget *, const QModelIndex &)
	Set data to the editor from the list widget when user starts path edition. More...

bool	checkExistance (const QString &, const bool=true)
	Check if path is correct (exists) and optionally show the question message box. More...

bool	checkDuplicate (const QString &, const int, const bool=true)
	Check if path already exists in the list and optionally show the warning message box. More...

Private Attributes
QListView *	myList

Qtx::PathType	myType

QStringListModel *	myModel

QCompleter *	myCompleter

bool	myDuplicate

Friends
class	QtxPathListEdit::Delegate

Detailed Description

The QtxPathListEdit class represents a widget for files or directories paths list preference items editing.

The path list preference item is represented as the list box widget. It provides such operations like adding new file/directory path to the list, removing selected paths and modifying of already entered ones.

The widget can be used in two modes: list of files or list of directories. The mode defines the type of the standard browse dialog box which is invoked on the browse button clicking.

Initial path list value can be set with setPathList() method. Chosen path list can be retrieved with the pathList() method. The widget mode can be set with setPathType() and retrieved with pathType() method.

In addition, it is possible to add path items to the list with the insert() method, remove items with the remove() methods, clear all the widget contents with the clear() method. To get the number of entered paths can be retrieved with the count() method. To check if any path already exists in the paths list, use contains() method.

Constructor & Destructor Documentation

◆ QtxPathListEdit() [1/2]

QtxPathListEdit::QtxPathListEdit	(	const Qtx::PathType	type,
		QWidget *	parent = `0`
	)

Constructor.

Parameters

type	widget mode (Qtx::PathType)
parent	parent widget

See also: pathType(), setPathType()

References initialize().

◆ QtxPathListEdit() [2/2]

QtxPathListEdit::QtxPathListEdit ( QWidget * parent = 0 )

Constructor.

Qtx::PT_OpenFile mode is used by default.

Parameters

parent parent widget

See also: pathType(), setPathType()

References initialize().

◆ ~QtxPathListEdit()

QtxPathListEdit::~QtxPathListEdit ( )

virtual

Destructor.

Member Function Documentation

◆ checkDuplicate()

bool QtxPathListEdit::checkDuplicate	(	const QString &	str,
		const int	row,
		const bool	msg = `true`
	)

private

Check if path already exists in the list and optionally show the warning message box.

Parameters

str	path to be checked
row	row corresponding to the path checked
msg	if `true` and path does not exist, warning message box is shown

Returns: true if the user confirms the path adding

References myModel.

◆ checkExistance()

bool QtxPathListEdit::checkExistance	(	const QString &	str,
		const bool	msg = `true`
	)

private

Check if path is correct (exists) and optionally show the question message box.

Parameters

str	path to be checked
msg	if `true` and path does not exist, question message box is shown

Returns: true if the user confirms the path adding

References Qtx::makeEnvVarSubst(), pathType(), Qtx::PT_Directory, Qtx::PT_OpenFile, and Qtx::PT_SaveFile.

◆ clear()

void QtxPathListEdit::clear ( )

Clear paths list.

References myModel.

◆ contains()

bool QtxPathListEdit::contains ( const QString & path ) const

Check if the specified path already exists in the paths list.

Parameters

path	path to be checked

Returns: true if the path is already selected by the user or false otherwise

References myModel.

◆ count()

int QtxPathListEdit::count ( ) const

Get number of currently entered paths.

Returns: current paths number

References myModel.

◆ createEditor()

QWidget * QtxPathListEdit::createEditor ( QWidget * parent )

private

Create editor widget.

Parameters

parent parent widget for the editor

Returns: created editor widget

References pathType(), and QtxPathEdit::setPathType().

◆ eventFilter()

bool QtxPathListEdit::eventFilter	(	QObject *	o,
		QEvent *	e
	)

Customize child widget events processing.

Parameters

o	event receiver object
e	event

Returns: true if the further event processing should be stopped.

References onDelete(), onDown(), onInsert(), and onUp().

◆ initialize()

void QtxPathListEdit::initialize ( )

private

Perform internal widget initialization.

References delete_icon, insert_icon, movedown_icon, moveup_icon, myList, myModel, onDelete(), onDown(), onInsert(), and onUp().

◆ insert()

void QtxPathListEdit::insert	(	const QString &	path,
		const int	idx = `-1`
	)

Add path to the list of paths.

If the specified index is out of range, the path is added to the end of the list.

Parameters

path	path to be added
idx	index in the list to which the path should be inserted.

References myModel.

◆ isDuplicateEnabled()

bool QtxPathListEdit::isDuplicateEnabled ( ) const

Check if the duplication of paths is enabled.

Returns: true if the duplication is enabled

References myDuplicate.

◆ onDelete

void QtxPathListEdit::onDelete ( bool = false )

protectedslot

Called when <Delete> button is clicked.

Removes currently selected path item.

Parameters

on	(not used)

References myList, and myModel.

◆ onDown

void QtxPathListEdit::onDown ( bool = false )

protectedslot

Called when <Down> button is clicked.

Move currently selected path item down to one row in the paths list.

Parameters

on	(not used)

References myList, and myModel.

◆ onInsert

void QtxPathListEdit::onInsert ( bool = false )

protectedslot

Called when <Insert> button is clicked.

Inserts new empty line to the list and sets input focus to it.

Parameters

on	(not used)

References myList, and myModel.

◆ onUp

void QtxPathListEdit::onUp ( bool = false )

protectedslot

Called when <Up> button is clicked.

Move currently selected path item up to one row in the paths list.

Parameters

on	(not used)

References myList, and myModel.

◆ pathList()

QStringList QtxPathListEdit::pathList ( ) const

Get currently selected paths list.

Returns: files or directories paths list entered by the user

See also: setPathList()

References myModel.

◆ pathType()

Qtx::PathType QtxPathListEdit::pathType ( ) const

Get widget mode.

Returns: currently used widget mode (Qtx::PathType)

See also: setPathType()

References myType.

◆ remove() [1/2]

void QtxPathListEdit::remove ( const int idx )

Remove path from the paths list.

Parameters

idx	path index in the list

References myModel.

◆ remove() [2/2]

void QtxPathListEdit::remove ( const QString & path )

Remove path from the paths list.

Parameters

path	path to be removed

References myModel.

◆ setDuplicateEnabled()

void QtxPathListEdit::setDuplicateEnabled ( const bool on )

Enable/disable paths duplication.

Parameters

on	new flag value

References myDuplicate.

◆ setEditorData()

void QtxPathListEdit::setEditorData	(	QWidget *	editor,
		const QModelIndex &	index
	)

private

Set data to the editor from the list widget when user starts path edition.

Parameters

editor	editor widget
index	data model index

References myModel, and QtxPathEdit::setPath().

◆ setModelData()

void QtxPathListEdit::setModelData	(	QWidget *	editor,
		const QModelIndex &	index
	)

private

Set modified data from the editor to the list widget.

Parameters

editor	editor widget
index	data model index

References checkDuplicate(), checkExistance(), isDuplicateEnabled(), myModel, and QtxPathEdit::path().

◆ setPathList()

void QtxPathListEdit::setPathList ( const QStringList & lst )

Set paths list.

Parameters

lst	files or directories paths list

See also: pathList()

References myModel.

◆ setPathType()

void QtxPathListEdit::setPathType ( const Qtx::PathType t )

Set widget mode.

Parameters

t	new widget mode (Qtx::PathType)

See also: pathType()

References myCompleter, and myType.

Friends And Related Function Documentation

◆ QtxPathListEdit::Delegate

friend class QtxPathListEdit::Delegate

friend

Member Data Documentation

◆ myCompleter

QCompleter* QtxPathListEdit::myCompleter

private

◆ myDuplicate

bool QtxPathListEdit::myDuplicate

private

◆ myList

QListView* QtxPathListEdit::myList

private

◆ myModel

QStringListModel* QtxPathListEdit::myModel

private

◆ myType

Qtx::PathType QtxPathListEdit::myType

private

The documentation for this class was generated from the following files:

src/Qtx/QtxPathListEdit.h
src/Qtx/QtxPathListEdit.cxx
