A QTreeView class based searcher. More...

#include <QtxSearchTool.h>

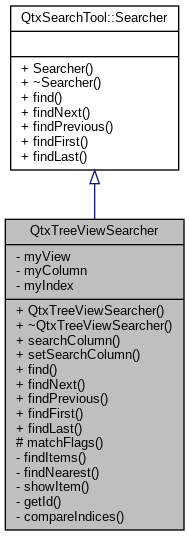

Inheritance diagram for QtxTreeViewSearcher:

Public Member Functions
	QtxTreeViewSearcher (QTreeView *, int=0)
	Constructor. More...

virtual	~QtxTreeViewSearcher ()
	Destructor. More...

int	searchColumn () const
	Get column for which search is performed. More...

void	setSearchColumn (int)
	Set column for which search should be performed. More...

virtual bool	find (const QString &, QtxSearchTool *)
	Start new search. More...

virtual bool	findNext (const QString &, QtxSearchTool *)
	Search next appropriate item. More...

virtual bool	findPrevious (const QString &, QtxSearchTool *)
	Search previous appropriate item. More...

virtual bool	findFirst (const QString &, QtxSearchTool *)
	Search first appropriate item. More...

virtual bool	findLast (const QString &, QtxSearchTool *)
	Search last appropriate item. More...

Public Member Functions inherited from QtxSearchTool::Searcher
	Searcher ()
	Constructor. More...

virtual	~Searcher ()
	Destructor. More...

Protected Member Functions
virtual Qt::MatchFlags	matchFlags (QtxSearchTool *) const
	Get match flags to be used by the searcher. More...

Private Member Functions
QModelIndexList	findItems (const QString &, QtxSearchTool *)
	Find all appropriate items. More...

QModelIndex	findNearest (const QModelIndex &, const QModelIndexList &, bool)
	Find model index from the list nearest to the specified index. More...

void	showItem (const QModelIndex &)
	Ensure the found item to become visible and selected. More...

QString	getId (const QModelIndex &)
	Get unique item ID. More...

int	compareIndices (const QModelIndex &, const QModelIndex &)
	Compare items. More...

Private Attributes
QTreeView *	myView

int	myColumn

QPersistentModelIndex	myIndex

Detailed Description

A QTreeView class based searcher.

The class QtxTreeViewSearcher can be used to find the items in the QTreeView widget.

The column for which data should be searched can be get/set with the searchColumn(), setSearchColumn() methods. By default, column 0 is used.

Constructor & Destructor Documentation

◆ QtxTreeViewSearcher()

QtxTreeViewSearcher::QtxTreeViewSearcher	(	QTreeView *	view,
		int	col = `0`
	)

Constructor.

Parameters

view	tree view widget
col	column for which search to be performed (0 by default)

See also: setSearchColumn()

◆ ~QtxTreeViewSearcher()

QtxTreeViewSearcher::~QtxTreeViewSearcher ( )

virtual

Destructor.

Member Function Documentation

◆ compareIndices()

int QtxTreeViewSearcher::compareIndices	(	const QModelIndex &	left,
		const QModelIndex &	right
	)

private

Compare items.

Parameters

left	first model index to be compared
right	last model index to be compared

Returns: 0 if items are equal, negative value if left item is less than right one and positive value otherwise

References getId().

◆ find()

bool QtxTreeViewSearcher::find	(	const QString &	text,
		QtxSearchTool *	st
	)

virtual

Start new search.

Parameters

text	text to be found
st	search tool widget

See also: findNext(), findPrevious(), findFirst(), findLast()

Implements QtxSearchTool::Searcher.

References findItems(), findNearest(), QtxSearchTool::isSearchWrapped(), myView, and showItem().

◆ findFirst()

bool QtxTreeViewSearcher::findFirst	(	const QString &	text,
		QtxSearchTool *	st
	)

virtual

Search first appropriate item.

Parameters

text	text to be found
st	search tool widget

See also: find(), findNext(), findPrevious(), findLast()

Implements QtxSearchTool::Searcher.

References findItems(), and showItem().

◆ findItems()

QModelIndexList QtxTreeViewSearcher::findItems	(	const QString &	text,
		QtxSearchTool *	st
	)

private

Find all appropriate items.

Parameters

text	text to be found
st	search tool widget

References matchFlags(), myColumn, and myView.

◆ findLast()

bool QtxTreeViewSearcher::findLast	(	const QString &	text,
		QtxSearchTool *	st
	)

virtual

Search last appropriate item.

Parameters

text	text to be found
st	search tool widget

See also: find(), findNext(), findPrevious(), findFirst()

Implements QtxSearchTool::Searcher.

References findItems(), and showItem().

◆ findNearest()

QModelIndex QtxTreeViewSearcher::findNearest	(	const QModelIndex &	index,
		const QModelIndexList &	lst,
		bool	direction
	)

private

Find model index from the list nearest to the specified index.

Parameters

index	model index for which a nearest item is searched
lst	list of model indices
direction	if `true` find next appropriate item, otherwise find privious appropriate item

References compareIndices().

◆ findNext()

bool QtxTreeViewSearcher::findNext	(	const QString &	text,
		QtxSearchTool *	st
	)

virtual

Search next appropriate item.

Parameters

text	text to be found
st	search tool widget

See also: find(), findPrevious(), findFirst(), findLast()

Implements QtxSearchTool::Searcher.

References findItems(), findNearest(), QtxSearchTool::isSearchWrapped(), myIndex, myView, and showItem().

◆ findPrevious()

bool QtxTreeViewSearcher::findPrevious	(	const QString &	text,
		QtxSearchTool *	st
	)

virtual

Search previous appropriate item.

Parameters

text	text to be found
st	search tool widget

See also: find(), findNext(), findFirst(), findLast()

Implements QtxSearchTool::Searcher.

References findItems(), findNearest(), QtxSearchTool::isSearchWrapped(), myIndex, myView, and showItem().

◆ getId()

QString QtxTreeViewSearcher::getId ( const QModelIndex & index )

private

Get unique item ID.

Parameters

index model index

Returns: item ID

◆ matchFlags()

Qt::MatchFlags QtxTreeViewSearcher::matchFlags ( QtxSearchTool * st ) const

protectedvirtual

Get match flags to be used by the searcher.

Parameters

st	search tool widget

References QtxSearchTool::isCaseSensitive(), and QtxSearchTool::isRegExpSearch().

◆ searchColumn()

int QtxTreeViewSearcher::searchColumn ( ) const

Get column for which search is performed.

Returns: column number

See also: setSearchColumn()

References myColumn.

◆ setSearchColumn()

void QtxTreeViewSearcher::setSearchColumn ( int column )

Set column for which search should be performed.

Parameters

column column number

See also: searchColumn()

References myColumn.

◆ showItem()

void QtxTreeViewSearcher::showItem ( const QModelIndex & index )

private

Ensure the found item to become visible and selected.

Parameters

index item to be shown

References myIndex, and myView.

Member Data Documentation

◆ myColumn

int QtxTreeViewSearcher::myColumn

private

◆ myIndex

QPersistentModelIndex QtxTreeViewSearcher::myIndex

private

◆ myView

QTreeView* QtxTreeViewSearcher::myView

private

The documentation for this class was generated from the following files:

src/Qtx/QtxSearchTool.h
src/Qtx/QtxSearchTool.cxx
