QtxWorkstackTabBar Class Reference

Workstack tab bar widget. More...

#include <QtxWorkstack.h>

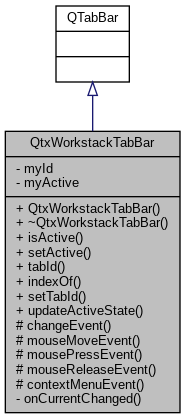

Inheritance diagram for QtxWorkstackTabBar:

Signals
void	dragActiveTab ()
	Emitted when dragging operation is started. More...
void	contextMenuRequested (QPoint)
	Emitted when context popup menu is requested. More...

Public Member Functions
	QtxWorkstackTabBar (QWidget *=0)
	Constructor. More...
virtual	~QtxWorkstackTabBar ()
	Destructor. More...
bool	isActive () const
	Check if the tab bar is active. More...
void	setActive (const bool)
	Set tab bar active/inactive. More...
int	tabId (const int) const
	Get tab page identifier. More...
int	indexOf (const int) const
	Get tab page index by specified identifier. More...
void	setTabId (const int, const int)
	Set tab page identifier. More...
void	updateActiveState ()
	Update tab bar according to the 'active' state. More...

Protected Member Functions
virtual void	changeEvent (QEvent *)
	Process widget change state events (style, palette, enable state changing, etc). More...
virtual void	mouseMoveEvent (QMouseEvent *)
	Customize mouse move event handler. More...
virtual void	mousePressEvent (QMouseEvent *)
	Customize mouse press event handler. More...
virtual void	mouseReleaseEvent (QMouseEvent *)
	Customize mouse release event handler. More...
virtual void	contextMenuEvent (QContextMenuEvent *)
	Customize context menu event handler. More...

Private Slots
void	onCurrentChanged (int)
	Called when current tab page is changed. More...

Private Attributes
int	myId
	current tab page index More...
bool	myActive
	"active" status More...

Detailed Description

Workstack tab bar widget.

Constructor & Destructor Documentation

QtxWorkstackTabBar()

QtxWorkstackTabBar::QtxWorkstackTabBar

(

QWidget *

parent = 0

)

Constructor.

Parameters

parent

parent widget

References onCurrentChanged().

~QtxWorkstackTabBar()

QtxWorkstackTabBar::~QtxWorkstackTabBar ( )

virtual

Destructor.

Member Function Documentation

changeEvent()

void QtxWorkstackTabBar::changeEvent ( QEvent *  )

protectedvirtual

Process widget change state events (style, palette, enable state changing, etc).

Parameters

e	change event (not used)

References updateActiveState().

contextMenuEvent()

void QtxWorkstackTabBar::contextMenuEvent ( QContextMenuEvent *  e )

protectedvirtual

Customize context menu event handler.

Parameters

e	context menu event

References contextMenuRequested().

contextMenuRequested

void QtxWorkstackTabBar::contextMenuRequested ( QPoint  p )

signal

Emitted when context popup menu is requested.

Parameters

p	point popup menu to be shown at

dragActiveTab

void QtxWorkstackTabBar::dragActiveTab ( )

signal

Emitted when dragging operation is started.

indexOf()

int QtxWorkstackTabBar::indexOf

(

const int

id

)

const

Get tab page index by specified identifier.

Parameters

id	tab page ID

Returns

tab page index or -1 if not found

References tabId().

isActive()

bool QtxWorkstackTabBar::isActive

(

)

const

Check if the tab bar is active.

Returns

true if tab bar is active

References myActive.

mouseMoveEvent()

void QtxWorkstackTabBar::mouseMoveEvent ( QMouseEvent *  e )

protectedvirtual

Customize mouse move event handler.

Parameters

e	mouse event

References dragActiveTab(), indexOf(), and myId.

mousePressEvent()

void QtxWorkstackTabBar::mousePressEvent ( QMouseEvent *  e )

protectedvirtual

Customize mouse press event handler.

Parameters

e	mouse event

References myId, and tabId().

mouseReleaseEvent()

void QtxWorkstackTabBar::mouseReleaseEvent ( QMouseEvent *  e )

protectedvirtual

Customize mouse release event handler.

Parameters

e	mouse event

References contextMenuRequested(), and myId.

onCurrentChanged

void QtxWorkstackTabBar::onCurrentChanged ( int  )

privateslot

Called when current tab page is changed.

Parameters

idx	tab page index (not used)

References updateActiveState().

setActive()

void QtxWorkstackTabBar::setActive

(

const bool

on

)

Set tab bar active/inactive.

Parameters

on	new active state

References myActive, and updateActiveState().

setTabId()

void QtxWorkstackTabBar::setTabId	(	const int	index,
		const int	id
	)

Set tab page identifier.

Parameters

index	tab page index
id	tab page ID

tabId()

int QtxWorkstackTabBar::tabId

(

const int

index

)

const

Get tab page identifier.

Parameters

index

tab page index

Returns

tab page ID or -1 if index is out of range

updateActiveState()

void QtxWorkstackTabBar::updateActiveState

(

)

Update tab bar according to the 'active' state.

References isActive().

Member Data Documentation

myActive

bool QtxWorkstackTabBar::myActive

private

"active" status

myId

int QtxWorkstackTabBar::myId

private

current tab page index

---

The documentation for this class was generated from the following files:

• src/Qtx/QtxWorkstack.h
• src/Qtx/QtxWorkstack.cxx
