QxScene_Viewer Class Reference

#include <QxScene_ViewModel.h>

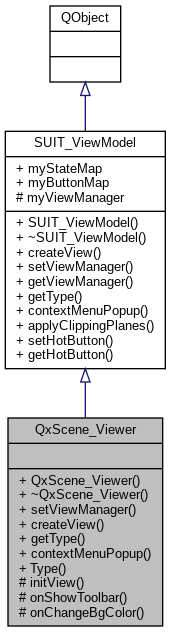

Inheritance diagram for QxScene_Viewer:

Public Member Functions
	QxScene_Viewer ()
virtual	~QxScene_Viewer ()
virtual void	setViewManager (SUIT_ViewManager *)
virtual SUIT_ViewWindow *	createView (SUIT_Desktop *theDesktop)
virtual QString	getType () const
virtual void	contextMenuPopup (QMenu *)
Public Member Functions inherited from SUIT_ViewModel
	SUIT_ViewModel ()
virtual	~SUIT_ViewModel ()
SUIT_ViewManager *	getViewManager () const
virtual void	applyClippingPlanes (bool theUpdateHatch)

Static Public Member Functions
static QString	Type ()
Static Public Member Functions inherited from SUIT_ViewModel
static void	setHotButton (InteractionStyle theInteractionStyle, HotOperation theOper, Qt::KeyboardModifiers theState, Qt::MouseButtons theButton)
static void	getHotButton (InteractionStyle theInteractionStyle, HotOperation theOper, Qt::KeyboardModifiers &theState, Qt::MouseButtons &theButton)

Protected Slots
void	onShowToolbar ()
void	onChangeBgColor ()

Protected Member Functions
void	initView (QxScene_ViewWindow *view)

Additional Inherited Members
Public Types inherited from SUIT_ViewModel
enum	HotOperation { PAN , ZOOM , ROTATE , FIT_AREA }
enum	InteractionStyle { STANDARD , KEY_FREE }
typedef QMap< HotOperation, Qt::KeyboardModifiers >	StatesMap
typedef QMap< HotOperation, Qt::MouseButtons >	ButtonsMap
typedef QMap< InteractionStyle, StatesMap >	InteractionStyle2StatesMap
typedef QMap< InteractionStyle, ButtonsMap >	InteractionStyle2ButtonsMap
Static Public Attributes inherited from SUIT_ViewModel
static InteractionStyle2StatesMap	myStateMap
static InteractionStyle2ButtonsMap	myButtonMap
Protected Attributes inherited from SUIT_ViewModel
SUIT_ViewManager *	myViewManager

Constructor & Destructor Documentation

QxScene_Viewer()

QxScene_Viewer::QxScene_Viewer

(

)

Constructor

References DEBTRACE.

~QxScene_Viewer()

QxScene_Viewer::~QxScene_Viewer ( )

virtual

Destructor

References DEBTRACE.

Member Function Documentation

contextMenuPopup()

void QxScene_Viewer::contextMenuPopup ( QMenu *  )

virtual

Builds popup for QxScene viewer

Reimplemented from SUIT_ViewModel.

References DEBTRACE.

createView()

SUIT_ViewWindow * QxScene_Viewer::createView ( SUIT_Desktop *  theDesktop )

virtual

Creates new view window

Parameters

theDesktop

- main window of application

Reimplemented from SUIT_ViewModel.

References DEBTRACE, and initView().

getType()

virtual QString QxScene_Viewer::getType ( ) const

inlinevirtual

Reimplemented from SUIT_ViewModel.

initView()

void QxScene_Viewer::initView ( QxScene_ViewWindow *  view )

protected

Start initialization of view window

Parameters

view	- view window to be initialized

References DEBTRACE, and QxScene_ViewWindow::initLayout().

onChangeBgColor

void QxScene_Viewer::onChangeBgColor ( )

protectedslot

SLOT: called if background color is to be changed changed, passes new color to current canvas view

References QxScene_ViewWindow::backgroundColor(), SUIT_ViewManager::getActiveView(), SUIT_ViewModel::myViewManager, and QxScene_ViewWindow::setBackgroundColor().

onShowToolbar

void QxScene_Viewer::onShowToolbar ( )

protectedslot

SLOT: called when popup item "Show toolbar" is activated, shows toolbar of active view window

References SUIT_ViewManager::getActiveView(), QxScene_ViewWindow::getToolBar(), and SUIT_ViewModel::myViewManager.

setViewManager()

void QxScene_Viewer::setViewManager ( SUIT_ViewManager *  theViewManager )

virtual

Set view manager.

Parameters

theViewManager

view manager

Reimplemented from SUIT_ViewModel.

References DEBTRACE, and SUIT_ViewModel::setViewManager().

Type()

static QString QxScene_Viewer::Type ( )

inlinestatic

---

The documentation for this class was generated from the following files:

• src/QxScene/QxScene_ViewModel.h
• src/QxScene/QxScene_ViewModel.cxx
