SALOME_Selection Class Reference

The class represents selection which can be used in Python. More...

#include <SalomePyQt.h>

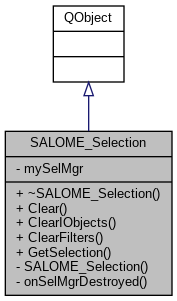

Inheritance diagram for SALOME_Selection:

Signals
void	currentSelectionChanged ()

Public Member Functions
	~SALOME_Selection ()
	Destructor. More...
void	Clear ()
	Clear the selection. More...
void	ClearIObjects ()
	Clear the selection. More...
void	ClearFilters ()

Static Public Member Functions
static SALOME_Selection *	GetSelection (LightApp_Application *)
	Get the selection object for the specified application. More...

Private Slots
void	onSelMgrDestroyed ()
	Called when selection manager is destroyed (usually when the study is closed). More...

Private Member Functions
	SALOME_Selection (QObject *)
	Constructor. More...

Private Attributes
LightApp_SelectionMgr *	mySelMgr

Detailed Description

The class represents selection which can be used in Python.

Constructor & Destructor Documentation

~SALOME_Selection()

SALOME_Selection::~SALOME_Selection

(

)

Destructor.

SALOME_Selection()

SALOME_Selection::SALOME_Selection ( QObject *  p )

private

Constructor.

Parameters

p	parent object

References currentSelectionChanged(), mySelMgr, onSelMgrDestroyed(), and LightApp_Application::selectionMgr().

Member Function Documentation

Clear()

void SALOME_Selection::Clear

(

)

Clear the selection.

References SUIT_SelectionMgr::clearSelected(), mySelMgr, and ProcessVoidEvent().

ClearFilters()

void SALOME_Selection::ClearFilters

(

)

Removes all selection filters.

References SUIT_SelectionMgr::clearFilters(), mySelMgr, and ProcessVoidEvent().

ClearIObjects()

void SALOME_Selection::ClearIObjects

(

)

Clear the selection.

References Clear().

currentSelectionChanged

void SALOME_Selection::currentSelectionChanged ( )

signal

GetSelection()

SALOME_Selection * SALOME_Selection::GetSelection ( LightApp_Application *  app )

static

Get the selection object for the specified application.

Finds or creates the selection object (one per study).

Parameters

app	application object

Returns

selection object or 0 if app is invalid

References SALOME_Selection().

onSelMgrDestroyed

void SALOME_Selection::onSelMgrDestroyed ( )

privateslot

Called when selection manager is destroyed (usually when the study is closed).

References mySelMgr.

Member Data Documentation

mySelMgr

LightApp_SelectionMgr* SALOME_Selection::mySelMgr

private

---

The documentation for this class was generated from the following files:

• src/SALOME_PYQT/SalomePyQt/SalomePyQt.h
• src/SALOME_PYQT/SalomePyQt/SalomePyQt.cxx
