SUIT_DataObject::Signal Class Reference

Watcher class, responsible for the emitting signals on behalf of the data objects. More...

#include <SUIT_DataObject.h>

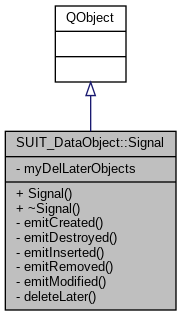

Inheritance diagram for SUIT_DataObject::Signal:

Signals
void	created (SUIT_DataObject *)
	Emitted when data object is created. More...
void	destroyed (SUIT_DataObject *)
	Emitted when data object is destroyed. More...
void	inserted (SUIT_DataObject *, SUIT_DataObject *)
	Emitted when data object is inserted to the parent data object. More...
void	removed (SUIT_DataObject *, SUIT_DataObject *)
	Emitted when data object is removed from the parent data object. More...
void	modified (SUIT_DataObject *)

Public Member Functions
	Signal ()
	Constructor. More...
virtual	~Signal ()
	Destructor. More...

Private Member Functions
void	emitCreated (SUIT_DataObject *)
	Emit signal about data object creation. More...
void	emitDestroyed (SUIT_DataObject *)
	Emit signal about data object destroying. More...
void	emitInserted (SUIT_DataObject *, SUIT_DataObject *)
	Emit signal about data object adding to the parent data object. More...
void	emitRemoved (SUIT_DataObject *, SUIT_DataObject *)
	Emit signal about data object removed from the parent data object. More...
void	emitModified (SUIT_DataObject *)
	Emit a signal to notify that the data object has been modified. More...
void	deleteLater (SUIT_DataObject *)
	Schedule data object for the late deleting. More...

Private Attributes
DataObjectList	myDelLaterObjects

Friends
class	SUIT_DataObject

Detailed Description

Watcher class, responsible for the emitting signals on behalf of the data objects.

SUIT_DataObject class does not inherit from QObject for the performance reasons, so it can not use signals/slots mechanism directly. Instead it uses the only Signal object to emit the signals when the data object is created, destroyed, inserted to the parent object or removed from it.

If some object needs to handle, for example, data object destroying, it can use SUIT_DataObject::signal() method to connect the signal:

MyHandler* h = new MyHandler();
h->connect( SUIT_DataObject::signal(), SIGNAL(destroyed(SUIT_DataObject*)),
            h, SLOT(onDestroyed(SUIT_DataObject*)) );

The same can be done by using static method SUIT_DataObject::connect(). For example,

MyHandler* h = new MyHandler();
SUIT_DataObject::connect( SIGNAL(destroyed(SUIT_DataObject*)),
                          h, SLOT(onDestroyed(SUIT_DataObject*)));

Constructor & Destructor Documentation

Signal()

SUIT_DataObject::Signal::Signal

(

)

Constructor.

~Signal()

SUIT_DataObject::Signal::~Signal ( )

virtual

Destructor.

Destroys data object which are scheduled for the deleting with the deleteLater().

Member Function Documentation

created

void SUIT_DataObject::Signal::created ( SUIT_DataObject *  object )

signal

Emitted when data object is created.

Parameters

object

data object being created

deleteLater()

void SUIT_DataObject::Signal::deleteLater ( SUIT_DataObject *  object )

private

Schedule data object for the late deleting.

Parameters

object

data object to be deleted later

destroyed

void SUIT_DataObject::Signal::destroyed ( SUIT_DataObject *  object )

signal

Emitted when data object is destroyed.

Parameters

object

data object being destroyed

emitCreated()

void SUIT_DataObject::Signal::emitCreated ( SUIT_DataObject *  object )

private

Emit signal about data object creation.

Parameters

object

data object being created

emitDestroyed()

void SUIT_DataObject::Signal::emitDestroyed ( SUIT_DataObject *  object )

private

Emit signal about data object destroying.

Parameters

object

data object being destroyed

emitInserted()

void SUIT_DataObject::Signal::emitInserted ( SUIT_DataObject *  object, SUIT_DataObject *  parent  )

private

Emit signal about data object adding to the parent data object.

Parameters

object	data object being added
parent	parent data object

References SUIT_DataObject::parent().

emitModified()

void SUIT_DataObject::Signal::emitModified ( SUIT_DataObject *  object )

private

Emit a signal to notify that the data object has been modified.

Parameters

object

data object that has been modified

References SUIT_DataObject::modified().

emitRemoved()

void SUIT_DataObject::Signal::emitRemoved ( SUIT_DataObject *  object, SUIT_DataObject *  parent  )

private

Emit signal about data object removed from the parent data object.

Parameters

object	data object being removed
parent	parent data object

References SUIT_DataObject::parent().

inserted

void SUIT_DataObject::Signal::inserted ( SUIT_DataObject *  object, SUIT_DataObject *  parent  )

signal

Emitted when data object is inserted to the parent data object.

Parameters

object	data object being created
parent	parent data object

modified

void SUIT_DataObject::Signal::modified ( SUIT_DataObject *  )

signal

removed

void SUIT_DataObject::Signal::removed ( SUIT_DataObject *  object, SUIT_DataObject *  parent  )

signal

Emitted when data object is removed from the parent data object.

Parameters

object	data object being removed
parent	parent data object

Friends And Related Function Documentation

SUIT_DataObject

friend class SUIT_DataObject

friend

Member Data Documentation

myDelLaterObjects

DataObjectList SUIT_DataObject::Signal::myDelLaterObjects

private

---

The documentation for this class was generated from the following files:

• src/SUIT/SUIT_DataObject.h
• src/SUIT/SUIT_DataObject.cxx
