SVTK_Prs Class Reference

#include <SVTK_Prs.h>

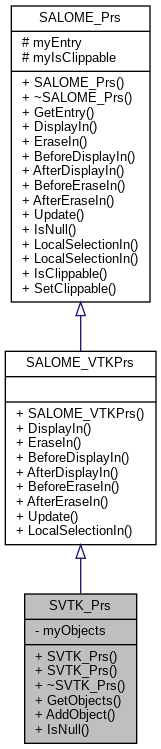

Inheritance diagram for SVTK_Prs:

Public Member Functions
	SVTK_Prs (const char *entry)
	SVTK_Prs (const char *entry, const vtkActor *obj)
	~SVTK_Prs ()
vtkActorCollection *	GetObjects () const
void	AddObject (const vtkActor *obj)
bool	IsNull () const
Public Member Functions inherited from SALOME_VTKPrs
	SALOME_VTKPrs (const char *e)
	Constructor. More...
virtual void	DisplayIn (SALOME_View *) const
	It uses double dispatch in order to invoke Display() method corresponding to the actual type of presentation. More...
virtual void	EraseIn (SALOME_View *, const bool=false) const
	It uses double dispatch in order to invoke Erase() method corresponding to the actual type of presentation. More...
virtual void	BeforeDisplayIn (SALOME_Displayer *, SALOME_View *) const
	It uses double dispatch in order to invoke BeforeDisplayIn() method corresponding to the actual type of presentation. More...
virtual void	AfterDisplayIn (SALOME_Displayer *, SALOME_View *) const
	It uses double dispatch in order to invoke AfterDisplayIn() method corresponding to the actual type of presentation. More...
virtual void	BeforeEraseIn (SALOME_Displayer *, SALOME_View *) const
	It uses double dispatch in order to invoke BeforeEraseIn() method corresponding to the actual type of presentation. More...
virtual void	AfterEraseIn (SALOME_Displayer *, SALOME_View *) const
	It uses double dispatch in order to invoke AfterEraseIn() method corresponding to the actual type of presentation. More...
virtual void	Update (SALOME_Displayer *)
	It uses double dispatch in order to invoke Update() method corresponding to the actual type of presentation. More...
virtual void	LocalSelectionIn (SALOME_View *, const int) const
	Key method for double dispatch of activation of sub-shapes selection. More...
Public Member Functions inherited from SALOME_Prs
	SALOME_Prs (const char *)
	Constructor. More...
virtual	~SALOME_Prs ()
	Destructor. More...
const char *	GetEntry () const
	Get entry. More...
virtual void	DisplayIn (SALOME_View *) const =0
	Key method for double dispatch of display operation. More...
virtual void	EraseIn (SALOME_View *, const bool=false) const =0
	Key method for double dispatch of erase operation. More...
virtual void	BeforeDisplayIn (SALOME_Displayer *, SALOME_View *) const =0
	Key method for double dispatch of pre-display operation. More...
virtual void	AfterDisplayIn (SALOME_Displayer *, SALOME_View *) const =0
	Key method for double dispatch of post-display operation. More...
virtual void	BeforeEraseIn (SALOME_Displayer *, SALOME_View *) const =0
	Key method for double dispatch of pre-erase operation. More...
virtual void	AfterEraseIn (SALOME_Displayer *, SALOME_View *) const =0
	Key method for double dispatch of post-erase operation. More...
virtual void	Update (SALOME_Displayer *)=0
	Key method for double dispatch of update operation. More...
virtual bool	IsNull () const =0
	Should return true, if this presentation contains a graphic object. More...
virtual void	LocalSelectionIn (SALOME_View *, const int) const =0
	Key method for double dispatch of activation of sub-shapes selection. More...
virtual void	LocalSelectionIn (SALOME_View *, const std::list< int >) const
bool	IsClippable () const
void	SetClippable (bool isClippable)

Private Attributes
vtkActorCollection *	myObjects

Additional Inherited Members
Protected Attributes inherited from SALOME_Prs
std::string	myEntry
bool	myIsClippable

Constructor & Destructor Documentation

SVTK_Prs() [1/2]

SVTK_Prs::SVTK_Prs ( const char *  entry )

explicit

Default constructor

SVTK_Prs() [2/2]

SVTK_Prs::SVTK_Prs	(	const char *	entry,
		const vtkActor *	obj
	)

Standard constructor

References AddObject().

~SVTK_Prs()

SVTK_Prs::~SVTK_Prs

(

)

Destructor

References myObjects.

Member Function Documentation

AddObject()

void SVTK_Prs::AddObject

(

const vtkActor *

obj

)

Add actor

References myObjects.

GetObjects()

vtkActorCollection * SVTK_Prs::GetObjects

(

)

const

Returns

actors list

References myObjects.

IsNull()

bool SVTK_Prs::IsNull ( ) const

virtual

Returns

0 if list of the actors is empty [ Reimplemented from SALOME_Prs ]

Implements SALOME_Prs.

References myObjects.

Member Data Documentation

myObjects

vtkActorCollection* SVTK_Prs::myObjects

private

---

The documentation for this class was generated from the following files:

• src/SVTK/SVTK_Prs.h
• src/SVTK/SVTK_Prs.cxx
