dsccalcium.PyDSCComponent Class Reference

The SALOME base class for all DSC components implemented in python (interface Engines::Superv_Component). More...

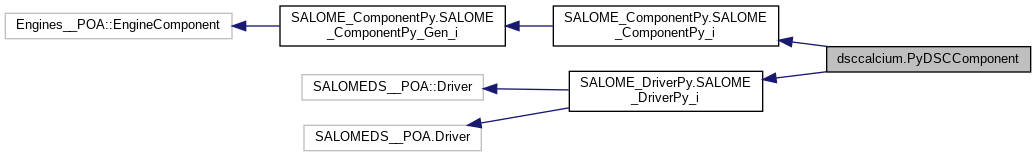

Inheritance diagram for dsccalcium.PyDSCComponent:

Public Member Functions
def	__init__ (self, orb, poa, contID, containerName, instanceName, interfaceName)
def	init_service (self, service)
def	get_provides_port (self, name, error)
def	connect_uses_port (self, name, port)
def	connect_provides_port (self, name)
def	disconnect_provides_port (self, name, message)
def	disconnect_uses_port (self, name, port, message)
def	get_port_properties (self, name)
def	setInputFileToService (self, service_name, Salome_file_name)
def	checkInputFilesToService (self, service_name)
def	getInputFileToService (self, service_name, Salome_file_name)
def	setOutputFileToService (self, service_name, Salome_file_name)
def	getOutputFileToService (self, service_name, Salome_file_name)
def	checkOutputFilesToService (self, service_name)
def	beginService (self, service_name)

Data Fields
	proxy

Static Public Attributes
dictionary	enums

Detailed Description

The SALOME base class for all DSC components implemented in python (interface Engines::Superv_Component).

   A Python DSC component is implemented by a Python class that has
   the name of the component and is located in a python module that has the
   name of the component.

   You must derive it and implement init_service and those methods
   that are services of the component.

Constructor & Destructor Documentation

__init__()

def dsccalcium.PyDSCComponent.__init__	(		self,
			orb,
			poa,
			contID,
			containerName,
			instanceName,
			interfaceName
	)

Reimplemented from SALOME_DriverPy.SALOME_DriverPy_i.

References SALOME_DriverPy.SALOME_DriverPy_i.__init__(), and SALOME_ComponentPy.SALOME_ComponentPy_i.__init__().

Member Function Documentation

beginService()

def dsccalcium.PyDSCComponent.beginService	(		self,
			service_name
	)

Reimplemented from SALOME_ComponentPy.SALOME_ComponentPy_Gen_i.

References dsccalcium.PyDSCComponent.proxy, and Parallel_Salome_file_i.proxy.

checkInputFilesToService()

def dsccalcium.PyDSCComponent.checkInputFilesToService	(		self,
			service_name
	)

References dsccalcium.PyDSCComponent.checkInputFilesToService(), dsccalcium.PyDSCComponent.proxy, and Parallel_Salome_file_i.proxy.

Referenced by dsccalcium.PyDSCComponent.checkInputFilesToService().

checkOutputFilesToService()

def dsccalcium.PyDSCComponent.checkOutputFilesToService	(		self,
			service_name
	)

References dsccalcium.PyDSCComponent.checkOutputFilesToService(), dsccalcium.PyDSCComponent.proxy, and Parallel_Salome_file_i.proxy.

Referenced by dsccalcium.PyDSCComponent.checkOutputFilesToService().

connect_provides_port()

def dsccalcium.PyDSCComponent.connect_provides_port	(		self,
			name
	)

References dsccalcium.PyDSCComponent.connect_provides_port(), dsccalcium.PyDSCComponent.proxy, and Parallel_Salome_file_i.proxy.

Referenced by dsccalcium.PyDSCComponent.connect_provides_port().

connect_uses_port()

def dsccalcium.PyDSCComponent.connect_uses_port	(		self,
			name,
			port
	)

References dsccalcium.PyDSCComponent.connect_uses_port(), dsccalcium.PyDSCComponent.proxy, and Parallel_Salome_file_i.proxy.

Referenced by dsccalcium.PyDSCComponent.connect_uses_port().

disconnect_provides_port()

def dsccalcium.PyDSCComponent.disconnect_provides_port	(		self,
			name,
			message
	)

References dsccalcium.PyDSCComponent.disconnect_provides_port(), dsccalcium.PyDSCComponent.proxy, and Parallel_Salome_file_i.proxy.

Referenced by dsccalcium.PyDSCComponent.disconnect_provides_port().

disconnect_uses_port()

def dsccalcium.PyDSCComponent.disconnect_uses_port	(		self,
			name,
			port,
			message
	)

References dsccalcium.PyDSCComponent.disconnect_uses_port(), dsccalcium.PyDSCComponent.proxy, and Parallel_Salome_file_i.proxy.

Referenced by dsccalcium.PyDSCComponent.disconnect_uses_port().

get_port_properties()

def dsccalcium.PyDSCComponent.get_port_properties	(		self,
			name
	)

References dsccalcium.PyDSCComponent.get_port_properties(), dsccalcium.PyDSCComponent.proxy, and Parallel_Salome_file_i.proxy.

Referenced by dsccalcium.PyDSCComponent.get_port_properties().

get_provides_port()

def dsccalcium.PyDSCComponent.get_provides_port	(		self,
			name,
			error
	)

References dsccalcium.PyDSCComponent.get_provides_port(), dsccalcium.PyDSCComponent.proxy, and Parallel_Salome_file_i.proxy.

Referenced by dsccalcium.PyDSCComponent.get_provides_port().

getInputFileToService()

def dsccalcium.PyDSCComponent.getInputFileToService	(		self,
			service_name,
			Salome_file_name
	)

References dsccalcium.PyDSCComponent.getInputFileToService(), dsccalcium.PyDSCComponent.proxy, and Parallel_Salome_file_i.proxy.

Referenced by dsccalcium.PyDSCComponent.getInputFileToService().

getOutputFileToService()

def dsccalcium.PyDSCComponent.getOutputFileToService	(		self,
			service_name,
			Salome_file_name
	)

References dsccalcium.PyDSCComponent.getOutputFileToService(), dsccalcium.PyDSCComponent.proxy, and Parallel_Salome_file_i.proxy.

Referenced by dsccalcium.PyDSCComponent.getOutputFileToService().

init_service()

def dsccalcium.PyDSCComponent.init_service	(		self,
			service
	)

setInputFileToService()

def dsccalcium.PyDSCComponent.setInputFileToService	(		self,
			service_name,
			Salome_file_name
	)

References dsccalcium.PyDSCComponent.proxy, Parallel_Salome_file_i.proxy, and dsccalcium.PyDSCComponent.setInputFileToService().

Referenced by dsccalcium.PyDSCComponent.setInputFileToService().

setOutputFileToService()

def dsccalcium.PyDSCComponent.setOutputFileToService	(		self,
			service_name,
			Salome_file_name
	)

References dsccalcium.PyDSCComponent.proxy, Parallel_Salome_file_i.proxy, and dsccalcium.PyDSCComponent.setOutputFileToService().

Referenced by dsccalcium.PyDSCComponent.setOutputFileToService().

Field Documentation

enums

dictionary dsccalcium.PyDSCComponent.enums

static

Initial value:

= {Engines.DSC.RemovingConnection:calcium.DSC.RemovingConnection,
         Engines.DSC.AddingConnection:calcium.DSC.AddingConnection,
         Engines.DSC.ApplicationError:calcium.DSC.ApplicationError,
        }

proxy

dsccalcium.PyDSCComponent.proxy

Referenced by dsccalcium.PyDSCComponent.beginService(), dsccalcium.PyDSCComponent.checkInputFilesToService(), dsccalcium.PyDSCComponent.checkOutputFilesToService(), dsccalcium.PyDSCComponent.connect_provides_port(), dsccalcium.PyDSCComponent.connect_uses_port(), dsccalcium.PyDSCComponent.disconnect_provides_port(), dsccalcium.PyDSCComponent.disconnect_uses_port(), dsccalcium.PyDSCComponent.get_port_properties(), dsccalcium.PyDSCComponent.get_provides_port(), dsccalcium.PyDSCComponent.getInputFileToService(), dsccalcium.PyDSCComponent.getOutputFileToService(), dsccalcium.PyDSCComponent.setInputFileToService(), and dsccalcium.PyDSCComponent.setOutputFileToService().
