#include "StdMeshers_AutomaticLength.hxx"
#include "SMESH_Mesh.hxx"
#include "SMESHDS_Mesh.hxx"
#include "SMESH_Algo.hxx"
#include "SMESHDS_SubMesh.hxx"
#include "utilities.h"
#include <TopTools_IndexedMapOfShape.hxx>
#include <TopExp.hxx>
#include <TopoDS.hxx>
#include <TopoDS_Edge.hxx>

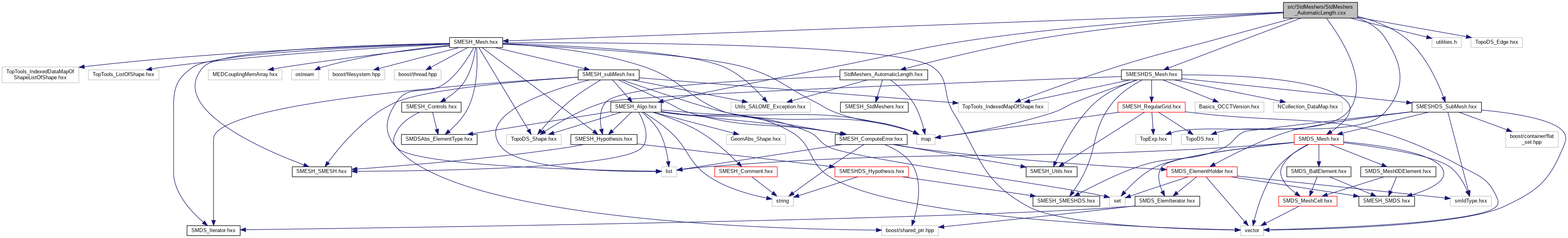

Include dependency graph for StdMeshers_AutomaticLength.cxx:

Functions
ostream &	operator<< (ostream &save, StdMeshers_AutomaticLength &hyp)

istream &	operator>> (istream &load, StdMeshers_AutomaticLength &hyp)

Variables
const double	theCoarseConst = 0.5
	Set Fineness. More...

const double	theFineConst = 4.5

Function Documentation

◆ operator<<()

ostream& operator<<	(	std::ostream &	save,
		StdMeshers_AutomaticLength &	hyp
	)

◆ operator>>()

istream& operator>>	(	std::istream &	load,
		StdMeshers_AutomaticLength &	hyp
	)

Variable Documentation

◆ theCoarseConst

const double theCoarseConst = 0.5

Set Fineness.

Parameters

theFineness - The Fineness value [0.0-1.0], 0 - coarse mesh 1 - fine mesh

Raise if theFineness is out of range The "Initial Number of Elements on the Shortest Edge" (S0) is divided by (0.5 + 4.5 x theFineness)

Referenced by StdMeshers_AutomaticLength::GetLength(), and StdMeshers_AutomaticLength::SetParametersByMesh().

◆ theFineConst

const double theFineConst = 4.5
