GEOMImpl_ITestOperations Class Reference

#include <GEOMImpl_ITestOperations.hxx>

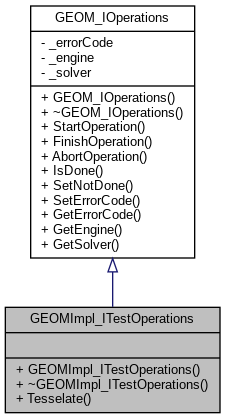

Inheritance diagram for GEOMImpl_ITestOperations:

Public Member Functions
Standard_EXPORT	GEOMImpl_ITestOperations (GEOM_Engine *theEngine)
Standard_EXPORT	~GEOMImpl_ITestOperations ()
Standard_EXPORT bool	Tesselate (Handle(GEOM_Object) theShape, double theLinearDeflection, bool theIsRelative, double theAngularDeflection)
	Build a mesh on (a copy of ) the given shape. More...
Public Member Functions inherited from GEOM_IOperations
Standard_EXPORT	GEOM_IOperations (GEOM_Engine *theEngine)
Standard_EXPORT	~GEOM_IOperations ()
Standard_EXPORT void	StartOperation ()
Standard_EXPORT void	FinishOperation ()
Standard_EXPORT void	AbortOperation ()
Standard_EXPORT bool	IsDone ()
Standard_EXPORT void	SetNotDone ()
Standard_EXPORT void	SetErrorCode (const TCollection_AsciiString &theErrorCode)
Standard_EXPORT char *	GetErrorCode ()
Standard_EXPORT GEOM_Engine *	GetEngine ()
Standard_EXPORT GEOM_Solver *	GetSolver ()

Constructor & Destructor Documentation

GEOMImpl_ITestOperations()

GEOMImpl_ITestOperations::GEOMImpl_ITestOperations

(

GEOM_Engine *

theEngine

)

constructor:

~GEOMImpl_ITestOperations()

GEOMImpl_ITestOperations::~GEOMImpl_ITestOperations

(

)

destructor

Member Function Documentation

Tesselate()

bool GEOMImpl_ITestOperations::Tesselate	(	Handle(GEOM_Object)	theShape,
		double	theLinearDeflection,
		bool	theIsRelative,
		double	theAngularDeflection
	)

This test function is aimed for checking performance of OCCT tesselation algorithm on particlar geometrical shapes.

Parameters

theShape	is a source object
theLinearDeflection	is a value of deflection coefficient
theIsRelative	says if given value of deflection is relative to shape's bounding box
theAngularDeflection	is a angular deflection for edges in radians

Returns

true in case of success; otherwise false.

References KO, GEOMUtils::MeshShape(), OK, and GEOM_IOperations::SetErrorCode().

---

The documentation for this class was generated from the following files:

• src/GEOMImpl/GEOMImpl_ITestOperations.hxx
• src/GEOMImpl/GEOMImpl_ITestOperations.cxx
