GEOM_Engine Class Reference

#include <GEOM_Engine.hxx>

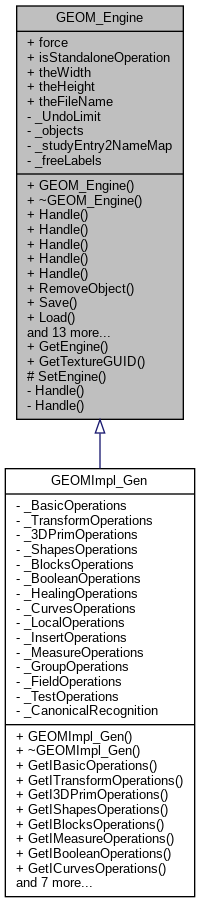

Inheritance diagram for GEOM_Engine:

Public Member Functions
Standard_EXPORT	GEOM_Engine ()
virtual Standard_EXPORT	~GEOM_Engine ()
Standard_EXPORT	Handle (TDocStd_Document) GetDocument(bool force
Standard_EXPORT	Handle (TDocStd_Application) GetApplication()
Standard_EXPORT	Handle (GEOM_BaseObject) GetObject(const char *theEntry
Standard_EXPORT	Handle (GEOM_BaseObject) AddBaseObject(int theType)
Standard_EXPORT	Handle (GEOM_Object) AddObject(int theType)
Standard_EXPORT bool	RemoveObject (Handle(GEOM_BaseObject)&theObject)
Standard_EXPORT bool	Save (const char *theFileName)
Standard_EXPORT bool	Load (const char *theFileName)
Standard_EXPORT void	Close ()
Standard_EXPORT void	SetUndoLimit (int theLimit)
Standard_EXPORT void	Undo ()
Standard_EXPORT void	Redo ()
Standard_EXPORT	Handle (GEOM_Object) AddSubShape(Handle(GEOM_Object) theMainShape
Standard_EXPORT	Handle (TColStd_HArray1OfInteger) theIndices
Standard_EXPORT TCollection_AsciiString	DumpPython (std::vector< TObjectData > &theObjectData, TVariablesList theVariables, bool isPublished, bool isMultiFile, bool &aValidScript)
Standard_EXPORT const char *	GetDumpName (const char *theStudyEntry) const
Standard_EXPORT	Handle (TColStd_HSequenceOfAsciiString) GetAllDumpNames() const
Standard_EXPORT int	addTexture (int theWidth, int theHeight, const Handle(TColStd_HArray1OfByte)&theTexture, const TCollection_AsciiString &theFileName="")
Standard_EXPORT	Handle (TColStd_HArray1OfByte) getTexture(int theTextureID
Standard_EXPORT std::list< int >	getAllTextures ()
Standard_EXPORT void	healPyName (TCollection_AsciiString &pyName, const TCollection_AsciiString &anEntry, Resource_DataMapOfAsciiStringAsciiString &aNameToEntry)
	Fix up the name of python variable. More...

Static Public Member Functions
static Standard_EXPORT GEOM_Engine *	GetEngine ()
static const Standard_GUID &	GetTextureGUID ()

Public Attributes
Standard_EXPORT bool	force =true)
Standard_EXPORT bool	isStandaloneOperation = false)
Standard_EXPORT int &	theWidth
Standard_EXPORT int int &	theHeight
Standard_EXPORT int int TCollection_AsciiString &	theFileName

Static Protected Member Functions
static Standard_EXPORT void	SetEngine (GEOM_Engine *theEngine)

Private Member Functions
	Handle (GEOM_Application) _OCAFApp
	Handle (TDocStd_Document) _document

Private Attributes
int	_UndoLimit
GEOM_DataMapOfAsciiStringTransient	_objects
Resource_DataMapOfAsciiStringAsciiString	_studyEntry2NameMap
std::list< TDF_Label >	_freeLabels

Constructor & Destructor Documentation

GEOM_Engine()

GEOM_Engine::GEOM_Engine

(

)

Constructor

References _UndoLimit.

~GEOM_Engine()

GEOM_Engine::~GEOM_Engine ( )

virtual

Destructor

References _objects, Close(), Handle(), and RemoveObject().

Member Function Documentation

addTexture()

Standard_EXPORT int GEOM_Engine::addTexture	(	int	theWidth,
		int	theHeight,
		const Handle(TColStd_HArray1OfByte)&	theTexture,
		const TCollection_AsciiString &	theFileName = ""
	)

Close()

void GEOM_Engine::Close

(

)

Close

References _freeLabels, and _objects.

DumpPython()

TCollection_AsciiString GEOM_Engine::DumpPython	(	std::vector< TObjectData > &	theObjectData,
		TVariablesList	theVariables,
		bool	isPublished,
		bool	isMultiFile,
		bool &	aValidScript
	)

DumpPython

References TObjectData::_entry, TObjectData::_pyName, TObjectData::_studyEntry, _studyEntry2NameMap, TObjectData::_unpublished, AddObjectColors(), AddTextures(), FillMapOfRef(), GetPublishCommands(), Handle(), Prettify(), ProcessFunction(), PublishObject(), and ReplaceEntriesByNames().

getAllTextures()

std::list< int > GEOM_Engine::getAllTextures

(

)

References GetTextureGUID(), Handle(), and TEXTURE_LABEL_ID.

GetDumpName()

const char * GEOM_Engine::GetDumpName

(

const char *

theStudyEntry

)

const

References _studyEntry2NameMap.

GetEngine()

GEOM_Engine * GEOM_Engine::GetEngine ( )

static

GetEngine

References TheEngine.

GetTextureGUID()

const Standard_GUID & GEOM_Engine::GetTextureGUID ( )

static

Handle() [1/11]

GEOM_Engine::Handle ( GEOM_Application  )

private

Handle() [2/11]

Standard_EXPORT GEOM_Engine::Handle

(

GEOM_BaseObject

)

Handle() [3/11]

Standard_EXPORT GEOM_Engine::Handle

(

GEOM_BaseObject

)

const

Handle() [4/11]

Standard_EXPORT GEOM_Engine::Handle

(

GEOM_Object

)

Handle() [5/11]

Standard_EXPORT GEOM_Engine::Handle

(

GEOM_Object

)

Handle() [6/11]

Standard_EXPORT GEOM_Engine::Handle

(

TColStd_HArray1OfByte

)

Handle() [7/11]

Standard_EXPORT GEOM_Engine::Handle

(

TColStd_HArray1OfInteger

)

Handle() [8/11]

Standard_EXPORT GEOM_Engine::Handle

(

TColStd_HSequenceOfAsciiString

)

const

Handle() [9/11]

Standard_EXPORT GEOM_Engine::Handle ( TDocStd_Application  )

inline

Handle() [10/11]

GEOM_Engine::Handle ( TDocStd_Document  )

private

Handle() [11/11]

Standard_EXPORT GEOM_Engine::Handle

(

TDocStd_Document

)

healPyName()

void GEOM_Engine::healPyName	(	TCollection_AsciiString &	pyName,
		const TCollection_AsciiString &	anEntry,
		Resource_DataMapOfAsciiStringAsciiString &	aNameToEntry
	)

Load()

bool GEOM_Engine::Load

(

const char *

theFileName

)

Load

References _UndoLimit, Handle(), and theFileName.

Redo()

void GEOM_Engine::Redo

(

)

Redo

RemoveObject()

bool GEOM_Engine::RemoveObject

(

Handle(GEOM_BaseObject)&

theObject

)

RemoveObject

References _freeLabels, _objects, BuildIDFromObject(), and Handle().

Save()

bool GEOM_Engine::Save

(

const char *

theFileName

)

Save

References theFileName.

SetEngine()

void GEOM_Engine::SetEngine ( GEOM_Engine *  theEngine )

staticprotected

SetEngine

References TheEngine.

SetUndoLimit()

Standard_EXPORT void GEOM_Engine::SetUndoLimit ( int  theLimit )

inline

References _UndoLimit.

Undo()

void GEOM_Engine::Undo

(

)

Undo

Member Data Documentation

_freeLabels

std::list<TDF_Label> GEOM_Engine::_freeLabels

private

_objects

GEOM_DataMapOfAsciiStringTransient GEOM_Engine::_objects

private

_studyEntry2NameMap

Resource_DataMapOfAsciiStringAsciiString GEOM_Engine::_studyEntry2NameMap

private

_UndoLimit

int GEOM_Engine::_UndoLimit

private

force

Standard_EXPORT bool GEOM_Engine::force =true)

isStandaloneOperation

Standard_EXPORT bool GEOM_Engine::isStandaloneOperation = false)

theFileName

Standard_EXPORT int int TCollection_AsciiString& GEOM_Engine::theFileName

theHeight

Standard_EXPORT int int& GEOM_Engine::theHeight

theWidth

Standard_EXPORT int& GEOM_Engine::theWidth

---

The documentation for this class was generated from the following files:

• src/GEOM/GEOM_Engine.hxx
• src/GEOM/GEOM_Engine.cxx
