LightApp_OBSelector Class Reference

Object browser selection handler class. More...

#include <LightApp_OBSelector.h>

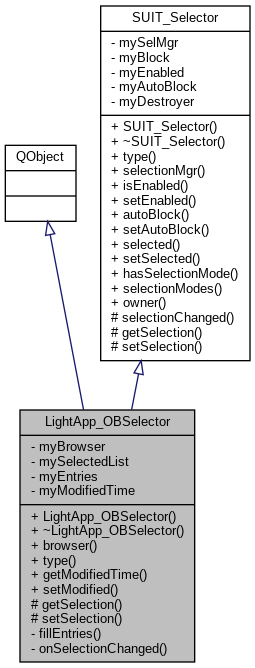

Inheritance diagram for LightApp_OBSelector:

Public Member Functions
	LightApp_OBSelector (SUIT_DataBrowser *, SUIT_SelectionMgr *)
	Constructor. More...
virtual	~LightApp_OBSelector ()
	Destructor. More...
SUIT_DataBrowser *	browser () const
	Get object browser. More...
virtual QString	type () const
	Get selector type. More...
unsigned long	getModifiedTime () const
	Get the time of the last selection changing. More...
void	setModified ()
	Update the time of the latest selection changing. More...
Public Member Functions inherited from SUIT_Selector
	SUIT_Selector (SUIT_SelectionMgr *, QObject *=0)
virtual	~SUIT_Selector ()
SUIT_SelectionMgr *	selectionMgr () const
bool	isEnabled () const
virtual void	setEnabled (const bool)
bool	autoBlock () const
virtual void	setAutoBlock (const bool)
void	selected (SUIT_DataOwnerPtrList &) const
void	setSelected (const SUIT_DataOwnerPtrList &)
bool	hasSelectionMode (const int) const
void	selectionModes (QList< int > &) const
QObject *	owner () const

Protected Member Functions
virtual void	getSelection (SUIT_DataOwnerPtrList &) const
	Get list of currently selected objects. More...
virtual void	setSelection (const SUIT_DataOwnerPtrList &)
	Set selection. More...
Protected Member Functions inherited from SUIT_Selector
void	selectionChanged ()

Private Slots
void	onSelectionChanged ()
	Called when the Object browser selection is changed. More...

Private Member Functions
void	fillEntries (QMap< QString, LightApp_DataObject * > &)
	Fill map of the data objects currently shown in the Object Browser. More...

Private Attributes
SUIT_DataBrowser *	myBrowser
SUIT_DataOwnerPtrList	mySelectedList
QMap< QString, LightApp_DataObject * >	myEntries
unsigned long	myModifiedTime

Detailed Description

Object browser selection handler class.

Constructor & Destructor Documentation

LightApp_OBSelector()

LightApp_OBSelector::LightApp_OBSelector	(	SUIT_DataBrowser *	ob,
		SUIT_SelectionMgr *	mgr
	)

Constructor.

Parameters

ob	object browser
mgr	selection manager

References myBrowser, onSelectionChanged(), SUIT_Selector::selectionChanged(), and setModified().

~LightApp_OBSelector()

LightApp_OBSelector::~LightApp_OBSelector ( )

virtual

Destructor.

Member Function Documentation

browser()

SUIT_DataBrowser * LightApp_OBSelector::browser

(

)

const

Get object browser.

Returns

a pointer to the object browser

References myBrowser.

fillEntries()

void LightApp_OBSelector::fillEntries ( QMap< QString, LightApp_DataObject * > &  entries )

private

Fill map of the data objects currently shown in the Object Browser.

Parameters

entries

map to be filled

References SUIT_DataObjectIterator::current(), SUIT_DataObjectIterator::DepthLeft, LightApp_DataObject::entry(), myBrowser, SUIT_DataBrowser::root(), and setModified().

getModifiedTime()

unsigned long LightApp_OBSelector::getModifiedTime

(

)

const

Get the time of the last selection changing.

Returns

latest selection changing time

References myModifiedTime.

getSelection()

void LightApp_OBSelector::getSelection ( SUIT_DataOwnerPtrList &  theList ) const

protectedvirtual

Get list of currently selected objects.

Parameters

theList

list to be filled with the selected objects owners

Implements SUIT_Selector.

References SUIT_Session::activeApplication(), SUIT_DataOwnerPtrList::append(), LightApp_Application::checkDataObject(), LightApp_DataObject::componentDataType(), LightApp_DataObject::entry(), SUIT_DataBrowser::getSelected(), Handle(), myBrowser, mySelectedList, SUIT_DataObject::name(), SUIT_Selector::owner(), and SUIT_Session::session().

onSelectionChanged

void LightApp_OBSelector::onSelectionChanged ( )

privateslot

Called when the Object browser selection is changed.

References SUIT_DataOwnerPtrList::clear(), mySelectedList, and SUIT_Selector::selectionChanged().

setModified()

void LightApp_OBSelector::setModified

(

)

Update the time of the latest selection changing.

References myModifiedTime.

setSelection()

void LightApp_OBSelector::setSelection ( const SUIT_DataOwnerPtrList &  theList )

protectedvirtual

Set selection.

Parameters

theList

list of the object owners to be set selected

Implements SUIT_Selector.

References SUIT_DataOwnerPtrList::clear(), fillEntries(), getModifiedTime(), myBrowser, myEntries, mySelectedList, SUIT_Selector::owner(), and SUIT_DataBrowser::setSelected().

type()

QString LightApp_OBSelector::type ( ) const

virtual

Get selector type.

Returns

selector type

Implements SUIT_Selector.

Member Data Documentation

myBrowser

SUIT_DataBrowser* LightApp_OBSelector::myBrowser

private

myEntries

QMap<QString, LightApp_DataObject*> LightApp_OBSelector::myEntries

private

myModifiedTime

unsigned long LightApp_OBSelector::myModifiedTime

private

mySelectedList

SUIT_DataOwnerPtrList LightApp_OBSelector::mySelectedList

private

---

The documentation for this class was generated from the following files:

• src/LightApp/LightApp_OBSelector.h
• src/LightApp/LightApp_OBSelector.cxx
