Plot2d_AnalyticalCurveDlg Class Reference

#include <Plot2d_AnalyticalCurveDlg.h>

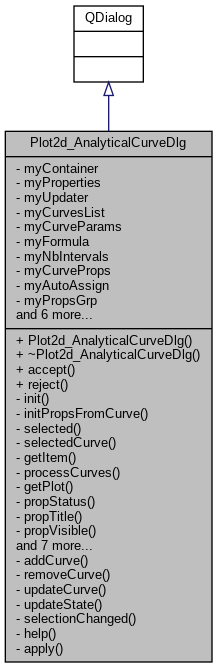

Inheritance diagram for Plot2d_AnalyticalCurveDlg:

Classes
class	UpdateLocker
class	Updater

Public Member Functions
	Plot2d_AnalyticalCurveDlg (Plot2d_CurveContainer *, QWidget *)
	~Plot2d_AnalyticalCurveDlg ()
void	accept ()
	Private slot. Called when "Ok" button is clicked. More...
void	reject ()
	Private slot. Called when "Close" button is clicked. More...

Private Types
enum	{ ItemExisting , ItemAdded , ItemRemoved }
typedef QMap< QString, QVariant >	CurveProps
typedef QMap< Plot2d_AnalyticalCurve *, CurveProps >	PropMap

Private Slots
void	addCurve ()
	Private slot. Called when "Add curve" button is clicked. More...
void	removeCurve ()
	Private slot. Called when "Remove curve" button is clicked. More...
void	updateCurve ()
	Private slot. Called when any curve property is changed. More...
void	updateState ()
	Private slot. Update widgets state. More...
void	selectionChanged ()
	Private slot. Called when selection in the curve list is changed. More...
void	help ()
	Show help page. More...
void	apply ()
	Private slot. Called when "Apply" button is clicked. More...

Private Member Functions
void	init ()
void	initPropsFromCurve (Plot2d_AnalyticalCurve *)
QListWidgetItem *	selected () const
	Get currently selected list widget item. More...
Plot2d_AnalyticalCurve *	selectedCurve () const
	Get currently selected curve. More...
QListWidgetItem *	getItem (Plot2d_AnalyticalCurve *) const
	Get widget item by the curve. More...
bool	processCurves ()
QwtPlot *	getPlot ()
int	propStatus (Plot2d_AnalyticalCurve *=0, const int def=ItemExisting)
	Get curve property: status. More...
QString	propTitle (Plot2d_AnalyticalCurve *=0, const QString &def="")
	Get curve property: title. More...
bool	propVisible (Plot2d_AnalyticalCurve *=0, bool def=true)
	Get curve property: visible flag. More...
QString	propFormula (Plot2d_AnalyticalCurve *=0, const QString &def="")
	Get curve property: formula. More...
int	propIntervals (Plot2d_AnalyticalCurve *=0, int def=100)
	Get curve property: nb intervals. More...
Plot2d::MarkerType	propMarkerType (Plot2d_AnalyticalCurve *=0, Plot2d::MarkerType def=Plot2d::None)
	Get curve property: marker type. More...
Plot2d::LineType	propLineType (Plot2d_AnalyticalCurve *=0, Plot2d::LineType def=Plot2d::NoPen)
	Get curve property: line type. More...
int	propLineWidth (Plot2d_AnalyticalCurve *=0, int def=0)
	Get curve property: line width. More...
QColor	propColor (Plot2d_AnalyticalCurve *=0, const QColor &def=QColor())
	Get curve property: color. More...
bool	propAutoAssign (Plot2d_AnalyticalCurve *=0, bool def=true)
	Get curve property: auto-assign flag. More...

Private Attributes
Plot2d_CurveContainer *	myContainer
PropMap	myProperties
Updater *	myUpdater
QListWidget *	myCurvesList
QGroupBox *	myCurveParams
QLineEdit *	myFormula
QtxIntSpinBox *	myNbIntervals
QGroupBox *	myCurveProps
QCheckBox *	myAutoAssign
QWidget *	myPropsGrp
QComboBox *	myMarkerType
QComboBox *	myLineType
QtxIntSpinBox *	myLineWidth
QtxColorButton *	myColor
QPushButton *	myAddButton
QPushButton *	myRemoveButton

Member Typedef Documentation

CurveProps

typedef QMap<QString, QVariant> Plot2d_AnalyticalCurveDlg::CurveProps

private

PropMap

typedef QMap<Plot2d_AnalyticalCurve*, CurveProps> Plot2d_AnalyticalCurveDlg::PropMap

private

Member Enumeration Documentation

anonymous enum

anonymous enum

private

Enumerator
ItemExisting
ItemAdded
ItemRemoved

Constructor & Destructor Documentation

Plot2d_AnalyticalCurveDlg()

Plot2d_AnalyticalCurveDlg::Plot2d_AnalyticalCurveDlg	(	Plot2d_CurveContainer *	container,
		QWidget *	parent
	)

Constructor

References accept(), addCurve(), apply(), Plot2d::Circle, Plot2d::Cross, Plot2d::Dash, Plot2d::DashDot, Plot2d::DashDotDot, Plot2d::Diamond, Plot2d::Dot, Plot2d::DTriangle, help(), init(), Plot2d::lineIcon(), Plot2d::LTriangle, Plot2d::markerIcon(), MAX_LINE_WIDTH, MAX_NB_INTERVALS, MIN_LINE_WIDTH, MIN_NB_INTERVALS, myAddButton, myAutoAssign, myColor, myCurveParams, myCurveProps, myCurvesList, myFormula, myLineType, myLineWidth, myMarkerType, myNbIntervals, myPropsGrp, myRemoveButton, myUpdater, Plot2d::None, Plot2d::NoPen, Plot2d::Rectangle, reject(), removeCurve(), Plot2d::RTriangle, selectionChanged(), Plot2d::Solid, STEP, updateCurve(), Plot2d::UTriangle, and Plot2d::XCross.

~Plot2d_AnalyticalCurveDlg()

Plot2d_AnalyticalCurveDlg::~Plot2d_AnalyticalCurveDlg

(

)

Destructor

Member Function Documentation

accept()

void Plot2d_AnalyticalCurveDlg::accept

(

)

Private slot. Called when "Ok" button is clicked.

References processCurves().

addCurve

void Plot2d_AnalyticalCurveDlg::addCurve ( )

privateslot

Private slot. Called when "Add curve" button is clicked.

References Plot2d_AnalyticalCurve::autoFill(), Plot2d_AnalyticalCurve::getName(), getPlot(), Plot2d_AnalyticalCurve::isAutoAssign(), ItemAdded, myCurvesList, myProperties, and PROP_STATUS.

apply

void Plot2d_AnalyticalCurveDlg::apply ( )

privateslot

Private slot. Called when "Apply" button is clicked.

References Plot2d_CurveContainer::getAnalyticalCurves(), initPropsFromCurve(), myContainer, processCurves(), selectionChanged(), and Plot2d_ViewFrame::updateAnalyticalCurves().

getItem()

QListWidgetItem * Plot2d_AnalyticalCurveDlg::getItem ( Plot2d_AnalyticalCurve *  theCurve ) const

private

Get widget item by the curve.

References myCurvesList.

getPlot()

QwtPlot * Plot2d_AnalyticalCurveDlg::getPlot ( )

private

References Plot2d_ViewFrame::getPlot(), and myContainer.

help

void Plot2d_AnalyticalCurveDlg::help ( )

privateslot

Show help page.

References SUIT_Session::activeApplication(), SUIT_Application::onHelpContextModule(), and SUIT_Session::session().

init()

void Plot2d_AnalyticalCurveDlg::init ( )

private

References Plot2d_CurveContainer::getAnalyticalCurves(), Plot2d_AnalyticalCurve::getName(), initPropsFromCurve(), Plot2d_AnalyticalCurve::isActive(), myContainer, myCurvesList, and selectionChanged().

initPropsFromCurve()

void Plot2d_AnalyticalCurveDlg::initPropsFromCurve ( Plot2d_AnalyticalCurve *  curve )

private

/brief Store curve properties in the local map.

References Plot2d_AnalyticalCurve::getColor(), Plot2d_AnalyticalCurve::getExpression(), Plot2d_AnalyticalCurve::getLine(), Plot2d_AnalyticalCurve::getLineWidth(), Plot2d_AnalyticalCurve::getMarker(), Plot2d_AnalyticalCurve::getName(), Plot2d_AnalyticalCurve::getNbIntervals(), Plot2d_AnalyticalCurve::isActive(), Plot2d_AnalyticalCurve::isAutoAssign(), ItemExisting, myProperties, PROP_AUTOASSIGN, PROP_COLOR, PROP_FORMULA, PROP_LINETYPE, PROP_LINEWIDTH, PROP_MARKERTYPE, PROP_NBINTERVALS, PROP_STATUS, PROP_TITLE, and PROP_VISIBLE.

processCurves()

bool Plot2d_AnalyticalCurveDlg::processCurves ( )

private

/brief Store local copy on the curves properties into curves.

References Plot2d_CurveContainer::addAnalyticalCurve(), Plot2d_AnalyticalCurve::autoFill(), Plot2d_AnalyticalCurve::checkCurve(), SUIT_MessageBox::critical(), getItem(), getPlot(), Plot2d_AnalyticalCurve::isAutoAssign(), ItemAdded, ItemExisting, ItemRemoved, myContainer, myCurvesList, myProperties, PROP_STATUS, propAutoAssign(), propColor(), propFormula(), propIntervals(), propLineType(), propLineWidth(), propMarkerType(), propStatus(), propTitle(), propVisible(), Plot2d_CurveContainer::removeAnalyticalCurve(), Plot2d_AnalyticalCurve::setActive(), Plot2d_AnalyticalCurve::setAutoAssign(), Plot2d_AnalyticalCurve::setColor(), Plot2d_AnalyticalCurve::setExpression(), Plot2d_AnalyticalCurve::setLine(), Plot2d_AnalyticalCurve::setLineWidth(), Plot2d_AnalyticalCurve::setMarker(), Plot2d_AnalyticalCurve::setName(), and Plot2d_AnalyticalCurve::setNbIntervals().

propAutoAssign()

bool Plot2d_AnalyticalCurveDlg::propAutoAssign ( Plot2d_AnalyticalCurve *  curve = 0, bool  def = true  )

private

Get curve property: auto-assign flag.

References myProperties, and PROP_AUTOASSIGN.

propColor()

QColor Plot2d_AnalyticalCurveDlg::propColor ( Plot2d_AnalyticalCurve *  curve = 0, const QColor &  def = QColor()  )

private

Get curve property: color.

References myProperties, and PROP_COLOR.

propFormula()

QString Plot2d_AnalyticalCurveDlg::propFormula ( Plot2d_AnalyticalCurve *  curve = 0, const QString &  def = ""  )

private

Get curve property: formula.

References myProperties, and PROP_FORMULA.

propIntervals()

int Plot2d_AnalyticalCurveDlg::propIntervals ( Plot2d_AnalyticalCurve *  curve = 0, int  def = 100  )

private

Get curve property: nb intervals.

References myProperties, and PROP_NBINTERVALS.

propLineType()

Plot2d::LineType Plot2d_AnalyticalCurveDlg::propLineType ( Plot2d_AnalyticalCurve *  curve = 0, Plot2d::LineType  def = Plot2d::NoPen  )

private

Get curve property: line type.

References myProperties, and PROP_LINETYPE.

propLineWidth()

int Plot2d_AnalyticalCurveDlg::propLineWidth ( Plot2d_AnalyticalCurve *  curve = 0, int  def = 0  )

private

Get curve property: line width.

References myProperties, and PROP_LINEWIDTH.

propMarkerType()

Plot2d::MarkerType Plot2d_AnalyticalCurveDlg::propMarkerType ( Plot2d_AnalyticalCurve *  curve = 0, Plot2d::MarkerType  def = Plot2d::None  )

private

Get curve property: marker type.

References myProperties, and PROP_MARKERTYPE.

propStatus()

int Plot2d_AnalyticalCurveDlg::propStatus ( Plot2d_AnalyticalCurve *  curve = 0, const int  def = ItemExisting  )

private

Get curve property: status.

References myProperties, and PROP_STATUS.

propTitle()

QString Plot2d_AnalyticalCurveDlg::propTitle ( Plot2d_AnalyticalCurve *  curve = 0, const QString &  def = ""  )

private

Get curve property: title.

References myProperties, and PROP_TITLE.

propVisible()

bool Plot2d_AnalyticalCurveDlg::propVisible ( Plot2d_AnalyticalCurve *  curve = 0, bool  def = true  )

private

Get curve property: visible flag.

References myProperties, and PROP_VISIBLE.

reject()

void Plot2d_AnalyticalCurveDlg::reject

(

)

Private slot. Called when "Close" button is clicked.

References ItemAdded, myProperties, and propStatus().

removeCurve

void Plot2d_AnalyticalCurveDlg::removeCurve ( )

privateslot

Private slot. Called when "Remove curve" button is clicked.

References ItemAdded, ItemRemoved, myCurvesList, myProperties, PROP_STATUS, and propStatus().

selected()

QListWidgetItem * Plot2d_AnalyticalCurveDlg::selected ( ) const

private

Get currently selected list widget item.

References myCurvesList.

selectedCurve()

Plot2d_AnalyticalCurve * Plot2d_AnalyticalCurveDlg::selectedCurve ( ) const

private

Get currently selected curve.

References selected().

selectionChanged

void Plot2d_AnalyticalCurveDlg::selectionChanged ( )

privateslot

Private slot. Called when selection in the curve list is changed.

References myAutoAssign, myColor, myFormula, myLineType, myLineWidth, myMarkerType, myNbIntervals, myUpdater, propAutoAssign(), propColor(), propFormula(), propIntervals(), propLineType(), propLineWidth(), propMarkerType(), selectedCurve(), QtxColorButton::setColor(), and updateState().

updateCurve

void Plot2d_AnalyticalCurveDlg::updateCurve ( )

privateslot

Private slot. Called when any curve property is changed.

References QtxColorButton::color(), myAutoAssign, myColor, myFormula, myLineType, myLineWidth, myMarkerType, myNbIntervals, myProperties, myUpdater, PROP_AUTOASSIGN, PROP_COLOR, PROP_FORMULA, PROP_LINETYPE, PROP_LINEWIDTH, PROP_MARKERTYPE, PROP_NBINTERVALS, PROP_TITLE, PROP_VISIBLE, selected(), selectedCurve(), and updateState().

updateState

void Plot2d_AnalyticalCurveDlg::updateState ( )

privateslot

Private slot. Update widgets state.

References myAutoAssign, myCurveParams, myCurveProps, myPropsGrp, myRemoveButton, and selectedCurve().

Member Data Documentation

myAddButton

QPushButton* Plot2d_AnalyticalCurveDlg::myAddButton

private

myAutoAssign

QCheckBox* Plot2d_AnalyticalCurveDlg::myAutoAssign

private

myColor

QtxColorButton* Plot2d_AnalyticalCurveDlg::myColor

private

myContainer

Plot2d_CurveContainer* Plot2d_AnalyticalCurveDlg::myContainer

private

myCurveParams

QGroupBox* Plot2d_AnalyticalCurveDlg::myCurveParams

private

myCurveProps

QGroupBox* Plot2d_AnalyticalCurveDlg::myCurveProps

private

myCurvesList

QListWidget* Plot2d_AnalyticalCurveDlg::myCurvesList

private

myFormula

QLineEdit* Plot2d_AnalyticalCurveDlg::myFormula

private

myLineType

QComboBox* Plot2d_AnalyticalCurveDlg::myLineType

private

myLineWidth

QtxIntSpinBox* Plot2d_AnalyticalCurveDlg::myLineWidth

private

myMarkerType

QComboBox* Plot2d_AnalyticalCurveDlg::myMarkerType

private

myNbIntervals

QtxIntSpinBox* Plot2d_AnalyticalCurveDlg::myNbIntervals

private

myProperties

PropMap Plot2d_AnalyticalCurveDlg::myProperties

private

myPropsGrp

QWidget* Plot2d_AnalyticalCurveDlg::myPropsGrp

private

myRemoveButton

QPushButton* Plot2d_AnalyticalCurveDlg::myRemoveButton

private

myUpdater

Updater* Plot2d_AnalyticalCurveDlg::myUpdater

private

---

The documentation for this class was generated from the following files:

• src/Plot2d/Plot2d_AnalyticalCurveDlg.h
• src/Plot2d/Plot2d_AnalyticalCurveDlg.cxx
