QtxActionMgr::Creator Class Reference

Generic actions creator class. More...

#include <QtxActionMgr.h>

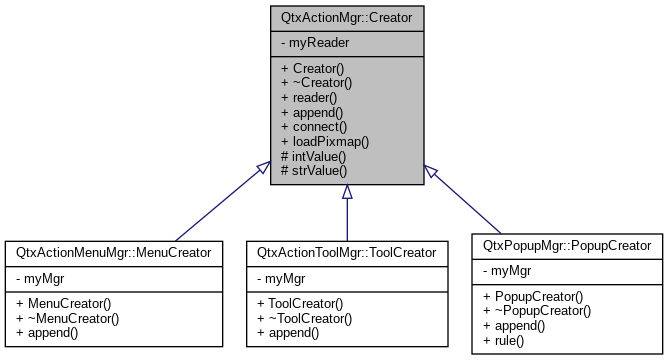

Inheritance diagram for QtxActionMgr::Creator:

Public Member Functions
	Creator (QtxActionMgr::Reader *)
	Constructor. More...
virtual	~Creator ()
	Destructor. More...
Reader *	reader () const
	Get actions reader. More...
virtual int	append (const QString &, const bool, const ItemAttributes &, const int)=0
	Create (and probably append to the action manager) new action. More...
virtual void	connect (QAction *) const
	Connect action to some specific slot(s). More...
virtual bool	loadPixmap (const QString &, QPixmap &) const
	Load pixmap from the file. More...

Static Protected Member Functions
static int	intValue (const ItemAttributes &, const QString &, const int)
	Get integer attribute value from the attribute map. More...
static QString	strValue (const ItemAttributes &, const QString &, const QString &=QString())
	Get string attribute value from the attribute map. More...

Private Attributes
QtxActionMgr::Reader *	myReader
	actions reader More...

Detailed Description

Generic actions creator class.

Used by Reader to create actions and fill in the action manager with the actions.

Constructor & Destructor Documentation

Creator()

QtxActionMgr::Creator::Creator

(

QtxActionMgr::Reader *

r

)

Constructor.

Parameters

r	action reader

~Creator()

QtxActionMgr::Creator::~Creator ( )

virtual

Destructor.

Member Function Documentation

append()

int QtxActionMgr::Creator::append ( const QString &  tag, const bool  subMenu, const ItemAttributes &  attr, const int  pId  )

pure virtual

Create (and probably append to the action manager) new action.

This method should be redefined in the subclasses.

Parameters

tag	item tag name
subMenu	true if this item is submenu
attr	attributes map
pId	parent action ID

Returns

item (for example action) ID

Implemented in QtxPopupMgr::PopupCreator, QtxActionToolMgr::ToolCreator, and QtxActionMenuMgr::MenuCreator.

connect()

void QtxActionMgr::Creator::connect ( QAction *  ) const

virtual

Connect action to some specific slot(s).

This method can be redefined in subclasses. Base implementation does nothing.

Parameters

a

action

intValue()

int QtxActionMgr::Creator::intValue ( const ItemAttributes &  attrs, const QString &  name, const int  def  )

staticprotected

Get integer attribute value from the attribute map.

Returns default value (def) if the attribute is not found.

Parameters

attrs	attributes map
name	attribute name
def	default attribute value

Returns

attribute value

loadPixmap()

bool QtxActionMgr::Creator::loadPixmap ( const QString &  fname, QPixmap &  pix  ) const

virtual

Load pixmap from the file.

Parameters

fname	file name
pix	used to return pixmap

Returns

true if pixmap is loaded successfully and false in case of error

References Qtx::addSlash().

reader()

QtxActionMgr::Reader * QtxActionMgr::Creator::reader

(

)

const

Get actions reader.

Returns

actions reader

strValue()

QString QtxActionMgr::Creator::strValue ( const ItemAttributes &  attrs, const QString &  name, const QString &  def = QString()  )

staticprotected

Get string attribute value from the attribute map.

Returns default value (def) if the attribute is not found.

Parameters

attrs	attributes map
name	attribute name
def	default attribute value

Returns

attribute value

Member Data Documentation

myReader

QtxActionMgr::Reader* QtxActionMgr::Creator::myReader

private

actions reader

---

The documentation for this class was generated from the following files:

• src/Qtx/QtxActionMgr.h
• src/Qtx/QtxActionMgr.cxx
