SALOME style palette editor widget. More...

#include <Style_PrefDlg.h>

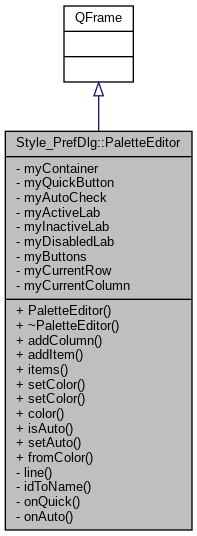

Inheritance diagram for Style_PrefDlg::PaletteEditor:

Signals
void	changed ()

Public Member Functions
	PaletteEditor (QWidget *=0)
	Constructor. More...

	~PaletteEditor ()
	Destructor. More...

void	addColumn (const QString &)
	Add new color properties column to the widget. More...

void	addItem (int)
	Add color item to the widget (to the current column) More...

QList< int >	items () const
	Get list of currently available color items. More...

void	setColor (int, QPalette::ColorGroup, const QColor &)
	Set color value to the item. More...

void	setColor (int, const QColor &, const QColor &=QColor(), const QColor &=QColor())
	Set color value to the item. More...

QColor	color (int, QPalette::ColorGroup) const
	Get color value assigned to the item. More...

bool	isAuto () const
	Get 'auto-palette' flag value. More...

void	setAuto (bool)
	Set/clear 'auto-palette' flag value. More...

void	fromColor (const QColor &)
	Initialize all palette colors from color c. More...

Private Types
typedef QMap< QPalette::ColorGroup, QtxColorButton * >	Btns

Private Slots
void	onQuick ()
	Called when "Quick" button is clicked. More...

void	onAuto ()
	Called when "Auto" check box is clicked. More...

Private Member Functions
QWidget *	line ()
	Create horizontal line widget. More...

Static Private Member Functions
static QString	idToName (int)
	Get title of the item. More...

Private Attributes
QFrame *	myContainer

QPushButton *	myQuickButton

QCheckBox *	myAutoCheck

QLabel *	myActiveLab

QLabel *	myInactiveLab

QLabel *	myDisabledLab

QMap< int, Btns >	myButtons

int	myCurrentRow

int	myCurrentColumn

Friends
class	Style_PrefDlg

Detailed Description

SALOME style palette editor widget.

Member Typedef Documentation

◆ Btns

typedef QMap<QPalette::ColorGroup, QtxColorButton*> Style_PrefDlg::PaletteEditor::Btns

private

Constructor & Destructor Documentation

◆ PaletteEditor()

Style_PrefDlg::PaletteEditor::PaletteEditor ( QWidget * parent = 0 )

Constructor.

Parameters

parent parent widget

References addColumn(), addItem(), Style_Model::BorderTop, Style_Model::LastColor, MARGIN, myAutoCheck, myContainer, myQuickButton, Style_Model::NColorRoles, Style_Model::NoRole, onAuto(), onQuick(), SPACING, and Style_Model::WindowText.

◆ ~PaletteEditor()

Style_PrefDlg::PaletteEditor::~PaletteEditor ( )

Destructor.

Member Function Documentation

◆ addColumn()

void Style_PrefDlg::PaletteEditor::addColumn ( const QString & title )

Add new color properties column to the widget.

Parameters

title column title

See also: addItem()

References SPACING.

◆ addItem()

void Style_PrefDlg::PaletteEditor::addItem ( int id )

Add color item to the widget (to the current column)

Parameters

id	color palette identifier (Style_Model::ColorRole)

See also: addColumn(), items()

◆ changed

void Style_PrefDlg::PaletteEditor::changed ( )

signal

◆ color()

QColor Style_PrefDlg::PaletteEditor::color	(	int	id,
		QPalette::ColorGroup	cg
	)		const

Get color value assigned to the item.

Parameters

id	item identifier (Style_Model::ColorRole)
cg	color group

Returns: color value

See also: setColor()

◆ fromColor()

void Style_PrefDlg::PaletteEditor::fromColor ( const QColor & c )

Initialize all palette colors from color c.

Parameters

c	button color value

References Style_Model::BorderBottom, Style_Model::BorderTop, Style_Model::Checked, Style_Model::FieldDark, Style_Model::FieldLight, Style_Model::GridLine, Style_Model::Header, Style_Model::HighlightBorder, Style_Model::HighlightWidget, Style_Model::Lines, Style_Model::NColorRoles, Style_Model::Pointer, Style_Model::ProgressBar, Style_Model::Slider, Style_Model::TabBorderBottom, and Style_Model::TabBorderTop.

◆ idToName()

QString Style_PrefDlg::PaletteEditor::idToName ( int id )

staticprivate

Get title of the item.

Parameters

id	item identifier (Style_Model::ColorRole)

Returns: item title

References Style_Model::AlternateBase, Style_Model::Base, Style_Model::BorderBottom, Style_Model::BorderTop, Style_Model::BrightText, Style_Model::Button, Style_Model::ButtonText, Style_Model::Checked, Style_Model::Dark, Style_Model::FieldDark, Style_Model::FieldLight, Style_Model::GridLine, Style_Model::Header, Style_Model::Highlight, Style_Model::HighlightBorder, Style_Model::HighlightedText, Style_Model::HighlightWidget, Style_Model::Light, Style_Model::Lines, Style_Model::Link, Style_Model::LinkVisited, Style_Model::Mid, Style_Model::Midlight, Style_Model::Pointer, Style_Model::ProgressBar, Style_Model::Shadow, Style_Model::Slider, Style_Model::TabBorderBottom, Style_Model::TabBorderTop, Style_Model::Text, Style_Model::ToolTipBase, Style_Model::ToolTipText, Style_Model::Window, and Style_Model::WindowText.

◆ isAuto()

bool Style_PrefDlg::PaletteEditor::isAuto ( ) const

Get 'auto-palette' flag value.

Returns: true if inactive/disabled palette colors should be calculated from active one

See also: setAuto()

◆ items()

QList< int > Style_PrefDlg::PaletteEditor::items ( ) const

Get list of currently available color items.

Returns: list of items identifiers (Style_Model::ColorRole)

See also: addColumn(), addItem()

◆ line()

QWidget * Style_PrefDlg::PaletteEditor::line ( )

private

Create horizontal line widget.

Returns: new line widget

◆ onAuto

void Style_PrefDlg::PaletteEditor::onAuto ( )

privateslot

Called when "Auto" check box is clicked.

◆ onQuick

void Style_PrefDlg::PaletteEditor::onQuick ( )

privateslot

Called when "Quick" button is clicked.

◆ setAuto()

void Style_PrefDlg::PaletteEditor::setAuto ( bool on )

Set/clear 'auto-palette' flag value.

Parameters

on	if `true`, inactive/disabled palette colors should be calculated from active one

See also: isAuto()

◆ setColor() [1/2]

void Style_PrefDlg::PaletteEditor::setColor	(	int	id,
		const QColor &	active,
		const QColor &	inactive = `QColor()`,
		const QColor &	disabled = `QColor()`
	)

Set color value to the item.

Parameters

id	item identifier (Style_Model::ColorRole)
active	color to be used with active color group (QPalette::Active)
inactive	color to be used with inactive color group (QPalette::Inactive)
disabled	color to be used with disabled color group (QPalette::Disabled)

See also: color()

◆ setColor() [2/2]

void Style_PrefDlg::PaletteEditor::setColor	(	int	id,
		QPalette::ColorGroup	cg,
		const QColor &	c
	)

Set color value to the item.

Parameters

id	item identifier (Style_Model::ColorRole)
cg	color group
c	color value

See also: color()

Friends And Related Function Documentation

◆ Style_PrefDlg

friend class Style_PrefDlg

friend

Member Data Documentation

◆ myActiveLab

QLabel* Style_PrefDlg::PaletteEditor::myActiveLab

private

◆ myAutoCheck

QCheckBox* Style_PrefDlg::PaletteEditor::myAutoCheck

private

◆ myButtons

QMap<int, Btns> Style_PrefDlg::PaletteEditor::myButtons

private

◆ myContainer

QFrame* Style_PrefDlg::PaletteEditor::myContainer

private

◆ myCurrentColumn

int Style_PrefDlg::PaletteEditor::myCurrentColumn

private

◆ myCurrentRow

int Style_PrefDlg::PaletteEditor::myCurrentRow

private

◆ myDisabledLab

QLabel* Style_PrefDlg::PaletteEditor::myDisabledLab

private

◆ myInactiveLab

QLabel* Style_PrefDlg::PaletteEditor::myInactiveLab

private

◆ myQuickButton

QPushButton* Style_PrefDlg::PaletteEditor::myQuickButton

private

The documentation for this class was generated from the following files:

src/Style/Style_PrefDlg.h
src/Style/Style_PrefDlg.cxx
