VTKViewer_Trihedron Class Reference

#include <VTKViewer_Trihedron.h>

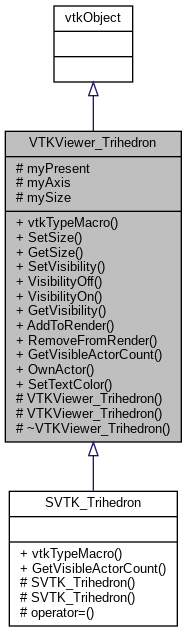

Inheritance diagram for VTKViewer_Trihedron:

Public Types
enum	Axis { X = 0 , Y , Z }
enum	TVisibility { eOff , eOn , eOnlyLineOn }

Public Member Functions
	vtkTypeMacro (VTKViewer_Trihedron, vtkObject) static VTKViewer_Trihedron *New()
virtual void	SetSize (double theSize)
virtual double	GetSize ()
virtual void	SetVisibility (TVisibility theVis)
virtual void	VisibilityOff ()
virtual void	VisibilityOn ()
virtual TVisibility	GetVisibility ()
virtual void	AddToRender (vtkRenderer *theRenderer)
virtual void	RemoveFromRender (vtkRenderer *theRenderer)
virtual int	GetVisibleActorCount (vtkRenderer *theRenderer)
virtual bool	OwnActor (const vtkActor *theActor)
virtual void	SetTextColor (Axis axis, double theRed, double theGreen, double theBlue)

Protected Member Functions
	VTKViewer_Trihedron ()
	VTKViewer_Trihedron (const VTKViewer_Trihedron &)
virtual	~VTKViewer_Trihedron ()

Protected Attributes
vtkActorCollection *	myPresent
VTKViewer_Axis *	myAxis [3]
double	mySize

Detailed Description

This class provide support trihedron object in vtk viewer.

Member Enumeration Documentation

Axis

enum VTKViewer_Trihedron::Axis

Enumerator
X
Y
Z

TVisibility

enum VTKViewer_Trihedron::TVisibility

Enumerator
eOff
eOn
eOnlyLineOn

Constructor & Destructor Documentation

VTKViewer_Trihedron() [1/2]

VTKViewer_Trihedron::VTKViewer_Trihedron ( )

protected

Initialize fields by default values.

VTKViewer_Trihedron() [2/2]

VTKViewer_Trihedron::VTKViewer_Trihedron ( const VTKViewer_Trihedron &  )

protected

Const copy constructor.

~VTKViewer_Trihedron()

VTKViewer_Trihedron::~VTKViewer_Trihedron ( )

protectedvirtual

Destructor. Remove all fileds.

Destructor

References myAxis, and myPresent.

Member Function Documentation

AddToRender()

void VTKViewer_Trihedron::AddToRender ( vtkRenderer *  theRenderer )

virtual

Add to render all Axis

Parameters

theRenderer

- vtkRenderer pointer

References myAxis, and VTKViewer_Axis::SetCamera().

GetSize()

virtual double VTKViewer_Trihedron::GetSize ( )

inlinevirtual

Get size of trihedron.

Return values

mySize

- double value

GetVisibility()

VTKViewer_Trihedron::TVisibility VTKViewer_Trihedron::GetVisibility ( )

virtual

Gets visibility of myAxis[0] actor.

Returns

visibility of first axis

References VTKViewer_Axis::GetVisibility(), and myAxis.

GetVisibleActorCount()

int VTKViewer_Trihedron::GetVisibleActorCount ( vtkRenderer *  theRenderer )

virtual

Return count of visible actors.

Parameters

theRenderer

- vtkRenderer pointer

Reimplemented in SVTK_Trihedron.

References VTK::ActorCollectionCopy::GetActors(), and OwnActor().

OwnActor()

bool VTKViewer_Trihedron::OwnActor ( const vtkActor *  theActor )

virtual

Check if actor belongs to the trihedron object

Parameters

theActor

- vtkActor pointer

Return values

Return

true if the actor belongs to the trihedron object

Check if actor belongs to the axis object

Parameters

theActor

- vtkActor pointer

Return values

Return

true if the actor belongs to the axis object

References myAxis, and myPresent.

RemoveFromRender()

void VTKViewer_Trihedron::RemoveFromRender ( vtkRenderer *  theRenderer )

virtual

Remove all actors from theRenderer which are in myPresent.

Parameters

theRenderer

- vtkRenderer pointer

References myAxis, and myPresent.

SetSize()

void VTKViewer_Trihedron::SetSize ( double  theSize )

virtual

Sets size of trihedron.

Parameters

theSize

- double value

Set size of axes

References myAxis, and mySize.

SetTextColor()

void VTKViewer_Trihedron::SetTextColor ( Axis  axis, double  theRed, double  theGreen, double  theBlue  )

virtual

Sets a color to a text for the given axis

Parameters

axis	- axis to change a text color
theRed	- red color component
theGreen	- green color component
theBlue	- blue color component

References myAxis, and VTKViewer_Axis::SetTextColor().

SetVisibility()

void VTKViewer_Trihedron::SetVisibility ( TVisibility  theVis )

virtual

Sets visibility for all Axis to theVis

Set visibility of axes

References myAxis.

VisibilityOff()

virtual void VTKViewer_Trihedron::VisibilityOff ( )

inlinevirtual

OFF visibility for all Axis.

VisibilityOn()

virtual void VTKViewer_Trihedron::VisibilityOn ( )

inlinevirtual

ON visibility for all Axis.

vtkTypeMacro()

VTKViewer_Trihedron::vtkTypeMacro	(	VTKViewer_Trihedron	,
		vtkObject
	)

vtk type macros.

Create new instance of VTKViewer_Trihedron.

Member Data Documentation

myAxis

VTKViewer_Axis* VTKViewer_Trihedron::myAxis[3]

protected

• myAxis[0] - X Axis actor
• myAxis[1] - Y Axis actor
• myAxis[2] - Z Axis actor

myPresent

vtkActorCollection* VTKViewer_Trihedron::myPresent

protected

Actor collection

mySize

double VTKViewer_Trihedron::mySize

protected

Common size for trihedron, for each axis.

---

The documentation for this class was generated from the following files:

• src/VTKViewer/VTKViewer_Trihedron.h
• src/VTKViewer/VTKViewer_Trihedron.cxx
