SALOMEDSImpl_Study.cxx File Reference

#include "SALOMEDSImpl_Study.hxx"
#include <string.h>
#include <KERNEL_version.h>
#include <Basics_Utils.hxx>
#include <Basics_DirUtils.hxx>
#include "HDFexplorer.hxx"
#include "DF_Application.hxx"
#include "DF_ChildIterator.hxx"
#include "SALOMEDSImpl_ChildNodeIterator.hxx"
#include "SALOMEDSImpl_Attributes.hxx"
#include "SALOMEDSImpl_UseCaseIterator.hxx"
#include "SALOMEDSImpl_AttributeReference.hxx"
#include "SALOMEDSImpl_StudyHandle.hxx"
#include "SALOMEDSImpl_Tool.hxx"
#include "SALOMEDSImpl_IParameters.hxx"
#include "SALOMEDSImpl_ScalarVariable.hxx"
#include "SALOMEDSImpl_SComponent.hxx"
#include "HDFOI.hxx"
#include <fstream>
#include <sstream>
#include <algorithm>

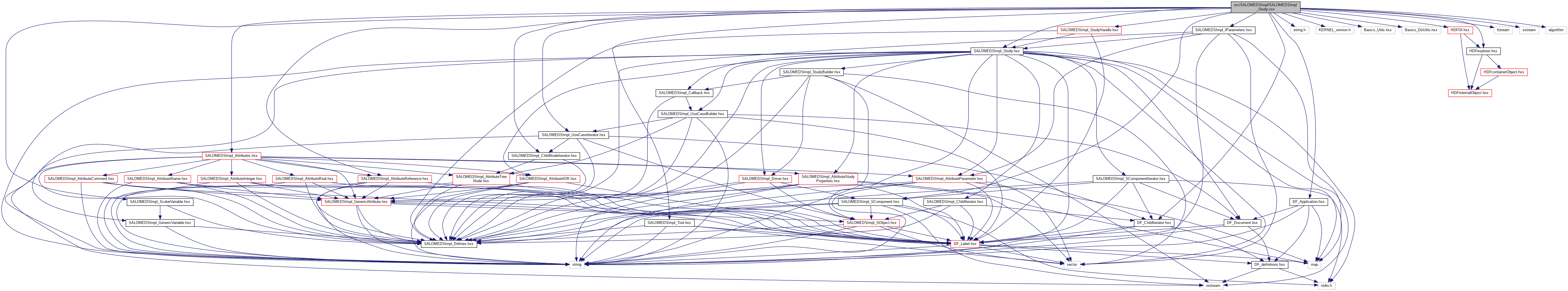

Include dependency graph for SALOMEDSImpl_Study.cxx:

Macros
#define	WITHOUT_TABS
#define	DIRECTORYID   16661
#define	FILELOCALID   26662
#define	FILEID   "FILE: "
#define	VARIABLE_SEPARATOR   ':'
#define	OPERATION_SEPARATOR   '|'
#define	USE_CASE_LABEL_ID   "0:2"

Functions
static void	SaveAttributes (const SALOMEDSImpl_SObject &aSO, HDFgroup *hdf_group_sobject)
	Function : SaveAttributes Purpose : Save attributes for object. More...
static void	ReadAttributes (SALOMEDSImpl_Study *, const SALOMEDSImpl_SObject &, HDFdataset *)
static void	BuildTree (SALOMEDSImpl_Study *, HDFgroup *)
static void	Translate_IOR_to_persistentID (const SALOMEDSImpl_SObject &, SALOMEDSImpl_Driver *, bool isMultiFile, bool isASCII)
static void	ReadNoteBookVariables (SALOMEDSImpl_Study *theStudy, HDFgroup *theGroup)
static std::string	replace_tabs (const std::string &in)
static std::string	GetComponentHeader (const char *theComponentName)
void	dumpSO (const SALOMEDSImpl_SObject &theSO, std::fstream &fp, const std::string &Tab, SALOMEDSImpl_Study *theStudy)
static SALOMEDSImpl_AbstractCallback *&	getGenObjRegister (DF_Document *doc)

Variables
static const int	indent_size = 2
	number of spaces for indentation in Python dump files (to replace \t symbols) More...

Macro Definition Documentation

DIRECTORYID

#define DIRECTORYID   16661

FILEID

#define FILEID   "FILE: "

FILELOCALID

#define FILELOCALID   26662

OPERATION_SEPARATOR

#define OPERATION_SEPARATOR   '|'

USE_CASE_LABEL_ID

#define USE_CASE_LABEL_ID   "0:2"

VARIABLE_SEPARATOR

#define VARIABLE_SEPARATOR   ':'

WITHOUT_TABS

#define WITHOUT_TABS

Function Documentation

BuildTree()

static void BuildTree ( SALOMEDSImpl_Study *  theStudy, HDFgroup *  hdf_current_group  )

static

References HDFgroup::CloseOnDisk(), SALOMEDSImpl_Study::CreateObjectID(), HDFobject::GetName(), HDF_DATASET, HDF_GROUP, HDF_NAME_MAX_LEN, HDFgroup::InternalObjectIndentify(), HDFgroup::InternalObjectType(), pythfilter::name, HDFgroup::nInternalObjects(), HDFgroup::OpenOnDisk(), and ReadAttributes().

Referenced by SALOMEDSImpl_Study::Open().

dumpSO()

void dumpSO	(	const SALOMEDSImpl_SObject &	theSO,
		std::fstream &	fp,
		const std::string &	Tab,
		SALOMEDSImpl_Study *	theStudy
	)

References DF_Label::GetAttributes(), SALOMEDSImpl_GenericAttribute::GetClassType(), SALOMEDSImpl_SObject::GetID(), SALOMEDSImpl_SObject::GetLabel(), SALOMEDSImpl_ChildIterator::More(), SALOMEDSImpl_Study::NewChildIterator(), SALOMEDSImpl_ChildIterator::Next(), and SALOMEDSImpl_ChildIterator::Value().

Referenced by SALOMEDSImpl_Study::dump().

GetComponentHeader()

static std::string GetComponentHeader ( const char *  theComponentName )

static

Referenced by SALOMEDSImpl_Study::DumpStudy().

getGenObjRegister()

static SALOMEDSImpl_AbstractCallback* & getGenObjRegister ( DF_Document *  doc )

static

References DF_Document::GetDocumentID().

Referenced by SALOMEDSImpl_Study::RegisterGenObj(), SALOMEDSImpl_Study::setGenObjRegister(), and SALOMEDSImpl_Study::UnRegisterGenObj().

ReadAttributes()

static void ReadAttributes ( SALOMEDSImpl_Study *  theStudy, const SALOMEDSImpl_SObject &  aSO, HDFdataset *  hdf_dataset  )

static

References SALOMEDSImpl_StudyBuilder::Addreference(), HDFdataset::CloseOnDisk(), SALOMEDSImpl_Study::CreateObjectID(), SALOMEDSImpl_StudyBuilder::FindOrCreateAttribute(), HDFobject::GetName(), HDFdataset::GetSize(), DF_Attribute::Load(), SALOMEDSImpl_Study::NewBuilder(), HDFdataset::OpenOnDisk(), and HDFdataset::ReadFromDisk().

Referenced by BuildTree().

ReadNoteBookVariables()

void ReadNoteBookVariables ( SALOMEDSImpl_Study *  theStudy, HDFgroup *  theGroup  )

static

References SALOMEDSImpl_Study::AddVariable(), HDFdataset::CloseOnDisk(), HDFgroup::CloseOnDisk(), HDFgroup::ExistInternalObject(), HDFdataset::GetSize(), HDF_GROUP, HDF_NAME_MAX_LEN, HDFgroup::InternalObjectIndentify(), HDFgroup::InternalObjectType(), SALOMEDSImpl_GenericVariable::Load(), HDFgroup::nInternalObjects(), HDFdataset::OpenOnDisk(), HDFgroup::OpenOnDisk(), HDFdataset::ReadFromDisk(), and SALOMEDSImpl_GenericVariable::String2VariableType().

Referenced by SALOMEDSImpl_Study::Open().

replace_tabs()

static std::string replace_tabs ( const std::string &  in )

static

References indent_size, and out.

Referenced by SALOMEDSImpl_Study::DumpStudy().

SaveAttributes()

static void SaveAttributes ( const SALOMEDSImpl_SObject &  SO, HDFgroup *  hdf_group_sobject  )

static

Function : SaveAttributes Purpose : Save attributes for object.

< TODO: conversion from size_t to int

References HDFdataset::CloseOnDisk(), HDFdataset::CreateOnDisk(), DF_Label::GetAttributes(), SALOMEDSImpl_SObject::GetLabel(), HDF_STRING, SALOMEDSImpl_GenericAttribute::Impl_GetType(), DF_Attribute::Save(), and HDFdataset::WriteOnDisk().

Referenced by SALOMEDSImpl_Study::Impl_SaveAs(), and SALOMEDSImpl_Study::Impl_SaveObject().

Translate_IOR_to_persistentID()

static void Translate_IOR_to_persistentID ( const SALOMEDSImpl_SObject &  so, SALOMEDSImpl_Driver *  engine, bool  isMultiFile, bool  isASCII  )

static

References TestLifeCycleCORBA::engine, DF_Label::FindAttribute(), SALOMEDSImpl_AttributeIOR::GetID(), SALOMEDSImpl_SObject::GetLabel(), DF_ChildIterator::More(), DF_ChildIterator::Next(), SALOMEDSImpl_AttributePersistentRef::Set(), SALOMEDSImpl_Study::SObject(), DF_ChildIterator::Value(), and SALOMEDSImpl_AttributeIOR::Value().

Referenced by SALOMEDSImpl_Study::Impl_SaveAs().

Variable Documentation

indent_size

const int indent_size = 2

static

number of spaces for indentation in Python dump files (to replace \t symbols)

Referenced by replace_tabs().
