Define a class representing MED_BALL structure element. More...

#include <MED_Structures.hxx>

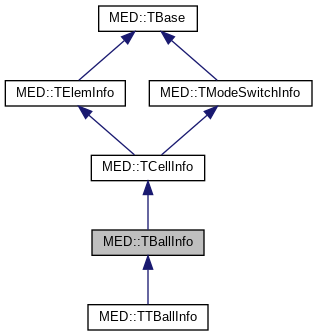

Inheritance diagram for MED::TBallInfo:

[legend]

Public Member Functions
EEntiteMaillage	GetEntity () const
	Find out what MED ENTITY the cells belong to. More...

EGeometrieElement	GetGeom () const
	Find out what MED geometrical type the cells belong to. More...

EConnectivite	GetConnMode () const
	Find out in what connectivity the cells are written. More...

virtual TInt	GetConnDim () const =0
	Gives step in the connectivity sequence. More...

TCConnSlice	GetConnSlice (TInt theElemId) const
	Gives connectivities for mesh cell by its number (const version) More...

TConnSlice	GetConnSlice (TInt theElemId)
	Gives connectivities for mesh cell by its number. More...

const PMeshInfo &	GetMeshInfo () const
	Get a reference to corresponding MED Mesh. More...

TInt	GetNbElem () const

TInt	GetFamNum (TInt theId) const
	Get number of a MED FAMILY by order number of the mesh element. More...

void	SetFamNum (TInt theId, TInt theVal)
	Set number of a MED FAMILY for the mesh element with the order number. More...

EBooleen	IsElemNum () const
	Let know if the mesh elements are indexed. More...

EBooleen	IsFamNum () const
	Let know if the mesh elements family are indexed. More...

TInt	GetElemNum (TInt theId) const
	Get a reference number of the mesh element by its order number. More...

void	SetElemNum (TInt theId, TInt theVal)
	Set a reference number for the mesh element by its order number. More...

EBooleen	IsElemNames () const
	Let know if the mesh elements have names. More...

virtual std::string	GetElemName (TInt theId) const =0
	Get name of the mesh element by its order number. More...

virtual void	SetElemName (TInt theId, const std::string &theValue)=0
	Set name of the mesh element by its order number. More...

EModeSwitch	GetModeSwitch () const

Data Fields
TFloatVector	myDiameters

EEntiteMaillage	myEntity
	Defines the MED Entity where the mesh cells belongs to. More...

EGeometrieElement	myGeom
	Defines the MED Geometric type of the instance. More...

EConnectivite	myConnMode
	Defines connectivity mode. More...

PElemNum	myConn
	Defines sequence which describe connectivity for each of mesh cell. More...

PMeshInfo	myMeshInfo
	A reference to corresponding MED Mesh. More...

TInt	myNbElem

PElemNum	myFamNum
	Get number of mesh elements. More...

EBooleen	myIsElemNum
	Defines if the mesh elements are indexed. More...

EBooleen	myIsFamNum
	Defines if the mesh elements family are indexed. More...

PElemNum	myElemNum
	Contains sequence of the indexes for the mesh elements. More...

EBooleen	myIsElemNames
	Defines if the mesh elements are named. More...

PString	myElemNames
	Contains sequence of the names for the mesh elements. More...

EModeSwitch	myModeSwitch
	Keeps the interlace mode. More...

Detailed Description

Define a class representing MED_BALL structure element.

This could be a generic class for any structure element holding any number of constant and variable attributes but it's too hard to implement

Member Function Documentation

◆ GetConnDim()

virtual TInt MED::TCellInfo::GetConnDim ( ) const

pure virtualinherited

Gives step in the connectivity sequence.

Implemented in MED::TTCellInfo.

Referenced by MED::TShapeFun::Eval(), MED::GetBaryCenter(), and MED::TCellInfo::GetConnSlice().

◆ GetConnMode()

EConnectivite MED::TCellInfo::GetConnMode ( ) const

inherited

Find out in what connectivity the cells are written.

◆ GetConnSlice() [1/2]

TConnSlice MED::TCellInfo::GetConnSlice ( TInt theElemId )

inherited

Gives connectivities for mesh cell by its number.

References MED::eFULL_INTERLACE, MED::TCellInfo::GetConnDim(), MED::TModeSwitchInfo::GetModeSwitch(), MED::GetNbNodes(), MED::TCellInfo::myConn, and MED::TCellInfo::myGeom.

◆ GetConnSlice() [2/2]

TCConnSlice MED::TCellInfo::GetConnSlice ( TInt theElemId ) const

inherited

Gives connectivities for mesh cell by its number (const version)

References MED::eFULL_INTERLACE, MED::TCellInfo::GetConnDim(), MED::TModeSwitchInfo::GetModeSwitch(), MED::GetNbNodes(), MED::TCellInfo::myConn, and MED::TCellInfo::myGeom.

Referenced by MED::TShapeFun::Eval(), MED::GetBaryCenter(), and MED::TTCellInfo::TTCellInfo().

◆ GetElemName()

virtual std::string MED::TElemInfo::GetElemName ( TInt theId ) const

pure virtualinherited

Get name of the mesh element by its order number.

Implemented in MED::TTElemInfo.

◆ GetElemNum()

TInt MED::TElemInfo::GetElemNum ( TInt theId ) const

inherited

Get a reference number of the mesh element by its order number.

References MED::TElemInfo::myElemNum.

◆ GetEntity()

EEntiteMaillage MED::TCellInfo::GetEntity ( ) const

inherited

Find out what MED ENTITY the cells belong to.

◆ GetFamNum()

TInt MED::TElemInfo::GetFamNum ( TInt theId ) const

inherited

Get number of a MED FAMILY by order number of the mesh element.

References MED::TElemInfo::myFamNum.

◆ GetGeom()

EGeometrieElement MED::TCellInfo::GetGeom ( ) const

inherited

Find out what MED geometrical type the cells belong to.

◆ GetMeshInfo()

const PMeshInfo & MED::TElemInfo::GetMeshInfo ( ) const

inherited

Get a reference to corresponding MED Mesh.

Referenced by MED::TShapeFun::Eval(), and MED::GetBaryCenter().

◆ GetModeSwitch()

EModeSwitch MED::TModeSwitchInfo::GetModeSwitch ( ) const

inherited

Referenced by MED::TTMeshValue< TValueType >::GetCompValueSliceArr(), MED::TCellInfo::GetConnSlice(), MED::TNodeInfo::GetCoordSlice(), MED::TGaussCoord::GetCoordSliceArr(), MED::TGaussInfo::GetGaussCoordSlice(), MED::TTMeshValue< TValueType >::GetGaussValueSliceArr(), and MED::TGaussInfo::GetRefCoordSlice().

◆ GetNbElem()

TInt MED::TElemInfo::GetNbElem ( ) const

inherited

Referenced by MED::TShapeFun::Eval(), and MED::GetBaryCenter().

◆ IsElemNames()

EBooleen MED::TElemInfo::IsElemNames ( ) const

inherited

Let know if the mesh elements have names.

◆ IsElemNum()

EBooleen MED::TElemInfo::IsElemNum ( ) const

inherited

Let know if the mesh elements are indexed.

Referenced by MED::TElemInfo::SetElemNum().

◆ IsFamNum()

EBooleen MED::TElemInfo::IsFamNum ( ) const

inherited

Let know if the mesh elements family are indexed.

◆ SetElemName()

virtual void MED::TElemInfo::SetElemName	(	TInt	theId,
		const std::string &	theValue
	)

pure virtualinherited

Set name of the mesh element by its order number.

Implemented in MED::TTElemInfo.

◆ SetElemNum()

void MED::TElemInfo::SetElemNum	(	TInt	theId,
		TInt	theVal
	)

inherited

Set a reference number for the mesh element by its order number.

References MED::TElemInfo::IsElemNum().

Referenced by MED::TTElemInfo::TTElemInfo().

◆ SetFamNum()

void MED::TElemInfo::SetFamNum	(	TInt	theId,
		TInt	theVal
	)

inherited

Set number of a MED FAMILY for the mesh element with the order number.

References MED::eVRAI, and MED::TElemInfo::myIsFamNum.

Referenced by MED::TTElemInfo::TTElemInfo().

Field Documentation

◆ myConn

PElemNum MED::TCellInfo::myConn

inherited

Defines sequence which describe connectivity for each of mesh cell.

Referenced by MED::TWrapper::GetCellInfo(), MED::TCellInfo::GetConnSlice(), MED::TWrapper::SetCellInfo(), and MED::TTCellInfo::TTCellInfo().

◆ myConnMode

EConnectivite MED::TCellInfo::myConnMode

inherited

Defines connectivity mode.

Referenced by MED::TWrapper::GetCellInfo(), MED::TWrapper::SetCellInfo(), and MED::TTCellInfo::TTCellInfo().

◆ myDiameters

TFloatVector MED::TBallInfo::myDiameters

Referenced by MED::TWrapper::GetBallInfo(), MED::TWrapper::SetBallInfo(), and MED::TTBallInfo::TTBallInfo().

◆ myElemNames

PString MED::TElemInfo::myElemNames

inherited

Contains sequence of the names for the mesh elements.

Referenced by MED::TWrapper::GetCellInfo(), MED::TTElemInfo::GetElemName(), MED::TWrapper::GetNames(), MED::TWrapper::GetNodeInfo(), MED::TWrapper::SetCellInfo(), MED::TTElemInfo::SetElemName(), MED::TWrapper::SetNames(), MED::TWrapper::SetNodeInfo(), MED::TWrapper::SetPolyedreInfo(), and MED::TTElemInfo::TTElemInfo().

◆ myElemNum

PElemNum MED::TElemInfo::myElemNum

inherited

Contains sequence of the indexes for the mesh elements.

Referenced by MED::TWrapper::GetCellInfo(), MED::TElemInfo::GetElemNum(), MED::TWrapper::GetNodeInfo(), MED::TWrapper::GetNumeration(), MED::TWrapper::GetPolyedreInfo(), MED::TWrapper::GetPolygoneInfo(), MED::TWrapper::SetCellInfo(), MED::TWrapper::SetNodeInfo(), MED::TWrapper::SetNumeration(), MED::TWrapper::SetPolyedreInfo(), and MED::TTElemInfo::TTElemInfo().

◆ myEntity

EEntiteMaillage MED::TCellInfo::myEntity

inherited

Defines the MED Entity where the mesh cells belongs to.

Referenced by MED::TWrapper::GetCellInfo(), MED::TTCellInfo::GetConnDim(), MED::TWrapper::SetCellInfo(), and MED::TTCellInfo::TTCellInfo().

◆ myFamNum

PElemNum MED::TElemInfo::myFamNum

inherited

Get number of mesh elements.

Defines sequence MED Family indexes for corresponding mesh entities

Referenced by MED::TWrapper::GetCellInfo(), MED::TWrapper::GetFamilies(), MED::TElemInfo::GetFamNum(), MED::TWrapper::GetNodeInfo(), MED::TWrapper::SetCellInfo(), MED::TWrapper::SetFamilies(), MED::TWrapper::SetNodeInfo(), MED::TWrapper::SetPolyedreInfo(), and MED::TTElemInfo::TTElemInfo().

◆ myGeom

EGeometrieElement MED::TCellInfo::myGeom

inherited

Defines the MED Geometric type of the instance.

Referenced by MED::TWrapper::GetBallInfo(), MED::TWrapper::GetCellInfo(), MED::TTCellInfo::GetConnDim(), MED::TCellInfo::GetConnSlice(), MED::GetGaussCoord3D(), MED::TWrapper::SetBallInfo(), MED::TWrapper::SetCellInfo(), and MED::TTCellInfo::TTCellInfo().

◆ myIsElemNames

EBooleen MED::TElemInfo::myIsElemNames

inherited

Defines if the mesh elements are named.

Referenced by MED::TWrapper::GetCellInfo(), MED::TWrapper::GetNames(), MED::TWrapper::GetNodeInfo(), MED::TWrapper::GetPolyedreInfo(), MED::TWrapper::GetPolygoneInfo(), MED::TWrapper::SetCellInfo(), MED::TWrapper::SetNames(), MED::TWrapper::SetNodeInfo(), MED::TWrapper::SetPolyedreInfo(), and MED::TTElemInfo::TTElemInfo().

◆ myIsElemNum

EBooleen MED::TElemInfo::myIsElemNum

inherited

Defines if the mesh elements are indexed.

Referenced by MED::TWrapper::GetCellInfo(), MED::TWrapper::GetNodeInfo(), MED::TWrapper::GetNumeration(), MED::TWrapper::GetPolyedreInfo(), MED::TWrapper::GetPolygoneInfo(), MED::TWrapper::SetCellInfo(), MED::TWrapper::SetNodeInfo(), MED::TWrapper::SetNumeration(), MED::TWrapper::SetPolyedreInfo(), and MED::TTElemInfo::TTElemInfo().

◆ myIsFamNum

EBooleen MED::TElemInfo::myIsFamNum

inherited

Defines if the mesh elements family are indexed.

Referenced by MED::TWrapper::GetCellInfo(), MED::TWrapper::SetCellInfo(), MED::TElemInfo::SetFamNum(), and MED::TTElemInfo::TTElemInfo().

◆ myMeshInfo

◆ myModeSwitch

EModeSwitch MED::TModeSwitchInfo::myModeSwitch

inherited

Keeps the interlace mode.

Referenced by MED::TMeshValueBase::Allocate(), MED::TWrapper::GetCellInfo(), MED::TWrapper::GetGaussInfo(), MED::TWrapper::GetGrilleInfo(), MED::TWrapper::GetNodeInfo(), MED::TGaussCoord::Init(), MED::TWrapper::SetCellInfo(), MED::TWrapper::SetGrilleInfo(), MED::TWrapper::SetNodeInfo(), and MED::TTNodeInfo::TTNodeInfo().

◆ myNbElem

TInt MED::TElemInfo::myNbElem

inherited

Referenced by MED::TWrapper::GetCellInfo(), MED::TWrapper::GetNodeInfo(), MED::TWrapper::SetBallInfo(), MED::TWrapper::SetCellInfo(), MED::TWrapper::SetNodeInfo(), MED::TWrapper::SetPolyedreInfo(), MED::TWrapper::SetPolygoneInfo(), MED::TTCellInfo::TTCellInfo(), and MED::TTElemInfo::TTElemInfo().
