Emulator Class Reference

#include <saemul.hxx>

Inheritance diagram for Emulator:

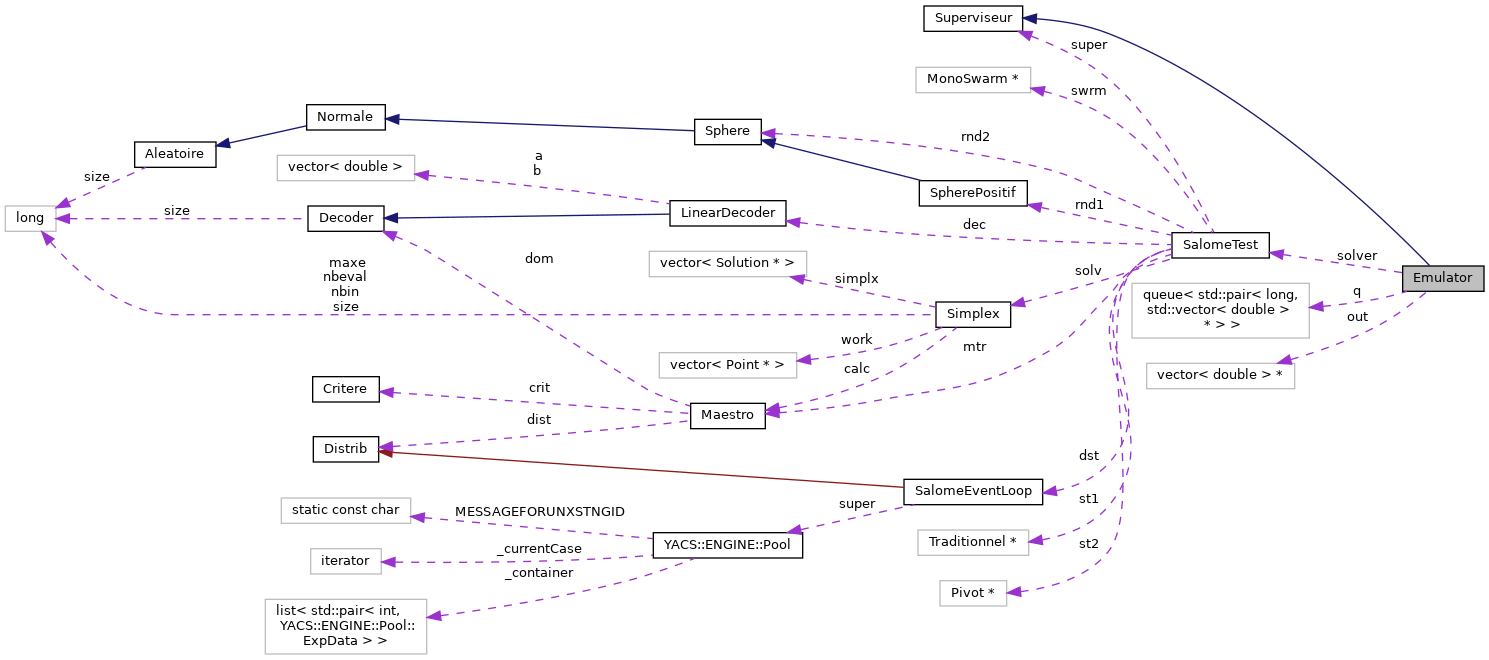

Collaboration diagram for Emulator:

Public Member Functions
	Emulator (void)
	~Emulator (void)
void	destroyAll (void)
void	push (long id, std::vector< double > &cal)
long	getCurrentId (void)
std::vector< double > *	getCurrentOut (void)
void	run (void)

Protected Member Functions
std::vector< double > *	eval (std::vector< double > &x)

Protected Attributes
SalomeTest *	solver
std::queue< std::pair< long, std::vector< double > * > >	q
std::vector< double > *	out

Detailed Description

Definition at line 31 of file saemul.hxx.

Constructor & Destructor Documentation

Emulator()

Emulator::Emulator

(

void

)

Definition at line 26 of file saemul.cxx.

{
    solver = new SalomeTest((Superviseur &) *this);
}

References solver.

~Emulator()

Emulator::~Emulator

(

void

)

Definition at line 31 of file saemul.cxx.

{
    delete solver;
    destroyAll();
}

References destroyAll(), and solver.

Member Function Documentation

destroyAll()

void Emulator::destroyAll ( void  )

virtual

Implements Superviseur.

Definition at line 37 of file saemul.cxx.

{
    std::pair<long,std::vector<double> *>    pa;

    while (! q.empty()) {
        pa = q.front();
        q.pop();
        delete pa.second;
    }
}

References q.

Referenced by ~Emulator().

eval()

std::vector< double > * Emulator::eval ( std::vector< double > &  x )

protected

Definition at line 74 of file saemul.cxx.

{
    std::vector<double>     *res;
    res = new std::vector<double>(1);
#ifdef TRIPOD
    //Tripod
    double      x1, x2;

    x1 = x[0]; x2 = x[1];

    if (x2 < 0)
        (*res)[0] = fabs(x1) + fabs(x2+50);
    else {
        (*res)[0] = fabs(x2-50);
        if (x1 < 0)
            (*res)[0] += 1 + fabs(x1+50);
        else
            (*res)[0] += 2 + fabs(x1-50);
    }
#endif
#ifdef ROSENBROCK
    // rosenbrock
    double      x1, x2;

    x1 = x[0] ; x2 = x1*x1 - x[1]; x1 -= 1;
    (*res)[0] = x1*x1 + 100*x2*x2 ;
#endif
#ifdef GRIEWANK
    double      x1, x2, y;
    int     i;

    x1 = 0.0; x2 = 1.0;
    for (i=0; i<NBGENE; i++) {
        y = 3*x[i] - 100;
        x1 += y*y;
        x2 *= cos(y/sqrt(i+1));
    }
    (*res)[0] = x1 / 4000 - x2 + 1;
#endif
    return res;
}

References yacsorb.CORBAEngineTest::i, and NBGENE.

Referenced by getCurrentId().

getCurrentId()

long Emulator::getCurrentId ( void  )

virtual

Implements Superviseur.

Definition at line 57 of file saemul.cxx.

{
    std::vector<double>     *cal;
    std::pair<long,std::vector<double> *>    pa;

    pa = q.front(); q.pop();
    cal = pa.second;
    out = eval(*cal);
    delete cal;
    return pa.first;
}

References eval(), out, and q.

getCurrentOut()

std::vector< double > * Emulator::getCurrentOut ( void  )

virtual

Implements Superviseur.

Definition at line 69 of file saemul.cxx.

{
    return out;
}

References out.

push()

void Emulator::push ( long  id, std::vector< double > &  cal  )

virtual

Implements Superviseur.

Definition at line 48 of file saemul.cxx.

{
    std::pair<long, std::vector<double> *> *tmp;

    tmp = new std::pair<long, std::vector<double> *>(id, &cal);
    q.push(*tmp);
    delete tmp;
}

References q.

run()

void Emulator::run

(

void

)

Definition at line 116 of file saemul.cxx.

{
    solver->readFromFile("caca");
    solver->start();
    while (! q.empty())
        solver->next();
    solver->finish();
}

References SalomeTest::finish(), SalomeTest::next(), q, SalomeTest::readFromFile(), solver, and SalomeTest::start().

Referenced by main().

Member Data Documentation

out

std::vector<double>* Emulator::out

protected

Definition at line 35 of file saemul.hxx.

Referenced by getCurrentId(), and getCurrentOut().

q

std::queue<std::pair<long, std::vector<double> *> > Emulator::q

protected

Definition at line 34 of file saemul.hxx.

Referenced by destroyAll(), getCurrentId(), push(), and run().

solver

SalomeTest* Emulator::solver

protected

Definition at line 33 of file saemul.hxx.

Referenced by Emulator(), run(), and ~Emulator().

---

The documentation for this class was generated from the following files:

• src/engine/Plugin/saemul.hxx
• src/engine/Plugin/saemul.cxx
