SalomeWrap_DataModel Class Reference

#include <SalomeWrap_DataModel.hxx>

Inheritance diagram for SalomeWrap_DataModel:
Inheritance graph
[legend]

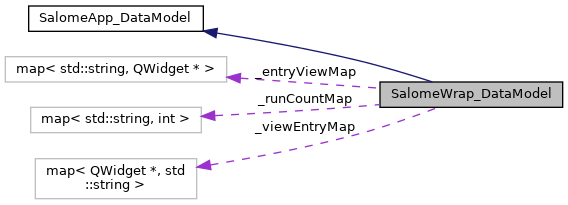

Collaboration diagram for SalomeWrap_DataModel:
Collaboration graph
[legend]

Public Types

enum  ObjectType { SchemaObject , RunObject , UnknownObject }


Public Member Functions

 SalomeWrap_DataModel (CAM_Module *theModule)

virtual ~SalomeWrap_DataModel ()

virtual void createNewSchema (const QString &schemaName, QWidget *viewWindow)

virtual bool renameSchema (const QString &oldName, const QString &newName, QWidget *viewWindow)

virtual bool deleteSchema (QWidget *viewWindow)

virtual void createNewRun (const QString &schemaName, const QString &runName, QWidget *refWindow, QWidget *viewWindow)

virtual void setSelected (QWidget *viewWindow)

SUIT_DataObject * getDataObject (std::string entry)

QWidget * getViewWindow (std::string entry)


Protected Attributes

std::map< QWidget *, std::string > _viewEntryMap

std::map< std::string, QWidget * > _entryViewMap

std::map< std::string, int > _runCountMap


Detailed Description

Definition at line 31 of file SalomeWrap_DataModel.hxx.

Member Enumeration Documentation

◆ ObjectType

enum SalomeWrap_DataModel::ObjectType
Enumerator
SchemaObject
RunObject
UnknownObject

Definition at line 53 of file SalomeWrap_DataModel.hxx.

54 {
55 SchemaObject,
56 RunObject,
57 UnknownObject
58 };
SalomeWrap_DataModel::UnknownObject
@ UnknownObject
Definition: SalomeWrap_DataModel.hxx:57
SalomeWrap_DataModel::RunObject
@ RunObject
Definition: SalomeWrap_DataModel.hxx:56
SalomeWrap_DataModel::SchemaObject
@ SchemaObject
Definition: SalomeWrap_DataModel.hxx:55

Constructor & Destructor Documentation

◆ SalomeWrap_DataModel()

SalomeWrap_DataModel::SalomeWrap_DataModel ( CAM_Module *  theModule)

Definition at line 39 of file SalomeWrap_DataModel.cxx.

40 : SalomeApp_DataModel(theModule)
41{
42 DEBTRACE("SalomeWrap_DataModel::SalomeWrap_DataModel");
43 _viewEntryMap.clear();
44 _entryViewMap.clear();
45}
DEBTRACE
#define DEBTRACE(msg)
Definition: YacsTrace.hxx:31
SalomeApp_DataModel
SalomeWrap_DataModel::_viewEntryMap
std::map< QWidget *, std::string > _viewEntryMap
Definition: SalomeWrap_DataModel.hxx:61
SalomeWrap_DataModel::_entryViewMap
std::map< std::string, QWidget * > _entryViewMap
Definition: SalomeWrap_DataModel.hxx:62

References _entryViewMap, _viewEntryMap, and DEBTRACE.

◆ ~SalomeWrap_DataModel()

SalomeWrap_DataModel::~SalomeWrap_DataModel ( )
virtual

Definition at line 47 of file SalomeWrap_DataModel.cxx.

48{
49 DEBTRACE("SalomeWrap_DataModel::~SalomeWrap_DataModel");
50}

References DEBTRACE.

Member Function Documentation

◆ createNewRun()

void SalomeWrap_DataModel::createNewRun ( const QString &  schemaName,
const QString &  runName,
QWidget *  refWindow,
QWidget *  viewWindow
)
virtual

Definition at line 166 of file SalomeWrap_DataModel.cxx.

170{
171 DEBTRACE("SalomeWrap_DataModel::createNewRun");
172 SalomeApp_ModuleObject* aRoot = dynamic_cast<SalomeApp_ModuleObject*>(root());
173 if (!aRoot) return;
174 DEBTRACE(refWindow);
175 if (!_viewEntryMap.count(refWindow)) return;
176 DEBTRACE("---");
177
178 _PTR(SComponent) aSComp(aRoot->object());
179 _PTR(Study) aStudy = getStudy()->studyDS();
180
181 _PTR(StudyBuilder) aBuilder(aStudy->NewBuilder());
182 _PTR(GenericAttribute) anAttr;
183 _PTR(AttributeName) aName;
184 _PTR(AttributePixMap) aPixmap;
185 _PTR(AttributeParameter) aType;
186
187 string id = _viewEntryMap[refWindow];
188 _PTR(SObject) aRefObj = aStudy->FindObjectID(id);
189
190 // --- create a new schema SObject
191
192 _PTR(SObject) aSObj;
193 aSObj = aBuilder->NewObject(aRefObj);
194
195 anAttr = aBuilder->FindOrCreateAttribute(aSObj, "AttributeName");
196 aName = _PTR(AttributeName)(anAttr);
197 aName->SetValue(QFileInfo(runName).baseName().toStdString());
198
199 anAttr = aBuilder->FindOrCreateAttribute(aSObj, "AttributePixMap");
200 aPixmap = _PTR(AttributePixMap)(anAttr);
201 aPixmap->SetPixMap("schema.png");
202
203 anAttr = aBuilder->FindOrCreateAttribute(aSObj, "AttributeParameter");
204 aType = _PTR(AttributeParameter)(anAttr);
205 aType->SetInt("ObjectType", SchemaObject);
206 string filePath = runName.toStdString();
207 aType->SetString("FilePath", filePath.c_str());
208 DEBTRACE("DataModel : FilePath = " << filePath);
209
210 _viewEntryMap[viewWindow] = aSObj->GetID();
211 _entryViewMap[aSObj->GetID()] = viewWindow;
212 DEBTRACE("--- " << viewWindow << " "<< aSObj->GetID());
213 SalomeApp_Module *mod = dynamic_cast<SalomeApp_Module*>(module());
214 if (mod) mod->updateObjBrowser();
215
216 QxScene_ViewWindow *swv = dynamic_cast<QxScene_ViewWindow*>(viewWindow);
217 if (!swv) return;
218
219 int count = 0;
220 if (_runCountMap.count(schemaName.toStdString()))
221 count = ++_runCountMap[schemaName.toStdString()];
222 else
223 _runCountMap[schemaName.toStdString()] = count;
224
225 QString tabName = QFileInfo(schemaName).baseName() +QString("_run%1").arg(count);
226 swv->getViewManager()->setTitle(tabName);
227
228 QPixmap pixmap;
229 pixmap.load("icons:run_active.png");
230 swv->getViewManager()->setIcon(pixmap);
231}
SalomeApp_Module
SalomeWrap_DataModel::_runCountMap
std::map< std::string, int > _runCountMap
Definition: SalomeWrap_DataModel.hxx:63

References _entryViewMap, _runCountMap, _viewEntryMap, DEBTRACE, and SchemaObject.

Referenced by YACS::HMI::SuitWrapper::createNewRun().

◆ createNewSchema()

void SalomeWrap_DataModel::createNewSchema ( const QString &  schemaName,
QWidget *  viewWindow
)
virtual

Definition at line 52 of file SalomeWrap_DataModel.cxx.

54{
55 DEBTRACE("SalomeWrap_DataModel::createNewSchema : " << schemaName.toStdString());
56 SalomeApp_ModuleObject* aRoot = dynamic_cast<SalomeApp_ModuleObject*>(root());
57 if (!aRoot)
58 {
59 DEBTRACE("SalomeApp_ModuleObject* aRoot =0");
60 return;
61 }
62 DEBTRACE("aRoot OK");
63 _PTR(SComponent) aSComp(aRoot->object());
64 _PTR(Study) aStudy = getStudy()->studyDS();
65 _PTR(StudyBuilder) aBuilder(aStudy->NewBuilder());
66 _PTR(GenericAttribute) anAttr;
67 _PTR(AttributeName) aName;
68 _PTR(AttributePixMap) aPixmap;
69 _PTR(AttributeParameter) aType;
70
71 // --- create a new schema SObject
72
73 _PTR(SObject) aSObj;
74 aSObj = aBuilder->NewObject(aSComp);
75
76 anAttr = aBuilder->FindOrCreateAttribute(aSObj, "AttributeName");
77 aName = _PTR(AttributeName)(anAttr);
78 aName->SetValue(QFileInfo(schemaName).baseName().toStdString());
79
80 anAttr = aBuilder->FindOrCreateAttribute(aSObj, "AttributePixMap");
81 aPixmap = _PTR(AttributePixMap)(anAttr);
82 aPixmap->SetPixMap("schema.png");
83
84 anAttr = aBuilder->FindOrCreateAttribute(aSObj, "AttributeParameter");
85 aType = _PTR(AttributeParameter)(anAttr);
86 aType->SetInt("ObjectType", SchemaObject);
87 string filePath = schemaName.toStdString();
88 aType->SetString("FilePath", filePath.c_str());
89 DEBTRACE("DataModel : FilePath = " << filePath);
90
91 _viewEntryMap[viewWindow] = aSObj->GetID();
92 DEBTRACE(viewWindow);
93 _entryViewMap[aSObj->GetID()] = viewWindow;
94 DEBTRACE("--- " << viewWindow << " "<< aSObj->GetID());
95 SalomeApp_Module *mod = dynamic_cast<SalomeApp_Module*>(module());
96 if (mod) mod->updateObjBrowser();
97
98 QxScene_ViewWindow *swv = dynamic_cast<QxScene_ViewWindow*>(viewWindow);
99 if (!swv) return;
100 QString tabName = QFileInfo(schemaName).baseName();
101 swv->getViewManager()->setTitle(tabName);
102}

References _entryViewMap, _viewEntryMap, DEBTRACE, and SchemaObject.

Referenced by YACS::HMI::SuitWrapper::createNewSchema().

◆ deleteSchema()

bool SalomeWrap_DataModel::deleteSchema ( QWidget *  viewWindow)
virtual

Definition at line 145 of file SalomeWrap_DataModel.cxx.

146{
147 DEBTRACE("SalomeWrap_DataModel::deleteSchema");
148 SalomeApp_ModuleObject* aRoot = dynamic_cast<SalomeApp_ModuleObject*>(root());
149 if (!aRoot) return false;
150 if (!_viewEntryMap.count(viewWindow)) return false;
151
152 _PTR(SComponent) aSComp(aRoot->object());
153 _PTR(Study) aStudy = getStudy()->studyDS();
154
155 string id = _viewEntryMap[viewWindow];
156 _PTR(SObject) aSObj = aStudy->FindObjectID(id);
157
158 _PTR(StudyBuilder) aBuilder(aStudy->NewBuilder());
159 aBuilder->RemoveObject(aSObj);
160
161 SalomeApp_Module *mod = dynamic_cast<SalomeApp_Module*>(module());
162 if (mod) mod->updateObjBrowser();
163 return true;
164}

References _viewEntryMap, and DEBTRACE.

Referenced by YACS::HMI::SuitWrapper::deleteSchema().

◆ getDataObject()

SUIT_DataObject * SalomeWrap_DataModel::getDataObject ( std::string  entry)

Definition at line 244 of file SalomeWrap_DataModel.cxx.

245{
246 DEBTRACE("SalomeWrap_DataModel::getDataObject " << entry);
247 QString refEntry = entry.c_str();
248 SUIT_DataObject* sdo = 0;
249 SalomeApp_ModuleObject* aRoot = dynamic_cast<SalomeApp_ModuleObject*>(root());
250 if (!aRoot) return 0;
251
252 QList<SUIT_DataObject*> objList = root()->children(true);
253 for (int i = 0; i < objList.size(); ++i)
254 {
255 SalomeApp_DataObject* obj = dynamic_cast<SalomeApp_DataObject*>(objList.at(i));
256 if (obj && (!QString::compare(refEntry, obj->entry())))
257 {
258 sdo = obj;
259 break;
260 }
261 }
262 return sdo;
263}

References DEBTRACE, and yacsorb.CORBAEngineTest::i.

◆ getViewWindow()

QWidget * SalomeWrap_DataModel::getViewWindow ( std::string  entry)

Definition at line 265 of file SalomeWrap_DataModel.cxx.

266{
267 if (! _entryViewMap.count(entry)) return 0;
268 return _entryViewMap[entry];
269}

References _entryViewMap.

Referenced by Yacsgui::onDblClick().

◆ renameSchema()

bool SalomeWrap_DataModel::renameSchema ( const QString &  oldName,
const QString &  newName,
QWidget *  viewWindow
)
virtual

Definition at line 104 of file SalomeWrap_DataModel.cxx.

107{
108 DEBTRACE("SalomeWrap_DataModel::renameSchema " << oldName.toStdString()
109 << " " << newName.toStdString());
110 SalomeApp_ModuleObject* aRoot = dynamic_cast<SalomeApp_ModuleObject*>(root());
111 if (!aRoot) return false;
112 if (!_viewEntryMap.count(viewWindow)) return false;
113
114 _PTR(SComponent) aSComp(aRoot->object());
115 _PTR(Study) aStudy = getStudy()->studyDS();
116
117 string id = _viewEntryMap[viewWindow];
118 _PTR(SObject) aSObj = aStudy->FindObjectID(id);
119
120 _PTR(StudyBuilder) aBuilder(aStudy->NewBuilder());
121 _PTR(GenericAttribute) anAttr;
122 _PTR(AttributeName) aName;
123 _PTR(AttributeParameter) aType;
124
125 anAttr = aBuilder->FindOrCreateAttribute(aSObj, "AttributeName");
126 aName = _PTR(AttributeName)(anAttr);
127 aName->SetValue(QFileInfo(newName).baseName().toStdString());
128
129 anAttr = aBuilder->FindOrCreateAttribute(aSObj, "AttributeParameter");
130 aType = _PTR(AttributeParameter)(anAttr);
131 aType->SetInt("ObjectType", SchemaObject);
132 string filePath = newName.toStdString();
133 aType->SetString("FilePath", filePath.c_str());
134 DEBTRACE("DataModel : FilePath = " << filePath);
135
136 SalomeApp_Module *mod = dynamic_cast<SalomeApp_Module*>(module());
137 if (mod) mod->updateObjBrowser();
138
139 QxScene_ViewWindow *swv = dynamic_cast<QxScene_ViewWindow*>(viewWindow);
140 QString tabName = QFileInfo(newName).baseName();
141 if (swv) swv->getViewManager()->setTitle(tabName);
142 return true;
143}

References _viewEntryMap, DEBTRACE, and SchemaObject.

Referenced by YACS::HMI::SuitWrapper::renameSchema().

◆ setSelected()

void SalomeWrap_DataModel::setSelected ( QWidget *  viewWindow)
virtual

Definition at line 233 of file SalomeWrap_DataModel.cxx.

234{
235 DEBTRACE("SalomeWrap_DataModel::setSelected");
236 if (!_viewEntryMap.count(viewWindow)) return;
237 string entry = _viewEntryMap[viewWindow];
238 LightApp_SelectionMgr* selMgr = getModule()->getApp()->selectionMgr();
239 SALOME_ListIO ioList;
240 ioList.Append( new SALOME_InteractiveObject( entry.c_str(), "", "" ) );
241 selMgr->setSelectedObjects( ioList, false );
242}

References _viewEntryMap, and DEBTRACE.

Referenced by Yacsgui::onWindowActivated(), gui.Tree.Tree::selectItem(), and gui.Tree.Tree::selectNodeItem().

Member Data Documentation

◆ _entryViewMap

std::map<std::string, QWidget*> SalomeWrap_DataModel::_entryViewMap
protected

Definition at line 62 of file SalomeWrap_DataModel.hxx.

Referenced by createNewRun(), createNewSchema(), getViewWindow(), and SalomeWrap_DataModel().

◆ _runCountMap

std::map<std::string, int> SalomeWrap_DataModel::_runCountMap
protected

Definition at line 63 of file SalomeWrap_DataModel.hxx.

Referenced by createNewRun().

◆ _viewEntryMap

std::map<QWidget*, std::string> SalomeWrap_DataModel::_viewEntryMap
protected

Definition at line 61 of file SalomeWrap_DataModel.hxx.

Referenced by createNewRun(), createNewSchema(), deleteSchema(), renameSchema(), SalomeWrap_DataModel(), and setSelected().

The documentation for this class was generated from the following files:
