MEDCoupling::DEC Class Reference

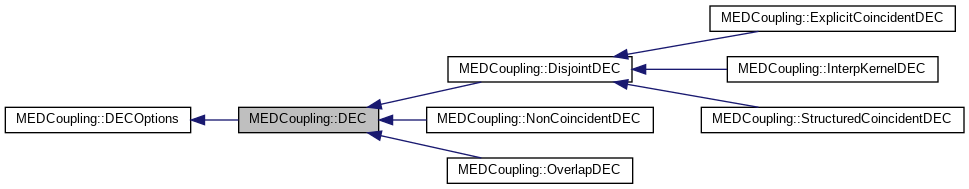

Inheritance diagram for MEDCoupling::DEC:

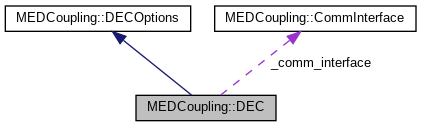

Collaboration diagram for MEDCoupling::DEC:

Public Member Functions
void	copyFrom (const DEC &other)
	DEC ()
virtual void	sendRecvData (bool way=true)=0
virtual void	synchronize ()=0
virtual	~DEC ()
Public Member Functions inherited from MEDCoupling::DECOptions
	DECOptions ()
	DECOptions (const DECOptions &deco)
AllToAllMethod	getAllToAllMethod () const
bool	getAsynchronous () const
bool	getForcedRenormalization () const
const std::string &	getMethod () const
TimeInterpolationMethod	getTimeInterpolationMethod () const
void	setAllToAllMethod (AllToAllMethod sp)
void	setAsynchronous (bool dr)
void	setForcedRenormalization (bool dr)
void	setMethod (const char *m)
void	setTimeInterpolationMethod (TimeInterpolationMethod it)

Protected Attributes
const CommInterface *	_comm_interface
Protected Attributes inherited from MEDCoupling::DECOptions
AllToAllMethod	_allToAllMethod
bool	_asynchronous
bool	_forcedRenormalization
std::string	_method
TimeInterpolationMethod	_timeInterpolationMethod

Detailed Description

DEC stands for Data Exchange Channel. See the page Data Exchange Channel - DEC for more on this.

This class is purely abstract. See the derivations:

• DisjointDEC
• NonCoincidentDEC
• OverlapDEC

Constructor & Destructor Documentation

DEC()

MEDCoupling::DEC::DEC

(

)

~DEC()

MEDCoupling::DEC::~DEC ( )

virtual

Member Function Documentation

copyFrom()

void MEDCoupling::DEC::copyFrom

(

const DEC &

other

)

References _comm_interface.

Referenced by MEDCoupling::DisjointDEC::copyInstance().

synchronize()

virtual void MEDCoupling::DEC::synchronize ( )

pure virtual

Implemented in MEDCoupling::DisjointDEC, MEDCoupling::StructuredCoincidentDEC, MEDCoupling::OverlapDEC, MEDCoupling::NonCoincidentDEC, MEDCoupling::InterpKernelDEC, and MEDCoupling::ExplicitCoincidentDEC.

sendRecvData()

virtual void MEDCoupling::DEC::sendRecvData ( bool  way = true )

pure virtual

Implemented in MEDCoupling::OverlapDEC, and MEDCoupling::DisjointDEC.

Member Data Documentation

_comm_interface

const CommInterface* MEDCoupling::DEC::_comm_interface

protected

Referenced by copyFrom().
