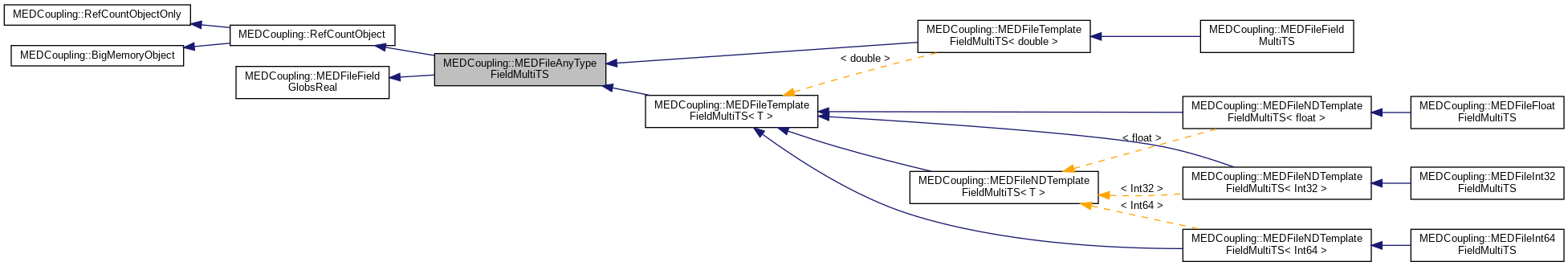

Inheritance diagram for MEDCoupling::MEDFileAnyTypeFieldMultiTS:

[legend]

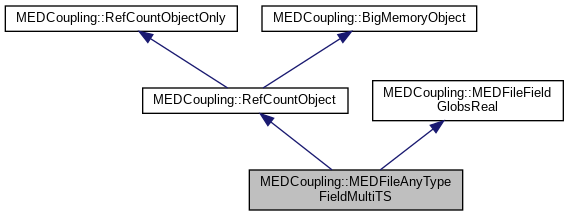

Collaboration diagram for MEDCoupling::MEDFileAnyTypeFieldMultiTS:

[legend]

Public Member Functions
virtual MEDFileAnyTypeFieldMultiTS *	buildNewEmpty () const =0

MEDFileAnyTypeFieldMultiTS *	buildSubPart (const int startIds, const int endIds) const

MEDFileAnyTypeFieldMultiTS *	buildSubPartSlice (int bg, int end, int step) const

void	changeLocsRefsNamesGen (const std::vector< std::pair< std::vector< std::string >, std::string > > &mapOfModif)

bool	changeMeshNames (const std::vector< std::pair< std::string, std::string > > &modifTab)

void	changePflsRefsNamesGen (const std::vector< std::pair< std::vector< std::string >, std::string > > &mapOfModif)

virtual void	checkCoherencyOfType (const MEDFileAnyTypeField1TS *f1ts) const =0

virtual MEDFileAnyTypeFieldMultiTS *	deepCopy () const

void	eraseEmptyTS ()

void	eraseTimeStepIds (const int startIds, const int endIds)

void	eraseTimeStepIds2 (int bg, int end, int step)

virtual MEDFileAnyTypeFieldMultiTS *	extractPart (const std::map< int, MCAuto< DataArrayIdType > > &extractDef, MEDFileMesh *mm) const =0

MCAuto< MEDFileAnyTypeFieldMultiTSWithoutSDA >	getContent ()

std::vector< const BigMemoryObject * >	getDirectChildrenWithNull () const

std::string	getDtUnit () const

std::vector< std::vector< std::pair< mcIdType, mcIdType > > >	getFieldSplitedByType (int iteration, int order, const std::string &mname, std::vector< INTERP_KERNEL::NormalizedCellType > &types, std::vector< std::vector< TypeOfField > > &typesF, std::vector< std::vector< std::string > > &pfls, std::vector< std::vector< std::string > > &locs) const

std::size_t	getHeapMemorySizeWithoutChildren () const

const std::vector< std::string > &	getInfo () const

std::vector< std::pair< int, int > >	getIterations () const

std::vector< std::string >	getLocsReallyUsed () const

std::vector< std::string >	getLocsReallyUsedMulti () const

std::string	getMeshName () const

std::string	getName () const

int	getNonEmptyLevels (int iteration, int order, const std::string &mname, std::vector< int > &levs) const

int	getNumberOfComponents () const

int	getNumberOfTS () const

std::vector< std::string >	getPflsReallyUsed () const

std::vector< std::string >	getPflsReallyUsedMulti () const

int	getPosGivenTime (double time, double eps=1e-8) const

int	getPosOfTimeStep (int iteration, int order) const

MEDFileAnyTypeField1TS *	getTimeStep (int iteration, int order) const

virtual MEDFileAnyTypeField1TS *	getTimeStepAtPos (int pos) const =0

MEDFileAnyTypeField1TS *	getTimeStepGivenTime (double time, double eps=1e-8) const

std::vector< std::pair< int, int > >	getTimeSteps (std::vector< double > &ret1) const

std::vector< std::vector< TypeOfField > >	getTypesOfFieldAvailable () const

MEDFileAnyTypeFieldMultiTSIterator *	iterator ()

void	loadArrays ()

void	loadArraysIfNecessary ()

bool	presenceOfMultiDiscPerGeoType () const

void	pushBackTimeStep (MEDFileAnyTypeField1TS *f1ts)

void	pushBackTimeSteps (const std::vector< MEDFileAnyTypeField1TS * > &f1ts)

void	pushBackTimeSteps (MEDFileAnyTypeFieldMultiTS *fmts)

void	setDtUnit (const std::string &dtUnit)

void	setInfo (const std::vector< std::string > &info)

void	setMeshName (const std::string &newMeshName)

void	setName (const std::string &name)

virtual MEDFileAnyTypeFieldMultiTS *	shallowCpy () const =0

std::string	simpleRepr () const

void	simpleRepr (int bkOffset, std::ostream &oss, int fmtsId) const

std::vector< MCAuto< MEDFileAnyTypeFieldMultiTS > >	splitComponents () const

std::vector< MCAuto< MEDFileAnyTypeFieldMultiTS > >	splitDiscretizations () const

std::vector< MCAuto< MEDFileAnyTypeFieldMultiTS > >	splitMultiDiscrPerGeoTypes () const

void	synchronizeNameScope ()

void	unloadArrays ()

void	unloadArraysWithoutDataLoss ()

void	writeLL (med_idt fid) const

Public Member Functions inherited from MEDCoupling::RefCountObjectOnly
bool	decrRef () const

int	getRCValue () const

void	incrRef () const

RefCountObjectOnly &	operator= (const RefCountObjectOnly &other)

Public Member Functions inherited from MEDCoupling::BigMemoryObject
std::string	debugHeapMemorySize () const

std::vector< const BigMemoryObject * >	getAllTheProgeny () const

std::vector< const BigMemoryObject * >	getDirectChildren () const

std::size_t	getHeapMemorySize () const

std::string	getHeapMemorySizeStr () const

bool	isObjectInTheProgeny (const BigMemoryObject *obj) const

virtual	~BigMemoryObject ()

Public Member Functions inherited from MEDCoupling::MEDFileFieldGlobsReal
void	appendGlobs (const MEDFileFieldGlobsReal &other, double eps)

void	appendLoc (const std::string &locName, INTERP_KERNEL::NormalizedCellType geoType, const std::vector< double > &refCoo, const std::vector< double > &gsCoo, const std::vector< double > &w)

void	appendProfile (DataArrayIdType *pfl)

void	changeLocName (const std::string &oldName, const std::string &newName)

void	changeLocsNames (const std::vector< std::pair< std::vector< std::string >, std::string > > &mapOfModif)

void	changeLocsNamesInStruct (const std::vector< std::pair< std::vector< std::string >, std::string > > &mapOfModif)

void	changePflName (const std::string &oldName, const std::string &newName)

void	changePflsNames (const std::vector< std::pair< std::vector< std::string >, std::string > > &mapOfModif)

void	changePflsNamesInStruct (const std::vector< std::pair< std::vector< std::string >, std::string > > &mapOfModif)

void	checkGlobsCoherency () const

void	checkGlobsLocsPartCoherency () const

void	checkGlobsPflsPartCoherency () const

std::string	createNewNameOfLoc () const

std::string	createNewNameOfPfl () const

void	deepCpyGlobs (const MEDFileFieldGlobsReal &other)

void	deepCpyOnlyUsedGlobs (const MEDFileFieldGlobsReal &other)

bool	existsLoc (const std::string &locName) const

bool	existsPfl (const std::string &pflName) const

std::vector< const BigMemoryObject * >	getDirectChildrenWithNull () const

std::string	getFileName () const

std::size_t	getHeapMemorySizeWithoutChildren () const

MEDFileFieldLoc &	getLocalization (const std::string &locName)

const MEDFileFieldLoc &	getLocalization (const std::string &locName) const

MEDFileFieldLoc &	getLocalizationFromId (int locId)

const MEDFileFieldLoc &	getLocalizationFromId (int locId) const

int	getLocalizationId (const std::string &loc) const

std::vector< std::string >	getLocs () const

int	getNbOfGaussPtPerCell (int locId) const

std::vector< std::string >	getPfls () const

DataArrayIdType *	getProfile (const std::string &pflName)

const DataArrayIdType *	getProfile (const std::string &pflName) const

DataArrayIdType *	getProfileFromId (int pflId)

const DataArrayIdType *	getProfileFromId (int pflId) const

int	getProfileId (const std::string &pfl) const

void	killLocalizationIds (const std::vector< int > &locIds)

void	killProfileIds (const std::vector< int > &pflIds)

void	killStructureElementsInGlobs ()

void	loadAllGlobals (med_idt fid, const MEDFileEntities *entities=0)

void	loadGlobals (med_idt fid)

void	loadProfileInFile (med_idt fid, int id)

void	loadProfileInFile (med_idt fid, int id, const std::string &pflName)

	MEDFileFieldGlobsReal ()

	MEDFileFieldGlobsReal (med_idt fid)

void	resetContent ()

void	setFileName (const std::string &fileName)

void	shallowCpyGlobs (const MEDFileFieldGlobsReal &other)

void	shallowCpyOnlyUsedGlobs (const MEDFileFieldGlobsReal &other)

void	simpleReprGlobs (std::ostream &oss) const

std::vector< std::vector< int > >	whichAreEqualLocs (double eps) const

std::vector< std::vector< int > >	whichAreEqualProfiles () const

void	writeGlobals (med_idt fid, const MEDFileWritable &opt) const

std::vector< std::pair< std::vector< std::string >, std::string > >	zipLocsNames (double eps)

std::vector< std::pair< std::vector< std::string >, std::string > >	zipPflsNames ()

virtual	~MEDFileFieldGlobsReal ()

Static Public Member Functions
static MCAuto< MEDFileAnyTypeFieldMultiTS >	Aggregate (const std::vector< const MEDFileAnyTypeFieldMultiTS * > &fmtss, const std::vector< std::vector< std::pair< int, mcIdType > > > &dts)

static MEDFileAnyTypeFieldMultiTS *	BuildNewInstanceFromContent (MEDFileAnyTypeFieldMultiTSWithoutSDA *c)

static int	CheckSupportAcrossTime (MEDFileAnyTypeFieldMultiTS f0, MEDFileAnyTypeFieldMultiTS f1, const MEDFileMesh *mesh, TypeOfField &tof0, TypeOfField &tof1)

static MEDFileAnyTypeFieldMultiTS *	New (const std::string &fileName, bool loadAll=true)

static MEDFileAnyTypeFieldMultiTS *	New (const std::string &fileName, const std::string &fieldName, bool loadAll=true)

static MEDFileAnyTypeFieldMultiTS *	New (med_idt fid, bool loadAll=true)

static MEDFileAnyTypeFieldMultiTS *	New (med_idt fid, const std::string &fieldName, bool loadAll=true)

static std::vector< std::vector< MEDFileAnyTypeFieldMultiTS * > >	SplitIntoCommonTimeSeries (const std::vector< MEDFileAnyTypeFieldMultiTS * > &vectFMTS)

static std::vector< std::vector< MEDFileAnyTypeFieldMultiTS * > >	SplitPerCommonSupport (const std::vector< MEDFileAnyTypeFieldMultiTS * > &vectFMTS, const MEDFileMesh *mesh, std::vector< MCAuto< MEDFileFastCellSupportComparator > > &fsc)

Static Public Member Functions inherited from MEDCoupling::BigMemoryObject
static std::size_t	GetHeapMemorySizeOfObjs (const std::vector< const BigMemoryObject * > &objs)

Protected Member Functions
MEDFileAnyTypeFieldMultiTSWithoutSDA *	contentNotNullBase ()

const MEDFileAnyTypeFieldMultiTSWithoutSDA *	contentNotNullBase () const

std::string	getClassName () const override

	MEDFileAnyTypeFieldMultiTS ()

	MEDFileAnyTypeFieldMultiTS (const MEDFileAnyTypeFieldMultiTSWithoutSDA &other, bool shallowCopyOfContent)

	MEDFileAnyTypeFieldMultiTS (med_idt fid, bool loadAll, const MEDFileMeshes *ms)

	MEDFileAnyTypeFieldMultiTS (med_idt fid, const std::string &fieldName, bool loadAll, const MEDFileMeshes ms, const MEDFileEntities entities=0)

Protected Member Functions inherited from MEDCoupling::RefCountObject
	RefCountObject ()

	RefCountObject (const RefCountObject &other)

virtual	~RefCountObject ()

Protected Member Functions inherited from MEDCoupling::RefCountObjectOnly
	RefCountObjectOnly ()

	RefCountObjectOnly (const RefCountObjectOnly &other)

virtual	~RefCountObjectOnly ()

Protected Member Functions inherited from MEDCoupling::MEDFileFieldGlobsReal
MEDFileFieldGlobs *	contentNotNull ()

const MEDFileFieldGlobs *	contentNotNull () const

Static Protected Member Functions
static MEDFileAnyTypeFieldMultiTSWithoutSDA *	BuildContentFrom (med_idt fid, bool loadAll, const MEDFileMeshes *ms)

static MEDFileAnyTypeFieldMultiTSWithoutSDA *	BuildContentFrom (med_idt fid, const std::string &fieldName, bool loadAll, const MEDFileMeshes ms, const MEDFileEntities entities)

static MEDFileAnyTypeFieldMultiTS *	BuildNewInstanceFromContent (MEDFileAnyTypeFieldMultiTSWithoutSDA *c, med_idt fid)

Protected Attributes
MCAuto< MEDFileAnyTypeFieldMultiTSWithoutSDA >	_content

Protected Attributes inherited from MEDCoupling::MEDFileFieldGlobsReal
MCAuto< MEDFileFieldGlobs >	_globals

Detailed Description

User class.

Constructor & Destructor Documentation

◆ MEDFileAnyTypeFieldMultiTS() [1/4]

MEDFileAnyTypeFieldMultiTS::MEDFileAnyTypeFieldMultiTS ( )

protected

◆ MEDFileAnyTypeFieldMultiTS() [2/4]

MEDFileAnyTypeFieldMultiTS::MEDFileAnyTypeFieldMultiTS	(	med_idt	fid,
		bool	loadAll,
		const MEDFileMeshes *	ms
	)

protected

References _content, BuildContentFrom(), contentNotNullBase(), MEDCoupling::MEDFileFieldGlobsReal::loadGlobals(), and MEDCoupling::MEDFileAnyTypeFieldMultiTSWithoutSDA::readDescription().

◆ MEDFileAnyTypeFieldMultiTS() [3/4]

MEDFileAnyTypeFieldMultiTS::MEDFileAnyTypeFieldMultiTS	(	med_idt	fid,
		const std::string &	fieldName,
		bool	loadAll,
		const MEDFileMeshes *	ms,
		const MEDFileEntities *	entities = `0`
	)

protected

References _content, BuildContentFrom(), contentNotNullBase(), MEDCoupling::MEDFileFieldGlobsReal::loadGlobals(), and MEDCoupling::MEDFileAnyTypeFieldMultiTSWithoutSDA::readDescription().

◆ MEDFileAnyTypeFieldMultiTS() [4/4]

MEDFileAnyTypeFieldMultiTS::MEDFileAnyTypeFieldMultiTS	(	const MEDFileAnyTypeFieldMultiTSWithoutSDA &	other,
		bool	shallowCopyOfContent
	)

protected

This constructor is a shallow copy constructor. If shallowCopyOfContent is true the content of other is shallow copied. If shallowCopyOfContent is false, other is taken to be the content of this.

Warning: this is a shallow copy constructor

References _content, MEDCoupling::RefCountObjectOnly::incrRef(), and MEDCoupling::MEDFileAnyTypeFieldMultiTSWithoutSDA::shallowCpy().

Member Function Documentation

◆ BuildNewInstanceFromContent() [1/2]

MEDFileAnyTypeFieldMultiTS * MEDFileAnyTypeFieldMultiTS::BuildNewInstanceFromContent	(	MEDFileAnyTypeFieldMultiTSWithoutSDA *	c,
		med_idt	fid
	)

staticprotected

References MEDCoupling::MEDFileFieldGlobsReal::setFileName().

Referenced by MEDCoupling::MEDFileFields::aggregateFieldsOnSameMeshes(), MEDCoupling::MEDFileNDTemplateFieldMultiTS< T >::convertToDouble(), MEDCoupling::MEDFileFieldMultiTS::convertToInt(), and New().

◆ BuildContentFrom() [1/2]

MEDFileAnyTypeFieldMultiTSWithoutSDA * MEDFileAnyTypeFieldMultiTS::BuildContentFrom	(	med_idt	fid,
		bool	loadAll,
		const MEDFileMeshes *	ms
	)

staticprotected

References MEDCoupling::MEDFileAnyTypeField1TS::LocateField2().

Referenced by MEDFileAnyTypeFieldMultiTS(), and New().

◆ BuildContentFrom() [2/2]

MEDFileAnyTypeFieldMultiTSWithoutSDA * MEDFileAnyTypeFieldMultiTS::BuildContentFrom	(	med_idt	fid,
		const std::string &	fieldName,
		bool	loadAll,
		const MEDFileMeshes *	ms,
		const MEDFileEntities *	entities
	)

staticprotected

References MEDCoupling::MEDFileAnyTypeField1TS::LocateField().

◆ getClassName()

std::string MEDCoupling::MEDFileAnyTypeFieldMultiTS::getClassName ( ) const

overrideprotectedvirtual

Reimplemented from MEDCoupling::BigMemoryObject.

Reimplemented in MEDCoupling::MEDFileFloatFieldMultiTS, MEDCoupling::MEDFileInt64FieldMultiTS, MEDCoupling::MEDFileInt32FieldMultiTS, and MEDCoupling::MEDFileFieldMultiTS.

◆ New() [1/4]

MEDFileAnyTypeFieldMultiTS * MEDFileAnyTypeFieldMultiTS::New	(	const std::string &	fileName,
		bool	loadAll = `true`
	)

static

Returns a new instance of MEDFileFieldMultiTS or MEDFileInt32FieldMultiTS holding data of the first field that has been read from a specified MED file.

Parameters

[in] fileName - the name of the MED file to read.

Returns: MEDFileFieldMultiTS * - a new instance of MEDFileFieldMultiTS or MEDFileInt32FieldMultiTS. The caller is to delete this field using decrRef() as it is no more needed.

Exceptions

If	reading the file fails.

Referenced by MEDCoupling::GetTypesOfField(), and New().

◆ New() [2/4]

MEDFileAnyTypeFieldMultiTS * MEDFileAnyTypeFieldMultiTS::New	(	med_idt	fid,
		bool	loadAll = `true`
	)

static

References BuildContentFrom(), and BuildNewInstanceFromContent().

◆ New() [3/4]

MEDFileAnyTypeFieldMultiTS * MEDFileAnyTypeFieldMultiTS::New	(	const std::string &	fileName,
		const std::string &	fieldName,
		bool	loadAll = `true`
	)

static

Returns a new instance of MEDFileFieldMultiTS or MEDFileInt32FieldMultiTS holding data of a given field that has been read from a specified MED file.

Parameters

[in]	fileName	- the name of the MED file to read.
[in]	fieldName	- the name of the field to read.

Returns: MEDFileFieldMultiTS * - a new instance of MEDFileFieldMultiTS or MEDFileInt32FieldMultiTS. The caller is to delete this field using decrRef() as it is no more needed.

Exceptions

If	reading the file fails.
If	there is no field named fieldName in the file.

References New().

◆ New() [4/4]

MEDFileAnyTypeFieldMultiTS * MEDFileAnyTypeFieldMultiTS::New	(	med_idt	fid,
		const std::string &	fieldName,
		bool	loadAll = `true`
	)

static

References BuildContentFrom(), and BuildNewInstanceFromContent().

◆ BuildNewInstanceFromContent() [2/2]

MEDFileAnyTypeFieldMultiTS * MEDFileAnyTypeFieldMultiTS::BuildNewInstanceFromContent ( MEDFileAnyTypeFieldMultiTSWithoutSDA * c )

static

References MEDCoupling::RefCountObjectOnly::incrRef(), MEDCoupling::MEDFileTemplateFieldMultiTS< T >::New(), and MEDCoupling::MEDFileTemplateFieldMultiTS< double >::New().

◆ loadArrays()

void MEDFileAnyTypeFieldMultiTS::loadArrays ( )

This method alloc the arrays and load potentially huge arrays contained in this field. This method should be called when a MEDFileAnyTypeFieldMultiTS::New constructor has been with false as the last parameter. This method can be also called to refresh or reinit values from a file.

Exceptions

If	the fileName is not set or points to a non readable MED file.

References contentNotNullBase(), MEDCoupling::MEDFileFieldGlobsReal::getFileName(), and MEDCoupling::MEDFileAnyTypeFieldMultiTSWithoutSDA::loadBigArraysRecursively().

◆ loadArraysIfNecessary()

void MEDFileAnyTypeFieldMultiTS::loadArraysIfNecessary ( )

This method behaves as MEDFileAnyTypeFieldMultiTS::loadArrays does, the first call, if this was built using a file without loading big arrays. But once data loaded once, this method does nothing.

Exceptions

If	the fileName is not set or points to a non readable MED file.

See also: MEDFileAnyTypeFieldMultiTS::loadArrays, MEDFileAnyTypeFieldMultiTS::unloadArrays

References contentNotNullBase(), MEDCoupling::MEDFileFieldGlobsReal::getFileName(), and MEDCoupling::MEDFileAnyTypeFieldMultiTSWithoutSDA::loadBigArraysRecursivelyIfNecessary().

◆ unloadArrays()

void MEDFileAnyTypeFieldMultiTS::unloadArrays ( )

This method releases potentially big data arrays and so returns to the same heap memory than status loaded with 'loadAll' parameter set to false. WARNING, this method does release arrays even if this does not come from a load of a MED file. So this method can lead to a loss of data. If you want to unload arrays safely call MEDFileAnyTypeFieldMultiTS::unloadArraysWithoutDataLoss instead.

See also: MEDFileAnyTypeFieldMultiTS::loadArrays, MEDFileAnyTypeFieldMultiTS::loadArraysIfNecessary, MEDFileAnyTypeFieldMultiTS::unloadArraysWithoutDataLoss

References contentNotNullBase(), and MEDCoupling::MEDFileAnyTypeFieldMultiTSWithoutSDA::unloadArrays().

◆ unloadArraysWithoutDataLoss()

void MEDFileAnyTypeFieldMultiTS::unloadArraysWithoutDataLoss ( )

This method potentially releases big data arrays if this is coming from a file. If this has been built from scratch this method will have no effect. This method is the symmetrical method of MEDFileAnyTypeFieldMultiTS::loadArraysIfNecessary. This method is useful to reduce safely amount of heap memory necessary for this by using MED file as database.

See also: MEDFileAnyTypeFieldMultiTS::loadArraysIfNecessary

References contentNotNullBase(), MEDCoupling::MEDFileFieldGlobsReal::getFileName(), and MEDCoupling::MEDFileAnyTypeFieldMultiTSWithoutSDA::unloadArrays().

◆ writeLL()

void MEDFileAnyTypeFieldMultiTS::writeLL ( med_idt fid ) const

References contentNotNullBase(), MEDCoupling::MEDFileAnyTypeFieldMultiTSWithoutSDA::writeDescription(), MEDCoupling::MEDFileFieldGlobsReal::writeGlobals(), and MEDCoupling::MEDFileAnyTypeFieldMultiTSWithoutSDA::writeLL().

◆ getHeapMemorySizeWithoutChildren()

std::size_t MEDFileAnyTypeFieldMultiTS::getHeapMemorySizeWithoutChildren ( ) const

virtual

Implements MEDCoupling::BigMemoryObject.

References MEDCoupling::MEDFileFieldGlobsReal::getHeapMemorySizeWithoutChildren().

◆ getDirectChildrenWithNull()

std::vector< const BigMemoryObject * > MEDFileAnyTypeFieldMultiTS::getDirectChildrenWithNull ( ) const

virtual

Implements MEDCoupling::BigMemoryObject.

References _content, and MEDCoupling::MEDFileFieldGlobsReal::getDirectChildrenWithNull().

◆ deepCopy()

MEDFileAnyTypeFieldMultiTS * MEDFileAnyTypeFieldMultiTS::deepCopy ( ) const

virtual

References _content, and shallowCpy().

◆ splitComponents()

std::vector< MCAuto< MEDFileAnyTypeFieldMultiTS > > MEDFileAnyTypeFieldMultiTS::splitComponents ( ) const

This method returns as MEDFileAnyTypeFieldMultiTS new instances as number of components in this. The returned instances are deep copy of this except that for globals that are shared with those contained in this. ** WARNING ** do no forget to rename the output instances to avoid to write n-times in the same MED file field !

References _content, shallowCpy(), and MEDCoupling::MEDFileAnyTypeFieldMultiTSWithoutSDA::splitComponents().

◆ splitDiscretizations()

std::vector< MCAuto< MEDFileAnyTypeFieldMultiTS > > MEDFileAnyTypeFieldMultiTS::splitDiscretizations ( ) const

This method returns as MEDFileAnyTypeFieldMultiTS new instances as number of discretizations over time steps in this. The returned instances are shallow copied of this included globals that are shared with those contained in this.

References _content, shallowCpy(), and MEDCoupling::MEDFileAnyTypeFieldMultiTSWithoutSDA::splitDiscretizations().

◆ splitMultiDiscrPerGeoTypes()

std::vector< MCAuto< MEDFileAnyTypeFieldMultiTS > > MEDFileAnyTypeFieldMultiTS::splitMultiDiscrPerGeoTypes ( ) const

This method returns as MEDFileAnyTypeFieldMultiTS new instances as number of sub-discretizations over time steps in this. The returned instances are shallow copied of this included globals that are shared with those contained in this.

References _content, shallowCpy(), and MEDCoupling::MEDFileAnyTypeFieldMultiTSWithoutSDA::splitMultiDiscrPerGeoTypes().

◆ shallowCpy()

virtual MEDFileAnyTypeFieldMultiTS* MEDCoupling::MEDFileAnyTypeFieldMultiTS::shallowCpy ( ) const

pure virtual

Implemented in MEDCoupling::MEDFileFloatFieldMultiTS, MEDCoupling::MEDFileInt64FieldMultiTS, MEDCoupling::MEDFileInt32FieldMultiTS, and MEDCoupling::MEDFileFieldMultiTS.

Referenced by buildSubPart(), buildSubPartSlice(), deepCopy(), splitComponents(), splitDiscretizations(), and splitMultiDiscrPerGeoTypes().

◆ checkCoherencyOfType()

virtual void MEDCoupling::MEDFileAnyTypeFieldMultiTS::checkCoherencyOfType ( const MEDFileAnyTypeField1TS * f1ts ) const

pure virtual

Implemented in MEDCoupling::MEDFileTemplateFieldMultiTS< T >, and MEDCoupling::MEDFileTemplateFieldMultiTS< double >.

Referenced by pushBackTimeStep().

◆ getTimeStepAtPos()

virtual MEDFileAnyTypeField1TS* MEDCoupling::MEDFileAnyTypeFieldMultiTS::getTimeStepAtPos ( int pos ) const

pure virtual

Implemented in MEDCoupling::MEDFileTemplateFieldMultiTS< T >, and MEDCoupling::MEDFileTemplateFieldMultiTS< double >.

Referenced by CheckSupportAcrossTime(), getTimeStep(), getTimeStepGivenTime(), MEDCoupling::MEDFileAnyTypeFieldMultiTSIterator::nextt(), and pushBackTimeSteps().

◆ getTimeStep()

MEDFileAnyTypeField1TS * MEDFileAnyTypeFieldMultiTS::getTimeStep	(	int	iteration,
		int	order
	)		const

Returns a new MEDFileField1TS or MEDFileInt32Field1TS holding data of a given time step of this field.

Parameters

[in]	iteration	- the iteration number of a required time step.
[in]	order	- the iteration order number of required time step.

Returns: MEDFileField1TS * or MEDFileInt32Field1TS *- a new instance of MEDFileField1TS or MEDFileInt32Field1TS. The caller is to delete this field using decrRef() as it is no more needed.

Exceptions

If	there is no required time step in this field.

References getPosOfTimeStep(), and getTimeStepAtPos().

◆ getTimeStepGivenTime()

MEDFileAnyTypeField1TS * MEDFileAnyTypeFieldMultiTS::getTimeStepGivenTime	(	double	time,
		double	eps = `1e-8`
	)		const

Returns a new MEDFileField1TS or MEDFileInt32Field1TS holding data of a given time step of this field.

Parameters

[in]	time	- the time of the time step of interest.
[in]	eps	- a precision used to compare time values.

Returns: MEDFileField1TS * - a new instance of MEDFileField1TS. The caller is to delete this field using decrRef() as it is no more needed.

Exceptions

If	there is no required time step in this field.

References getPosGivenTime(), and getTimeStepAtPos().

◆ SplitIntoCommonTimeSeries()

std::vector< std::vector< MEDFileAnyTypeFieldMultiTS * > > MEDFileAnyTypeFieldMultiTS::SplitIntoCommonTimeSeries ( const std::vector< MEDFileAnyTypeFieldMultiTS * > & vectFMTS )

static

This method groups not null items in vectFMTS per time step series. Two time series are considered equal if the list of their pair of integers iteration,order are equal. The float64 value of time attached to the pair of integers are not considered here. WARNING the returned pointers are not incremented. The caller is not responsible to deallocate them ! This method only reorganizes entries in vectFMTS.

Parameters

[in] vectFMTS - vector of not null fields defined on a same global data pointer.

Exceptions

If	there is a null pointer in vectFMTS.

References getIterations().

◆ SplitPerCommonSupport()

std::vector< std::vector< MEDFileAnyTypeFieldMultiTS * > > MEDFileAnyTypeFieldMultiTS::SplitPerCommonSupport	(	const std::vector< MEDFileAnyTypeFieldMultiTS * > &	vectFMTS,
		const MEDFileMesh *	mesh,
		std::vector< MCAuto< MEDFileFastCellSupportComparator > > &	fsc
	)

static

This method splits the input list vectFMTS considering the aspect of the geometrical support over time. All returned instances in a subvector can be safely loaded, rendered along time All items must be defined on the same time step ids ( see MEDFileAnyTypeFieldMultiTS::SplitIntoCommonTimeSeries method ). Each item in vectFMTS is expected to have one and exactly one spatial discretization along time. All items in vectFMTS must lie on the mesh (located by meshname and time step) and compatible with the input mesh mesh (having the same name than those in items). All items in vectFMTS whose spatial discretization is not ON_NODES will appear once. For items in vectFMTS that are ON_NODES it is possible to appear several times (more than once or once) in the returned vector.

Parameters

[in]	vectFMTS	- list of multi times step part all defined each on a same spatial discretization along time and pointing to a mesh whose name is equal to `mesh->getName()`.
[in]	mesh	- the mesh shared by all items in vectFMTS across time.
[out]	fsc	- A vector having same size than returned vector. It specifies the support comporator of the corresponding vector of MEDFileAnyTypeFieldMultiTS in returned vector of vector.

Returns: - A vector of vector of objects that contains the same pointers (objects) than thoose in vectFMTS except that there are organized differently. So pointers included in returned vector of vector should not been dealt by the caller.

Exceptions

If	an element in vectFMTS has not only one spatial discretization set.
If	an element in vectFMTS change of spatial discretization along time.
If	an element in vectFMTS lies on a mesh with meshname different from those in mesh. \thorw If some elements in vectFMTS do not have the same times steps.
If	mesh is null.
If	an element in vectFMTS is null.

See also: MEDFileAnyTypeFieldMultiTS::AreOnSameSupportAcrossTime

References CheckSupportAcrossTime(), and MEDCoupling::ON_NODES.

◆ CheckSupportAcrossTime()

int MEDFileAnyTypeFieldMultiTS::CheckSupportAcrossTime	(	MEDFileAnyTypeFieldMultiTS *	f0,
		MEDFileAnyTypeFieldMultiTS *	f1,
		const MEDFileMesh *	mesh,
		TypeOfField &	tof0,
		TypeOfField &	tof1
	)

static

This method scan the two main structs along time of f0 and f1 to see if there are all lying on the same mesh along time than those in mesh. f0 and f1 must be defined each only on a same spatial discretization even if this can be different each other.

Exceptions

If	f0 or f1 has not only one spatial discretization set.
If	f0 or f1 change of spatial discretization along time.
If	f0 or f1 on a mesh with meshname different from those in mesh. \thorw If f0 and f1 do not have the same times steps.
If	mesh is null.
If	f0 or f1 is null.

See also: MEDFileAnyTypeFieldMultiTS::SplitPerCommonSupport

References MEDCoupling::MEDFileMesh::getIteration(), getMeshName(), MEDCoupling::MEDFileMesh::getName(), getNumberOfTS(), MEDCoupling::MEDFileMesh::getOrder(), and getTimeStepAtPos().

Referenced by SplitPerCommonSupport().

◆ getName()

std::string MEDFileAnyTypeFieldMultiTS::getName ( ) const

References contentNotNullBase(), and MEDCoupling::MEDFileFieldNameScope::getName().

◆ setName()

void MEDFileAnyTypeFieldMultiTS::setName ( const std::string & name )

References contentNotNullBase(), and MEDCoupling::MEDFileFieldNameScope::setName().

◆ getDtUnit()

std::string MEDFileAnyTypeFieldMultiTS::getDtUnit ( ) const

References contentNotNullBase(), and MEDCoupling::MEDFileFieldNameScope::getDtUnit().

◆ setDtUnit()

void MEDFileAnyTypeFieldMultiTS::setDtUnit ( const std::string & dtUnit )

References contentNotNullBase(), and MEDCoupling::MEDFileFieldNameScope::setDtUnit().

◆ getMeshName()

std::string MEDFileAnyTypeFieldMultiTS::getMeshName ( ) const

References contentNotNullBase(), and MEDCoupling::MEDFileFieldNameScope::getMeshName().

Referenced by CheckSupportAcrossTime().

◆ setMeshName()

void MEDFileAnyTypeFieldMultiTS::setMeshName ( const std::string & newMeshName )

References contentNotNullBase(), and MEDCoupling::MEDFileFieldNameScope::setMeshName().

◆ simpleRepr() [1/2]

std::string MEDFileAnyTypeFieldMultiTS::simpleRepr ( ) const

References contentNotNullBase(), MEDCoupling::MEDFileAnyTypeFieldMultiTSWithoutSDA::simpleRepr(), and MEDCoupling::MEDFileFieldGlobsReal::simpleReprGlobs().

◆ simpleRepr() [2/2]

void MEDFileAnyTypeFieldMultiTS::simpleRepr	(	int	bkOffset,
		std::ostream &	oss,
		int	fmtsId
	)		const

References contentNotNullBase(), and MEDCoupling::MEDFileAnyTypeFieldMultiTSWithoutSDA::simpleRepr().

◆ getNumberOfTS()

int MEDFileAnyTypeFieldMultiTS::getNumberOfTS ( ) const

References contentNotNullBase(), and MEDCoupling::MEDFileAnyTypeFieldMultiTSWithoutSDA::getNumberOfTS().

Referenced by CheckSupportAcrossTime(), MEDCoupling::MEDFileAnyTypeFieldMultiTSIterator::MEDFileAnyTypeFieldMultiTSIterator(), and pushBackTimeSteps().

◆ eraseEmptyTS()

void MEDFileAnyTypeFieldMultiTS::eraseEmptyTS ( )

References contentNotNullBase(), and MEDCoupling::MEDFileAnyTypeFieldMultiTSWithoutSDA::eraseEmptyTS().

◆ eraseTimeStepIds()

void MEDFileAnyTypeFieldMultiTS::eraseTimeStepIds	(	const int *	startIds,
		const int *	endIds
	)

References contentNotNullBase(), and MEDCoupling::MEDFileAnyTypeFieldMultiTSWithoutSDA::eraseTimeStepIds().

◆ eraseTimeStepIds2()

void MEDFileAnyTypeFieldMultiTS::eraseTimeStepIds2	(	int	bg,
		int	end,
		int	step
	)

References contentNotNullBase(), and MEDCoupling::MEDFileAnyTypeFieldMultiTSWithoutSDA::eraseTimeStepIds2().

◆ buildSubPart()

MEDFileAnyTypeFieldMultiTS * MEDFileAnyTypeFieldMultiTS::buildSubPart	(	const int *	startIds,
		const int *	endIds
	)		const

References MEDCoupling::MEDFileAnyTypeFieldMultiTSWithoutSDA::buildFromTimeStepIds(), contentNotNullBase(), and shallowCpy().

◆ buildSubPartSlice()

MEDFileAnyTypeFieldMultiTS * MEDFileAnyTypeFieldMultiTS::buildSubPartSlice	(	int	bg,
		int	end,
		int	step
	)		const

References MEDCoupling::MEDFileAnyTypeFieldMultiTSWithoutSDA::buildFromTimeStepIds2(), contentNotNullBase(), and shallowCpy().

◆ getTimeSteps()

std::vector< std::pair< int, int > > MEDFileAnyTypeFieldMultiTS::getTimeSteps ( std::vector< double > & ret1 ) const

References contentNotNullBase(), and MEDCoupling::MEDFileAnyTypeFieldMultiTSWithoutSDA::getTimeSteps().

◆ getIterations()

std::vector< std::pair< int, int > > MEDFileAnyTypeFieldMultiTS::getIterations ( ) const

References contentNotNullBase(), and MEDCoupling::MEDFileAnyTypeFieldMultiTSWithoutSDA::getIterations().

Referenced by SplitIntoCommonTimeSeries().

◆ pushBackTimeSteps() [1/2]

void MEDFileAnyTypeFieldMultiTS::pushBackTimeSteps ( const std::vector< MEDFileAnyTypeField1TS * > & f1ts )

References pushBackTimeStep().

◆ pushBackTimeSteps() [2/2]

void MEDFileAnyTypeFieldMultiTS::pushBackTimeSteps ( MEDFileAnyTypeFieldMultiTS * fmts )

References getNumberOfTS(), getTimeStepAtPos(), and pushBackTimeStep().

◆ pushBackTimeStep()

void MEDFileAnyTypeFieldMultiTS::pushBackTimeStep ( MEDFileAnyTypeField1TS * f1ts )

References _content, MEDCoupling::MEDFileFieldGlobsReal::appendGlobs(), checkCoherencyOfType(), MEDCoupling::MEDFileAnyTypeField1TS::contentNotNullBase(), and MEDCoupling::RefCountObjectOnly::incrRef().

Referenced by pushBackTimeSteps().

◆ synchronizeNameScope()

void MEDFileAnyTypeFieldMultiTS::synchronizeNameScope ( )

References contentNotNullBase(), and MEDCoupling::MEDFileAnyTypeFieldMultiTSWithoutSDA::synchronizeNameScope().

◆ getPosOfTimeStep()

int MEDFileAnyTypeFieldMultiTS::getPosOfTimeStep	(	int	iteration,
		int	order
	)		const

References contentNotNullBase(), and MEDCoupling::MEDFileAnyTypeFieldMultiTSWithoutSDA::getPosOfTimeStep().

Referenced by getTimeStep().

◆ getPosGivenTime()

int MEDFileAnyTypeFieldMultiTS::getPosGivenTime	(	double	time,
		double	eps = `1e-8`
	)		const

References contentNotNullBase(), and MEDCoupling::MEDFileAnyTypeFieldMultiTSWithoutSDA::getPosGivenTime().

Referenced by getTimeStepGivenTime().

◆ iterator()

MEDFileAnyTypeFieldMultiTSIterator * MEDFileAnyTypeFieldMultiTS::iterator ( )

◆ changeMeshNames()

bool MEDFileAnyTypeFieldMultiTS::changeMeshNames ( const std::vector< std::pair< std::string, std::string > > & modifTab )

References MEDCoupling::MEDFileAnyTypeFieldMultiTSWithoutSDA::changeMeshNames(), and contentNotNullBase().

◆ getInfo()

const std::vector< std::string > & MEDFileAnyTypeFieldMultiTS::getInfo ( ) const

References contentNotNullBase(), and MEDCoupling::MEDFileAnyTypeFieldMultiTSWithoutSDA::getInfo().

Referenced by getNumberOfComponents().

◆ presenceOfMultiDiscPerGeoType()

bool MEDFileAnyTypeFieldMultiTS::presenceOfMultiDiscPerGeoType ( ) const

References contentNotNullBase(), and MEDCoupling::MEDFileAnyTypeFieldMultiTSWithoutSDA::presenceOfMultiDiscPerGeoType().

◆ setInfo()

void MEDFileAnyTypeFieldMultiTS::setInfo ( const std::vector< std::string > & info )

References contentNotNullBase(), and MEDCoupling::MEDFileAnyTypeFieldMultiTSWithoutSDA::setInfo().

◆ getNumberOfComponents()

int MEDFileAnyTypeFieldMultiTS::getNumberOfComponents ( ) const

References getInfo().

◆ getNonEmptyLevels()

int MEDFileAnyTypeFieldMultiTS::getNonEmptyLevels	(	int	iteration,
		int	order,
		const std::string &	mname,
		std::vector< int > &	levs
	)		const

References contentNotNullBase(), and MEDCoupling::MEDFileAnyTypeFieldMultiTSWithoutSDA::getNonEmptyLevels().

◆ getTypesOfFieldAvailable()

std::vector< std::vector< TypeOfField > > MEDFileAnyTypeFieldMultiTS::getTypesOfFieldAvailable ( ) const

References contentNotNullBase(), and MEDCoupling::MEDFileAnyTypeFieldMultiTSWithoutSDA::getTypesOfFieldAvailable().

◆ getFieldSplitedByType()

std::vector< std::vector< std::pair< mcIdType, mcIdType > > > MEDFileAnyTypeFieldMultiTS::getFieldSplitedByType	(	int	iteration,
		int	order,
		const std::string &	mname,
		std::vector< INTERP_KERNEL::NormalizedCellType > &	types,
		std::vector< std::vector< TypeOfField > > &	typesF,
		std::vector< std::vector< std::string > > &	pfls,
		std::vector< std::vector< std::string > > &	locs
	)		const

References contentNotNullBase(), and MEDCoupling::MEDFileAnyTypeFieldMultiTSWithoutSDA::getFieldSplitedByType().

◆ getContent()

MCAuto< MEDFileAnyTypeFieldMultiTSWithoutSDA > MEDFileAnyTypeFieldMultiTS::getContent ( )

References _content.

Referenced by MEDCoupling::MEDFileFields::pushField(), and MEDCoupling::MEDFileFields::setFieldAtPos().

◆ buildNewEmpty()

virtual MEDFileAnyTypeFieldMultiTS* MEDCoupling::MEDFileAnyTypeFieldMultiTS::buildNewEmpty ( ) const

pure virtual

Implemented in MEDCoupling::MEDFileFloatFieldMultiTS, MEDCoupling::MEDFileInt64FieldMultiTS, MEDCoupling::MEDFileInt32FieldMultiTS, and MEDCoupling::MEDFileFieldMultiTS.

◆ extractPart()

virtual MEDFileAnyTypeFieldMultiTS* MEDCoupling::MEDFileAnyTypeFieldMultiTS::extractPart	(	const std::map< int, MCAuto< DataArrayIdType > > &	extractDef,
		MEDFileMesh *	mm
	)		const

pure virtual

Implemented in MEDCoupling::MEDFileTemplateFieldMultiTS< T >, and MEDCoupling::MEDFileTemplateFieldMultiTS< double >.

◆ Aggregate()

MCAuto< MEDFileAnyTypeFieldMultiTS > MEDFileAnyTypeFieldMultiTS::Aggregate	(	const std::vector< const MEDFileAnyTypeFieldMultiTS * > &	fmtss,
		const std::vector< std::vector< std::pair< int, mcIdType > > > &	dts
	)

static

dts and ftmss are expected to have same size. see MEDFileFieldPerMeshPerTypePerDisc::Aggregate for description of dts.

Referenced by MEDCoupling::MEDFileFields::aggregateFieldsOnSameMeshes().

◆ getPflsReallyUsed()

std::vector< std::string > MEDFileAnyTypeFieldMultiTS::getPflsReallyUsed ( ) const

virtual

Implements MEDCoupling::MEDFileFieldGlobsReal.

References contentNotNullBase(), and MEDCoupling::MEDFileAnyTypeFieldMultiTSWithoutSDA::getPflsReallyUsed2().

◆ getLocsReallyUsed()

std::vector< std::string > MEDFileAnyTypeFieldMultiTS::getLocsReallyUsed ( ) const

virtual

Implements MEDCoupling::MEDFileFieldGlobsReal.

References contentNotNullBase(), and MEDCoupling::MEDFileAnyTypeFieldMultiTSWithoutSDA::getLocsReallyUsed2().

◆ getPflsReallyUsedMulti()

std::vector< std::string > MEDFileAnyTypeFieldMultiTS::getPflsReallyUsedMulti ( ) const

virtual

Implements MEDCoupling::MEDFileFieldGlobsReal.

References contentNotNullBase(), and MEDCoupling::MEDFileAnyTypeFieldMultiTSWithoutSDA::getPflsReallyUsedMulti2().

◆ getLocsReallyUsedMulti()

std::vector< std::string > MEDFileAnyTypeFieldMultiTS::getLocsReallyUsedMulti ( ) const

virtual

Implements MEDCoupling::MEDFileFieldGlobsReal.

References contentNotNullBase(), and MEDCoupling::MEDFileAnyTypeFieldMultiTSWithoutSDA::getLocsReallyUsedMulti2().

◆ changePflsRefsNamesGen()

void MEDFileAnyTypeFieldMultiTS::changePflsRefsNamesGen ( const std::vector< std::pair< std::vector< std::string >, std::string > > & mapOfModif )

virtual

Implements MEDCoupling::MEDFileFieldGlobsReal.

References MEDCoupling::MEDFileAnyTypeFieldMultiTSWithoutSDA::changePflsRefsNamesGen2(), and contentNotNullBase().

◆ changeLocsRefsNamesGen()

void MEDFileAnyTypeFieldMultiTS::changeLocsRefsNamesGen ( const std::vector< std::pair< std::vector< std::string >, std::string > > & mapOfModif )

virtual

Implements MEDCoupling::MEDFileFieldGlobsReal.

References MEDCoupling::MEDFileAnyTypeFieldMultiTSWithoutSDA::changeLocsRefsNamesGen2(), and contentNotNullBase().

◆ contentNotNullBase() [1/2]

MEDFileAnyTypeFieldMultiTSWithoutSDA * MEDFileAnyTypeFieldMultiTS::contentNotNullBase ( )

protected

◆ contentNotNullBase() [2/2]

const MEDFileAnyTypeFieldMultiTSWithoutSDA * MEDFileAnyTypeFieldMultiTS::contentNotNullBase ( ) const

protected

References _content.

Member Data Documentation

◆ _content

MCAuto<MEDFileAnyTypeFieldMultiTSWithoutSDA> MEDCoupling::MEDFileAnyTypeFieldMultiTS::_content

protected

Referenced by contentNotNullBase(), MEDCoupling::MEDFileFieldMultiTS::convertToInt(), deepCopy(), getContent(), getDirectChildrenWithNull(), MEDFileAnyTypeFieldMultiTS(), pushBackTimeStep(), splitComponents(), splitDiscretizations(), and splitMultiDiscrPerGeoTypes().

Public Member Functions

Static Public Member Functions

Protected Member Functions

Static Protected Member Functions

Protected Attributes

Detailed Description

Constructor & Destructor Documentation

◆ MEDFileAnyTypeFieldMultiTS() [1/4]

◆ MEDFileAnyTypeFieldMultiTS() [2/4]

◆ MEDFileAnyTypeFieldMultiTS() [3/4]

◆ MEDFileAnyTypeFieldMultiTS() [4/4]

Member Function Documentation

◆ BuildNewInstanceFromContent() [1/2]

◆ BuildContentFrom() [1/2]

◆ BuildContentFrom() [2/2]

◆ getClassName()

◆ New() [1/4]

◆ New() [2/4]

◆ New() [3/4]

◆ New() [4/4]

◆ BuildNewInstanceFromContent() [2/2]

◆ loadArrays()

◆ loadArraysIfNecessary()

◆ unloadArrays()

◆ unloadArraysWithoutDataLoss()

◆ writeLL()

◆ getHeapMemorySizeWithoutChildren()

◆ getDirectChildrenWithNull()

◆ deepCopy()

◆ splitComponents()

◆ splitDiscretizations()

◆ splitMultiDiscrPerGeoTypes()

◆ shallowCpy()

◆ checkCoherencyOfType()

◆ getTimeStepAtPos()

◆ getTimeStep()

◆ getTimeStepGivenTime()

◆ SplitIntoCommonTimeSeries()

◆ SplitPerCommonSupport()

◆ CheckSupportAcrossTime()

◆ getName()

◆ setName()

◆ getDtUnit()

◆ setDtUnit()

◆ getMeshName()

◆ setMeshName()

◆ simpleRepr() [1/2]

◆ simpleRepr() [2/2]

◆ getNumberOfTS()

◆ eraseEmptyTS()

◆ eraseTimeStepIds()

◆ eraseTimeStepIds2()

◆ buildSubPart()

◆ buildSubPartSlice()

◆ getTimeSteps()

◆ getIterations()

◆ pushBackTimeSteps() [1/2]

◆ pushBackTimeSteps() [2/2]

◆ pushBackTimeStep()

◆ synchronizeNameScope()

◆ getPosOfTimeStep()

◆ getPosGivenTime()

◆ iterator()

◆ changeMeshNames()

◆ getInfo()

◆ presenceOfMultiDiscPerGeoType()

◆ setInfo()

◆ getNumberOfComponents()

◆ getNonEmptyLevels()

◆ getTypesOfFieldAvailable()

◆ getFieldSplitedByType()

◆ getContent()

◆ buildNewEmpty()

◆ extractPart()

◆ Aggregate()

◆ getPflsReallyUsed()

◆ getLocsReallyUsed()

◆ getPflsReallyUsedMulti()

◆ getLocsReallyUsedMulti()

◆ changePflsRefsNamesGen()
