Triangle NETGEN 1D-2D algorithm. More...

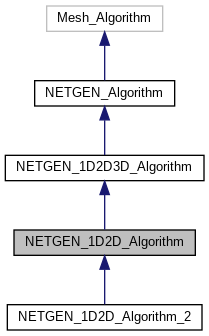

Inheritance diagram for NETGEN_1D2D_Algorithm:

Public Member Functions
def	__init__ (self, mesh, geom=0)
	Private constructor. More...

def	SetSecondOrder (self, theVal)
	Sets `SecondOrder` flag. More...

def	SetNbSegPerEdge (self, theVal)
	Sets `NbSegPerEdge` parameter. More...

def	SetNbSegPerRadius (self, theVal)
	Sets `NbSegPerRadius` parameter. More...

def	SetChordalError (self, theVal)
	Sets `ChordalError` parameter. More...

def	SetRidgeAngle (self, theVal)
	Sets `RidgeAngle` parameter. More...

def	SetQuadAllowed (self, toAllow=True)
	Sets `QuadAllowed` flag. More...

def	SetUseSurfaceCurvature (self, toUse=True)
	Sets `UseSurfaceCurvature` flag. More...

def	SetFuseEdges (self, toFuse=False)
	Sets `FuseEdges` flag. More...

def	SetNumberOfSegments (self, theVal)
	Sets number of segments overriding the value set by SetLocalLength() More...

def	SetLocalLength (self, theVal)
	Sets number of segments overriding the value set by SetNumberOfSegments() More...

def	MaxElementArea (self, area)
	Defines `MaxElementArea` parameter of `NETGEN_SimpleParameters_3D` hypothesis. More...

def	LengthFromEdges (self)
	Defines `LengthFromEdges` parameter of `NETGEN_SimpleParameters_3D` hypothesis. More...

def	LengthFromFaces (self)
	Defines `LengthFromFaces` parameter of `NETGEN_SimpleParameters_3D` hypothesis. More...

def	MaxElementVolume (self, vol)
	Defines `MaxElementVolume` parameter of `NETGEN_SimpleParameters_3D` hypothesis. More...

def	SetMaxSize (self, theSize)
	Sets `MaxSize` parameter. More...

def	SetMinSize (self, theSize)
	Sets `MinSize` parameter. More...

def	SetOptimize (self, theVal)
	Sets `Optimize` flag. More...

def	SetFineness (self, theFineness)
	Sets `Fineness` parameter. More...

def	SetGrowthRate (self, theRate)
	Sets `GrowthRate` parameter. More...

def	SetNbThreads (self, theNumber)
	Sets `NbThreads` parameter. More...

def	Parameters (self, which=SOLE)
	Creates meshing hypothesis according to the chosen algorithm type and initializes it with default parameters. More...

def	SetMeshSizeFile (self, file)
	Defines a file specifying size of elements at points and lines. More...

def	SetLocalSizeOnShape (self, shape, size)
	Set size of elements on a shape. More...

Data Fields
	params

Static Public Attributes
string	meshMethod = "Triangle"
	name of the dynamic method in smeshBuilder.Mesh class More...

	algoType = NETGEN_1D2D
	type of algorithm used with helper function in smeshBuilder.Mesh class More...

string	docHelper = "Creates triangle 2D algorithm for faces"
	doc string of the method More...

Detailed Description

Triangle NETGEN 1D-2D algorithm.

It can be created by calling smeshBuilder.Mesh.Triangle( smeshBuilder.NETGEN_1D2D, geom=0 )

This algorithm generates 1D (edges) and 2D (faces) elements for given geometrical shape.

Constructor & Destructor Documentation

◆ init()

def __init__	(	self,
		mesh,
		geom = `0`
	)

Private constructor.

Parameters

mesh	parent mesh object algorithm is assigned to
geom	geometry (shape/sub-shape) algorithm is assigned to; if it is `0` (default), the algorithm is assigned to the main shape

Reimplemented from NETGEN_1D2D3D_Algorithm.

Reimplemented in NETGEN_1D2D_Algorithm_2.

Member Function Documentation

◆ SetSecondOrder()

def SetSecondOrder	(	self,
		theVal
	)

inherited

Sets SecondOrder flag.

Parameters

theVal new value of the SecondOrder parameter

References NETGEN_Algorithm.Parameters(), and NETGEN_Algorithm.params.

◆ SetNbSegPerEdge()

def SetNbSegPerEdge	(	self,
		theVal
	)

inherited

Sets NbSegPerEdge parameter.

Parameters

theVal new value of the NbSegPerEdge parameter

References NETGEN_Algorithm.Parameters(), and NETGEN_Algorithm.params.

◆ SetNbSegPerRadius()

def SetNbSegPerRadius	(	self,
		theVal
	)

inherited

Sets NbSegPerRadius parameter.

Parameters

theVal new value of the NbSegPerRadius parameter

References NETGEN_Algorithm.Parameters(), and NETGEN_Algorithm.params.

◆ SetChordalError()

def SetChordalError	(	self,
		theVal
	)

inherited

Sets ChordalError parameter.

Parameters

theVal new value of the ChordalError parameter

References NETGEN_Algorithm.Parameters(), and NETGEN_Algorithm.params.

◆ SetRidgeAngle()

def SetRidgeAngle	(	self,
		theVal
	)

inherited

Sets RidgeAngle parameter.

Parameters

theVal new value of the RidgeAngle parameter

References NETGEN_Algorithm.Parameters(), and NETGEN_Algorithm.params.

◆ SetQuadAllowed()

def SetQuadAllowed	(	self,
		toAllow = `True`
	)

inherited

Sets QuadAllowed flag.

Parameters

toAllow new value of the QuadAllowed parameter (True by default)

References NETGEN_Algorithm.Parameters(), and NETGEN_Algorithm.params.

◆ SetUseSurfaceCurvature()

def SetUseSurfaceCurvature	(	self,
		toUse = `True`
	)

inherited

Sets UseSurfaceCurvature flag.

Parameters

toUse new value of the UseSurfaceCurvature parameter (True by default)

References NETGEN_Algorithm.Parameters(), and NETGEN_Algorithm.params.

◆ SetFuseEdges()

def SetFuseEdges	(	self,
		toFuse = `False`
	)

inherited

Sets FuseEdges flag.

Parameters

toFuse new value of the FuseEdges parameter (False by default)

References NETGEN_Algorithm.Parameters(), and NETGEN_Algorithm.params.

◆ SetNumberOfSegments()

def SetNumberOfSegments	(	self,
		theVal
	)

inherited

Sets number of segments overriding the value set by SetLocalLength()

Parameters

theVal new value of number of segments parameter

References NETGEN_Algorithm.Parameters().

◆ SetLocalLength()

def SetLocalLength	(	self,
		theVal
	)

inherited

Sets number of segments overriding the value set by SetNumberOfSegments()

Parameters

theVal new value of local length parameter

References NETGEN_Algorithm.Parameters().

◆ MaxElementArea()

def MaxElementArea	(	self,
		area
	)

inherited

Defines MaxElementArea parameter of NETGEN_SimpleParameters_3D hypothesis.

Overrides value set by LengthFromEdges()

Parameters

area	new value of `MaxElementArea` parameter

References NETGEN_Algorithm.Parameters().

◆ LengthFromEdges()

def LengthFromEdges ( self )

inherited

Defines LengthFromEdges parameter of NETGEN_SimpleParameters_3D hypothesis.

Overrides value set by MaxElementArea()

References NETGEN_Algorithm.Parameters().

◆ LengthFromFaces()

def LengthFromFaces ( self )

inherited

Defines LengthFromFaces parameter of NETGEN_SimpleParameters_3D hypothesis.

Overrides value set by MaxElementVolume()

References NETGEN_Algorithm.Parameters().

◆ MaxElementVolume()

def MaxElementVolume	(	self,
		vol
	)

inherited

Defines MaxElementVolume parameter of NETGEN_SimpleParameters_3D hypothesis.

Overrides value set by LengthFromFaces()

Parameters

vol	new value of `MaxElementVolume` parameter

References NETGEN_Algorithm.Parameters().

◆ SetMaxSize()

def SetMaxSize	(	self,
		theSize
	)

inherited

Sets MaxSize parameter.

Parameters

theSize new value of the MaxSize parameter

References NETGEN_Algorithm.Parameters(), and NETGEN_Algorithm.params.

◆ SetMinSize()

def SetMinSize	(	self,
		theSize
	)

inherited

Sets MinSize parameter.

Parameters

theSize new value of the MinSize parameter

References NETGEN_Algorithm.Parameters(), and NETGEN_Algorithm.params.

◆ SetOptimize()

def SetOptimize	(	self,
		theVal
	)

inherited

Sets Optimize flag.

Parameters

theVal new value of the Optimize parameter

References NETGEN_Algorithm.Parameters(), and NETGEN_Algorithm.params.

◆ SetFineness()

def SetFineness	(	self,
		theFineness
	)

inherited

Sets Fineness parameter.

Parameters

theFineness new value of the Fineness parameter; it can be: VeryCoarse, Coarse, Moderate, Fine, VeryFine or Custom

References NETGEN_Algorithm.Parameters(), and NETGEN_Algorithm.params.

◆ SetGrowthRate()

def SetGrowthRate	(	self,
		theRate
	)

inherited

Sets GrowthRate parameter.

Parameters

theRate new value of the GrowthRate parameter

References NETGEN_Algorithm.Parameters(), and NETGEN_Algorithm.params.

◆ SetNbThreads()

def SetNbThreads	(	self,
		theNumber
	)

inherited

Sets NbThreads parameter.

Parameters

theRate new value of the NbThreads parameter

References NETGEN_Algorithm.Parameters(), and NETGEN_Algorithm.params.

◆ Parameters()

def Parameters	(	self,
		which = `SOLE`
	)

inherited

Creates meshing hypothesis according to the chosen algorithm type and initializes it with default parameters.

Parameters

which hypothesis type; can be either SOLE (default) or SIMPLE

Returns: hypothesis object

◆ SetMeshSizeFile()

def SetMeshSizeFile	(	self,
		file
	)

inherited

Defines a file specifying size of elements at points and lines.

Parameters

file	name of the file

References NETGEN_Algorithm.Parameters().

◆ SetLocalSizeOnShape()

def SetLocalSizeOnShape	(	self,
		shape,
		size
	)

inherited

Set size of elements on a shape.

Parameters

shape	- geometry
size	- element size

References NETGEN_Algorithm.Parameters().

Field Documentation

◆ meshMethod

string meshMethod = "Triangle"

static

name of the dynamic method in smeshBuilder.Mesh class

◆ algoType

algoType = NETGEN_1D2D

static

type of algorithm used with helper function in smeshBuilder.Mesh class

◆ docHelper

string docHelper = "Creates triangle 2D algorithm for faces"

static

doc string of the method

◆ params

params

inherited
