Version: 9.12.0
GEOM::GEOM_ITestOperations Interface Reference

Interface for testing operations.

import"GEOM_Gen.idl";

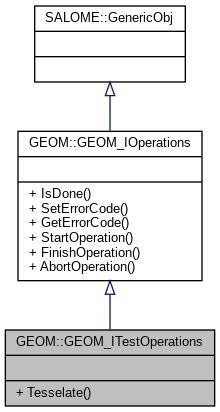

Inheritance diagram for GEOM::GEOM_ITestOperations:
Inheritance graph

Public Member Functions

boolean Tesselate (in GEOM_Object shape, in double linearDeflection, in boolean isRelative, in double angularDeflection)
 Build a mesh on the given shape. More...

- Public Member Functions inherited from GEOM::GEOM_IOperations
boolean IsDone ()
 To know, if the operation was successfully performed. More...

void SetErrorCode (in string theErrorID)
 Set the operation error code. More...

string GetErrorCode ()
 Get the operation error code. More...

void StartOperation ()
 Opens a new transaction. More...

void FinishOperation ()
 Closes the previously opened transaction. More...

void AbortOperation ()
 Aborts the previously opened transaction. More...


Member Function Documentation

◆ Tesselate()

boolean GEOM::GEOM_ITestOperations::Tesselate ( in GEOM_Object  shape,
in double  linearDeflection,
in boolean  isRelative,
in double  angularDeflection
)
Parameters
shapeis a source object
linearDeflectionis a linear deflection
isRelativesays if given value of deflection is relative to shape's bounding box
angularDeflectionis an angular deflection for edges in radians
Returns
true in case of success; otherwise false.

The documentation for this interface was generated from the following file:
