GEOMGUI_DimensionProperty::Angle Struct Reference

Declaration of properties for angle dimensions.

#include <GEOMGUI_DimensionProperty.h>

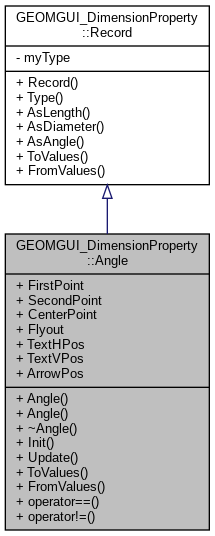

Inheritance diagram for GEOMGUI_DimensionProperty::Angle:

Public Member Functions
	Angle ()
	Angle (const Angle &theOther)
	~Angle ()
void	Init (const Handle(AIS_AngleDimension)&theIO, const gp_Ax3 &theLCS)
	Inits property fields from the passed length object. More...
void	Update (Handle(AIS_AngleDimension)&theIO, const gp_Ax3 &theLCS)
	Updates length object properties from the fields. More...
void	ToValues (std::vector< double > &theValues) const
	Packs properties to array of doubles. More...
void	FromValues (int &theIt, const std::vector< double > &theValues)
	Unpacks properties from array of doubles. More...
bool	operator== (const Angle &theOther) const
	Overload comparison. More...
bool	operator!= (const Angle &theOther) const
Public Member Functions inherited from GEOMGUI_DimensionProperty::Record
	Record (const DimensionType theType)
DimensionType	Type () const
Length *	AsLength ()
Diameter *	AsDiameter ()
Angle *	AsAngle ()
virtual void	ToValues (std::vector< double > &theValues) const =0
virtual void	FromValues (int &theIt, const std::vector< double > &theValues)=0

Public Attributes
gp_Pnt	FirstPoint
gp_Pnt	SecondPoint
gp_Pnt	CenterPoint
double	Flyout
Prs3d_DimensionTextHorizontalPosition	TextHPos
Prs3d_DimensionTextVerticalPosition	TextVPos
Prs3d_DimensionArrowOrientation	ArrowPos

Constructor & Destructor Documentation

Angle() [1/2]

GEOMGUI_DimensionProperty::Angle::Angle ( )

inline

Angle() [2/2]

GEOMGUI_DimensionProperty::Angle::Angle ( const Angle &  theOther )

inline

~Angle()

GEOMGUI_DimensionProperty::Angle::~Angle ( )

inline

Member Function Documentation

FromValues()

void GEOMGUI_DimensionProperty::Angle::FromValues ( int &  theIt, const std::vector< double > &  theValues  )

virtual

Parameters

theIt	[in/out] the array index iterator.
theValues	[in] the vector of values.

Implements GEOMGUI_DimensionProperty::Record.

Init()

void GEOMGUI_DimensionProperty::Angle::Init	(	const Handle(AIS_AngleDimension)&	theIO,
		const gp_Ax3 &	theLCS
	)

Parameters

theIO	[in] the interactive presentation.
theLCS	[in] the local coordinate system of parent object.

operator!=()

bool GEOMGUI_DimensionProperty::Angle::operator!= ( const Angle &  theOther ) const

inline

operator==()

bool GEOMGUI_DimensionProperty::Angle::operator==

(

const Angle &

theOther

)

const

References ArrowPos, CenterPoint, FirstPoint, Flyout, SecondPoint, TextHPos, and TextVPos.

ToValues()

void GEOMGUI_DimensionProperty::Angle::ToValues ( std::vector< double > &  theValues ) const

virtual

Parameters

theValues

[out] the values vector to populate.

Implements GEOMGUI_DimensionProperty::Record.

Update()

void GEOMGUI_DimensionProperty::Angle::Update	(	Handle(AIS_AngleDimension)&	theIO,
		const gp_Ax3 &	theLCS
	)

Parameters

theIO	[in/out] the interactive presentation.
theLCS	[in] the local coordinate system of parent object.

References Handle().

Member Data Documentation

ArrowPos

Prs3d_DimensionArrowOrientation GEOMGUI_DimensionProperty::Angle::ArrowPos

CenterPoint

gp_Pnt GEOMGUI_DimensionProperty::Angle::CenterPoint

FirstPoint

gp_Pnt GEOMGUI_DimensionProperty::Angle::FirstPoint

Flyout

double GEOMGUI_DimensionProperty::Angle::Flyout

SecondPoint

gp_Pnt GEOMGUI_DimensionProperty::Angle::SecondPoint

TextHPos

Prs3d_DimensionTextHorizontalPosition GEOMGUI_DimensionProperty::Angle::TextHPos

TextVPos

Prs3d_DimensionTextVerticalPosition GEOMGUI_DimensionProperty::Angle::TextVPos

---

The documentation for this struct was generated from the following files:

• src/GEOMGUI/GEOMGUI_DimensionProperty.h
• src/GEOMGUI/GEOMGUI_DimensionProperty.cxx
