GLViewer_ObjectTip Class Reference

#include <GLViewer_ToolTip.h>

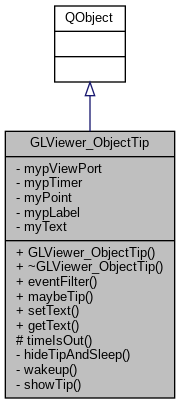

Inheritance diagram for GLViewer_ObjectTip:

Public Member Functions
	GLViewer_ObjectTip (GLViewer_ViewPort2d *)
	~GLViewer_ObjectTip ()
virtual bool	eventFilter (QObject *, QEvent *)
virtual bool	maybeTip (const QPoint &)
void	setText (const QString &theText)
QString	getText () const

Protected Member Functions
void	timeIsOut ()

Private Slots
void	showTip ()

Private Member Functions
void	hideTipAndSleep ()
void	wakeup (int mseconds=1000)

Private Attributes
GLViewer_ViewPort2d *	mypViewPort
QTimer *	mypTimer
QPoint	myPoint
QLabel *	mypLabel
QString	myText

Detailed Description

ToolTip of GLViewer_Objects

Constructor & Destructor Documentation

GLViewer_ObjectTip()

GLViewer_ObjectTip::GLViewer_ObjectTip

(

GLViewer_ViewPort2d *

theParent

)

constructor

References mypLabel, mypTimer, mypViewPort, and showTip().

~GLViewer_ObjectTip()

GLViewer_ObjectTip::~GLViewer_ObjectTip

(

)

destructor

References mypLabel.

Member Function Documentation

eventFilter()

bool GLViewer_ObjectTip::eventFilter ( QObject *  theObj, QEvent *  e  )

virtual

Custom event filter

References GLViewer_ViewPort2d::getGLWidget(), hideTipAndSleep(), myPoint, mypViewPort, and wakeup().

getText()

QString GLViewer_ObjectTip::getText ( ) const

inline

hideTipAndSleep()

void GLViewer_ObjectTip::hideTipAndSleep ( )

private

Hides tooltip and stops timer

References mypLabel, myPoint, and mypTimer.

maybeTip()

bool GLViewer_ObjectTip::maybeTip ( const QPoint &  )

virtual

It is called when there is a possibility that a tool tip should be shown

Parameters

p	- position of tooltip

References GLViewer_Context::getCurrentObject(), GLViewer_Object::getName(), GLViewer_ViewFrame::getViewer(), GLViewer_ViewPort2d::getViewFrame(), mypViewPort, and setText().

setText()

void GLViewer_ObjectTip::setText ( const QString &  theText )

inline

showTip

void GLViewer_ObjectTip::showTip ( )

privateslot

Shows tooltip

References GLViewer_ViewPort2d::getGLWidget(), maybeTip(), mypLabel, myPoint, mypViewPort, and myText.

timeIsOut()

void GLViewer_ObjectTip::timeIsOut ( )

protected

wakeup()

void GLViewer_ObjectTip::wakeup ( int  theTime = 1000 )

private

Restarts timer

References mypTimer.

Member Data Documentation

mypLabel

QLabel* GLViewer_ObjectTip::mypLabel

private

myPoint

QPoint GLViewer_ObjectTip::myPoint

private

mypTimer

QTimer* GLViewer_ObjectTip::mypTimer

private

mypViewPort

GLViewer_ViewPort2d* GLViewer_ObjectTip::mypViewPort

private

myText

QString GLViewer_ObjectTip::myText

private

---

The documentation for this class was generated from the following files:

• src/GLViewer/GLViewer_ToolTip.h
• src/GLViewer/GLViewer_ToolTip.cxx
