Used for optimized access to the data model from the data objects. More...

#include <LightApp_DataObject.h>

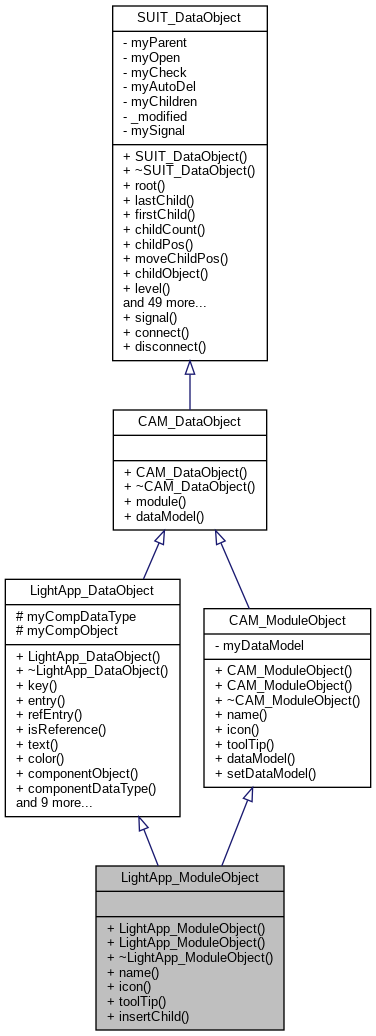

Inheritance diagram for LightApp_ModuleObject:

Public Member Functions
	LightApp_ModuleObject (SUIT_DataObject *=0)
	Constructor. More...

	LightApp_ModuleObject (CAM_DataModel , SUIT_DataObject =0)
	Constructor. More...

virtual	~LightApp_ModuleObject ()

virtual QString	name () const
	Get module name. More...

QPixmap	icon (const int=NameId) const
	Get data object icon for the specified column. More...

QString	toolTip (const int=NameId) const
	Get data object tooltip for the specified column. More...

virtual void	insertChild (SUIT_DataObject *, int)
	Insert new child object to the children list at specified position. More...

Public Member Functions inherited from LightApp_DataObject
	LightApp_DataObject (SUIT_DataObject *=0)
	Constructor. More...

virtual	~LightApp_DataObject ()
	Destructor. More...

virtual SUIT_DataObjectKey *	key () const
	Get the data object unique key. More...

virtual QString	entry () const
	Get object string identifier. More...

virtual QString	refEntry () const
	Returns the string identifier of the data objects referenced by this one. More...

virtual bool	isReference () const
	Tells if this data objects is a reference to some other or not. More...

virtual QString	text (const int=NameId) const
	Get object text data for the specified column. More...

virtual QColor	color (const ColorRole, const int=NameId) const
	Get data object color for the specified column. More...

virtual SUIT_DataObject *	componentObject () const
	Get the component object. More...

virtual QString	componentDataType () const
	Get component type. More...

virtual bool	customSorting (const int=NameId) const
	Check if the specified column supports custom sorting. More...

virtual bool	compare (const QVariant &, const QVariant &, const int=NameId) const
	Compares data from two items for sorting purposes. More...

virtual int	groupId () const
	return unique group identificator More...

virtual QVariant	customData (Qtx::CustomDataType type)
	return custom data for data object More...

virtual bool	isVisible () const
	Check if the object is visible. More...

virtual bool	isDraggable () const
	Check if the object is draggable. More...

virtual bool	isDropAccepted () const
	Check if the drop operation fo this object is possible. More...

virtual bool	renameAllowed (const int=NameId) const
	Check if this object is can't be renamed in place. More...

virtual bool	setName (const QString &)
	Set name of the this object. More...

Public Member Functions inherited from CAM_DataObject
	CAM_DataObject (SUIT_DataObject *=0)
	Constructor. More...

virtual	~CAM_DataObject ()
	Destructor. More...

CAM_Module *	module () const
	Get CAM module. More...

Public Member Functions inherited from SUIT_DataObject
	SUIT_DataObject (SUIT_DataObject *=0)
	Constructor. More...

virtual	~SUIT_DataObject ()
	Destructor. More...

SUIT_DataObject *	root () const
	Get the root object. More...

SUIT_DataObject *	lastChild () const
	Get the last child object. More...

SUIT_DataObject *	firstChild () const
	Get the first child object. More...

int	childCount () const
	Get the number of the child objects. More...

int	childPos (const SUIT_DataObject *) const
	Get the index of the specified object in the child list. More...

void	moveChildPos (SUIT_DataObject *, int)
	Moves the child position from current to new one. More...

SUIT_DataObject *	childObject (const int) const
	Get child object by the specified index. More...

int	level () const
	Get the object level in the tree structure. More...

int	position () const
	Get the position of the data object in its parent's children list. More...

void	setPosition (int)
	Sets new position of the object in parent's list. More...

SUIT_DataObject *	nextBrother () const
	Get the next sibling data object in the children list. More...

SUIT_DataObject *	prevBrother () const
	Get the previous sibling data object in the children list. More...

bool	autoDeleteChildren () const
	Get "auto-delete children" flag. More...

virtual void	setAutoDeleteChildren (const bool)
	Set "auto-delete children" flag. More...

virtual void	children (DataObjectList &, const bool=false) const
	Get all children. More...

virtual DataObjectList	children (const bool=false)
	Get all children. \override. More...

void	appendChild (SUIT_DataObject *)
	Add new child object to the end of the children list. More...

virtual void	removeChild (SUIT_DataObject *, const bool=false)
	Remove the specified child object reference. More...

bool	replaceChild (SUIT_DataObject , SUIT_DataObject , const bool=false)
	Replace the specified child object by another object. More...

void	reparentChildren (const SUIT_DataObject *)
	Change the parent for all children from specified object to this one. More...

virtual SUIT_DataObject *	parent () const
	Get the parent object. More...

virtual void	setParent (SUIT_DataObject *)
	Change the parent object. More...

virtual void	assignParent (SUIT_DataObject *)

void	insertChildAtPos (SUIT_DataObject *obj, int position)
	Insert new child object into the list of the children (faster version of insertChild without signal). More...

bool	modified ()

virtual void	setModified (bool modified)
	Sets modification state of the object. More...

virtual QString	statusTip (const int=NameId) const
	Get data object status tip for the specified column. More...

virtual QString	whatsThis (const int=NameId) const
	Get data object "what's this" information for the specified column. More...

virtual QFont	font (const int=NameId) const
	Get data object font for the specified column. More...

virtual int	alignment (const int=NameId) const
	Get data object text alignment for the specified column. More...

virtual bool	expandable () const

virtual bool	isEnabled () const
	Check if this object is enabled. More...

virtual bool	isSelectable () const
	Check if this object is selectable. More...

virtual bool	isCheckable (const int=NameId) const
	Check if this object is checkable for the specified column. More...

virtual bool	isOn (const int=NameId) const
	Get the checked state of the object (if it is checkable) for the specified column. More...

virtual void	setOn (const bool, const int=NameId)
	Set the checked state of the object (if it is checkable) for the specified column. More...

virtual bool	isOpen () const
	Get the "opened" state of the object. More...

virtual void	setOpen (const bool)
	Set the "opened" state of the object. More...

virtual void	update ()
	Updates necessary internal fields of data object. More...

void	deleteLater ()
	Schedule this object for the late deleting. More...

void	dump (const int indent=2) const
	Dump the object tree recursively to the standard output. More...

Public Member Functions inherited from CAM_ModuleObject
	CAM_ModuleObject (SUIT_DataObject *=0)
	Constructor. More...

	CAM_ModuleObject (CAM_DataModel , SUIT_DataObject =0)
	Constructor. More...

virtual	~CAM_ModuleObject ()
	Destructor. More...

virtual CAM_DataModel *	dataModel () const
	Get data model. More...

virtual void	setDataModel (CAM_DataModel *)
	Set data model. More...

Additional Inherited Members
Public Types inherited from LightApp_DataObject
enum	{ EntryId = VisibilityId + 1 , RefEntryId }
	Column id. More...

Public Types inherited from SUIT_DataObject
enum	ColorRole { Text , Base , Foreground , Background , Highlight , HighlightedText }
	Color role. More...

enum	{ NameId , VisibilityId }
	Column id. More...

Static Public Member Functions inherited from SUIT_DataObject
static Signal *	signal ()
	Get global signal handler. More...

static bool	connect (const char , QObject , const char *)
	Connect to the signal handlerx. More...

static bool	disconnect (const char , QObject , const char *)
	Disconnect from the signal handler. More...

Protected Attributes inherited from LightApp_DataObject
QString	myCompDataType

SUIT_DataObject *	myCompObject

Detailed Description

Used for optimized access to the data model from the data objects.

See also: CAM_ModuleObject class

Constructor & Destructor Documentation

◆ LightApp_ModuleObject() [1/2]

LightApp_ModuleObject::LightApp_ModuleObject ( SUIT_DataObject * parent = 0 )

Constructor.

Parameters

parent parent data object

◆ LightApp_ModuleObject() [2/2]

LightApp_ModuleObject::LightApp_ModuleObject	(	CAM_DataModel *	dm,
		SUIT_DataObject *	parent = `0`
	)

Constructor.

Parameters

dm	data model
parent	parent data object

◆ ~LightApp_ModuleObject()

LightApp_ModuleObject::~LightApp_ModuleObject ( )

virtual

Member Function Documentation

◆ icon()

QPixmap LightApp_ModuleObject::icon ( const int id = NameId ) const

virtual

Get data object icon for the specified column.

Parameters

id column id

Returns: object icon for the specified column

Reimplemented from CAM_ModuleObject.

References CAM_ModuleObject::icon().

◆ insertChild()

void LightApp_ModuleObject::insertChild	(	SUIT_DataObject *	obj,
		int	pos
	)

virtual

Insert new child object to the children list at specified position.

Adds component in the study for this module object if it is not done yet.

Parameters

obj	object to be inserted
pos	position at which data object should be inserted

Reimplemented from SUIT_DataObject.

References LightApp_Study::addComponent(), CAM_ModuleObject::dataModel(), SUIT_DataObject::insertChild(), SUIT_DataObject::parent(), and LightApp_RootObject::study().

◆ name()

QString LightApp_ModuleObject::name ( ) const

virtual

Get module name.

Returns: module name

Reimplemented from CAM_ModuleObject.

References CAM_ModuleObject::name().

◆ toolTip()

QString LightApp_ModuleObject::toolTip ( const int id = NameId ) const

virtual

Get data object tooltip for the specified column.

Parameters

id column id

Returns: object tooltip for the specified column

Reimplemented from CAM_ModuleObject.

References CAM_ModuleObject::toolTip().

The documentation for this class was generated from the following files:

src/LightApp/LightApp_DataObject.h
src/LightApp/LightApp_DataObject.cxx
