Version: 9.12.0
MED_Structures.hxx File Reference
#include "MED_WrapperDef.hxx"
#include "MED_Common.hxx"
#include "MED_Utilities.hxx"
#include "MED_SliceArray.hxx"
#include <boost/tuple/tuple.hpp>

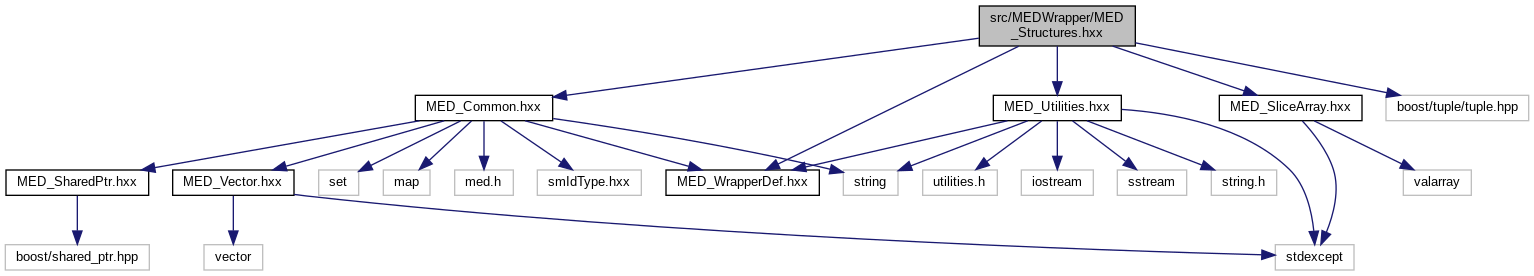

Include dependency graph for MED_Structures.hxx:

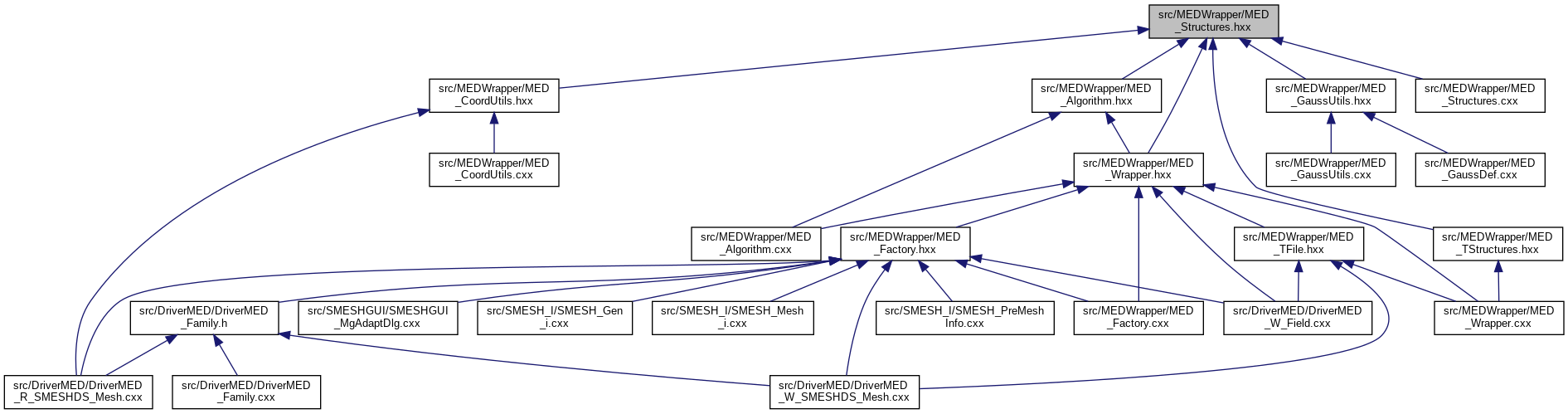

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures

struct  MED::TBase
 Define a parent class for all MEDWrapper classes. More...

struct  MED::TNameInfo
 Define a parent class for all named MED entities. More...

struct  MED::TModeSwitchInfo
 Define a parent class for all MED entities that contains a sequence of numbers. More...

struct  MED::TMeshInfo
 Define a base class which represents MED Mesh entity. More...

struct  MED::TFamilyInfo
 Define a base class which represents MED Family entity. More...

struct  MED::TElemInfo
 Define a parent class for all MED entities that describes mesh entities such as nodes and cells. More...

struct  MED::TNodeInfo
 Define a base class which represents MED Nodes entity. More...

struct  MED::TCellInfo
 Define a base class which represents MED Cells entity. More...

struct  MED::TPolygoneInfo
 Define a base class which represents MED Polygon entity. More...

struct  MED::TBallInfo
 Define a class representing MED_BALL structure element. More...

struct  MED::TPolyedreInfo
 Define a base class which represents MED Polyedre entity. More...

struct  MED::TFieldInfo
 Define a base class which represents MED Field entity. More...

struct  MED::TGaussInfo
 The class represents MED Gauss entity. More...

struct  MED::TGaussInfo::TLess

struct  MED::TTimeStampInfo
 Define a base class which represents MED TimeStamp. More...

struct  MED::TProfileInfo
 The class represents MED Profile entity. More...

struct  MED::TMeshValueBase
 The class is a helper one. It provide safe and flexible way to get access to values for a MED TimeStamp. More...

struct  MED::TTMeshValue< TValueType >
 The class is a helper one. It provide safe and flexible way to get access to values for a MED TimeStamp. More...

struct  MED::TTimeStampValueBase
 The class is a base class for MED TimeStamp values holder. More...

struct  MED::TTimeStampValue< TMeshValueType >
 The class implements a container for MED TimeStamp values. More...

struct  MED::TGrilleInfo
 Define a base class which represents MED Grille (structured mesh) More...


Namespaces

 MED


Typedefs

typedef TVector< char > MED::TString
 Defines a type for managing sequence of strings. More...

typedef SharedPtr< TString > MED::PString

typedef TSlice< TInt > MED::TIntVecSlice

typedef TCSlice< TInt > MED::TCIntVecSlice

typedef TIntVector MED::TFamAttr

typedef TIntVector MED::TElemNum

typedef SharedPtr< TElemNum > MED::PElemNum

typedef TSlice< TFloat > MED::TFloatVecSlice

typedef TCSlice< TFloat > MED::TCFloatVecSlice

typedef TFloatVector MED::TNodeCoord

typedef SharedPtr< TNodeCoord > MED::PNodeCoord

typedef TFloatVecSlice MED::TCoordSlice

typedef TCFloatVecSlice MED::TCCoordSlice

typedef TIntVecSlice MED::TConnSlice

typedef TCIntVecSlice MED::TCConnSlice

typedef TVector< TCConnSlice > MED::TCConnSliceArr

typedef TVector< TConnSlice > MED::TConnSliceArr

typedef TFloatVector MED::TWeight

typedef std::map< EGeometrieElement, PGaussInfo > MED::TGeom2Gauss

typedef std::map< EGeometrieElement, TInt > MED::TGeom2NbGauss

typedef TTMeshValue< TFloatVector > MED::TFloatMeshValue

typedef TTMeshValue< TIntVector > MED::TIntMeshValue

typedef TFloatVector MED::TValue

typedef TSlice< TFloat > MED::TValueSlice

typedef TCSlice< TFloat > MED::TCValueSlice

typedef TVector< TCValueSlice > MED::TCValueSliceArr

typedef TVector< TValueSlice > MED::TValueSliceArr

typedef TFloatMeshValue MED::TMeshValue

typedef std::map< EGeometrieElement, TMeshValue > MED::TGeom2Value

typedef std::map< EGeometrieElement, PProfileInfo > MED::TGeom2Profile

typedef std::set< EGeometrieElement > MED::TGeom

typedef TTimeStampValue< TFloatMeshValue > MED::TFloatTimeStampValue

typedef SharedPtr< TFloatTimeStampValue > MED::PFloatTimeStampValue

typedef TTimeStampValue< TIntMeshValue > MED::TIntTimeStampValue

typedef SharedPtr< TIntTimeStampValue > MED::PIntTimeStampValue

typedef TFloatTimeStampValue MED::TTimeStampVal

typedef PFloatTimeStampValue MED::PTimeStampVal

typedef std::map< TInt, TFloatVector > MED::TIndexes

typedef std::map< TInt, TString > MED::TNames


Functions

std::string MED::GetString (TInt theId, TInt theStep, const TString &theString)
 Extract a substring from the sequence of the strings. More...

void MED::SetString (TInt theId, TInt theStep, TString &theString, const std::string &theValue)
 Set a substring in the sequence of the strings. More...

void MED::SetString (TInt theId, TInt theStep, TString &theString, const TString &theValue)
 Set a substring in the sequence of the strings. More...

TInt MED::GetDimGaussCoord (EGeometrieElement theGeom)
 Get dimension of the Gauss coordinates for the defined type of mesh cell. More...

TInt MED::GetNbRefCoord (EGeometrieElement theGeom)
 Get number of referenced nodes for the defined type of mesh cell. More...

PFloatTimeStampValue MED::CastToFloatTimeStampValue (const PTimeStampValueBase &theTimeStampValue)

PIntTimeStampValue MED::CastToIntTimeStampValue (const PTimeStampValueBase &theTimeStampValue)

template<class TMeshValueTypeFrom , class TMeshValueTypeTo >
void MED::CopyTimeStampValue (SharedPtr< TTimeStampValue< TMeshValueTypeFrom > > theTimeStampValueFrom, SharedPtr< TTimeStampValue< TMeshValueTypeTo > > theTimeStampValueTo)

template<class TMeshValueType >
void MED::CopyTimeStampValue (SharedPtr< TTimeStampValue< TMeshValueType > > theTimeStampValueFrom, SharedPtr< TTimeStampValue< TMeshValueType > > theTimeStampValueTo)

void MED::CopyTimeStampValueBase (const PTimeStampValueBase &theValueFrom, const PTimeStampValueBase &theValueTo)
