SMESH_Filter.idl File Reference
#include "SALOME_Exception.idl"#include "SALOME_GenericObj.idl"#include "GEOM_Gen.idl"import "SMESH_Mesh.idl";#include "SMESH_smIdType.idl"

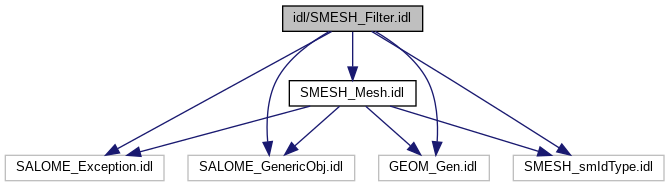

Include dependency graph for SMESH_Filter.idl:
Go to the source code of this file.
Data Structures | |
| struct | SMESH::HistogramRectangle |
| Parameters of a reclangle of histogram. More... | |
| interface | SMESH::Functor |
| Base interface for all functors ( i.e. More... | |
| interface | SMESH::NumericalFunctor |
| Numerical functors are intended for calculating value by Id of mesh entity. More... | |
| interface | SMESH::MinimumAngle |
| interface | SMESH::AspectRatio |
| interface | SMESH::AspectRatio3D |
| interface | SMESH::Warping |
| interface | SMESH::Warping3D |
| interface | SMESH::Taper |
| interface | SMESH::Skew |
| interface | SMESH::Area |
| interface | SMESH::Volume3D |
| interface | SMESH::MaxElementLength2D |
| interface | SMESH::MaxElementLength3D |
| interface | SMESH::Length |
| interface | SMESH::Length2D |
| struct | SMESH::Length2D::Value |
| interface | SMESH::Length3D |
| interface | SMESH::Deflection2D |
| interface | SMESH::MultiConnection |
| interface | SMESH::MultiConnection2D |
| struct | SMESH::MultiConnection2D::Value |
| interface | SMESH::BallDiameter |
| interface | SMESH::NodeConnectivityNumber |
| interface | SMESH::ScaledJacobian |
| interface | SMESH::Predicate |
| Predicates are intended for verification of criteria, they return bool value by mesh id. More... | |
| interface | SMESH::BadOrientedVolume |
| Logical functor (predicate) "Bad Oriented Volume". More... | |
| interface | SMESH::BareBorderVolume |
| Logical functor (predicate) "Volumes with bare border". More... | |
| interface | SMESH::BareBorderFace |
| Logical functor (predicate) "Faces with bare border". More... | |
| interface | SMESH::OverConstrainedVolume |
| Logical functor (predicate) "Over-constrained Volume" Verify whether a mesh volume has only one facet shared with other volumes. More... | |
| interface | SMESH::OverConstrainedFace |
| Logical functor (predicate) "Over-constrained Face". More... | |
| interface | SMESH::EqualNodes |
| Logical functor (predicate) "Equal Nodes". More... | |
| interface | SMESH::EqualEdges |
| Logical functor (predicate) "Equal Edges". More... | |
| interface | SMESH::EqualFaces |
| Logical functor (predicate) "Equal Faces". More... | |
| interface | SMESH::EqualVolumes |
| Logical functor (predicate) "Equal Volumes". More... | |
| interface | SMESH::BelongToMeshGroup |
| Logical functor (predicate) "Belong To Mesh Group". More... | |
| interface | SMESH::BelongToGeom |
| Logical functor (predicate) "Belong To Geometry". More... | |
| interface | SMESH::BelongToSurface |
| Logical functor (predicate) "Belong To Surface". More... | |
| interface | SMESH::BelongToPlane |
| Logical functor (predicate) "Belong To Plane". More... | |
| interface | SMESH::BelongToCylinder |
| Logical functor (predicate) "Belong To Cylinder". More... | |
| interface | SMESH::BelongToGenSurface |
| Logical functor (predicate) "Belong To Generic Surface". More... | |
| interface | SMESH::LyingOnGeom |
| Logical functor (predicate) "Lying On Geometry". More... | |
| interface | SMESH::FreeBorders |
| Logical functor (predicate) "Free borders". More... | |
| interface | SMESH::FreeEdges |
| Logical functor (predicate) "Free edges". More... | |
| struct | SMESH::FreeEdges::Border |
| interface | SMESH::FreeNodes |
| Logical functor (predicate) "Free nodes". More... | |
| interface | SMESH::FreeFaces |
| Logical functor (predicate) "Free faces". More... | |
| interface | SMESH::RangeOfIds |
| Abstract logical functor (predicate) "RangeOfIds". More... | |
| interface | SMESH::Comparator |
| Comparator. More... | |
| interface | SMESH::LessThan |
| interface | SMESH::MoreThan |
| interface | SMESH::EqualTo |
| interface | SMESH::Logical |
| Logical predicates are intended for compose predicates using boolean operations. More... | |
| interface | SMESH::LogicalNOT |
| interface | SMESH::LogicalBinary |
| interface | SMESH::LogicalAND |
| interface | SMESH::LogicalOR |
| interface | SMESH::LinearOrQuadratic |
| Logical functor (predicate) "Is element Linear or Quadratic". More... | |
| interface | SMESH::GroupColor |
| Predicate "Group Color" Returns color of group to which mesh element belongs to. More... | |
| interface | SMESH::ElemGeomType |
| Predicate "Element geometry type" Returns is element has indicated geometry type. More... | |
| interface | SMESH::ElemEntityType |
| Predicate "Element entity type" Returns is element has indicated entity type. More... | |
| interface | SMESH::CoplanarFaces |
| Predicate "Coplanar faces" Returns true if a mesh face is a coplanar neighbour to a given one. More... | |
| interface | SMESH::ConnectedElements |
| Predicate "Connected Elements" Returns true if an element is connected via other elements to the element located at a given point. More... | |
| interface | SMESH::Filter |
| Filter. More... | |
| struct | SMESH::Filter::Criterion |
| Structure containing information about one criterion Type - FT_Taper, FT_Skew ... Compare - FT_LessThan, FT_MoreThan, FT_EqualTo Threshold - threshold value UnaryOp - unary logical operation: FT_LogicalNOT or FT_Undefined BinaryOp - binary logical operation FT_LogicalAND, FT_LogicalOR or (FT_Undefined must be for the last criterion) ThresholdStr - Threshold value defined as string. More... | |
| interface | SMESH::FilterLibrary |
| Interface for working with library of filters. More... | |
| interface | SMESH::FilterManager |
| Interface of Filter manager. More... | |
Modules | |
| namespace | SMESH |
Typedefs | |
| typedef sequence< HistogramRectangle > | SMESH::Histogram |
