StdMeshers::StdMeshers_ViscousLayerBuilder Interface Reference

StdMeshers_Cartesian_3D: interface of "ViscousLayerBuilder" algorithm. More...

import"SMESH_BasicHypothesis.idl";

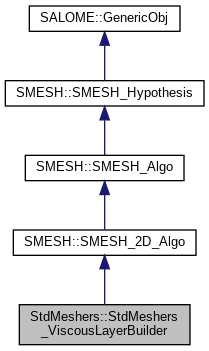

Inheritance diagram for StdMeshers::StdMeshers_ViscousLayerBuilder:

Public Member Functions
void	SetIgnoreFaces (in SMESH::long_array faceIDs) raises (SALOME::SALOME_Exception)
	Set faces to exclude from the definition of face to shrink. More...
void	SetFaces (in SMESH::long_array faceIDs, in boolean toIgnore) raises (SALOME::SALOME_Exception)
	Set faces either to exclude from treatment or to make the offset geometry on. More...
void	SetTotalThickness (in double thickness) raises (SALOME::SALOME_Exception)
void	SetNumberLayers (in short numberOfLayers) raises (SALOME::SALOME_Exception)
void	SetStretchFactor (in double strechFactor) raises (SALOME::SALOME_Exception)
void	SetMethod (in VLExtrusionMethod how) raises (SALOME::SALOME_Exception)
void	SetGroupName (in string name) raises (SALOME::SALOME_Exception)
GEOM::GEOM_Object	GetShrinkGeometry (in SMESH::SMESH_Mesh finalMesh, in GEOM::GEOM_Object theObject) raises (SALOME::SALOME_Exception)
boolean	AddLayers (in SMESH::SMESH_Mesh sourceMesh, in SMESH::SMESH_Mesh finalMesh, in GEOM::GEOM_Object theObject) raises (SALOME::SALOME_Exception)
	Build the prismatic layer from the shrink mesh. More...
ListOfHypothesisName	GetCompatibleHypothesis ()
	Get list of hypothesis that can be used with this algorithm. More...
string	GetName ()
	Get the Hypothesis typeName. More...
string	GetLibName ()
	Get the Hypothesis plugin library Name. More...
short	GetId ()
	Get the internal Id. More...
void	SetVarParameter (in string parameter, in string method)
	Set the variable parameter. More...
string	GetVarParameter (in string methodName)
	Return the variable parameter used for Hypothesis creation by name of method setting this parameter. More...
void	SetHolderHypothesis (in SMESH::SMESH_Hypothesis hyp)
	Store a hypothesis wrapping this not published one. More...
boolean	IsDimSupported (in Dimension type)
	Verify whether hypothesis supports given entity type. More...
boolean	HasParameters ()
	Return true if a hypothesis has parameters. More...

Detailed Description

StdMeshers_Cartesian_3D: interface of "ViscousLayerBuilder" algorithm.

Member Function Documentation

AddLayers()

boolean StdMeshers::StdMeshers_ViscousLayerBuilder::AddLayers	(	in SMESH::SMESH_Mesh	sourceMesh,
		in SMESH::SMESH_Mesh	finalMesh,
		in GEOM::GEOM_Object	theObject
	)
raises	(	SALOME::SALOME_Exception
	)

Build the prismatic layer from the shrink mesh.

GetCompatibleHypothesis()

ListOfHypothesisName SMESH::SMESH_Algo::GetCompatibleHypothesis ( )

inherited

Get list of hypothesis that can be used with this algorithm.

GetId()

short SMESH::SMESH_Hypothesis::GetId ( )

inherited

Get the internal Id.

GetLibName()

string SMESH::SMESH_Hypothesis::GetLibName ( )

inherited

Get the Hypothesis plugin library Name.

GetName()

string SMESH::SMESH_Hypothesis::GetName ( )

inherited

Get the Hypothesis typeName.

Referenced by StdMeshers_Regular_1D::CheckHypothesis().

GetShrinkGeometry()

GEOM::GEOM_Object StdMeshers::StdMeshers_ViscousLayerBuilder::GetShrinkGeometry	(	in SMESH::SMESH_Mesh	finalMesh,
		in GEOM::GEOM_Object	theObject
	)
raises	(	SALOME::SALOME_Exception
	)

GetVarParameter()

string SMESH::SMESH_Hypothesis::GetVarParameter ( in string  methodName )

inherited

Return the variable parameter used for Hypothesis creation by name of method setting this parameter.

HasParameters()

boolean SMESH::SMESH_Hypothesis::HasParameters ( )

inherited

Return true if a hypothesis has parameters.

This method is intended for GUI to know if "Edit" menu item should be available

IsDimSupported()

boolean SMESH::SMESH_Hypothesis::IsDimSupported ( in Dimension  type )

inherited

Verify whether hypothesis supports given entity type.

SetFaces()

void StdMeshers::StdMeshers_ViscousLayerBuilder::SetFaces	(	in SMESH::long_array	faceIDs,
		in boolean	toIgnore
	)
raises	(	SALOME::SALOME_Exception
	)

Set faces either to exclude from treatment or to make the offset geometry on.

SetGroupName()

void StdMeshers::StdMeshers_ViscousLayerBuilder::SetGroupName	(	in string	name	)
raises	(	SALOME::SALOME_Exception
	)

SetHolderHypothesis()

void SMESH::SMESH_Hypothesis::SetHolderHypothesis ( in SMESH::SMESH_Hypothesis  hyp )

inherited

Store a hypothesis wrapping this not published one.

This hyp, which has no own parameters but is published, is used to store variables defining parameters of this hypothesis.

SetIgnoreFaces()

void StdMeshers::StdMeshers_ViscousLayerBuilder::SetIgnoreFaces	(	in SMESH::long_array	faceIDs	)
raises	(	SALOME::SALOME_Exception
	)

Set faces to exclude from the definition of face to shrink.

SetMethod()

void StdMeshers::StdMeshers_ViscousLayerBuilder::SetMethod	(	in VLExtrusionMethod	how	)
raises	(	SALOME::SALOME_Exception
	)

SetNumberLayers()

void StdMeshers::StdMeshers_ViscousLayerBuilder::SetNumberLayers	(	in short	numberOfLayers	)
raises	(	SALOME::SALOME_Exception
	)

SetStretchFactor()

void StdMeshers::StdMeshers_ViscousLayerBuilder::SetStretchFactor	(	in double	strechFactor	)
raises	(	SALOME::SALOME_Exception
	)

SetTotalThickness()

void StdMeshers::StdMeshers_ViscousLayerBuilder::SetTotalThickness	(	in double	thickness	)
raises	(	SALOME::SALOME_Exception
	)

SetVarParameter()

void SMESH::SMESH_Hypothesis::SetVarParameter ( in string  parameter, in string  method  )

inherited

Set the variable parameter.

Parameters

parameter	is a string containing the notebook variable used for Hypothesis creation
method	is a name of Hypothesis method setting this parameter

This method must be called before calling method()
