Version: 9.15.0
Public Member Functions | Static Public Member Functions | Protected Member Functions | Protected Attributes | List of all members
SalomeWrap_Module Class Reference

#include <SalomeWrap_Module.hxx>

Inheritance diagram for SalomeWrap_Module:
Inheritance graph
[legend]

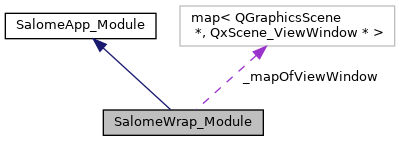

Collaboration diagram for SalomeWrap_Module:
Collaboration graph
[legend]

Public Member Functions

 SalomeWrap_Module (const char *name)

QxScene_ViewWindow * getNewWindow (QGraphicsScene *scene)

void AssociateViewToWindow (QGraphicsView *gView, QxScene_ViewWindow *viewWindow)

QDockWidget * objectBrowser ()

QAction * wCreateAction (const int id, const QString &toolTip, const QIcon &icon, const QString &menu, const QString &status, const int shortCut, QObject *parent=0, bool checkable=false, QObject *receiver=0, const char *member=0)

int wCreateMenu (const QString &subMenu, const int parentMenuId, const int menuId=-1, const int groupId=-1, const int index=-1)

int wCreateMenu (const QString &subMenu, const QString &parentMenu, const int menuId=-1, const int groupId=-1, const int index=-1)

int wCreateMenu (const int actionId, const int menuId, const int groupId=-1, const int index=-1)

int wCreateMenu (const int actionId, const QString &menu, const int groupId=-1, const int index=-1)

int wCreateMenu (QAction *action, const int menuId, const int actionId=-1, const int groupId=-1, const int index=-1)

int wCreateMenu (QAction *action, const QString &menu, const int actionId=-1, const int groupId=-1, const int index=-1)

int wCreateTool (const QString &title, const QString &name=QString())

int wCreateTool (const int actionId, const int toolbarId, const int index=-1)

int wCreateTool (const int actionId, const QString &toolbar, const int index=-1)

int wCreateTool (QAction *action, const int toolbarId, const int actionId=-1, const int index=-1)

int wCreateTool (QAction *action, const QString &toolbar, const int actionId=-1, const int index=-1)

SalomeWrap_DataModel * getDataModel ()


Static Public Member Functions

static QAction * wSeparator ()


Protected Member Functions

virtual CAM_DataModel * createDataModel ()


Protected Attributes

std::map< QGraphicsScene *, QxScene_ViewWindow * > _mapOfViewWindow


Detailed Description

Definition at line 39 of file SalomeWrap_Module.hxx.

Constructor & Destructor Documentation

◆ SalomeWrap_Module()

SalomeWrap_Module::SalomeWrap_Module ( const char *  name)

Definition at line 41 of file SalomeWrap_Module.cxx.

41  :
42  SalomeApp_Module( name )
43 {
44  _mapOfViewWindow.clear();
45 }
SalomeApp_Module
SalomeWrap_Module::_mapOfViewWindow
std::map< QGraphicsScene *, QxScene_ViewWindow * > _mapOfViewWindow
Definition: SalomeWrap_Module.hxx:126

References _mapOfViewWindow.

Member Function Documentation

◆ AssociateViewToWindow()

void SalomeWrap_Module::AssociateViewToWindow ( QGraphicsView *  gView,
QxScene_ViewWindow *  viewWindow
)

Definition at line 74 of file SalomeWrap_Module.cxx.

76 {
77  viewWindow->setSceneView(gView);
78  viewWindow->setCentralWidget(gView);
79 }

Referenced by YACS::HMI::SuitWrapper::AssociateViewToWindow().

◆ createDataModel()

CAM_DataModel * SalomeWrap_Module::createDataModel ( )
protectedvirtual

Reimplemented in Yacsgui.

Definition at line 214 of file SalomeWrap_Module.cxx.

215 {
216  return new SalomeWrap_DataModel(this);
217 }
SalomeWrap_DataModel
Definition: SalomeWrap_DataModel.hxx:32

◆ getDataModel()

SalomeWrap_DataModel * SalomeWrap_Module::getDataModel ( )

Definition at line 209 of file SalomeWrap_Module.cxx.

210 {
211  return dynamic_cast<SalomeWrap_DataModel*>(dataModel());
212 }

Referenced by YACS::HMI::SuitWrapper::createNewRun(), YACS::HMI::SuitWrapper::createNewSchema(), YACS::HMI::SuitWrapper::deleteSchema(), and YACS::HMI::SuitWrapper::renameSchema().

◆ getNewWindow()

QxScene_ViewWindow * SalomeWrap_Module::getNewWindow ( QGraphicsScene *  scene)

create a new QxScene_ViewWindow unless the active view is an empty QxScene_ViewWindow automatically created when SALOME module is loaded.

Definition at line 50 of file SalomeWrap_Module.cxx.

51 {
52  SUIT_ViewManager *svm = 0;
53  if (_mapOfViewWindow.empty()) // --- reuse already created view manager
54  svm = getApp()->getViewManager(QxScene_Viewer::Type(), true);
55  else
56  svm = getApp()->createViewManager(QxScene_Viewer::Type());
57  SUIT_ViewWindow* svw = svm->getActiveView();
58  QxScene_ViewWindow *aView = 0;
59  QGraphicsScene* existingScene = 0;
60  if (!svw) svw = svm->createViewWindow();
61  if (svw) aView = dynamic_cast<QxScene_ViewWindow*>(svw);
62  if (aView) existingScene = aView->getScene();
63  if (existingScene)
64  {
65  svw = svm->createViewWindow();
66  if (svw) aView = dynamic_cast<QxScene_ViewWindow*>(svw);
67  }
68  YASSERT(aView);
69  aView->setScene(scene);
70  _mapOfViewWindow[scene] = aView;
71  return aView;
72 }
YASSERT
#define YASSERT(val)
YASSERT macro is always defined, used like assert, but throw a YACS::Exception instead of abort.
Definition: YacsTrace.hxx:59

References _mapOfViewWindow, and YASSERT.

Referenced by YACS::HMI::SuitWrapper::getNewWindow().

◆ objectBrowser()

QDockWidget * SalomeWrap_Module::objectBrowser ( )

Definition at line 81 of file SalomeWrap_Module.cxx.

81  {
82  if ( !getApp()->objectBrowser() )
83  return 0;
84
85  QWidget* wid = getApp()->objectBrowser()->treeView();
86
87  if ( !wid ) {
88  return 0;
89  };
90
91  QDockWidget* dock = 0;
92  QWidget* w = wid->parentWidget();
93  while ( w && !dock ) {
94  dock = ::qobject_cast<QDockWidget*>( w );
95  w = w->parentWidget();
96  };
97
98  return dock;
99 }
SalomeWrap_Module::objectBrowser
QDockWidget * objectBrowser()
Definition: SalomeWrap_Module.cxx:81

References gui.logview::w.

Referenced by YACS::HMI::SuitWrapper::objectBrowser().

◆ wCreateAction()

QAction * SalomeWrap_Module::wCreateAction ( const int  id,
const QString &  toolTip,
const QIcon &  icon,
const QString &  menu,
const QString &  status,
const int  shortCut,
QObject *  parent = 0,
bool  checkable = false,
QObject *  receiver = 0,
const char *  member = 0
)

Definition at line 102 of file SalomeWrap_Module.cxx.

112 {
113  return createAction(id, toolTip, icon, menu, status, shortCut,
114  parent, checkable, receiver, member);
115 }

Referenced by YACS::HMI::SuitWrapper::createAction().

◆ wCreateMenu() [1/6]

int SalomeWrap_Module::wCreateMenu ( const int  actionId,
const int  menuId,
const int  groupId = -1,
const int  index = -1
)

Definition at line 135 of file SalomeWrap_Module.cxx.

139 {
140  return createMenu(actionId, menuId, groupId, index);
141 }

◆ wCreateMenu() [2/6]

int SalomeWrap_Module::wCreateMenu ( const int  actionId,
const QString &  menu,
const int  groupId = -1,
const int  index = -1
)

Definition at line 143 of file SalomeWrap_Module.cxx.

147 {
148  return createMenu(actionId, menu, groupId, index);
149 }

◆ wCreateMenu() [3/6]

int SalomeWrap_Module::wCreateMenu ( const QString &  subMenu,
const int  parentMenuId,
const int  menuId = -1,
const int  groupId = -1,
const int  index = -1
)

Definition at line 117 of file SalomeWrap_Module.cxx.

122 {
123  return createMenu(subMenu, parentMenuId, menuId, groupId, index);
124 }

Referenced by YACS::HMI::SuitWrapper::createMenu().

◆ wCreateMenu() [4/6]

int SalomeWrap_Module::wCreateMenu ( const QString &  subMenu,
const QString &  parentMenu,
const int  menuId = -1,
const int  groupId = -1,
const int  index = -1
)

Definition at line 126 of file SalomeWrap_Module.cxx.

131 {
132  return createMenu(subMenu, parentMenu, menuId, groupId, index);
133 }

◆ wCreateMenu() [5/6]

int SalomeWrap_Module::wCreateMenu ( QAction *  action,
const int  menuId,
const int  actionId = -1,
const int  groupId = -1,
const int  index = -1
)

Definition at line 151 of file SalomeWrap_Module.cxx.

156 {
157  return createMenu(action, menuId, actionId, groupId, index);
158 }

◆ wCreateMenu() [6/6]

int SalomeWrap_Module::wCreateMenu ( QAction *  action,
const QString &  menu,
const int  actionId = -1,
const int  groupId = -1,
const int  index = -1
)

Definition at line 160 of file SalomeWrap_Module.cxx.

165 {
166  return createMenu(action, menu, actionId, groupId, index);
167 }

◆ wCreateTool() [1/5]

int SalomeWrap_Module::wCreateTool ( const int  actionId,
const int  toolbarId,
const int  index = -1
)

Definition at line 174 of file SalomeWrap_Module.cxx.

177 {
178  return createTool(actionId, toolbarId, index);
179 }

◆ wCreateTool() [2/5]

int SalomeWrap_Module::wCreateTool ( const int  actionId,
const QString &  toolbar,
const int  index = -1
)

Definition at line 181 of file SalomeWrap_Module.cxx.

184 {
185  return createTool(actionId, toolbar, index);
186 }

◆ wCreateTool() [3/5]

int SalomeWrap_Module::wCreateTool ( const QString &  title,
const QString &  name = QString()
)

Definition at line 169 of file SalomeWrap_Module.cxx.

170 {
171  return createTool(title, name);
172 }

Referenced by YACS::HMI::SuitWrapper::createTool().

◆ wCreateTool() [4/5]

int SalomeWrap_Module::wCreateTool ( QAction *  action,
const int  toolbarId,
const int  actionId = -1,
const int  index = -1
)

Definition at line 188 of file SalomeWrap_Module.cxx.

192 {
193  return createTool(action, toolbarId, actionId, index);
194 }

◆ wCreateTool() [5/5]

int SalomeWrap_Module::wCreateTool ( QAction *  action,
const QString &  toolbar,
const int  actionId = -1,
const int  index = -1
)

Definition at line 196 of file SalomeWrap_Module.cxx.

200 {
201  return createTool(action, toolbar, actionId, index);
202 }

◆ wSeparator()

QAction * SalomeWrap_Module::wSeparator ( )
static

Definition at line 204 of file SalomeWrap_Module.cxx.

205 {
206  return separator();
207 }

Referenced by YACS::HMI::SuitWrapper::separator().

Member Data Documentation

◆ _mapOfViewWindow

std::map<QGraphicsScene*, QxScene_ViewWindow*> SalomeWrap_Module::_mapOfViewWindow
protected

Definition at line 126 of file SalomeWrap_Module.hxx.

Referenced by getNewWindow(), and SalomeWrap_Module().

The documentation for this class was generated from the following files:
