#include <Yacsgui.hxx>

Inheritance diagram for Yacsgui:

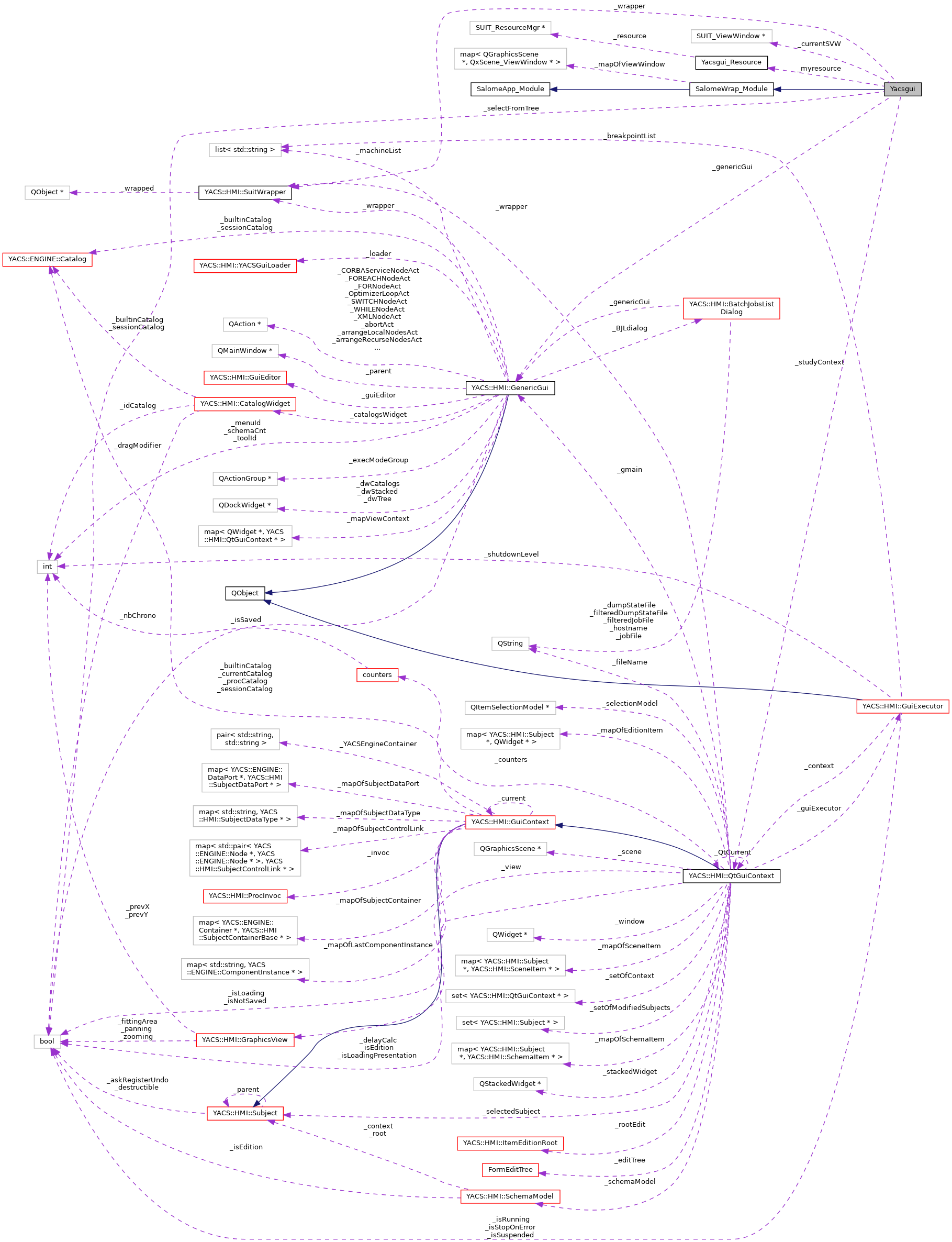

Collaboration diagram for Yacsgui:

[legend]

Public Slots
bool	deactivateModule (SUIT_Study *theStudy)

bool	activateModule (SUIT_Study *theStudy)

void	onDblClick (SUIT_DataObject *object)

void	onCleanOnExit ()

Public Member Functions
	Yacsgui ()

virtual	~Yacsgui ()

void	initialize (CAM_Application *app)

void	windows (QMap< int, int > &theMap) const

virtual QString	engineIOR () const

virtual void	viewManagers (QStringList &list) const

virtual void	setResource (SUIT_ResourceMgr *r)

virtual void	createPreferences ()

virtual void	preferencesChanged (const QString &sect, const QString &name)

virtual void	loadSchema (const std::string &filename, bool edit=true, bool arrangeLocalNodes=false)

Public Member Functions inherited from SalomeWrap_Module
	SalomeWrap_Module (const char *name)

QxScene_ViewWindow *	getNewWindow (QGraphicsScene *scene)

void	AssociateViewToWindow (QGraphicsView gView, QxScene_ViewWindow viewWindow)

QDockWidget *	objectBrowser ()

QAction *	wCreateAction (const int id, const QString &toolTip, const QIcon &icon, const QString &menu, const QString &status, const int shortCut, QObject parent=0, bool checkable=false, QObject receiver=0, const char *member=0)

int	wCreateMenu (const QString &subMenu, const int parentMenuId, const int menuId=-1, const int groupId=-1, const int index=-1)

int	wCreateMenu (const QString &subMenu, const QString &parentMenu, const int menuId=-1, const int groupId=-1, const int index=-1)

int	wCreateMenu (const int actionId, const int menuId, const int groupId=-1, const int index=-1)

int	wCreateMenu (const int actionId, const QString &menu, const int groupId=-1, const int index=-1)

int	wCreateMenu (QAction *action, const int menuId, const int actionId=-1, const int groupId=-1, const int index=-1)

int	wCreateMenu (QAction *action, const QString &menu, const int actionId=-1, const int groupId=-1, const int index=-1)

int	wCreateTool (const QString &title, const QString &name=QString())

int	wCreateTool (const int actionId, const int toolbarId, const int index=-1)

int	wCreateTool (const int actionId, const QString &toolbar, const int index=-1)

int	wCreateTool (QAction *action, const int toolbarId, const int actionId=-1, const int index=-1)

int	wCreateTool (QAction *action, const QString &toolbar, const int actionId=-1, const int index=-1)

SalomeWrap_DataModel *	getDataModel ()

Protected Slots
void	onWindowActivated (SUIT_ViewWindow *svw)

void	onWindowClosed (SUIT_ViewWindow *svw)

void	onTryClose (bool &isClosed, QxScene_ViewWindow *window)

Protected Member Functions
virtual CAM_DataModel *	createDataModel ()

bool	createSComponent ()

virtual CAM_DataModel *	createDataModel ()

Protected Attributes
YACS::HMI::SuitWrapper *	_wrapper

YACS::HMI::GenericGui *	_genericGui

bool	_selectFromTree

Yacsgui_Resource *	_myresource

SUIT_ViewWindow *	_currentSVW

YACS::HMI::QtGuiContext *	_studyContext

Protected Attributes inherited from SalomeWrap_Module
std::map< QGraphicsScene , QxScene_ViewWindow >	_mapOfViewWindow

Friends
class	Yacsgui_Resource

Additional Inherited Members
Static Public Member Functions inherited from SalomeWrap_Module
static QAction *	wSeparator ()

Detailed Description

Definition at line 46 of file Yacsgui.hxx.

Constructor & Destructor Documentation

◆ Yacsgui()

Yacsgui::Yacsgui ( )

Definition at line 61 of file Yacsgui.cxx.

                 :
  SalomeWrap_Module( "YACS" ) // default name
{
  DEBTRACE("Yacsgui::Yacsgui");
  _wrapper = 0;
  _genericGui = 0;
  _selectFromTree = false;
  _studyContext = 0;
}

References _genericGui, _selectFromTree, _studyContext, _wrapper, and DEBTRACE.

◆ ~Yacsgui()

Yacsgui::~Yacsgui ( )

virtual

Definition at line 71 of file Yacsgui.cxx.

{
  if ( getApp() )
    disconnect( getApp(), SIGNAL(studyClosed()), this, SLOT  (onCleanOnExit()));
  delete _wrapper;
  delete _genericGui;
}

References _genericGui, _wrapper, and onCleanOnExit().

Member Function Documentation

◆ activateModule

bool Yacsgui::activateModule ( SUIT_Study * theStudy )

slot

Definition at line 154 of file Yacsgui.cxx.

{
  DEBTRACE("Yacsgui::activateModule");
  bool bOk = SalomeApp_Module::activateModule( theStudy );

  QMainWindow* parent = application()->desktop();
  if(Resource::dockWidgetPriority)
    {
      parent->setCorner(Qt::TopLeftCorner, Qt::LeftDockWidgetArea);
      parent->setCorner(Qt::BottomLeftCorner, Qt::LeftDockWidgetArea);
      parent->setCorner(Qt::TopRightCorner, Qt::RightDockWidgetArea);
      parent->setCorner(Qt::BottomRightCorner, Qt::RightDockWidgetArea);
    }
  setMenuShown( true );
  setToolShown( true );
  _genericGui->showDockWidgets(true);

  // import Python module that manages YACS plugins (need to be here because SalomePyQt API uses active module)
  PyGILState_STATE gstate = PyGILState_Ensure();
  PyObject* pluginsmanager=PyImport_ImportModule((char*)"salome_pluginsmanager");
  if(pluginsmanager==NULL)
    PyErr_Print();
  else
    {
      Py_ssize_t l = 12;  // size of YACS_PLUGINS string
      PyObject* result=PyObject_CallMethod( pluginsmanager, (char*)"initialize", (char*)"isss",1,"yacs","YACS",tr("YACS_PLUGINS").toStdString().c_str(),l);
      if(result==NULL)
        PyErr_Print();
      Py_XDECREF(result);
    }
  Py_XDECREF(pluginsmanager);

  PyGILState_Release(gstate);
  // end of YACS plugins loading

  if (_currentSVW)
    onWindowActivated(_currentSVW);

  return bOk;
}

References _currentSVW, _genericGui, DEBTRACE, testCppPluginInvokation::l, onWindowActivated(), and YACS::HMI::GenericGui::showDockWidgets().

Referenced by onWindowActivated().

◆ createDataModel()

CAM_DataModel * Yacsgui::createDataModel ( )

protectedvirtual

Reimplemented from SalomeWrap_Module.

Definition at line 304 of file Yacsgui.cxx.

{
  return new Yacsgui_DataModel(this);
}

◆ createPreferences()

void Yacsgui::createPreferences ( )

virtual

Definition at line 345 of file Yacsgui.cxx.

{
  DEBTRACE("Yacsgui::createPreferences");
  _myresource->createPreferences(this);
}

References _myresource, Yacsgui_Resource::createPreferences(), and DEBTRACE.

◆ createSComponent()

bool Yacsgui::createSComponent ( )

protected

Definition at line 309 of file Yacsgui.cxx.

{
  DEBTRACE("Yacsgui::createSComponent");
  _PTR(Study)            aStudy = (( SalomeApp_Study* )(getApp()->activeStudy()))->studyDS();
  _PTR(StudyBuilder)     aBuilder (aStudy->NewBuilder());
  _PTR(GenericAttribute) anAttr;
  _PTR(AttributeName)    aName;

  // --- Find or create "YACS" SComponent in the study

  _PTR(SComponent) aComponent = aStudy->FindComponent("YACS");
  if ( !aComponent )
    {
      aComponent = aBuilder->NewComponent("YACS");
      anAttr = aBuilder->FindOrCreateAttribute(aComponent, "AttributeName");
      aName = _PTR(AttributeName) (anAttr);
      aName->SetValue(getApp()->moduleTitle("YACS").toStdString());

      anAttr = aBuilder->FindOrCreateAttribute(aComponent, "AttributePixMap");
      _PTR(AttributePixMap) aPixmap(anAttr);
      aPixmap->SetPixMap("ModuleYacs.png");

      aBuilder->DefineComponentInstance(aComponent, engineIOR().toLatin1().constData());

      return true;
    }
  return false;
}

References DEBTRACE, and engineIOR().

Referenced by initialize().

◆ deactivateModule

bool Yacsgui::deactivateModule ( SUIT_Study * theStudy )

slot

Definition at line 195 of file Yacsgui.cxx.

{
  DEBTRACE("Yacsgui::deactivateModule");

  QMainWindow* parent = application()->desktop();
  parent->setCorner(Qt::TopLeftCorner, Qt::TopDockWidgetArea);
  parent->setCorner(Qt::BottomLeftCorner, Qt::BottomDockWidgetArea);
  parent->setCorner(Qt::TopRightCorner, Qt::TopDockWidgetArea);
  parent->setCorner(Qt::BottomRightCorner, Qt::BottomDockWidgetArea);

  setMenuShown( false );
  setToolShown( false );
  _genericGui->showDockWidgets(false);
  QtGuiContext *context = QtGuiContext::getQtCurrent();
  _studyContext = context;
  DEBTRACE("_studyContext " << theStudy << " " << context);
  return SalomeApp_Module::deactivateModule( theStudy );
}

References _genericGui, _studyContext, DEBTRACE, and YACS::HMI::GenericGui::showDockWidgets().

◆ engineIOR()

QString Yacsgui::engineIOR ( ) const

virtual

Definition at line 224 of file Yacsgui.cxx.

{
  DEBTRACE("Yacsgui::engineIOR");
  QString anEngineIOR = SalomeApp_Engine_i::EngineIORForComponent( "YACS", true ).c_str();
  return anEngineIOR;
}

References DEBTRACE.

Referenced by createSComponent().

◆ initialize()

void Yacsgui::initialize ( CAM_Application * app )

Definition at line 79 of file Yacsgui.cxx.

{
  DEBTRACE("Yacsgui::initialize");
  _currentSVW = 0;
  SalomeApp_Module::initialize( app );

  QWidget* aParent = application()->desktop();
  DEBTRACE(app << "  " << application() << " " << application()->desktop() << " " << aParent);

  SUIT_ResourceMgr* aResourceMgr = app->resourceMgr();
  setResource(aResourceMgr);

  _wrapper = new SuitWrapper(this);
  _genericGui = new GenericGui(_wrapper, app->desktop());

  if ( app && app->desktop() )
    {
      connect( app->desktop(), SIGNAL( windowActivated( SUIT_ViewWindow* ) ),
               this, SLOT(onWindowActivated( SUIT_ViewWindow* )) );

      connect( getApp(),
               SIGNAL(objectDoubleClicked( SUIT_DataObject* )),
               this,
               SLOT  (onDblClick( SUIT_DataObject* )));

      connect( getApp(),
               SIGNAL(studyClosed()),
               this,
               SLOT  (onCleanOnExit()));
    }
  _genericGui->createActions();
  _genericGui->createMenus();
  _genericGui->createTools();
  _studyContext = QtGuiContext::getQtCurrent();

  // VSR 23/10/2014: note that this is not a good way to create SComponent from this point
  // as initialize() method can be potentially called when there's no yet open study;
  // this is better to do in activateModule()
  SalomeApp_Study* aStudy = dynamic_cast<SalomeApp_Study*>( app->activeStudy() );
  if ( aStudy ) {
    bool aLocked = (_PTR(AttributeStudyProperties)(aStudy->studyDS()->GetProperties()))->IsLocked();
    if ( aLocked ) {
      SUIT_MessageBox::warning ( app->desktop(), QObject::tr("WRN_WARNING"), QObject::tr("WRN_STUDY_LOCKED") );
    }
    else  {
      if (createSComponent()) updateObjBrowser();
    }
  }

  // Load SALOME module catalogs
  QStringList appModules;
  app->modules(appModules,false);
  for ( QStringList::const_iterator it = appModules.begin(); it != appModules.end(); ++it )
    {
      QString aModule=*it;
      QString modName = app->moduleName( aModule );                    // module name
      if ( modName.isEmpty() ) modName = aModule;
      QString rootDir = QString( "%1_ROOT_DIR" ).arg( modName );       // module root dir variable
      QString modDir  = getenv( rootDir.toLatin1().constData() );      // module root dir
      if ( !modDir.isEmpty() )
        {
          QStringList cataLst = QStringList() << modDir << "share" << "salome" << "resources" << modName.toLower() << modName+"SchemaCatalog.xml";
          QString cataFile = cataLst.join( QDir::separator() );          // YACS module catalog
          if ( QFile::exists( cataFile ) )
            _genericGui->getCatalogWidget()->addCatalogFromFile(cataFile.toStdString());
        }
    }
}

References _currentSVW, _genericGui, _studyContext, _wrapper, YACS::HMI::CatalogWidget::addCatalogFromFile(), gui.Appli::app, YACS::HMI::GenericGui::createActions(), YACS::HMI::GenericGui::createMenus(), createSComponent(), YACS::HMI::GenericGui::createTools(), DEBTRACE, YACS::HMI::GenericGui::getCatalogWidget(), onCleanOnExit(), onDblClick(), onWindowActivated(), and setResource().

◆ loadSchema()

void Yacsgui::loadSchema	(	const std::string &	filename,
		bool	edit = `true`,
		bool	arrangeLocalNodes = `false`
	)

virtual

Definition at line 361 of file Yacsgui.cxx.

{
  _genericGui->loadSchema(filename,edit,arrangeLocalNodes);
}

References _genericGui, and YACS::HMI::GenericGui::loadSchema().

◆ onCleanOnExit

void Yacsgui::onCleanOnExit ( )

slot

Definition at line 366 of file Yacsgui.cxx.

{
  if ( _genericGui )
    _genericGui->onCleanOnExit();
  _currentSVW = 0;
}

References _currentSVW, _genericGui, and YACS::HMI::GenericGui::onCleanOnExit().

Referenced by initialize(), and ~Yacsgui().

◆ onDblClick

void Yacsgui::onDblClick ( SUIT_DataObject * object )

slot

Definition at line 231 of file Yacsgui.cxx.

{
  DEBTRACE("Yacsgui::onDblClick");
  DataObjectList dol =getApp()->objectBrowser()->getSelected();
  if (dol.isEmpty()) return;

  SalomeApp_DataObject* item = dynamic_cast<SalomeApp_DataObject*>(dol[0]);
  if (!item) return;

  DEBTRACE(item->name().toStdString());
  SalomeWrap_DataModel *model = dynamic_cast<SalomeWrap_DataModel*>(dataModel());
  if (!model) return;
  DEBTRACE(item->entry().toStdString());
  QWidget * viewWindow = model->getViewWindow(item->entry().toStdString());
  if (!_genericGui) return;
  if (!viewWindow) return;
  DEBTRACE("--- " << viewWindow << " "  << item->entry().toStdString());
  if (getApp()->activeModule()->moduleName().compare("YACS") != 0)
    getApp()->activateModule("YACS");

  _selectFromTree = true;
  viewWindow->setFocus();
  _selectFromTree = false;
}

References _genericGui, _selectFromTree, DEBTRACE, and SalomeWrap_DataModel::getViewWindow().

Referenced by initialize().

◆ onTryClose

void Yacsgui::onTryClose	(	bool &	isClosed,
		QxScene_ViewWindow *	window
	)

protectedslot

Definition at line 297 of file Yacsgui.cxx.

{
  DEBTRACE("Yacsgui::onTryClose");
  YASSERT(_genericGui);
  isClosed = _genericGui->closeContext(window);
}

References _genericGui, YACS::HMI::GenericGui::closeContext(), DEBTRACE, and YASSERT.

Referenced by onWindowActivated().

◆ onWindowActivated

void Yacsgui::onWindowActivated ( SUIT_ViewWindow * svw )

protectedslot

Definition at line 256 of file Yacsgui.cxx.

{
  DEBTRACE("Yacsgui::onWindowActivated");
  QxScene_ViewWindow* viewWindow = dynamic_cast<QxScene_ViewWindow*>(svw);
  _currentSVW = svw;
  if (!viewWindow)
    {
      _currentSVW = 0; // switch to another module
      return;
    }
  DEBTRACE("viewWindow " << viewWindow);
  DEBTRACE("activeModule()->moduleName() " << (getApp()->activeModule() ? getApp()->activeModule()->moduleName().toStdString() : "") );
  if (!getApp()->activeModule() || getApp()->activeModule()->moduleName() != "YACS")
    if ( !getApp()->activateModule("YACS") ) return;

  disconnect(viewWindow, SIGNAL( tryClose( bool&, QxScene_ViewWindow* ) ),
             this, SLOT(onTryClose( bool&, QxScene_ViewWindow* )) );
  disconnect(viewWindow->getViewManager(), SIGNAL( deleteView( SUIT_ViewWindow* ) ),
             this, SLOT(onWindowClosed( SUIT_ViewWindow* )) );
  connect(viewWindow, SIGNAL( tryClose( bool&, QxScene_ViewWindow* ) ),
          this, SLOT(onTryClose( bool&, QxScene_ViewWindow* )) );
  connect(viewWindow->getViewManager(), SIGNAL( deleteView( SUIT_ViewWindow* ) ),
          this, SLOT(onWindowClosed( SUIT_ViewWindow* )) );

  YASSERT(_genericGui);
  _genericGui->switchContext(viewWindow);
  _studyContext = QtGuiContext::getQtCurrent();

  if (_selectFromTree) return;
  SalomeWrap_DataModel *model = dynamic_cast<SalomeWrap_DataModel*>(dataModel());
  if (!model) return;
  model->setSelected(svw);
}

References _currentSVW, _genericGui, _selectFromTree, _studyContext, activateModule(), DEBTRACE, onTryClose(), onWindowClosed(), SalomeWrap_DataModel::setSelected(), YACS::HMI::GenericGui::switchContext(), and YASSERT.

Referenced by activateModule(), and initialize().

◆ onWindowClosed

void Yacsgui::onWindowClosed ( SUIT_ViewWindow * svw )

protectedslot

Definition at line 290 of file Yacsgui.cxx.

{
  DEBTRACE("Yacsgui::onWindowClosed");
  if ( svw && svw == _currentSVW )
    _currentSVW = 0;
}

References _currentSVW, and DEBTRACE.

Referenced by onWindowActivated().

◆ preferencesChanged()

void Yacsgui::preferencesChanged	(	const QString &	sect,
		const QString &	name
	)

virtual

Definition at line 351 of file Yacsgui.cxx.

{
  DEBTRACE("Yacsgui::preferencesChanged");
  _myresource->preferencesChanged(sect, name);
  if(name=="userCatalog")
    {
      _genericGui->getCatalogWidget()->addCatalogFromFile(Resource::userCatalog.toStdString());
    }
}

References _genericGui, _myresource, YACS::HMI::CatalogWidget::addCatalogFromFile(), DEBTRACE, YACS::HMI::GenericGui::getCatalogWidget(), and Yacsgui_Resource::preferencesChanged().

◆ setResource()

void Yacsgui::setResource ( SUIT_ResourceMgr * r )

virtual

Definition at line 338 of file Yacsgui.cxx.

{
  DEBTRACE("Yacsgui::setResource");
  _myresource = new Yacsgui_Resource(r);
  _myresource->preferencesChanged();
}

References _myresource, DEBTRACE, Yacsgui_Resource::preferencesChanged(), testCppPluginInvokation::r, and Yacsgui_Resource.

Referenced by initialize().

◆ viewManagers()

void Yacsgui::viewManagers ( QStringList & list ) const

virtual

Definition at line 148 of file Yacsgui.cxx.

{
  DEBTRACE("Yacsgui::viewManagers");
  list.append( QxScene_Viewer::Type() );
}

References DEBTRACE.

◆ windows()

void Yacsgui::windows ( QMap< int, int > & theMap ) const

Definition at line 216 of file Yacsgui.cxx.

{
  DEBTRACE("Yacsgui::windows");
  theMap.clear();
  theMap.insert( SalomeApp_Application::WT_ObjectBrowser, Qt::LeftDockWidgetArea );
  theMap.insert( SalomeApp_Application::WT_PyConsole,     Qt::BottomDockWidgetArea );
}

References DEBTRACE.

Friends And Related Function Documentation

◆ Yacsgui_Resource

friend class Yacsgui_Resource

friend

Definition at line 50 of file Yacsgui.hxx.

Referenced by setResource().

Member Data Documentation

◆ _currentSVW

SUIT_ViewWindow* Yacsgui::_currentSVW

protected

Definition at line 85 of file Yacsgui.hxx.

Referenced by activateModule(), initialize(), onCleanOnExit(), onWindowActivated(), and onWindowClosed().

◆ _genericGui

YACS::HMI::GenericGui* Yacsgui::_genericGui

protected

Definition at line 82 of file Yacsgui.hxx.

Referenced by activateModule(), deactivateModule(), initialize(), loadSchema(), onCleanOnExit(), onDblClick(), onTryClose(), onWindowActivated(), preferencesChanged(), Yacsgui(), and ~Yacsgui().

◆ _myresource

Yacsgui_Resource* Yacsgui::_myresource

protected

Definition at line 84 of file Yacsgui.hxx.

Referenced by createPreferences(), preferencesChanged(), and setResource().

◆ _selectFromTree

bool Yacsgui::_selectFromTree

protected

Definition at line 83 of file Yacsgui.hxx.

Referenced by onDblClick(), onWindowActivated(), and Yacsgui().

◆ _studyContext

YACS::HMI::QtGuiContext* Yacsgui::_studyContext

protected

Definition at line 86 of file Yacsgui.hxx.

Referenced by deactivateModule(), initialize(), onWindowActivated(), and Yacsgui().

◆ _wrapper

YACS::HMI::SuitWrapper* Yacsgui::_wrapper

protected

Definition at line 81 of file Yacsgui.hxx.

Referenced by initialize(), Yacsgui(), and ~Yacsgui().

The documentation for this class was generated from the following files:

src/salomegui/Yacsgui.hxx
src/salomegui/Yacsgui.cxx

Public Slots

Public Member Functions

Protected Slots

Protected Member Functions

Protected Attributes

Friends

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ Yacsgui()

◆ ~Yacsgui()

Member Function Documentation

◆ activateModule

◆ createDataModel()

◆ createPreferences()

◆ createSComponent()

◆ deactivateModule

◆ engineIOR()

◆ initialize()

◆ loadSchema()

◆ onCleanOnExit

◆ onDblClick

◆ onTryClose

◆ onWindowActivated

◆ onWindowClosed

◆ preferencesChanged()

◆ setResource()

◆ viewManagers()

◆ windows()

Friends And Related Function Documentation

◆ Yacsgui_Resource

Member Data Documentation

◆ _currentSVW

◆ _genericGui

◆ _myresource

◆ _selectFromTree

◆ _studyContext

◆ _wrapper
