gui.Items.ItemPort Class Reference

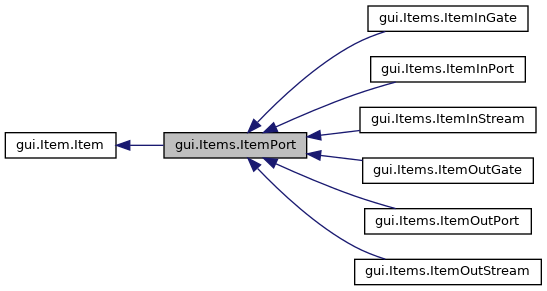

Inheritance diagram for gui.Items.ItemPort:

Collaboration diagram for gui.Items.ItemPort:

Public Member Functions
def	__init__ (self, port, root=None)
def	selected (self)
def	getIconName (self)
def	panel (self, parent)
def	link (self, other)
def	connect (self)
Public Member Functions inherited from gui.Item.Item
def	__init__ (self, label="")
def	isExpandable (self)
def	getChildren (self)
def	father (self)
def	getIconName (self)
def	panel (self, parent)
def	box (self, parent)
def	selected (self)
def	dblselected (self)

Public Attributes
	port
	label
	root
	emitting
Public Attributes inherited from gui.Item.Item
	label
	emitting

Static Public Attributes
list	panels = []
def	box = panel
Static Public Attributes inherited from gui.Item.Item
	ADAPT = adapt.adapt

Detailed Description

Item pour les ports

Definition at line 243 of file Items.py.

Constructor & Destructor Documentation

__init__()

def gui.Items.ItemPort.__init__	(		self,
			port,
			root = None
	)

Reimplemented from gui.Item.Item.

Reimplemented in gui.Items.ItemInGate, and gui.Items.ItemOutGate.

Definition at line 246 of file Items.py.

  def __init__(self,port,root=None):
    Item.Item.__init__(self)
    self.port=port
    self.label=port.getName()
    if root:
      self.root=root
    elif self.port.getNode().getFather():
      root=self.port.getNode().getRootNode()
      self.root=Item.adapt(root)
    else:
      self.root=None


Member Function Documentation

connect()

def gui.Items.ItemPort.connect

(

self

)

Definition at line 281 of file Items.py.

  def connect(self):
    print("ItemPort.connect:")
    self.root.connecting(self)


References gui.cataitems.Obj.root, gui.cataitems.ItemService.root, gui.cataitems.ItemType.root, gui.cataitems.ItemCompo.root, gui.cataitems.ItemNode.root, gui.cataitems.ItemComposedNode.root, gui.cataitems.TypesItem.root, gui.cataitems.ComponentsItem.root, gui.cataitems.NodesItem.root, gui.cataitems.ComposedNodesItem.root, gui.Items.ItemPort.root, and gui.sessions.Session.root.

Referenced by gui.browser_catalog.Browser.init().

getIconName()

def gui.Items.ItemPort.getIconName

(

self

)

Reimplemented from gui.Item.Item.

Reimplemented in gui.Items.ItemInPort, gui.Items.ItemOutPort, gui.Items.ItemInStream, and gui.Items.ItemOutStream.

Definition at line 267 of file Items.py.

  def getIconName(self):
    return "port.png"


link()

def gui.Items.ItemPort.link	(		self,
			other
	)

Reimplemented in gui.Items.ItemOutPort, and gui.Items.ItemOutStream.

Definition at line 278 of file Items.py.

  def link(self,other):
    print("ItemPort.link:",self,other)


panel()

def gui.Items.ItemPort.panel	(		self,
			parent
	)

Retourne un tab widget pour browser/editer l'item

Reimplemented from gui.Item.Item.

Definition at line 270 of file Items.py.

  def panel(self,parent):
    """Retourne un tab widget pour browser/editer l'item"""
    tabWidget = QTabWidget( parent )
    for name,method in self.panels:
      tabWidget.addTab( method(self,tabWidget), name )
    return tabWidget

References gui.BoxManager.BoxManager.panels, gui.cataitems.Obj.panels, gui.Items.ItemComposedNode.panels, gui.Items.ItemPort.panels, gui.Items.ItemInPort.panels, gui.Items.ItemOutPort.panels, gui.Items.ItemNode.panels, gui.Items.ItemScriptNode.panels, gui.Items.ItemFuncNode.panels, gui.Items.ItemService.panels, and gui.PanelManager.PanelManager.panels.

selected()

def gui.Items.ItemPort.selected

(

self

)

Method called on selection

Reimplemented from gui.Item.Item.

Definition at line 258 of file Items.py.

  def selected(self):
    #print "ItemPort selected"
    if not self.root:
      return
    if not self.emitting:
      self.emitting=1
      CONNECTOR.Emit(self.root,"selected",self)
      self.emitting=0


References gui.cataitems.Obj.emitting, gui.cataitems.ItemService.emitting, gui.cataitems.ItemType.emitting, gui.cataitems.ItemCompo.emitting, gui.cataitems.ItemNode.emitting, gui.cataitems.ItemComposedNode.emitting, gui.cataitems.Cata.emitting, gui.Item.Item.emitting, gui.Items.ItemComposedNode.emitting, gui.Items.ItemPort.emitting, gui.Items.ItemNode.emitting, gui.sessions.Sessions.emitting, gui.sessions.Session.emitting, gui.cataitems.Obj.root, gui.cataitems.ItemService.root, gui.cataitems.ItemType.root, gui.cataitems.ItemCompo.root, gui.cataitems.ItemNode.root, gui.cataitems.ItemComposedNode.root, gui.cataitems.TypesItem.root, gui.cataitems.ComponentsItem.root, gui.cataitems.NodesItem.root, gui.cataitems.ComposedNodesItem.root, gui.Items.ItemPort.root, and gui.sessions.Session.root.

Referenced by gui.browser_catalog.Browser.handleBut1(), and gui.GraphViewer.GraphViewer.selectItem().

Member Data Documentation

box

def gui.Items.ItemPort.box = panel

static

Definition at line 276 of file Items.py.

emitting

gui.Items.ItemPort.emitting

Definition at line 263 of file Items.py.

Referenced by gui.cataitems.Cata.dblselected(), gui.Items.ItemComposedNode.dblselected(), gui.cataitems.Obj.selected(), gui.cataitems.ItemService.selected(), gui.cataitems.ItemType.selected(), gui.cataitems.ItemCompo.selected(), gui.cataitems.ItemNode.selected(), gui.cataitems.ItemComposedNode.selected(), gui.Items.ItemComposedNode.selected(), gui.Items.ItemPort.selected(), gui.Items.ItemNode.selected(), gui.sessions.Sessions.selected(), and gui.sessions.Session.selected().

label

gui.Items.ItemPort.label

Definition at line 249 of file Items.py.

Referenced by gui.CItems.Cell.moveBy(), and gui.CItems.Cell.show().

panels

list gui.Items.ItemPort.panels = []

static

Definition at line 245 of file Items.py.

Referenced by gui.BoxManager.BoxManager.changePanel(), gui.cataitems.Obj.panel(), gui.Items.ItemComposedNode.panel(), gui.Items.ItemPort.panel(), gui.Items.ItemNode.panel(), gui.BoxManager.BoxManager.setview(), and gui.PanelManager.PanelManager.setview().

port

gui.Items.ItemPort.port

Definition at line 248 of file Items.py.

Referenced by gui.CItems.ControlItem.connect(), gui.CItems.PortItem.connect(), gui.sessions.Sessions.getChildren(), gui.Items.ItemOutPort.link(), gui.Items.ItemOutStream.link(), gui.CItems.ControlItem.selected(), gui.CItems.PortItem.selected(), and gui.CItems.PortItem.tooltip().

root

gui.Items.ItemPort.root

Definition at line 251 of file Items.py.

Referenced by gui.Items.ItemPort.connect(), gui.cataitems.ItemService.getChildren(), gui.cataitems.ItemCompo.getChildren(), gui.cataitems.TypesItem.getChildren(), gui.cataitems.ComponentsItem.getChildren(), gui.cataitems.NodesItem.getChildren(), gui.cataitems.ComposedNodesItem.getChildren(), and gui.Items.ItemPort.selected().

---

The documentation for this class was generated from the following file:

• src/pyqt/gui/Items.py
