YACS::inporttypeParser< T > Struct Template Reference

Class for Inport parser. More...

#include <portParsers.hxx>

Inheritance diagram for YACS::inporttypeParser< T >:

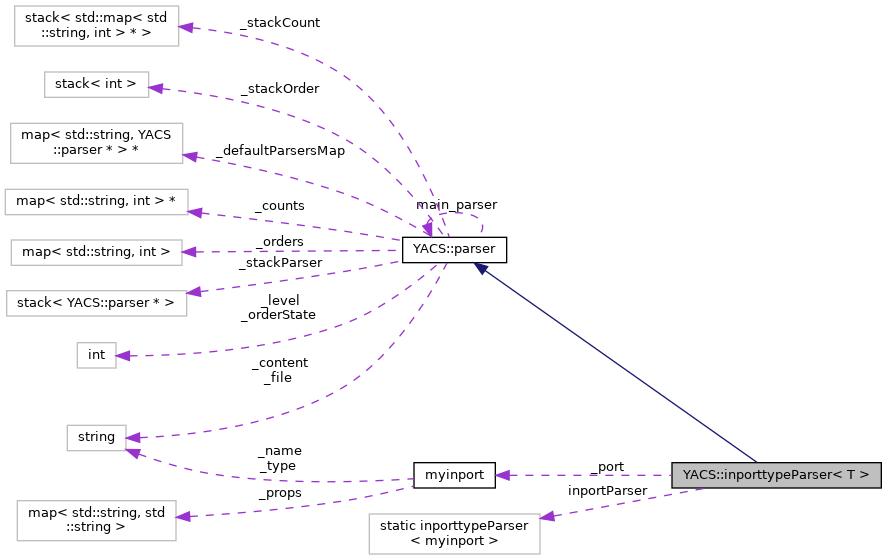

Collaboration diagram for YACS::inporttypeParser< T >:

Public Member Functions
virtual void	onStart (const XML_Char *el, const XML_Char **attr)
virtual void	onEnd (const char *el, parser *child)
virtual void	buildAttr (const XML_Char **attr)
virtual void	pre ()
virtual void	name (const std::string &name)
virtual void	type (const std::string &type)
virtual void	property (const myprop &prop)
virtual T &	post ()
Public Member Functions inherited from YACS::parser
	parser ()
virtual	~parser ()
virtual void	SetUserDataAndPush (parser *pp)
virtual void	charData (const XML_Char *s, int len)
virtual void	endParser ()
virtual void	init ()
virtual void	incrCount (const XML_Char *elem)
virtual void	checkOrder (std::string &el)
virtual void	maxcount (std::string name, int max, std::string &el)
virtual void	mincount (std::string name, int min)
virtual void	maxchoice (std::string *names, int max, std::string &el)
virtual void	minchoice (std::string *names, int min)
virtual void	required (const std::string &name, const XML_Char **attr)
std::stack< parser * > &	getStack ()
template<class T >
T	post ()
void	logError (const std::string &reason)

Static Public Attributes
static inporttypeParser< T >	inportParser
Static Public Attributes inherited from YACS::parser
static parser	main_parser
static std::stack< parser * >	_stackParser

Protected Attributes
T	_port

Additional Inherited Members
Static Public Member Functions inherited from YACS::parser
static void XMLCALL	start_document (void *data)
static void XMLCALL	end_document (void *data)
static void XMLCALL	start_element (void *data, const xmlChar *name, const xmlChar **p)
static void XMLCALL	end_element (void *data, const xmlChar *name)
static void XMLCALL	characters (void *data, const xmlChar *ch, int len)
static void XMLCALL	comment (void *data, const xmlChar *value)
static void XMLCALL	cdata_block (void *data, const xmlChar *value, int len)
static void XMLCALL	warning (void *data, const char *fmt,...)
static void XMLCALL	error (void *data, const char *fmt,...)
static void XMLCALL	fatal_error (void *data, const char *fmt,...)
static void	XML_SetUserData (_xmlParserCtxt *ctxt, parser *par)
Public Attributes inherited from YACS::parser
std::string	_file
std::string	_content
std::map< std::string, int > *	_counts
std::map< std::string, int >	_orders
int	_orderState
int	_level
std::stack< std::map< std::string, int > * >	_stackCount
std::stack< int >	_stackOrder
std::map< std::string, parser * > *	_defaultParsersMap

Detailed Description

template<class T = myinport>
struct YACS::inporttypeParser< T >

Class for Inport parser.

This class is a base class for other inport parsers

XML schema:

  <xsd:complexType name="InPortType">
    <xsd:sequence>
      <xsd:element name="property" type="PropertyType" minOccurs="0"/>
    </xsd:sequence>
    <xsd:attribute name="name" type="xsd:string" use="required"/>
    <xsd:attribute name="type" type="xsd:string" use="required"/>
  </xsd:complexType>

Definition at line 48 of file portParsers.hxx.

Member Function Documentation

buildAttr()

template<class T >

void YACS::inporttypeParser< T >::buildAttr ( const XML_Char **  attr )

virtual

Reimplemented from YACS::parser.

Definition at line 95 of file portParsers.hxx.

    {
      if (!attr)
        return;
      required("name",attr);
      required("type",attr);
      for (int i = 0; attr[i]; i += 2)
        {
          if(std::string(attr[i]) == "name")name(attr[i+1]);
          if(std::string(attr[i]) == "type")type(attr[i+1]);
        }
    }

References yacsorb.CORBAEngineTest::i.

name()

template<class T >

void YACS::inporttypeParser< T >::name ( const std::string &  name )

virtual

Definition at line 115 of file portParsers.hxx.

    {
      _port._name=name;
    }

onEnd()

template<class T >

void YACS::inporttypeParser< T >::onEnd ( const char *  el, parser *  child  )

virtual

Reimplemented from YACS::parser.

Definition at line 89 of file portParsers.hxx.

    {
      std::string element(el);
      if(element == "property")property(((propertytypeParser*)child)->post());
    }

onStart()

template<class T >

void YACS::inporttypeParser< T >::onStart ( const XML_Char *  el, const XML_Char **  attr  )

virtual

Reimplemented from YACS::parser.

Definition at line 78 of file portParsers.hxx.

    {
      std::string element(el);
      parser* pp=&parser::main_parser;
      if(element == "property")pp=&propertytypeParser::propertyParser;
      this->SetUserDataAndPush(pp);
      pp->init();
      pp->pre();
      pp->buildAttr(attr);
    }

References YACS::parser::buildAttr(), YACS::parser::init(), YACS::parser::main_parser, YACS::parser::pre(), and YACS::propertytypeParser::propertyParser.

post()

template<class T >

T & YACS::inporttypeParser< T >::post

virtual

Definition at line 131 of file portParsers.hxx.

    {
      return _port;
    }

pre()

template<class T >

void YACS::inporttypeParser< T >::pre

virtual

Reimplemented from YACS::parser.

Definition at line 108 of file portParsers.hxx.

    {
      _port._name="";
      _port._type="";
      _port.clear();
    }

property()

template<class T >

void YACS::inporttypeParser< T >::property ( const myprop &  prop )

virtual

Definition at line 125 of file portParsers.hxx.

    {
      DEBTRACE( "property_set: " << prop._name << prop._value )
      _port.setProperty(prop._name,prop._value);
    }

References myprop::_name, myprop::_value, and DEBTRACE.

type()

template<class T >

void YACS::inporttypeParser< T >::type ( const std::string &  type )

virtual

Definition at line 120 of file portParsers.hxx.

    {
      _port._type=type;
    }

Member Data Documentation

_port

template<class T = myinport>

T YACS::inporttypeParser< T >::_port

protected

Definition at line 60 of file portParsers.hxx.

inportParser

template<class T >

inporttypeParser< T > YACS::inporttypeParser< T >::inportParser

static

Definition at line 50 of file portParsers.hxx.

---

The documentation for this struct was generated from the following file:

• src/yacsloader/portParsers.hxx
