YACS::structdatatypeParser Struct Reference

Class for XML-RPC struct parser. More...

#include <xmlrpcParsers.hxx>

Inheritance diagram for YACS::structdatatypeParser:

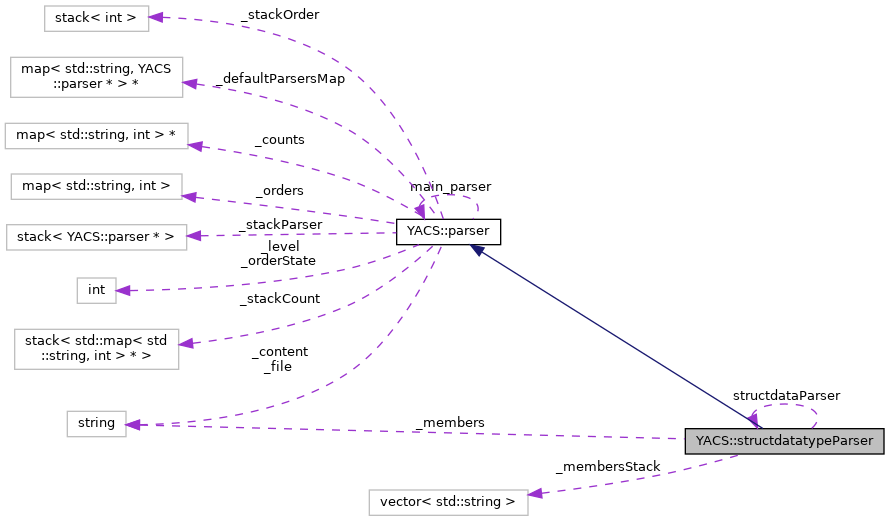

Collaboration diagram for YACS::structdatatypeParser:

Public Member Functions
virtual void	onStart (const XML_Char *el, const XML_Char **attr)
virtual void	onEnd (const char *el, parser *child)
virtual void	pre ()
virtual void	member (const std::string &d)
virtual std::string	post ()
Public Member Functions inherited from YACS::parser
	parser ()
virtual	~parser ()
virtual void	SetUserDataAndPush (parser *pp)
virtual void	charData (const XML_Char *s, int len)
virtual void	endParser ()
virtual void	init ()
virtual void	incrCount (const XML_Char *elem)
virtual void	checkOrder (std::string &el)
virtual void	maxcount (std::string name, int max, std::string &el)
virtual void	mincount (std::string name, int min)
virtual void	maxchoice (std::string *names, int max, std::string &el)
virtual void	minchoice (std::string *names, int min)
virtual void	required (const std::string &name, const XML_Char **attr)
virtual void	buildAttr (const XML_Char **attr)
std::stack< parser * > &	getStack ()
template<class T >
T	post ()
void	logError (const std::string &reason)

Public Attributes
std::string	_members
std::vector< std::string >	_membersStack
Public Attributes inherited from YACS::parser
std::string	_file
std::string	_content
std::map< std::string, int > *	_counts
std::map< std::string, int >	_orders
int	_orderState
int	_level
std::stack< std::map< std::string, int > * >	_stackCount
std::stack< int >	_stackOrder
std::map< std::string, parser * > *	_defaultParsersMap

Static Public Attributes
static structdatatypeParser	structdataParser
Static Public Attributes inherited from YACS::parser
static parser	main_parser
static std::stack< parser * >	_stackParser

Additional Inherited Members
Static Public Member Functions inherited from YACS::parser
static void XMLCALL	start_document (void *data)
static void XMLCALL	end_document (void *data)
static void XMLCALL	start_element (void *data, const xmlChar *name, const xmlChar **p)
static void XMLCALL	end_element (void *data, const xmlChar *name)
static void XMLCALL	characters (void *data, const xmlChar *ch, int len)
static void XMLCALL	comment (void *data, const xmlChar *value)
static void XMLCALL	cdata_block (void *data, const xmlChar *value, int len)
static void XMLCALL	warning (void *data, const char *fmt,...)
static void XMLCALL	error (void *data, const char *fmt,...)
static void XMLCALL	fatal_error (void *data, const char *fmt,...)
static void	XML_SetUserData (_xmlParserCtxt *ctxt, parser *par)

Detailed Description

Class for XML-RPC struct parser.

This class is used to parse XML data that describes a sequence in XML-RPC format

Its XML schema is:

  <xsd:complexType name="StructDataType">
    <xsd:element name="member" type="MemberDataType" minOccurs="1"/>
  </xsd:complexType>

Definition at line 126 of file xmlrpcParsers.hxx.

Member Function Documentation

member()

void YACS::structdatatypeParser::member ( const std::string &  d )

virtual

Definition at line 177 of file xmlrpcParsers.cxx.

    {
      _members=_members+d;
    }

References _members.

Referenced by onEnd().

onEnd()

void YACS::structdatatypeParser::onEnd ( const char *  el, parser *  child  )

virtual

Reimplemented from YACS::parser.

Definition at line 167 of file xmlrpcParsers.cxx.

    {
      std::string element(el);
      if(element == "member")member(((memberdatatypeParser*)child)->post());
    }

References member(), and post().

onStart()

void YACS::structdatatypeParser::onStart ( const XML_Char *  el, const XML_Char **  attr  )

virtual

Reimplemented from YACS::parser.

Definition at line 157 of file xmlrpcParsers.cxx.

    {
      std::string element(el);
      parser* pp=&parser::main_parser;
      if(element == "member")pp=&memberdatatypeParser::memberdataParser;
      SetUserDataAndPush(pp);
      pp->init();
      pp->pre();
      pp->buildAttr(attr);
    }

References YACS::parser::buildAttr(), YACS::parser::init(), YACS::parser::main_parser, YACS::memberdatatypeParser::memberdataParser, YACS::parser::pre(), and YACS::parser::SetUserDataAndPush().

post()

std::string YACS::structdatatypeParser::post ( )

virtual

Definition at line 181 of file xmlrpcParsers.cxx.

    {
      std::string value="<struct>"+_members+"</struct>";
      _members=_membersStack.back();
      _membersStack.pop_back();
      return value;
    }

References _members, and _membersStack.

Referenced by onEnd().

pre()

void YACS::structdatatypeParser::pre ( )

virtual

Reimplemented from YACS::parser.

Definition at line 172 of file xmlrpcParsers.cxx.

    {
      _membersStack.push_back(_members);
      _members="";
    }

References _members, and _membersStack.

Member Data Documentation

_members

std::string YACS::structdatatypeParser::_members

Definition at line 134 of file xmlrpcParsers.hxx.

Referenced by member(), post(), and pre().

_membersStack

std::vector<std::string> YACS::structdatatypeParser::_membersStack

Definition at line 135 of file xmlrpcParsers.hxx.

Referenced by post(), and pre().

structdataParser

structdatatypeParser YACS::structdatatypeParser::structdataParser

static

Definition at line 128 of file xmlrpcParsers.hxx.

Referenced by YACS::valuetypeParser::onStart().

---

The documentation for this struct was generated from the following files:

• src/yacsloader/xmlrpcParsers.hxx
• src/yacsloader/xmlrpcParsers.cxx
