MEDCoupling::MEDCouplingCartesianAMRMesh Class Reference

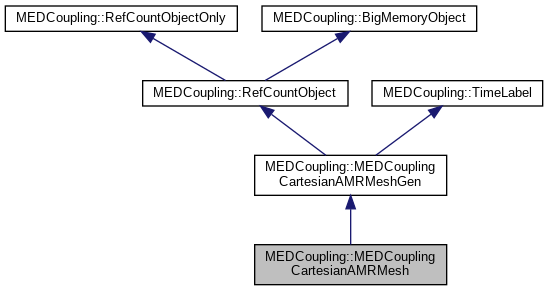

Inheritance diagram for MEDCoupling::MEDCouplingCartesianAMRMesh:

Collaboration diagram for MEDCoupling::MEDCouplingCartesianAMRMesh:

Public Member Functions
void	createPatchesFromCriterionML (const std::vector< const INTERP_KERNEL::BoxSplittingOptions * > &bso, const DataArrayDouble *criterion, const std::vector< std::vector< mcIdType > > &factors, double eps)
MEDCouplingCartesianAMRMesh *	deepCopy (MEDCouplingCartesianAMRMeshGen *father) const
void	detachFromFather ()
mcIdType	getAbsoluteLevel () const
mcIdType	getAbsoluteLevelRelativeTo (const MEDCouplingCartesianAMRMeshGen *ref) const
std::string	getClassName () const override
const MEDCouplingCartesianAMRMeshGen *	getFather () const
const MEDCouplingCartesianAMRMeshGen *	getGodFather () const
std::vector< std::pair< mcIdType, mcIdType > >	positionRelativeToGodFather (std::vector< mcIdType > &st) const
std::vector< MEDCouplingCartesianAMRPatchGen * >	retrieveGridsAt (mcIdType absoluteLev) const
Public Member Functions inherited from MEDCoupling::MEDCouplingCartesianAMRMeshGen
void	addPatch (const std::vector< std::pair< mcIdType, mcIdType > > &bottomLeftTopRight, const std::vector< mcIdType > &factors)
MEDCouplingFieldDouble *	buildCellFieldOnRecurseWithoutOverlapWithoutGhost (mcIdType ghostSz, const std::vector< const DataArrayDouble * > &recurseArrs) const
MEDCoupling1SGTUMesh *	buildMeshFromPatchEnvelop () const
MEDCoupling1SGTUMesh *	buildMeshOfDirectChildrenOnly () const
std::string	buildPythonDumpOfThis () const
MEDCouplingUMesh *	buildUnstructured () const
DataArrayDouble *	createCellFieldOnPatch (mcIdType patchId, const DataArrayDouble *cellFieldOnThis) const
void	createPatchesFromCriterion (const INTERP_KERNEL::BoxSplittingOptions &bso, const DataArrayByte *criterion, const std::vector< mcIdType > &factors)
void	createPatchesFromCriterion (const INTERP_KERNEL::BoxSplittingOptions &bso, const DataArrayDouble *criterion, const std::vector< mcIdType > &factors, double eps)
void	createPatchesFromCriterion (const INTERP_KERNEL::BoxSplittingOptions &bso, const std::vector< bool > &criterion, const std::vector< mcIdType > &factors)
DataArrayDouble *	extractGhostFrom (mcIdType ghostSz, const DataArrayDouble *arr) const
void	fillCellFieldComingFromPatch (mcIdType patchId, const DataArrayDouble *cellFieldOnPatch, DataArrayDouble *cellFieldOnThis, bool isConservative=true) const
void	fillCellFieldComingFromPatchGhost (mcIdType patchId, const DataArrayDouble *cellFieldOnPatch, DataArrayDouble *cellFieldOnThis, mcIdType ghostLev, bool isConservative=true) const
void	fillCellFieldOnPatch (mcIdType patchId, const DataArrayDouble *cellFieldOnThis, DataArrayDouble *cellFieldOnPatch, bool isConservative=true) const
void	fillCellFieldOnPatchGhost (mcIdType patchId, const DataArrayDouble *cellFieldOnThis, DataArrayDouble *cellFieldOnPatch, mcIdType ghostLev, bool isConservative=true) const
void	fillCellFieldOnPatchGhostAdv (mcIdType patchId, const DataArrayDouble *cellFieldOnThis, mcIdType ghostLev, const std::vector< const DataArrayDouble * > &arrsOnPatches, bool isConservative=true) const
void	fillCellFieldOnPatchOnlyGhostAdv (mcIdType patchId, mcIdType ghostLev, const std::vector< const DataArrayDouble * > &arrsOnPatches) const
void	fillCellFieldOnPatchOnlyOnGhostZone (mcIdType patchId, const DataArrayDouble *cellFieldOnThis, DataArrayDouble *cellFieldOnPatch, mcIdType ghostLev) const
void	fillCellFieldOnPatchOnlyOnGhostZoneWith (mcIdType ghostLev, const MEDCouplingCartesianAMRPatch *patchToBeModified, const MEDCouplingCartesianAMRPatch *neighborPatch, DataArrayDouble *cellFieldOnPatch, const DataArrayDouble *cellFieldNeighbor) const
DataArrayIdType *	findPatchesInTheNeighborhoodOf (mcIdType patchId, mcIdType ghostLev) const
const std::vector< mcIdType > &	getFactors () const
const MEDCouplingIMesh *	getImageMesh () const
mcIdType	getMaxNumberOfLevelsRelativeToThis () const
const MEDCouplingCartesianAMRMeshGen *	getMeshAtPosition (const std::vector< mcIdType > &pos) const
mcIdType	getNumberOfCellsAtCurrentLevel () const
mcIdType	getNumberOfCellsAtCurrentLevelGhost (mcIdType ghostLev) const
mcIdType	getNumberOfCellsRecursiveWithoutOverlap () const
mcIdType	getNumberOfCellsRecursiveWithOverlap () const
mcIdType	getNumberOfPatches () const
const MEDCouplingCartesianAMRPatch *	getPatch (mcIdType patchId) const
const MEDCouplingCartesianAMRPatch *	getPatchAtPosition (const std::vector< mcIdType > &pos) const
std::vector< const MEDCouplingCartesianAMRPatch * >	getPatches () const
mcIdType	getPatchIdFromChildMesh (const MEDCouplingCartesianAMRMeshGen *mesh) const
std::vector< mcIdType >	getPatchIdsInTheNeighborhoodOf (mcIdType patchId, mcIdType ghostLev) const
std::vector< mcIdType >	getPositionRelativeTo (const MEDCouplingCartesianAMRMeshGen *ref) const
int	getSpaceDimension () const
bool	isPatchInNeighborhoodOf (mcIdType patchId1, mcIdType patchId2, mcIdType ghostLev) const
void	removeAllPatches ()
void	removePatch (mcIdType patchId)
void	setFactors (const std::vector< mcIdType > &newFactors)
Public Member Functions inherited from MEDCoupling::RefCountObjectOnly
bool	decrRef () const
int	getRCValue () const
void	incrRef () const
RefCountObjectOnly &	operator= (const RefCountObjectOnly &other)
Public Member Functions inherited from MEDCoupling::BigMemoryObject
std::string	debugHeapMemorySize () const
std::vector< const BigMemoryObject * >	getAllTheProgeny () const
std::vector< const BigMemoryObject * >	getDirectChildren () const
std::size_t	getHeapMemorySize () const
std::string	getHeapMemorySizeStr () const
bool	isObjectInTheProgeny (const BigMemoryObject *obj) const
virtual	~BigMemoryObject ()
Public Member Functions inherited from MEDCoupling::TimeLabel
void	declareAsNew () const
std::size_t	getTimeOfThis () const
TimeLabel &	operator= (const TimeLabel &other)
	TimeLabel (const TimeLabel &other)=default

Static Public Member Functions
static MEDCouplingCartesianAMRMesh *	New (const std::string &meshName, int spaceDim, const mcIdType *nodeStrctStart, const mcIdType *nodeStrctStop, const double *originStart, const double *originStop, const double *dxyzStart, const double *dxyzStop)
static MEDCouplingCartesianAMRMesh *	New (MEDCouplingIMesh *mesh)
Static Public Member Functions inherited from MEDCoupling::BigMemoryObject
static std::size_t	GetHeapMemorySizeOfObjs (const std::vector< const BigMemoryObject * > &objs)

Additional Inherited Members
Protected Member Functions inherited from MEDCoupling::MEDCouplingCartesianAMRMeshGen
void	checkFactorsAndIfNotSetAssign (const std::vector< mcIdType > &factors)
void	checkPatchId (mcIdType patchId) const
void	dumpPatchesOf (const std::string &varName, std::ostream &oss) const
std::vector< const DataArrayDouble * >	extractSubTreeFromGlobalFlatten (const MEDCouplingCartesianAMRMeshGen *head, const std::vector< const DataArrayDouble * > &all) const
std::size_t	getHeapMemorySizeWithoutChildren () const
	MEDCouplingCartesianAMRMeshGen (const MEDCouplingCartesianAMRMeshGen &other)
	MEDCouplingCartesianAMRMeshGen (const std::string &meshName, int spaceDim, const mcIdType *nodeStrctStart, const mcIdType *nodeStrctStop, const double *originStart, const double *originStop, const double *dxyzStart, const double *dxyzStop)
	MEDCouplingCartesianAMRMeshGen (MEDCouplingIMesh *mesh)
void	retrieveGridsAtInternal (mcIdType lev, std::vector< MCAuto< MEDCouplingCartesianAMRPatchGen > > &grids) const
void	updateTime () const
Protected Member Functions inherited from MEDCoupling::RefCountObject
	RefCountObject ()
	RefCountObject (const RefCountObject &other)
virtual	~RefCountObject ()
Protected Member Functions inherited from MEDCoupling::RefCountObjectOnly
	RefCountObjectOnly ()
	RefCountObjectOnly (const RefCountObjectOnly &other)
virtual	~RefCountObjectOnly ()
Protected Member Functions inherited from MEDCoupling::TimeLabel
void	forceTimeOfThis (const TimeLabel &other) const
	TimeLabel ()
void	updateTimeWith (const TimeLabel &other) const
virtual	~TimeLabel ()
Static Protected Member Functions inherited from MEDCoupling::MEDCouplingCartesianAMRMeshGen
static mcIdType	GetGhostLevelInFineRef (mcIdType ghostLev, const std::vector< mcIdType > &factors)
Protected Attributes inherited from MEDCoupling::MEDCouplingCartesianAMRMeshGen
std::vector< mcIdType >	_factors
MCAuto< MEDCouplingIMesh >	_mesh
std::vector< MCAuto< MEDCouplingCartesianAMRPatch > >	_patches

Member Function Documentation

New() [1/2]

MEDCouplingCartesianAMRMesh * MEDCouplingCartesianAMRMesh::New ( const std::string &  meshName, int  spaceDim, const mcIdType *  nodeStrctStart, const mcIdType *  nodeStrctStop, const double *  originStart, const double *  originStop, const double *  dxyzStart, const double *  dxyzStop  )

static

New() [2/2]

MEDCouplingCartesianAMRMesh * MEDCouplingCartesianAMRMesh::New ( MEDCouplingIMesh *  mesh )

static

getClassName()

std::string MEDCoupling::MEDCouplingCartesianAMRMesh::getClassName ( ) const

overridevirtual

Reimplemented from MEDCoupling::BigMemoryObject.

getFather()

const MEDCouplingCartesianAMRMeshGen * MEDCouplingCartesianAMRMesh::getFather ( ) const

virtual

Implements MEDCoupling::MEDCouplingCartesianAMRMeshGen.

getGodFather()

const MEDCouplingCartesianAMRMeshGen * MEDCouplingCartesianAMRMesh::getGodFather ( ) const

virtual

Implements MEDCoupling::MEDCouplingCartesianAMRMeshGen.

getAbsoluteLevel()

mcIdType MEDCouplingCartesianAMRMesh::getAbsoluteLevel ( ) const

virtual

Implements MEDCoupling::MEDCouplingCartesianAMRMeshGen.

detachFromFather()

void MEDCouplingCartesianAMRMesh::detachFromFather ( )

virtual

Implements MEDCoupling::MEDCouplingCartesianAMRMeshGen.

positionRelativeToGodFather()

std::vector< std::pair< mcIdType, mcIdType > > MEDCouplingCartesianAMRMesh::positionRelativeToGodFather ( std::vector< mcIdType > &  st ) const

virtual

Implements MEDCoupling::MEDCouplingCartesianAMRMeshGen.

References MEDCoupling::MEDCouplingCartesianAMRMeshGen::_mesh, and MEDCoupling::MEDCouplingStructuredMesh::GetCompactFrmtFromDimensions().

getAbsoluteLevelRelativeTo()

mcIdType MEDCouplingCartesianAMRMesh::getAbsoluteLevelRelativeTo ( const MEDCouplingCartesianAMRMeshGen *  ref ) const

virtual

Implements MEDCoupling::MEDCouplingCartesianAMRMeshGen.

retrieveGridsAt()

std::vector< MEDCouplingCartesianAMRPatchGen * > MEDCouplingCartesianAMRMesh::retrieveGridsAt ( mcIdType  absoluteLev ) const

virtual

This method returns grids relative to god father to specified level absoluteLev.

Returns

std::vector<MEDCouplingCartesianAMRPatchGen *> - objects in vector are to be managed (decrRef) by the caller.

Reimplemented from MEDCoupling::MEDCouplingCartesianAMRMeshGen.

References MEDCoupling::MEDCouplingCartesianAMRMeshGen::retrieveGridsAtInternal().

Referenced by createPatchesFromCriterionML(), and MEDCoupling::MEDCouplingAMRAttribute::writeVTHB().

deepCopy()

MEDCouplingCartesianAMRMesh * MEDCouplingCartesianAMRMesh::deepCopy ( MEDCouplingCartesianAMRMeshGen *  father ) const

virtual

Implements MEDCoupling::MEDCouplingCartesianAMRMeshGen.

Referenced by MEDCoupling::MEDCouplingDataForGodFather::MEDCouplingDataForGodFather().

createPatchesFromCriterionML()

void MEDCouplingCartesianAMRMesh::createPatchesFromCriterionML	(	const std::vector< const INTERP_KERNEL::BoxSplittingOptions * > &	bso,
		const DataArrayDouble *	criterion,
		const std::vector< std::vector< mcIdType > > &	factors,
		double	eps
	)

This method creates a multi level patches split at once. This method calls as many times as size of bso createPatchesFromCriterion. Size of bso and size of factors must be the same ! WARNING, after the call the number of levels in this is equal to bso.size() + 1 !

Parameters

[in]	bso	vector of BoxSplittingOptions
[in]	criterion	DataArrayDouble
[in]	factors	vector of vector of factors
[in]	eps	- See DataArrayDouble::toVectorOfBool for more information about the semantic of eps.

See also

createPatchesFromCriterion

References MEDCoupling::MEDCouplingCartesianAMRMeshGen::createPatchesFromCriterion(), MEDCoupling::DataArrayTemplate< T >::deepCopyFrom(), MEDCoupling::RefCountObjectOnly::incrRef(), MEDCoupling::MEDCouplingAMRAttribute::New(), and retrieveGridsAt().
