Face Groups Separated By Sharp EdgesΒΆ

Face groups separated by sharp edges operation distributes all faces of the mesh among groups using sharp edges and optionally existing 1D elements as group boundaries. Edges where more than two faces meet are always considered as a group boundary. The operation is available in Mesh menu.

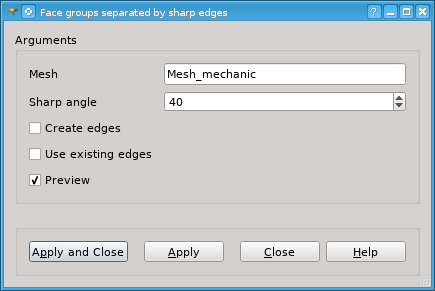

The operation dialog looks as follows:

_images/groups_by_sharp_edges_dlg.png

In this dialog box specify

  • Mesh including the faces to distribute among groups.

  • Sharp angle in degrees, by which edges used as group boundaries are detected. An edge is considered as a group boundary if an angle between normals of adjacent faces is more than this angle.

  • Activate Create edges option if you wish that 1D elements to be created (if not yet exist) on the edges that served as group boundaries.

  • Activate Use existing edges option if you wish that existing 1D elements to be used as group boundaries.

  • Activate Preview to see the edges that will be used as group boundaries highlighted in the Viewer.

_images/Nut_sharp_edges.png

Preview of boundary edges detected at Sharp Angle = 10 degrees

See Also a sample TUI Script of a Creating face groups separated by sharp edges operation.
