PVViewer_ViewWindow Class Reference

PVGUI view window. More...

#include <PVViewer_ViewWindow.h>

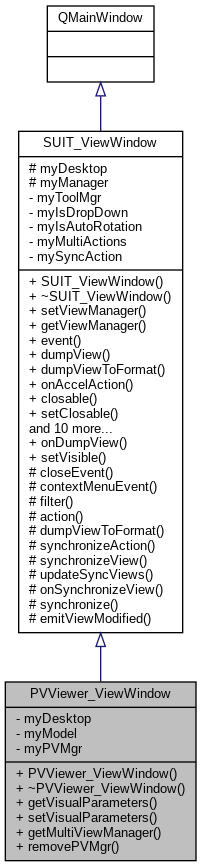

Inheritance diagram for PVViewer_ViewWindow:

Public Member Functions
	PVViewer_ViewWindow (SUIT_Desktop *, PVViewer_Viewer *)
	Constructor. More...
virtual	~PVViewer_ViewWindow ()
	Destructor. As pqViewManager persists through the whole session, the destructor first removes it from the children of this PVViewer_ViewWindow to prevent its unexpected deletion. More...
virtual QString	getVisualParameters ()
	Get the visual parameters of the view window. More...
virtual void	setVisualParameters (const QString &)
	Restore visual parameters of the view window from the formated string. More...
pqTabbedMultiViewWidget *	getMultiViewManager () const
	Returns the ParaView multi-view manager previously set with setMultiViewManager() More...
Public Member Functions inherited from SUIT_ViewWindow
	SUIT_ViewWindow (SUIT_Desktop *)
virtual	~SUIT_ViewWindow ()
virtual void	setViewManager (SUIT_ViewManager *)
SUIT_ViewManager *	getViewManager () const
bool	event (QEvent *)
virtual QImage	dumpView ()
bool	dumpViewToFormat (const QString &fileName, const QString &format)
bool	onAccelAction (int)
bool	closable () const
bool	setClosable (const bool)
virtual QString	getVisualParameters ()
virtual void	setVisualParameters (const QString &parameters)
void	setDestructiveClose (const bool)
int	getId () const
QtxActionToolMgr *	toolMgr () const
virtual void	setDropDownButtons (bool)
	Set buttons mode to drop-down (on = true) or ligned (on = false) More...
bool	dropDownButtons () const
	Get current buttons mode. More...
virtual void	enableAutoRotation (const bool)
virtual bool	isAutoRotationEnabled () const
virtual SUIT_CameraProperties	cameraProperties ()

Static Public Member Functions
static void	removePVMgr ()

Private Attributes
SUIT_Desktop *	myDesktop
PVViewer_Viewer *	myModel
pqTabbedMultiViewWidget *	myPVMgr

Additional Inherited Members
Public Slots inherited from SUIT_ViewWindow
virtual void	onDumpView ()
void	setVisible (bool)
Signals inherited from SUIT_ViewWindow
void	tryClosing (SUIT_ViewWindow *)
void	closing (SUIT_ViewWindow *)
void	mousePressed (SUIT_ViewWindow *, QMouseEvent *)
void	mouseReleased (SUIT_ViewWindow *, QMouseEvent *)
void	mouseDoubleClicked (SUIT_ViewWindow *, QMouseEvent *)
void	mouseMoving (SUIT_ViewWindow *, QMouseEvent *)
void	wheeling (SUIT_ViewWindow *, QWheelEvent *)
void	keyPressed (SUIT_ViewWindow *, QKeyEvent *)
void	keyReleased (SUIT_ViewWindow *, QKeyEvent *)
void	contextMenuRequested (QContextMenuEvent *e)
void	viewModified (SUIT_ViewWindow *)
void	vpStartRotate (int, int, qint64)
void	vpRotate (int, int, qint64)
void	vpEndRotate (int, int, qint64)
Protected Slots inherited from SUIT_ViewWindow
void	updateSyncViews ()
void	onSynchronizeView (bool)
virtual void	synchronize (SUIT_ViewWindow *)
void	emitViewModified ()
Protected Member Functions inherited from SUIT_ViewWindow
void	closeEvent (QCloseEvent *)
virtual void	contextMenuEvent (QContextMenuEvent *)
virtual QString	filter () const
virtual bool	action (const int)
virtual bool	dumpViewToFormat (const QImage &, const QString &fileName, const QString &format)
virtual QAction *	synchronizeAction ()
Static Protected Member Functions inherited from SUIT_ViewWindow
static void	synchronizeView (SUIT_ViewWindow *viewWindow, int id)
Protected Attributes inherited from SUIT_ViewWindow
SUIT_Desktop *	myDesktop
SUIT_ViewManager *	myManager

Detailed Description

PVGUI view window.

Constructor & Destructor Documentation

PVViewer_ViewWindow()

PVViewer_ViewWindow::PVViewer_ViewWindow	(	SUIT_Desktop *	theDesktop,
		PVViewer_Viewer *	theModel
	)

Constructor.

Parameters

theDesktop	parent desktop window
theModel	view model

References SUIT_Session::activeApplication(), SUIT_Application::addPostRoutine(), PVViewer_GUIElements::GetInstance(), SUIT_ViewModel::getViewManager(), myDesktop, myModel, myPVMgr, removePVMgr(), SUIT_Session::session(), PVViewer_GUIElements::setToolBarVisible(), and SUIT_ViewWindow::setViewManager().

~PVViewer_ViewWindow()

PVViewer_ViewWindow::~PVViewer_ViewWindow ( )

virtual

Destructor. As pqViewManager persists through the whole session, the destructor first removes it from the children of this PVViewer_ViewWindow to prevent its unexpected deletion.

References PVViewer_GUIElements::GetInstance(), myDesktop, myPVMgr, and PVViewer_GUIElements::setToolBarEnabled().

Member Function Documentation

getMultiViewManager()

pqTabbedMultiViewWidget * PVViewer_ViewWindow::getMultiViewManager

(

)

const

Returns the ParaView multi-view manager previously set with setMultiViewManager()

References myPVMgr.

getVisualParameters()

QString PVViewer_ViewWindow::getVisualParameters ( )

virtual

Get the visual parameters of the view window.

Returns

visual parameters of this view window formatted to the string

Reimplemented from SUIT_ViewWindow.

References SUIT_ViewWindow::getVisualParameters().

removePVMgr()

void PVViewer_ViewWindow::removePVMgr ( )

static

setVisualParameters()

void PVViewer_ViewWindow::setVisualParameters ( const QString &  parameters )

virtual

Restore visual parameters of the view window from the formated string.

Parameters

parameters

view window visual parameters

Reimplemented from SUIT_ViewWindow.

References SUIT_ViewWindow::setVisualParameters().

Member Data Documentation

myDesktop

SUIT_Desktop* PVViewer_ViewWindow::myDesktop

private

myModel

PVViewer_Viewer* PVViewer_ViewWindow::myModel

private

myPVMgr

pqTabbedMultiViewWidget* PVViewer_ViewWindow::myPVMgr

private

---

The documentation for this class was generated from the following files:

• src/PVViewer/PVViewer_ViewWindow.h
• src/PVViewer/PVViewer_ViewWindow.cxx
