#include <VTKViewer_Actor.h>

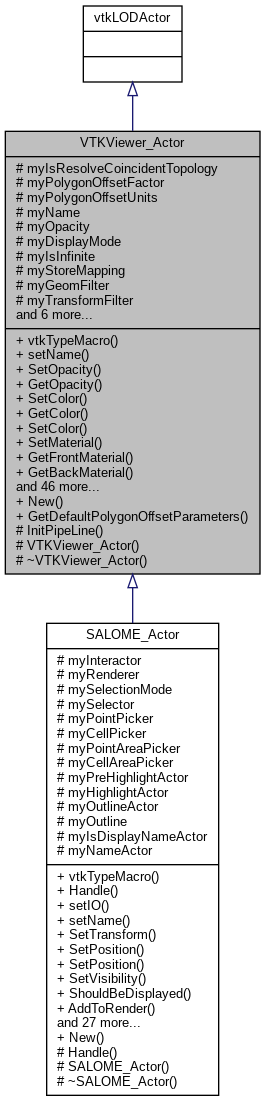

Inheritance diagram for VTKViewer_Actor:

Public Member Functions
	vtkTypeMacro (VTKViewer_Actor, vtkLODActor) virtual const char *getName()
	Get its name. More...

virtual void	setName (const char *theName)
	Name the VTKViewer_Actor. More...

virtual void	SetOpacity (double theOpacity)
	Change opacity. More...

virtual double	GetOpacity ()
	Get current opacity. More...

virtual void	SetColor (double r, double g, double b)
	Change color. More...

virtual void	GetColor (double &r, double &g, double &b)
	Get current color. More...

virtual void	SetColor (const double theRGB[3])
	Change color. More...

virtual void	SetMaterial (std::vector< vtkProperty * > theProps)
	Change material. More...

virtual vtkProperty *	GetFrontMaterial ()
	Get current front material. More...

virtual vtkProperty *	GetBackMaterial ()
	Get current back material. More...

virtual vtkIdType	GetNodeObjId (vtkIdType theVtkID)
	Maps VTK index of a node to corresponding object index. More...

virtual double *	GetNodeCoord (vtkIdType theObjID)
	Get coordinates of a node for given object index. More...

virtual vtkIdType	GetNodeVtkId (vtkIdType theObjID)
	Maps object index of a node to corresponding VTK index. More...

virtual vtkIdType	GetElemObjId (vtkIdType theVtkID)
	Maps VTK index of a cell to corresponding object index. More...

virtual vtkCell *	GetElemCell (vtkIdType theObjID)
	Get corresponding #vtkCell for given object index. More...

virtual int	GetObjDimension (const vtkIdType theObjId)
	Get dimension of corresponding mesh element. More...

virtual void	SetMapper (vtkMapper *theMapper)
	To insert some additional filters and then sets the given #vtkMapper. More...

virtual vtkDataSet *	GetInput ()
	Allows to get initial #vtkDataSet. More...

virtual void	SetTransform (VTKViewer_Transform *theTransform)
	Apply view transformation. More...

virtual vtkMTimeType	GetMTime ()
	To calculatate last modified time. More...

virtual void	SetRepresentation (int theMode)
	Set representation (VTK_SURFACE, VTK_POINTS, VTK_WIREFRAME and so on) More...

virtual int	GetRepresentation ()
	Get current representation mode. More...

virtual int	getDisplayMode ()
	Get current display mode (obsolete) More...

virtual void	setDisplayMode (int theMode)
	Set display mode (obsolete) More...

void	SetInfinitive (bool theIsInfinite)
	Set infinive flag. More...

virtual bool	IsInfinitive ()
	Get infinive flag. More...

virtual double *	GetBounds ()
	To calcualte current bounding box. More...

void	GetBounds (double bounds[6])
	To calcualte current bounding box. More...

virtual bool	IsSetCamera () const

virtual bool	IsResizable () const

virtual void	SetSize (const double)

virtual void	SetCamera (vtkCamera *)

void	SetResolveCoincidentTopology (bool theIsResolve)
	Set ResolveCoincidentTopology flag. More...

void	SetPolygonOffsetParameters (double factor, double units)
	Set ResolveCoincidentTopology parameters. More...

void	GetPolygonOffsetParameters (double &factor, double &units)
	Get current ResolveCoincidentTopology parameters. More...

virtual void	Render (vtkRenderer , vtkMapper )

virtual double	GetShrinkFactor ()
	Get current shrink factor. More...

virtual bool	IsShrunkable ()
	Is the actor is shrunkable. More...

virtual bool	IsShrunk ()
	Is the actor is shrunk. More...

virtual void	SetShrink ()
	Insert shrink filter into pipeline. More...

virtual void	UnShrink ()
	Remove shrink filter from pipeline. More...

virtual void	AddToRender (vtkRenderer *theRendere)
	To publish the actor an all its internal devices. More...

virtual void	RemoveFromRender (vtkRenderer *theRendere)
	To remove the actor an all its internal devices. More...

virtual void	GetChildActors (vtkActorCollection *)
	Used to obtain all dependent actors. More...

virtual void	EnableSelection (bool)
	Is notified on enabling/disabling selection. More...

virtual bool	hasHighlight ()
	Ask, if the descendant of the VTKViewer_Actor will implement its own highlight or not. More...

virtual bool	isHighlighted ()
	Ask, if the VTKViewer_Actor is already highlighted. More...

virtual bool	isPreselected ()
	Ask, if the VTKViewer_Actor is already preselected. More...

virtual void	SetPreSelected (bool thePreselect=false)
	Set preselection mode. More...

virtual void	highlight (bool theHighlight)
	Just to update visibility of the highlight devices. More...

void	SetPreviewProperty (vtkProperty *theProperty)

virtual void	SetQuadraticArcMode (bool theFlag)
	Setting for displaying quadratic elements. More...

virtual bool	GetQuadraticArcMode () const

virtual void	SetQuadraticArcAngle (double theMaxAngle)

virtual double	GetQuadraticArcAngle () const

virtual vtkDataSet *	GetHighlightedDataSet ()
	Return pointer to the dataset, which used to calculation of the bounding box of the actor. More...

Static Public Member Functions
static VTKViewer_Actor *	New ()

static void	GetDefaultPolygonOffsetParameters (double &factor, double &units)
	Get default ResolveCoincidentTopology parameters. More...

Protected Member Functions
void	InitPipeLine (vtkMapper *theMapper)

	VTKViewer_Actor ()

	~VTKViewer_Actor ()

Protected Attributes
bool	myIsResolveCoincidentTopology

double	myPolygonOffsetFactor

double	myPolygonOffsetUnits

std::string	myName

double	myOpacity

int	myDisplayMode

bool	myIsInfinite

bool	myStoreMapping

VTKViewer_GeometryFilter *	myGeomFilter

VTKViewer_TransformFilter *	myTransformFilter

std::vector< vtkPassThrough * >	myPassFilter

int	myRepresentation

vtkProperty *	myProperty

vtkProperty *	PreviewProperty

bool	myIsPreselected

bool	myIsHighlighted

Constructor & Destructor Documentation

◆ VTKViewer_Actor()

VTKViewer_Actor::VTKViewer_Actor ( )

protected

◆ ~VTKViewer_Actor()

VTKViewer_Actor::~VTKViewer_Actor ( )

protected

Destructor

Member Function Documentation

◆ AddToRender()

void VTKViewer_Actor::AddToRender ( vtkRenderer * theRenderer )

virtual

To publish the actor an all its internal devices.

To publish the actor an all its internal devices

Reimplemented in SALOME_Actor.

◆ EnableSelection()

virtual void VTKViewer_Actor::EnableSelection ( bool )

inlinevirtual

Is notified on enabling/disabling selection.

◆ GetBackMaterial()

vtkProperty * VTKViewer_Actor::GetBackMaterial ( )

virtual

Get current back material.

Get current back material

◆ GetBounds() [1/2]

double * VTKViewer_Actor::GetBounds ( )

virtual

To calcualte current bounding box.

Returns: current bounding box

◆ GetBounds() [2/2]

void VTKViewer_Actor::GetBounds ( double theBounds[6] )

To calcualte current bounding box.

Returns: current bounding box

◆ GetChildActors()

void VTKViewer_Actor::GetChildActors ( vtkActorCollection * )

virtual

Used to obtain all dependent actors.

Used to obtain all dependent actors

◆ GetColor()

void VTKViewer_Actor::GetColor	(	double &	r,
		double &	g,
		double &	b
	)

virtual

Get current color.

Get color

◆ GetDefaultPolygonOffsetParameters()

void VTKViewer_Actor::GetDefaultPolygonOffsetParameters	(	double &	factor,
		double &	units
	)

static

Get default ResolveCoincidentTopology parameters.

Get polygon offset parameters

Parameters

factor,units - Opengl polygon offset parameters

◆ getDisplayMode()

int VTKViewer_Actor::getDisplayMode ( )

virtual

Get current display mode (obsolete)

Returns: display mode

◆ GetElemCell()

vtkCell * VTKViewer_Actor::GetElemCell ( vtkIdType theObjID )

virtual

Get corresponding #vtkCell for given object index.

Get corresponding #vtkCell for given object index

◆ GetElemObjId()

vtkIdType VTKViewer_Actor::GetElemObjId ( vtkIdType theVtkID )

virtual

Maps VTK index of a cell to corresponding object index.

Maps VTK index of a cell to corresponding object index

◆ GetFrontMaterial()

vtkProperty * VTKViewer_Actor::GetFrontMaterial ( )

virtual

Get current front material.

Get current front material

◆ GetHighlightedDataSet()

vtkDataSet * VTKViewer_Actor::GetHighlightedDataSet ( )

virtual

Return pointer to the dataset, which used to calculation of the bounding box of the actor.

Return pointer to the dataset, which used to calculation of the bounding box of the actor. By default it is the input dataset.

References GetInput().

◆ GetInput()

vtkDataSet * VTKViewer_Actor::GetInput ( )

virtual

Allows to get initial #vtkDataSet.

Allows to get initial #vtkDataSet

◆ GetMTime()

vtkMTimeType VTKViewer_Actor::GetMTime ( )

virtual

To calculatate last modified time.

To calculatate last modified time

◆ GetNodeCoord()

double * VTKViewer_Actor::GetNodeCoord ( vtkIdType theObjID )

virtual

Get coordinates of a node for given object index.

Get coordinates of a node for given object index

◆ GetNodeObjId()

vtkIdType VTKViewer_Actor::GetNodeObjId ( vtkIdType theVtkID )

virtual

Maps VTK index of a node to corresponding object index.

Maps VTK index of a node to corresponding object index

◆ GetNodeVtkId()

vtkIdType VTKViewer_Actor::GetNodeVtkId ( vtkIdType theObjID )

virtual

Maps object index of a node to corresponding VTK index.

Maps object index of a node to corresponding VTK index

◆ GetObjDimension()

int VTKViewer_Actor::GetObjDimension ( const vtkIdType theObjId )

virtual

Get dimension of corresponding mesh element.

Returns: object dimension. Virtual method should be redifined by derived classes

◆ GetOpacity()

double VTKViewer_Actor::GetOpacity ( )

virtual

Get current opacity.

◆ GetPolygonOffsetParameters()

void VTKViewer_Actor::GetPolygonOffsetParameters	(	double &	factor,
		double &	units
	)

Get current ResolveCoincidentTopology parameters.

Get polygon offset parameters

Parameters

factor,units - Opengl polygon offset parameters

◆ GetQuadraticArcAngle()

double VTKViewer_Actor::GetQuadraticArcAngle ( ) const

virtual

Return Max angle of the representation 2D quadratic element as arked polygon

References VTKViewer_GeometryFilter::GetQuadraticArcAngle(), and myGeomFilter.

◆ GetQuadraticArcMode()

bool VTKViewer_Actor::GetQuadraticArcMode ( ) const

virtual

Return true if 2D quadratic element displayed as arked polygon

References VTKViewer_GeometryFilter::GetQuadraticArcMode(), and myGeomFilter.

◆ GetRepresentation()

int VTKViewer_Actor::GetRepresentation ( )

virtual

Get current representation mode.

Returns: current representation mode

◆ GetShrinkFactor()

double VTKViewer_Actor::GetShrinkFactor ( )

virtual

Get current shrink factor.

Returns: shrink factor

◆ hasHighlight()

bool VTKViewer_Actor::hasHighlight ( )

virtual

Ask, if the descendant of the VTKViewer_Actor will implement its own highlight or not.

Returns: true if the descendant of the VTKViewer_Actor will implement its own highlight or not

◆ highlight()

void VTKViewer_Actor::highlight ( bool theIsHighlight )

virtual

Just to update visibility of the highlight devices.

Just to update visibility of the highlight devices

Reimplemented in SALOME_Actor.

◆ InitPipeLine()

void VTKViewer_Actor::InitPipeLine ( vtkMapper * theMapper )

protected

Initialization

◆ isHighlighted()

bool VTKViewer_Actor::isHighlighted ( )

virtual

Ask, if the VTKViewer_Actor is already highlighted.

Returns: true if the VTKViewer_Actor is already highlighted

◆ IsInfinitive()

bool VTKViewer_Actor::IsInfinitive ( )

virtual

Get infinive flag.

Returns: infinive flag

◆ isPreselected()

bool VTKViewer_Actor::isPreselected ( )

virtual

Ask, if the VTKViewer_Actor is already preselected.

Returns: true if the VTKViewer_Actor is already preselected

◆ IsResizable()

bool VTKViewer_Actor::IsResizable ( ) const

virtual

◆ IsSetCamera()

bool VTKViewer_Actor::IsSetCamera ( ) const

virtual

◆ IsShrunk()

bool VTKViewer_Actor::IsShrunk ( )

virtual

Is the actor is shrunk.

Returns: true if the actor is shrunk

◆ IsShrunkable()

bool VTKViewer_Actor::IsShrunkable ( )

virtual

Is the actor is shrunkable.

Returns: true if the actor is shrunkable

◆ New()

static VTKViewer_Actor* VTKViewer_Actor::New ( )

static

◆ RemoveFromRender()

void VTKViewer_Actor::RemoveFromRender ( vtkRenderer * theRenderer )

virtual

To remove the actor an all its internal devices.

To remove the actor an all its internal devices

Reimplemented in SALOME_Actor.

◆ Render()

void VTKViewer_Actor::Render	(	vtkRenderer *	ren,
		vtkMapper *	m
	)

virtual

Renders actor

◆ SetCamera()

void VTKViewer_Actor::SetCamera ( vtkCamera * )

virtual

◆ SetColor() [1/2]

void VTKViewer_Actor::SetColor ( const double theRGB[3] )

virtual

Change color.

Change color

◆ SetColor() [2/2]

void VTKViewer_Actor::SetColor	(	double	r,
		double	g,
		double	b
	)

virtual

Change color.

Change color

◆ setDisplayMode()

void VTKViewer_Actor::setDisplayMode ( int theMode )

virtual

Set display mode (obsolete)

Change display mode

◆ SetInfinitive()

void VTKViewer_Actor::SetInfinitive ( bool theIsInfinite )

Set infinive flag.

Infinitive means actor without size (point for example), which is not taken into account in calculation of boundaries of the scene

◆ SetMapper()

void VTKViewer_Actor::SetMapper ( vtkMapper * theMapper )

virtual

To insert some additional filters and then sets the given #vtkMapper.

To insert some additional filters and then sets the given #vtkMapper

◆ SetMaterial()

void VTKViewer_Actor::SetMaterial ( std::vector< vtkProperty * > theProps )

virtual

Change material.

Change material

◆ setName()

void VTKViewer_Actor::setName ( const char * theName )

virtual

Name the VTKViewer_Actor.

Sets name

Parameters

theName - new name

Reimplemented in SALOME_Actor.

◆ SetOpacity()

void VTKViewer_Actor::SetOpacity ( double theOpacity )

virtual

Change opacity.

◆ SetPolygonOffsetParameters()

void VTKViewer_Actor::SetPolygonOffsetParameters	(	double	factor,
		double	units
	)

Set ResolveCoincidentTopology parameters.

Set polygon offset parameters

Parameters

factor,units - Opengl polygon offset parameters

◆ SetPreSelected()

void VTKViewer_Actor::SetPreSelected ( bool thePreselect = false )

virtual

Set preselection mode.

Set preselection mode

◆ SetPreviewProperty()

void VTKViewer_Actor::SetPreviewProperty ( vtkProperty * theProperty )

◆ SetQuadraticArcAngle()

void VTKViewer_Actor::SetQuadraticArcAngle ( double theMaxAngle )

virtual

Set Max angle for representation 2D quadratic element as arked polygon

References myGeomFilter, and VTKViewer_GeometryFilter::SetQuadraticArcAngle().

◆ SetQuadraticArcMode()

void VTKViewer_Actor::SetQuadraticArcMode ( bool theFlag )

virtual

Setting for displaying quadratic elements.

On/Off representation 2D quadratic element as arked polygon

References myGeomFilter, and VTKViewer_GeometryFilter::SetQuadraticArcMode().

◆ SetRepresentation()

void VTKViewer_Actor::SetRepresentation ( int theMode )

virtual

Set representation (VTK_SURFACE, VTK_POINTS, VTK_WIREFRAME and so on)

Set representation (VTK_SURFACE, VTK_POINTS, VTK_WIREFRAME and so on) param theMode - new mode

References VTKViewer::Representation::Insideframe, VTKViewer::Representation::Points, VTKViewer::Representation::Surface, VTKViewer::Representation::SurfaceWithEdges, VTKViewer_POINT_SIZE, and VTKViewer::Representation::Wireframe.

◆ SetResolveCoincidentTopology()

void VTKViewer_Actor::SetResolveCoincidentTopology ( bool theIsResolve )

Set ResolveCoincidentTopology flag.

Set ResolveCoincidentTopology flag

Parameters

theIsResolve - new flag value

◆ SetShrink()

void VTKViewer_Actor::SetShrink ( )

virtual

Insert shrink filter into pipeline.

Insert shrink filter into pipeline

◆ SetSize()

void VTKViewer_Actor::SetSize ( const double )

virtual

◆ SetTransform()

void VTKViewer_Actor::SetTransform ( VTKViewer_Transform * theTransform )

virtual

Apply view transformation.

Apply view transformation

Parameters

theTransform - view transformation

Reimplemented in SALOME_Actor.

◆ UnShrink()

void VTKViewer_Actor::UnShrink ( )

virtual

Remove shrink filter from pipeline.

Remove shrink filter from pipeline

◆ vtkTypeMacro()

VTKViewer_Actor::vtkTypeMacro	(	VTKViewer_Actor	,
		vtkLODActor
	)		const

Get its name.

Member Data Documentation

◆ myDisplayMode

int VTKViewer_Actor::myDisplayMode

protected

◆ myGeomFilter

VTKViewer_GeometryFilter* VTKViewer_Actor::myGeomFilter

protected

◆ myIsHighlighted

bool VTKViewer_Actor::myIsHighlighted

protected

◆ myIsInfinite

bool VTKViewer_Actor::myIsInfinite

protected

◆ myIsPreselected

bool VTKViewer_Actor::myIsPreselected

protected

◆ myIsResolveCoincidentTopology

bool VTKViewer_Actor::myIsResolveCoincidentTopology

protected

◆ myName

std::string VTKViewer_Actor::myName

protected

◆ myOpacity

double VTKViewer_Actor::myOpacity

protected

◆ myPassFilter

std::vector<vtkPassThrough*> VTKViewer_Actor::myPassFilter

protected

◆ myPolygonOffsetFactor

double VTKViewer_Actor::myPolygonOffsetFactor

protected

◆ myPolygonOffsetUnits

double VTKViewer_Actor::myPolygonOffsetUnits

protected

◆ myProperty

vtkProperty* VTKViewer_Actor::myProperty

protected

◆ myRepresentation

int VTKViewer_Actor::myRepresentation

protected

◆ myStoreMapping

bool VTKViewer_Actor::myStoreMapping

protected

◆ myTransformFilter

VTKViewer_TransformFilter* VTKViewer_Actor::myTransformFilter

protected

◆ PreviewProperty

vtkProperty* VTKViewer_Actor::PreviewProperty

protected

The documentation for this class was generated from the following files:

src/VTKViewer/VTKViewer_Actor.h
src/VTKViewer/VTKViewer_Actor.cxx

Public Member Functions

Static Public Member Functions

Protected Member Functions

Protected Attributes

Constructor & Destructor Documentation

◆ VTKViewer_Actor()

◆ ~VTKViewer_Actor()

Member Function Documentation

◆ AddToRender()

◆ EnableSelection()

◆ GetBackMaterial()

◆ GetBounds() [1/2]

◆ GetBounds() [2/2]

◆ GetChildActors()

◆ GetColor()

◆ GetDefaultPolygonOffsetParameters()

◆ getDisplayMode()

◆ GetElemCell()

◆ GetElemObjId()

◆ GetFrontMaterial()

◆ GetHighlightedDataSet()

◆ GetInput()

◆ GetMTime()

◆ GetNodeCoord()

◆ GetNodeObjId()

◆ GetNodeVtkId()

◆ GetObjDimension()

◆ GetOpacity()

◆ GetPolygonOffsetParameters()

◆ GetQuadraticArcAngle()

◆ GetQuadraticArcMode()

◆ GetRepresentation()

◆ GetShrinkFactor()

◆ hasHighlight()

◆ highlight()

◆ InitPipeLine()

◆ isHighlighted()

◆ IsInfinitive()

◆ isPreselected()

◆ IsResizable()

◆ IsSetCamera()

◆ IsShrunk()

◆ IsShrunkable()

◆ New()

◆ RemoveFromRender()

◆ Render()

◆ SetCamera()

◆ SetColor() [1/2]

◆ SetColor() [2/2]

◆ setDisplayMode()

◆ SetInfinitive()

◆ SetMapper()

◆ SetMaterial()

◆ setName()

◆ SetOpacity()

◆ SetPolygonOffsetParameters()

◆ SetPreSelected()

◆ SetPreviewProperty()

◆ SetQuadraticArcAngle()

◆ SetQuadraticArcMode()

◆ SetRepresentation()

◆ SetResolveCoincidentTopology()

◆ SetShrink()

◆ SetSize()

◆ SetTransform()

◆ UnShrink()

◆ vtkTypeMacro()

Member Data Documentation

◆ myDisplayMode

◆ myGeomFilter

◆ myIsHighlighted

◆ myIsInfinite

◆ myIsPreselected

◆ myIsResolveCoincidentTopology

◆ myName

◆ myOpacity

◆ myPassFilter

◆ myPolygonOffsetFactor

◆ myPolygonOffsetUnits

◆ myProperty
