The class is a basic one for all SALOME VTK presentation. More...

#include <SALOME_Actor.h>

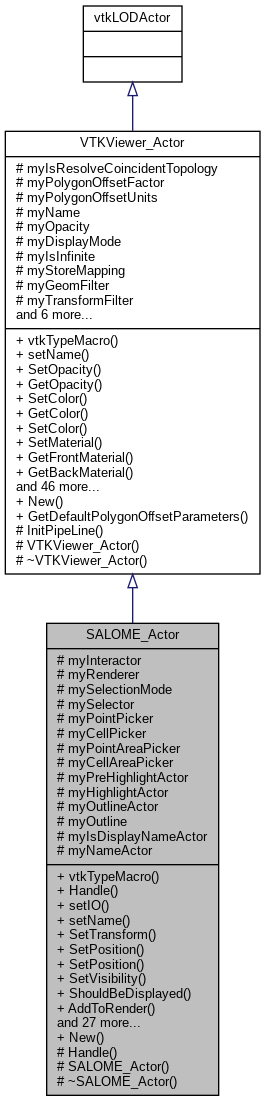

Inheritance diagram for SALOME_Actor:

Public Member Functions
	vtkTypeMacro (SALOME_Actor, VTKViewer_Actor) virtual Standard_Boolean hasIO()
	To check, if the SALOME_Actor has a reference to SALOME_InteractiveObject. More...

virtual const	Handle (SALOME_InteractiveObject) &getIO()
	Get correspoinding reference to SALOME_InteractiveObject. More...

virtual void	setIO (const Handle(SALOME_InteractiveObject)&theIO)
	Set reference to SALOME_InteractiveObject. More...

virtual void	setName (const char *theName)
	Name the SALOME_Actor. More...

virtual void	SetTransform (VTKViewer_Transform *theTransform)
	Apply view transformation. More...

virtual void	SetPosition (double _arg1, double _arg2, double _arg3)
	Apply additional position. More...

virtual void	SetPosition (double _arg[3])
	Apply additional position. More...

virtual void	SetVisibility (int)
	Visibility management. More...

virtual bool	ShouldBeDisplayed ()
	Gets know whether the actor should be displayed or not. More...

virtual void	AddToRender (vtkRenderer *theRendere)
	To publish the actor an all its internal devices. More...

virtual void	RemoveFromRender (vtkRenderer *theRendere)
	To remove the actor an all its internal devices. More...

vtkRenderer *	GetRenderer ()
	Get reference on renderer where it is published. More...

virtual void	SetInteractor (vtkRenderWindowInteractor *theInteractor)
	To set interactor in order to use vtkInteractorObserver devices. More...

virtual void	Update ()
	Put a request to redraw the view. More...

virtual void	SetSelector (SVTK_Selector *theSelector)
	Set selector in order to the actor at any time can restore current selection. More...

virtual void	highlight (bool theHighlight)
	Just to update visibility of the highlight devices. More...

virtual void	Highlight (bool theHighlight)
	To map current selection to VTK representation. More...

virtual bool	PreHighlight (vtkInteractorStyle theInteractorStyle, SVTK_SelectionEvent theSelectionEvent, bool theIsHighlight)
	To process prehighlight (called from SVTK_InteractorStyle) More...

virtual bool	Highlight (vtkInteractorStyle theInteractorStyle, SVTK_SelectionEvent theSelectionEvent, bool theIsHighlight)
	To process highlight (called from SVTK_InteractorStyle) More...

virtual bool	IsDisplayNameActor () const
	To get flag of displaying of name actor. More...

virtual void	SetIsDisplayNameActor (bool theIsDisplayNameActor)
	To set flag of displaying of name actor. More...

virtual void	SetNameActorText (const char *theText)
	To set text of name actor. More...

virtual void	SetNameActorOffset (double theOffset[2])
	To set offset of name actor. More...

virtual void	GetNameActorSize (vtkRenderer *theRenderer, double theSize[2]) const
	To get size of name actor. More...

virtual void	UpdateNameActors ()
	To update visibility of name actors. More...

virtual void	SetMarkerStd (VTK::MarkerType, VTK::MarkerScale)
	Set standard point marker. More...

virtual void	SetMarkerTexture (int, VTK::MarkerTexture)
	Set custom point marker. More...

virtual VTK::MarkerType	GetMarkerType ()
	Get type of the point marker. More...

virtual VTK::MarkerScale	GetMarkerScale ()
	Get scale of the point marker. More...

virtual int	GetMarkerTexture ()
	Get texture identifier of the point marker. More...

void	SetPointPicker (vtkPointPicker *thePointPicker)
	To set up a picker for nodal selection (initialized by SVTK_Renderer::AddActor) More...

void	SetCellPicker (vtkCellPicker *theCellPicker)
	To set up a picker for cell selection (initialized by SVTK_Renderer::AddActor) More...

void	SetPointAreaPicker (SVTK_AreaPicker *theAreaPicker)
	To set up a picker for point rectangle selection (initialized by SVTK_Renderer::AddActor) More...

void	SetCellAreaPicker (SVTK_AreaPicker *theAreaPicker)
	To set up a picker for cell rectangle selection (initialized by SVTK_Renderer::AddActor) More...

double *	GetGravityCenter (int)
	To find a gravity center of object. More...

void	SetPreHighlightProperty (vtkProperty *theProperty)
	To set up a prehighlight property (initialized by SVTK_Renderer::AddActor) More...

void	SetHighlightProperty (vtkProperty *theProperty)
	To set up a highlight property (initialized by SVTK_Renderer::AddActor) More...

Public Member Functions inherited from VTKViewer_Actor
	vtkTypeMacro (VTKViewer_Actor, vtkLODActor) virtual const char *getName()
	Get its name. More...

virtual void	SetOpacity (double theOpacity)
	Change opacity. More...

virtual double	GetOpacity ()
	Get current opacity. More...

virtual void	SetColor (double r, double g, double b)
	Change color. More...

virtual void	GetColor (double &r, double &g, double &b)
	Get current color. More...

virtual void	SetColor (const double theRGB[3])
	Change color. More...

virtual void	SetMaterial (std::vector< vtkProperty * > theProps)
	Change material. More...

virtual vtkProperty *	GetFrontMaterial ()
	Get current front material. More...

virtual vtkProperty *	GetBackMaterial ()
	Get current back material. More...

virtual vtkIdType	GetNodeObjId (vtkIdType theVtkID)
	Maps VTK index of a node to corresponding object index. More...

virtual double *	GetNodeCoord (vtkIdType theObjID)
	Get coordinates of a node for given object index. More...

virtual vtkIdType	GetNodeVtkId (vtkIdType theObjID)
	Maps object index of a node to corresponding VTK index. More...

virtual vtkIdType	GetElemObjId (vtkIdType theVtkID)
	Maps VTK index of a cell to corresponding object index. More...

virtual vtkCell *	GetElemCell (vtkIdType theObjID)
	Get corresponding #vtkCell for given object index. More...

virtual int	GetObjDimension (const vtkIdType theObjId)
	Get dimension of corresponding mesh element. More...

virtual void	SetMapper (vtkMapper *theMapper)
	To insert some additional filters and then sets the given #vtkMapper. More...

virtual vtkDataSet *	GetInput ()
	Allows to get initial #vtkDataSet. More...

virtual vtkMTimeType	GetMTime ()
	To calculatate last modified time. More...

virtual void	SetRepresentation (int theMode)
	Set representation (VTK_SURFACE, VTK_POINTS, VTK_WIREFRAME and so on) More...

virtual int	GetRepresentation ()
	Get current representation mode. More...

virtual int	getDisplayMode ()
	Get current display mode (obsolete) More...

virtual void	setDisplayMode (int theMode)
	Set display mode (obsolete) More...

void	SetInfinitive (bool theIsInfinite)
	Set infinive flag. More...

virtual bool	IsInfinitive ()
	Get infinive flag. More...

virtual double *	GetBounds ()
	To calcualte current bounding box. More...

void	GetBounds (double bounds[6])
	To calcualte current bounding box. More...

virtual bool	IsSetCamera () const

virtual bool	IsResizable () const

virtual void	SetSize (const double)

virtual void	SetCamera (vtkCamera *)

void	SetResolveCoincidentTopology (bool theIsResolve)
	Set ResolveCoincidentTopology flag. More...

void	SetPolygonOffsetParameters (double factor, double units)
	Set ResolveCoincidentTopology parameters. More...

void	GetPolygonOffsetParameters (double &factor, double &units)
	Get current ResolveCoincidentTopology parameters. More...

virtual void	Render (vtkRenderer , vtkMapper )

virtual double	GetShrinkFactor ()
	Get current shrink factor. More...

virtual bool	IsShrunkable ()
	Is the actor is shrunkable. More...

virtual bool	IsShrunk ()
	Is the actor is shrunk. More...

virtual void	SetShrink ()
	Insert shrink filter into pipeline. More...

virtual void	UnShrink ()
	Remove shrink filter from pipeline. More...

virtual void	GetChildActors (vtkActorCollection *)
	Used to obtain all dependent actors. More...

virtual void	EnableSelection (bool)
	Is notified on enabling/disabling selection. More...

virtual bool	hasHighlight ()
	Ask, if the descendant of the VTKViewer_Actor will implement its own highlight or not. More...

virtual bool	isHighlighted ()
	Ask, if the VTKViewer_Actor is already highlighted. More...

virtual bool	isPreselected ()
	Ask, if the VTKViewer_Actor is already preselected. More...

virtual void	SetPreSelected (bool thePreselect=false)
	Set preselection mode. More...

void	SetPreviewProperty (vtkProperty *theProperty)

virtual void	SetQuadraticArcMode (bool theFlag)
	Setting for displaying quadratic elements. More...

virtual bool	GetQuadraticArcMode () const

virtual void	SetQuadraticArcAngle (double theMaxAngle)

virtual double	GetQuadraticArcAngle () const

virtual vtkDataSet *	GetHighlightedDataSet ()
	Return pointer to the dataset, which used to calculation of the bounding box of the actor. More...

Static Public Member Functions
static SALOME_Actor *	New ()

Static Public Member Functions inherited from VTKViewer_Actor
static VTKViewer_Actor *	New ()

static void	GetDefaultPolygonOffsetParameters (double &factor, double &units)
	Get default ResolveCoincidentTopology parameters. More...

Protected Member Functions
	Handle (SALOME_InteractiveObject) myIO

	SALOME_Actor ()

	~SALOME_Actor ()

Protected Member Functions inherited from VTKViewer_Actor
void	InitPipeLine (vtkMapper *theMapper)

	VTKViewer_Actor ()

	~VTKViewer_Actor ()

Protected Attributes
vtkRenderWindowInteractor *	myInteractor

vtkRenderer *	myRenderer

Selection_Mode	mySelectionMode

vtkSmartPointer< SVTK_Selector >	mySelector

vtkSmartPointer< vtkPointPicker >	myPointPicker

vtkSmartPointer< vtkCellPicker >	myCellPicker

vtkSmartPointer< SVTK_AreaPicker >	myPointAreaPicker

vtkSmartPointer< SVTK_AreaPicker >	myCellAreaPicker

vtkSmartPointer< SVTK_Actor >	myPreHighlightActor

vtkSmartPointer< SVTK_Actor >	myHighlightActor

vtkSmartPointer< VTKViewer_Actor >	myOutlineActor

vtkSmartPointer< vtkOutlineSource >	myOutline

bool	myIsDisplayNameActor

vtkSmartPointer< VTKViewer_FramedTextActor >	myNameActor

Protected Attributes inherited from VTKViewer_Actor
bool	myIsResolveCoincidentTopology

double	myPolygonOffsetFactor

double	myPolygonOffsetUnits

std::string	myName

double	myOpacity

int	myDisplayMode

bool	myIsInfinite

bool	myStoreMapping

VTKViewer_GeometryFilter *	myGeomFilter

VTKViewer_TransformFilter *	myTransformFilter

std::vector< vtkPassThrough * >	myPassFilter

int	myRepresentation

vtkProperty *	myProperty

vtkProperty *	PreviewProperty

bool	myIsPreselected

bool	myIsHighlighted

Detailed Description

The class is a basic one for all SALOME VTK presentation.

Abstract class of SALOME Objects in VTK.

It provide highlight and prehighlight capabilites, common way to publish and remove VTK presentation, mapping of VTK and object IDs and so on.

Constructor & Destructor Documentation

◆ SALOME_Actor()

SALOME_Actor::SALOME_Actor ( )

protected

◆ ~SALOME_Actor()

SALOME_Actor::~SALOME_Actor ( )

protected

Destructor

Member Function Documentation

◆ AddToRender()

void SALOME_Actor::AddToRender ( vtkRenderer * theRenderer )

virtual

To publish the actor an all its internal devices.

Publishes the actor in all its internal devices

Reimplemented from VTKViewer_Actor.

◆ GetGravityCenter()

double * SALOME_Actor::GetGravityCenter ( int theObjId )

To find a gravity center of object.

To find a gravity center of object

Parameters

theObjId - identification of object

◆ GetMarkerScale()

VTK::MarkerScale SALOME_Actor::GetMarkerScale ( )

virtual

Get scale of the point marker.

Get scale of the point marker

Returns: scale of the point marker

◆ GetMarkerTexture()

int SALOME_Actor::GetMarkerTexture ( )

virtual

Get texture identifier of the point marker.

Get texture identifier of the point marker

Returns: texture identifier of the point marker

◆ GetMarkerType()

VTK::MarkerType SALOME_Actor::GetMarkerType ( )

virtual

Get type of the point marker.

Get type of the point marker

Returns: type of the point marker

◆ GetNameActorSize()

void SALOME_Actor::GetNameActorSize	(	vtkRenderer *	theRenderer,
		double	theSize[2]
	)		const

virtual

To get size of name actor.

To get size of name actor

Parameters

theRenderer	- renderer
theSize	- size of name actor

◆ GetRenderer()

vtkRenderer * SALOME_Actor::GetRenderer ( )

Get reference on renderer where it is published.

Returns: reference on renderer where it is published

◆ Handle() [1/2]

virtual const SALOME_Actor::Handle ( SALOME_InteractiveObject ) &

virtual

Get correspoinding reference to SALOME_InteractiveObject.

◆ Handle() [2/2]

SALOME_Actor::Handle ( SALOME_InteractiveObject )

protected

◆ highlight()

void SALOME_Actor::highlight ( bool theIsHighlight )

virtual

Just to update visibility of the highlight devices.

Updates visibility of the highlight devices

Reimplemented from VTKViewer_Actor.

◆ Highlight() [1/2]

void SALOME_Actor::Highlight ( bool theIsHighlight )

virtual

To map current selection to VTK representation.

To map current selection to VTK representation

References ActorSelection, BallSelection, CellSelection, EdgeOfCellSelection, EdgeSelection, Elem0DSelection, FaceSelection, NodeSelection, and VolumeSelection.

◆ Highlight() [2/2]

bool SALOME_Actor::Highlight	(	vtkInteractorStyle *	theInteractorStyle,
		SVTK_SelectionEvent *	theSelectionEvent,
		bool	theIsHighlight
	)

virtual

To process highlight (called from SVTK_InteractorStyle)

< TODO: conversion from size_t to int

◆ IsDisplayNameActor()

bool SALOME_Actor::IsDisplayNameActor ( ) const

virtual

To get flag of displaying of name actor.

To get flag of displaying of name actor

Returns: flag to display or not to display name actor

◆ New()

static SALOME_Actor* SALOME_Actor::New ( )

static

◆ PreHighlight()

bool SALOME_Actor::PreHighlight	(	vtkInteractorStyle *	theInteractorStyle,
		SVTK_SelectionEvent *	theSelectionEvent,
		bool	theIsHighlight
	)

virtual

To process prehighlight (called from SVTK_InteractorStyle)

References ActorSelection, BallSelection, CellSelection, EdgeOfCellSelection, EdgeSelection, Elem0DSelection, FaceSelection, VTK::ActorCollectionCopy::GetActors(), SVTK_SelectionEvent::mySelectionMode, SVTK_SelectionEvent::myX, SVTK_SelectionEvent::myY, NodeSelection, and VolumeSelection.

◆ RemoveFromRender()

void SALOME_Actor::RemoveFromRender ( vtkRenderer * theRenderer )

virtual

To remove the actor an all its internal devices.

Removes the actor from all its internal devices

Reimplemented from VTKViewer_Actor.

◆ SetCellAreaPicker()

void SALOME_Actor::SetCellAreaPicker ( SVTK_AreaPicker * theAreaPicker )

To set up a picker for cell rectangle selection (initialized by SVTK_Renderer::AddActor)

To set up a picker for cell rectangle of polygonal selection (initialized by SVTK_Renderer::AddActor)

Parameters

theAreaPicker - new picker

◆ SetCellPicker()

void SALOME_Actor::SetCellPicker ( vtkCellPicker * theCellPicker )

To set up a picker for cell selection (initialized by SVTK_Renderer::AddActor)

Parameters

theCellPicker - new picker

◆ SetHighlightProperty()

void SALOME_Actor::SetHighlightProperty ( vtkProperty * theProperty )

To set up a highlight property (initialized by SVTK_Renderer::AddActor)

◆ SetInteractor()

void SALOME_Actor::SetInteractor ( vtkRenderWindowInteractor * theInteractor )

virtual

To set interactor in order to use vtkInteractorObserver devices.

Sets interactor in order to use vtkInteractorObserver devices

Parameters

theInteractor - new interactor

◆ setIO()

void SALOME_Actor::setIO ( const Handle(SALOME_InteractiveObject)& theIO )

virtual

Set reference to SALOME_InteractiveObject.

Sets reference to SALOME_InteractiveObject

Parameters

theIO - new SALOME_InteractiveObject

◆ SetIsDisplayNameActor()

void SALOME_Actor::SetIsDisplayNameActor ( bool theIsDisplayNameActor )

virtual

To set flag of displaying of name actor.

To set flag of displaying of name actor

Parameters

theIsDisplayNameActor flag to display or not to display name actor

References QtxResourceMgr::booleanValue(), SUIT_Session::resourceMgr(), and SUIT_Session::session().

◆ SetMarkerStd()

void SALOME_Actor::SetMarkerStd	(	VTK::MarkerType	theMarkerType,
		VTK::MarkerScale	theMarkerScale
	)

virtual

Set standard point marker.

Set standard point marker

Parameters

theMarkerType	type of the marker
theMarkerScale	scale of the marker

◆ SetMarkerTexture()

void SALOME_Actor::SetMarkerTexture	(	int	theMarkerId,
		VTK::MarkerTexture	theMarkerTexture
	)

virtual

Set custom point marker.

Set custom point marker

Parameters

theMarkerId	id of the marker texture
theMarkerTexture	marker texture

◆ setName()

void SALOME_Actor::setName ( const char * theName )

virtual

Name the SALOME_Actor.

Sets name the SALOME_Actor

Parameters

theName - new name

Reimplemented from VTKViewer_Actor.

◆ SetNameActorOffset()

void SALOME_Actor::SetNameActorOffset ( double theOffset[2] )

virtual

To set offset of name actor.

To set offset of name actor

Parameters

theOffset - offset of name actor

◆ SetNameActorText()

void SALOME_Actor::SetNameActorText ( const char * theText )

virtual

To set text of name actor.

To set text of name actor

Parameters

theText - text of name actor

◆ SetPointAreaPicker()

void SALOME_Actor::SetPointAreaPicker ( SVTK_AreaPicker * theAreaPicker )

To set up a picker for point rectangle selection (initialized by SVTK_Renderer::AddActor)

To set up a picker for point rectangle or polygonal selection (initialized by SVTK_Renderer::AddActor)

Parameters

theAreaPicker - new picker

◆ SetPointPicker()

void SALOME_Actor::SetPointPicker ( vtkPointPicker * thePointPicker )

To set up a picker for nodal selection (initialized by SVTK_Renderer::AddActor)

Parameters

thePointPicker - new picker

◆ SetPosition() [1/2]

void SALOME_Actor::SetPosition	(	double	_arg1,
		double	_arg2,
		double	_arg3
	)

virtual

Apply additional position.

Apply additional position

◆ SetPosition() [2/2]

void SALOME_Actor::SetPosition ( double _arg[3] )

virtual

Apply additional position.

Apply additional position

◆ SetPreHighlightProperty()

void SALOME_Actor::SetPreHighlightProperty ( vtkProperty * theProperty )

To set up a prehighlight property (initialized by SVTK_Renderer::AddActor)

◆ SetSelector()

void SALOME_Actor::SetSelector ( SVTK_Selector * theSelector )

virtual

Set selector in order to the actor at any time can restore current selection.

Set selector in order to the actor at any time can restore current selection

Parameters

theSelector - new selector

◆ SetTransform()

void SALOME_Actor::SetTransform ( VTKViewer_Transform * theTransform )

virtual

Apply view transformation.

Apply view transformation

Parameters

theTransform - transformation

Reimplemented from VTKViewer_Actor.

◆ SetVisibility()

void SALOME_Actor::SetVisibility ( int theVisibility )

virtual

Visibility management.

Shows/hides actor

Parameters

theVisibility - new visibility state

References ActorSelection.

◆ ShouldBeDisplayed()

bool SALOME_Actor::ShouldBeDisplayed ( )

virtual

Gets know whether the actor should be displayed or not.

Gets know whether the actor should be displayed or not

◆ Update()

void SALOME_Actor::Update ( )

virtual

Put a request to redraw the view.

Put a request to redraw the view

◆ UpdateNameActors()

void SALOME_Actor::UpdateNameActors ( )

virtual

To update visibility of name actors.

Update visibility of name actors

References VTK::ActorCollectionCopy::GetActors().

◆ vtkTypeMacro()

SALOME_Actor::vtkTypeMacro	(	SALOME_Actor	,
		VTKViewer_Actor
	)

To check, if the SALOME_Actor has a reference to SALOME_InteractiveObject.

Member Data Documentation

◆ myCellAreaPicker

vtkSmartPointer<SVTK_AreaPicker> SALOME_Actor::myCellAreaPicker

protected

◆ myCellPicker

vtkSmartPointer<vtkCellPicker> SALOME_Actor::myCellPicker

protected

◆ myHighlightActor

vtkSmartPointer<SVTK_Actor> SALOME_Actor::myHighlightActor

protected

◆ myInteractor

vtkRenderWindowInteractor* SALOME_Actor::myInteractor

protected

◆ myIsDisplayNameActor

bool SALOME_Actor::myIsDisplayNameActor

protected

◆ myNameActor

vtkSmartPointer<VTKViewer_FramedTextActor> SALOME_Actor::myNameActor

protected

◆ myOutline

vtkSmartPointer<vtkOutlineSource> SALOME_Actor::myOutline

protected

◆ myOutlineActor

vtkSmartPointer<VTKViewer_Actor> SALOME_Actor::myOutlineActor

protected

◆ myPointAreaPicker

vtkSmartPointer<SVTK_AreaPicker> SALOME_Actor::myPointAreaPicker

protected

◆ myPointPicker

vtkSmartPointer<vtkPointPicker> SALOME_Actor::myPointPicker

protected

◆ myPreHighlightActor

vtkSmartPointer<SVTK_Actor> SALOME_Actor::myPreHighlightActor

protected

◆ myRenderer

vtkRenderer* SALOME_Actor::myRenderer

protected

◆ mySelectionMode

Selection_Mode SALOME_Actor::mySelectionMode

protected

◆ mySelector

vtkSmartPointer<SVTK_Selector> SALOME_Actor::mySelector

protected

The documentation for this class was generated from the following files:

src/SVTK/SALOME_Actor.h
src/SVTK/SALOME_Actor.cxx

Public Member Functions

Static Public Member Functions

Protected Member Functions

Protected Attributes

Detailed Description

Constructor & Destructor Documentation

◆ SALOME_Actor()

◆ ~SALOME_Actor()

Member Function Documentation

◆ AddToRender()

◆ GetGravityCenter()

◆ GetMarkerScale()

◆ GetMarkerTexture()

◆ GetMarkerType()

◆ GetNameActorSize()

◆ GetRenderer()

◆ Handle() [1/2]

◆ Handle() [2/2]

◆ highlight()

◆ Highlight() [1/2]

◆ Highlight() [2/2]

◆ IsDisplayNameActor()

◆ New()

◆ PreHighlight()

◆ RemoveFromRender()

◆ SetCellAreaPicker()

◆ SetCellPicker()

◆ SetHighlightProperty()

◆ SetInteractor()

◆ setIO()

◆ SetIsDisplayNameActor()

◆ SetMarkerStd()

◆ SetMarkerTexture()

◆ setName()

◆ SetNameActorOffset()

◆ SetNameActorText()

◆ SetPointAreaPicker()

◆ SetPointPicker()

◆ SetPosition() [1/2]

◆ SetPosition() [2/2]

◆ SetPreHighlightProperty()

◆ SetSelector()

◆ SetTransform()

◆ SetVisibility()

◆ ShouldBeDisplayed()

◆ Update()

◆ UpdateNameActors()

◆ vtkTypeMacro()

Member Data Documentation

◆ myCellAreaPicker

◆ myCellPicker

◆ myHighlightActor

◆ myInteractor

◆ myIsDisplayNameActor

◆ myNameActor

◆ myOutline

◆ myOutlineActor

◆ myPointAreaPicker

◆ myPointPicker

◆ myPreHighlightActor

◆ myRenderer

◆ mySelectionMode

◆ mySelector
