#include <calcium_uses_port.hxx>

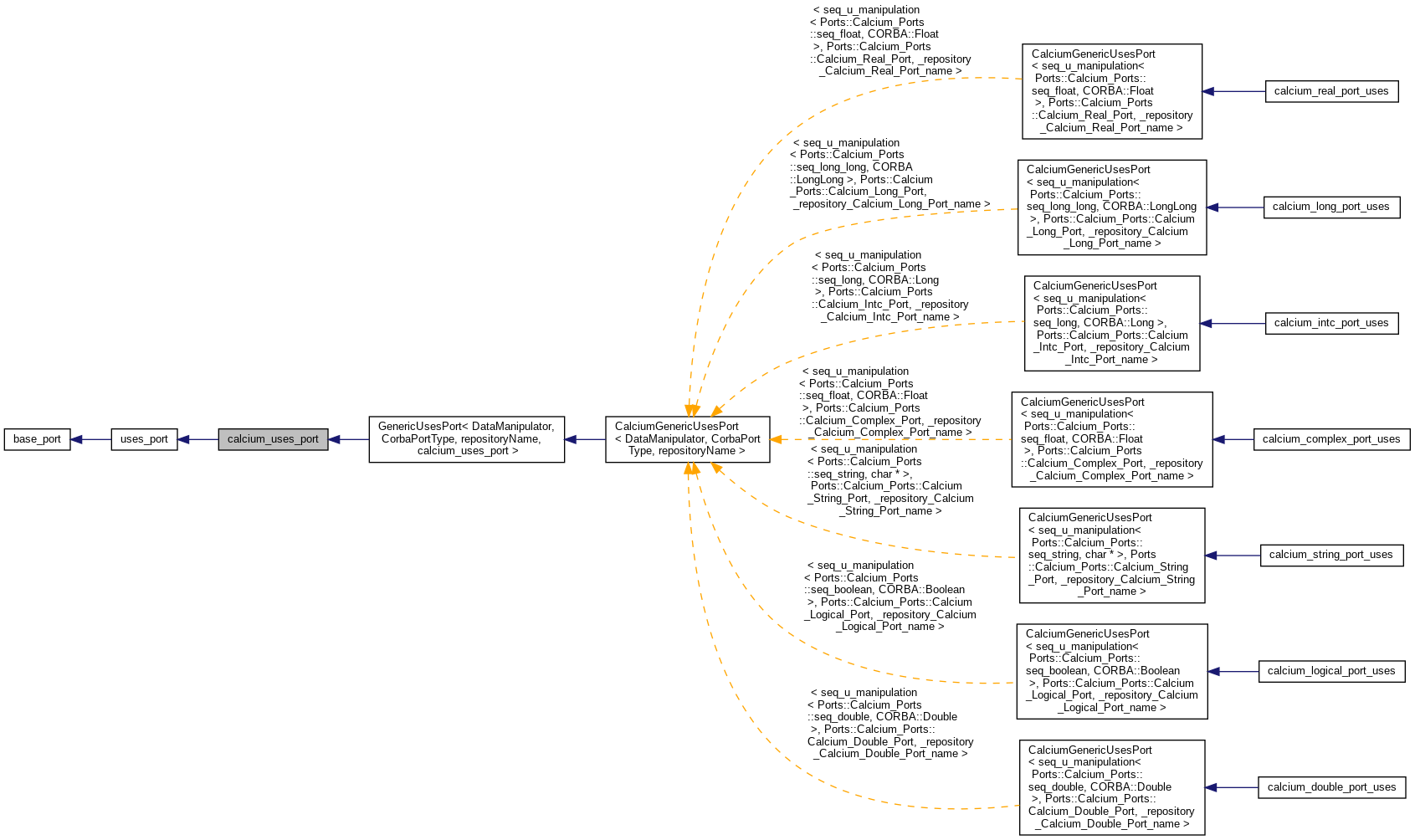

Inheritance diagram for calcium_uses_port:

[legend]

Public Member Functions
	calcium_uses_port ()

virtual	~calcium_uses_port ()

virtual void	disconnect (bool)

virtual const char *	get_repository_id ()=0
	This is used by the component to get the CORBA repository id of the uses port. More...

virtual void	uses_port_changed (Engines::DSC::uses_port *new_uses_port, const Engines::DSC::Message message)=0
	This method is the uses port's callback to be aware of connections states. More...

virtual Ports::PortProperties_ptr	get_port_properties ()
	This is used to get the property object of the port. More...

Protected Attributes
PortProperties_i *	default_properties

Constructor & Destructor Documentation

◆ calcium_uses_port()

calcium_uses_port::calcium_uses_port ( )

◆ ~calcium_uses_port()

calcium_uses_port::~calcium_uses_port ( )

virtual

Member Function Documentation

◆ disconnect()

virtual void calcium_uses_port::disconnect ( bool )

virtual

Reimplemented in CalciumGenericUsesPort< DataManipulator, CorbaPortType, repositoryName >.

Referenced by CalciumInterface::ecp_fin().

◆ get_port_properties()

Ports::PortProperties_ptr base_port::get_port_properties ( )

virtualinherited

This is used to get the property object of the port.

Returns: property's CORBA reference.

References base_port::default_properties.

◆ get_repository_id()

virtual const char* uses_port::get_repository_id ( )

pure virtualinherited

This is used by the component to get the CORBA repository id of the uses port.

It's an abstract method.

Returns: port's CORBA repository id.

Implemented in GenericUsesPort< DataManipulator, CorbaPortType, repositoryName, UsesPort >, GenericUsesPort< DataManipulator, CorbaPortType, repositoryName, calcium_uses_port >, and data_short_port_uses.

◆ uses_port_changed()

virtual void uses_port::uses_port_changed	(	Engines::DSC::uses_port *	new_uses_port,
		const Engines::DSC::Message	message
	)

pure virtualinherited

This method is the uses port's callback to be aware of connections states.

It's an abstract method. The uses port uses this method to manage the sequence of the DSC_Basic uses port.

Parameters

new_uses_port	new uses port sequence.
message	message associated with this modification.

Implemented in data_short_port_uses, GenericUsesPort< DataManipulator, CorbaPortType, repositoryName, UsesPort >, and GenericUsesPort< DataManipulator, CorbaPortType, repositoryName, calcium_uses_port >.

Field Documentation

◆ default_properties

PortProperties_i* base_port::default_properties

protectedinherited

Referenced by base_port::base_port(), base_port::get_port_properties(), and base_port::~base_port().
