#include "SMDS_VolumeTool.hxx"
#include "SMDS_MeshElement.hxx"
#include "SMDS_MeshNode.hxx"
#include "SMDS_Mesh.hxx"
#include <utilities.h>
#include <map>
#include <limits>
#include <cmath>
#include <cstring>
#include <numeric>
#include <algorithm>
#include <array>

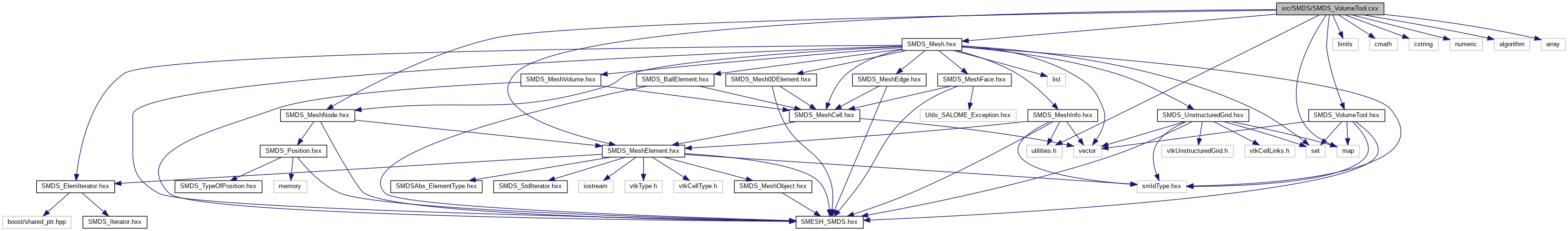

Include dependency graph for SMDS_VolumeTool.cxx:

Data Structures
struct	SMDS_VolumeTool::SaveFacet
	Saver/restorer of a SMDS_VolumeTool::myCurFace. More...

Macros
#define	SWAP_NODES(nodes, i1, i2)

Functions
static double	getTetraVolume (const SMDS_MeshNode n1, const SMDS_MeshNode n2, const SMDS_MeshNode n3, const SMDS_MeshNode n4)

static double	getTetraScaledJacobian (const SMDS_MeshNode n0, const SMDS_MeshNode n1, const SMDS_MeshNode n2, const SMDS_MeshNode n3)

static double	getPyramidScaledJacobian (const SMDS_MeshNode n0, const SMDS_MeshNode n1, const SMDS_MeshNode n2, const SMDS_MeshNode n3, const SMDS_MeshNode *n4)

static double	getHexaScaledJacobian (const SMDS_MeshNode n0, const SMDS_MeshNode n1, const SMDS_MeshNode n2, const SMDS_MeshNode n3, const SMDS_MeshNode n4, const SMDS_MeshNode n5, const SMDS_MeshNode n6, const SMDS_MeshNode n7)

static double	getTetraNormalizedJacobian (const SMDS_MeshNode n0, const SMDS_MeshNode n1, const SMDS_MeshNode n2, const SMDS_MeshNode n3)

static double	getPentaScaledJacobian (const SMDS_MeshNode n0, const SMDS_MeshNode n1, const SMDS_MeshNode n2, const SMDS_MeshNode n3, const SMDS_MeshNode n4, const SMDS_MeshNode n5)

static double	getHexaPrismScaledJacobian (const SMDS_MeshNode n0, const SMDS_MeshNode n1, const SMDS_MeshNode n2, const SMDS_MeshNode n3, const SMDS_MeshNode n4, const SMDS_MeshNode n5, const SMDS_MeshNode n6, const SMDS_MeshNode n7, const SMDS_MeshNode n8, const SMDS_MeshNode n9, const SMDS_MeshNode n10, const SMDS_MeshNode n11)

Macro Definition Documentation

◆ SWAP_NODES

#define SWAP_NODES	(	nodes,
		i1,
		i2
	)

Value:

{                                         \
  const SMDS_MeshNode* tmp = nodes[ i1 ]; \
  nodes[ i1 ] = nodes[ i2 ];              \
  nodes[ i2 ] = tmp;                      \
}

Function Documentation

◆ getHexaPrismScaledJacobian()

static double getHexaPrismScaledJacobian	(	const SMDS_MeshNode *	n0,
		const SMDS_MeshNode *	n1,
		const SMDS_MeshNode *	n2,
		const SMDS_MeshNode *	n3,
		const SMDS_MeshNode *	n4,
		const SMDS_MeshNode *	n5,
		const SMDS_MeshNode *	n6,
		const SMDS_MeshNode *	n7,
		const SMDS_MeshNode *	n8,
		const SMDS_MeshNode *	n9,
		const SMDS_MeshNode *	n10,
		const SMDS_MeshNode *	n11
	)

static

References getHexaScaledJacobian(), and getPentaScaledJacobian().

Referenced by SMDS_VolumeTool::GetScaledJacobian().

◆ getHexaScaledJacobian()

static double getHexaScaledJacobian	(	const SMDS_MeshNode *	n0,
		const SMDS_MeshNode *	n1,
		const SMDS_MeshNode *	n2,
		const SMDS_MeshNode *	n3,
		const SMDS_MeshNode *	n4,
		const SMDS_MeshNode *	n5,
		const SMDS_MeshNode *	n6,
		const SMDS_MeshNode *	n7
	)

static

Referenced by getHexaPrismScaledJacobian(), and SMDS_VolumeTool::GetScaledJacobian().

◆ getPentaScaledJacobian()

static double getPentaScaledJacobian	(	const SMDS_MeshNode *	n0,
		const SMDS_MeshNode *	n1,
		const SMDS_MeshNode *	n2,
		const SMDS_MeshNode *	n3,
		const SMDS_MeshNode *	n4,
		const SMDS_MeshNode *	n5
	)

static

References getTetraNormalizedJacobian().

Referenced by getHexaPrismScaledJacobian(), and SMDS_VolumeTool::GetScaledJacobian().

◆ getPyramidScaledJacobian()

static double getPyramidScaledJacobian	(	const SMDS_MeshNode *	n0,
		const SMDS_MeshNode *	n1,
		const SMDS_MeshNode *	n2,
		const SMDS_MeshNode *	n3,
		const SMDS_MeshNode *	n4
	)
