#include "SALOME_Exception.idl"
#include "SALOME_GenericObj.idl"
#include "GEOM_Gen.idl"
#include "SMESH_smIdType.idl"

Include dependency graph for SMESH_Mesh.idl:

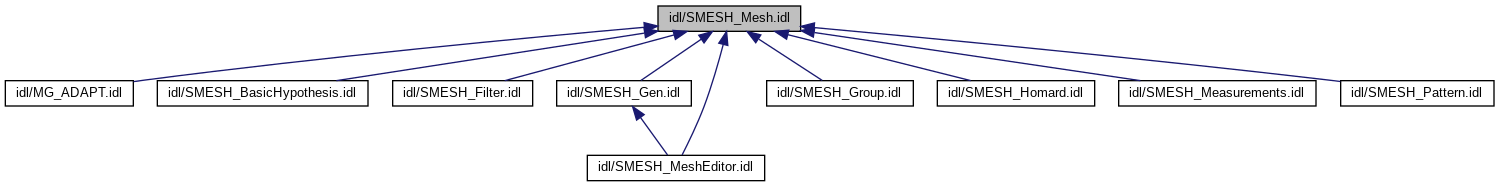

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures
struct	SMESH::log_block

struct	SMESH::PointStruct

struct	SMESH::DirStruct

struct	SMESH::AxisStruct

struct	SMESH::NodePosition
	Node location on a shape. More...

struct	SMESH::ElementPosition
	Element location on a shape. More...

struct	SMESH::MedFileInfo
	A structure containing information about MED file. More...

struct	SMESH::ElementSubType
	Structure used in mesh edit preview data (MeshPreviewStruct) More...

struct	SMESH::MeshPreviewStruct
	Structure containing mesh edit preview data. More...

interface	SMESH::SMESH_IDSource

interface	SMESH::SMESH_Mesh

interface	SMESH::SMESH_subMesh

interface	SMESH::SMESH_SequentialMesh

interface	SMESH::SMESH_ParallelMesh

Modules
namespace	SMESH

Typedefs
typedef sequence< SMESH_Hypothesis >	SMESH::ListOfHypothesis

typedef sequence< SMESH_GroupBase >	SMESH::ListOfGroups

typedef sequence< SMESH_IDSource >	SMESH::ListOfIDSources

typedef sequence< double >	SMESH::double_array

typedef sequence< long >	SMESH::long_array

typedef sequence< smIdType >	SMESH::smIdType_array

typedef sequence< string >	SMESH::string_array

typedef sequence< long_array >	SMESH::array_of_long_array

typedef sequence< log_block >	SMESH::log_array

typedef sequence< PointStruct >	SMESH::nodes_array

typedef sequence< ElementType >	SMESH::array_of_ElementType

typedef sequence< ElementSubType >	SMESH::types_array

typedef sequence< SMESH_subMesh >	SMESH::submesh_array

typedef sequence< submesh_array >	SMESH::submesh_array_array

Enumerations
enum	SMESH::log_command { SMESH::ADD_NODE , SMESH::ADD_EDGE , SMESH::ADD_TRIANGLE , SMESH::ADD_QUADRANGLE , SMESH::ADD_POLYGON , SMESH::ADD_TETRAHEDRON , SMESH::ADD_PYRAMID , SMESH::ADD_PRISM , SMESH::ADD_HEXAHEDRON , SMESH::ADD_POLYHEDRON , SMESH::REMOVE_NODE , SMESH::REMOVE_ELEMENT , SMESH::MOVE_NODE , SMESH::CHANGE_ELEMENT_NODES , SMESH::CHANGE_POLYHEDRON_NODES , SMESH::RENUMBER , SMESH::CLEAR_MESH , SMESH::ADD_QUADEDGE , SMESH::ADD_QUADTRIANGLE , SMESH::ADD_QUADQUADRANGLE , SMESH::ADD_QUADPOLYGON , SMESH::ADD_QUADTETRAHEDRON , SMESH::ADD_QUADPYRAMID , SMESH::ADD_QUADPENTAHEDRON , SMESH::ADD_QUADHEXAHEDRON , SMESH::ADD_ELEM0D , SMESH::ADD_BIQUAD_TRIANGLE , SMESH::ADD_BIQUAD_QUADRANGLE , SMESH::ADD_TRIQUAD_HEXA , SMESH::ADD_HEXAGONAL_PRISM , SMESH::ADD_BALL }

enum	SMESH::ElementType { SMESH::ALL , SMESH::NODE , SMESH::EDGE , SMESH::FACE , SMESH::VOLUME , SMESH::ELEM0D , SMESH::BALL , SMESH::NB_ELEMENT_TYPES }
	Enumeration for element type, like in SMDS. More...

enum	SMESH::GeometryType { SMESH::Geom_POINT , SMESH::Geom_EDGE , SMESH::Geom_TRIANGLE , SMESH::Geom_QUADRANGLE , SMESH::Geom_POLYGON , SMESH::Geom_TETRA , SMESH::Geom_PYRAMID , SMESH::Geom_HEXA , SMESH::Geom_PENTA , SMESH::Geom_HEXAGONAL_PRISM , SMESH::Geom_POLYHEDRA , SMESH::Geom_BALL , SMESH::Geom_LAST }
	Enumeration for element geometry type, like SMDSAbs_GeometryType in SMDSAbs_ElementType.hxx. More...

enum	SMESH::ElementOrder { SMESH::ORDER_ANY , SMESH::ORDER_LINEAR , SMESH::ORDER_QUADRATIC }
	ElementOrder points out entities of what order are requested. More...

enum	SMESH::EntityType { SMESH::Entity_Node , SMESH::Entity_0D , SMESH::Entity_Edge , SMESH::Entity_Quad_Edge , SMESH::Entity_Triangle , SMESH::Entity_Quad_Triangle , SMESH::Entity_BiQuad_Triangle , SMESH::Entity_Quadrangle , SMESH::Entity_Quad_Quadrangle , SMESH::Entity_BiQuad_Quadrangle , SMESH::Entity_Polygon , SMESH::Entity_Quad_Polygon , SMESH::Entity_Tetra , SMESH::Entity_Quad_Tetra , SMESH::Entity_Pyramid , SMESH::Entity_Quad_Pyramid , SMESH::Entity_Hexa , SMESH::Entity_Quad_Hexa , SMESH::Entity_TriQuad_Hexa , SMESH::Entity_Penta , SMESH::Entity_Quad_Penta , SMESH::Entity_BiQuad_Penta , SMESH::Entity_Hexagonal_Prism , SMESH::Entity_Polyhedra , SMESH::Entity_Quad_Polyhedra , SMESH::Entity_Ball , SMESH::Entity_Last }
	Enumeration of entity type used in mesh info array, it should be synchronised with enum SMDSAbs_EntityType. More...

enum	SMESH::Hypothesis_Status { SMESH::HYP_OK , SMESH::HYP_MISSING , SMESH::HYP_CONCURRENT , SMESH::HYP_BAD_PARAMETER , SMESH::HYP_HIDDEN_ALGO , SMESH::HYP_HIDING_ALGO , SMESH::HYP_UNKNOWN_FATAL , SMESH::HYP_INCOMPATIBLE , SMESH::HYP_NOTCONFORM , SMESH::HYP_ALREADY_EXIST , SMESH::HYP_BAD_DIM , SMESH::HYP_BAD_SUBSHAPE , SMESH::HYP_BAD_GEOMETRY , SMESH::HYP_NEED_SHAPE , SMESH::HYP_INCOMPAT_HYPS }
	Enumeration for hypothesis status (used by AddHypothesis() and RemoveHypothesis() methods) More...

enum	SMESH::DriverMED_ReadStatus { SMESH::DRS_OK , SMESH::DRS_EMPTY , SMESH::DRS_WARN_RENUMBER , SMESH::DRS_WARN_SKIP_ELEM , SMESH::DRS_WARN_DESCENDING , SMESH::DRS_FAIL }
	Enumeration for mesh read status (used by SMESH_Gen::CreateMeshesFrom*() methods) More...

enum	SMESH::NB_COMMON_NODES_ENUM { SMESH::ALL_NODES , SMESH::MAIN , SMESH::AT_LEAST_ONE , SMESH::MAJORITY }
	Enumeration for CreateDimGroup() More...

Variables
const long	SMESH::EXTRUSION_FLAG_BOUNDARY = 1
	Auxiliary flags for advanced extrusion. More...

const long	SMESH::EXTRUSION_FLAG_SEW = 2
