#include <PMMLlib.hxx>

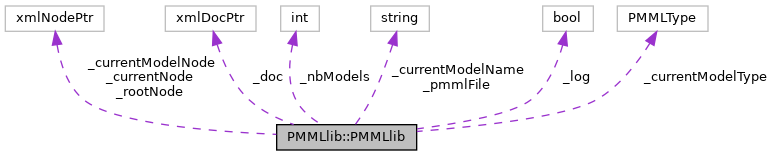

Collaboration diagram for PMMLlib::PMMLlib:

[legend]

Public Member Functions
PMMLLIB_EXPORT	PMMLlib (std::string file, bool log=false)

PMMLLIB_EXPORT	PMMLlib (bool log=false)
	This constructor is mandatory for Swig because it can be used with no parameters. More...

PMMLLIB_EXPORT	~PMMLlib ()

PMMLLIB_EXPORT void	SetCurrentModel (std::string modelName, PMMLType type)

PMMLLIB_EXPORT void	SetCurrentModel (std::string modelName)
	Throw an exception if there is no model or more than one model with name "modelName" in the PMML file. More...

PMMLLIB_EXPORT void	SetCurrentModel ()
	Throw an exception if no model is found or if there are more than one model in the PMLL file. More...

PMMLLIB_EXPORT std::string	makeLog () const

PMMLLIB_EXPORT void	printLog () const

PMMLLIB_EXPORT void	AddDataField (std::string name, std::string displayName, std::string optype, std::string dataType, std::string closure, double leftMargin, double rightMargin, bool interval=false)

PMMLLIB_EXPORT void	AddMiningSchema (std::string name, std::string usageType)
	Common to all models. More...

PMMLLIB_EXPORT void	SetHeader (std::string copyright, std::string description, std::string appName, std::string appVersion, std::string annotation)

PMMLLIB_EXPORT void	UnlinkNode ()

PMMLLIB_EXPORT void	BackupNode ()

PMMLLIB_EXPORT int	GetModelsNb ()

PMMLLIB_EXPORT void	Write ()

PMMLLIB_EXPORT void	Write (std::string file)

PMMLLIB_EXPORT PMMLType	GetCurrentModelType ()
	type is kUNDEFINED if no model is set or if model type is not handled More...

PMMLLIB_EXPORT std::string	GetCurrentModelName ()
	name is "" if no model is set More...

PMMLLIB_EXPORT void	AddNeuralNetwork (std::string modelName, PMMLMiningFunction functionName)
	Specific to NeuralNetwork. More...

PMMLLIB_EXPORT void	AddNeuralInput (int id, std::string inputName, std::string optype, std::string dataType, double orig1, double norm1, double orig2, double norm2)
	Specific to NeuralNetwork. More...

PMMLLIB_EXPORT void	AddNeuralLayer (PMMLActivationFunction activationFunction)
	Specific to NeuralNetwork. More...

PMMLLIB_EXPORT void	AddNeuron (int id, double bias, int conNb, int firstFrom, std::vector< double > weights)
	Specific to NeuralNetwork. More...

PMMLLIB_EXPORT void	AddNeuralOutput (int outputNeuron, std::string outputName, std::string optype, std::string dataType, double orig1, double norm1, double orig2, double norm2)
	Specific to NeuralNetwork. More...

PMMLLIB_EXPORT int	GetNbInputs ()
	Specific to NeuralNetwork. More...

PMMLLIB_EXPORT int	GetNbOutputs ()
	Specific to NeuralNetwork. More...

PMMLLIB_EXPORT std::string	GetNameInput (int input_index)
	Specific to NeuralNetwork. More...

PMMLLIB_EXPORT std::string	GetNameOutput (int output_index)
	Specific to NeuralNetwork. More...

PMMLLIB_EXPORT int	GetNormalizationType ()
	Specific to NeuralNetwork. More...

PMMLLIB_EXPORT void	GetNormalisationInput (int input_index, double *dnorm)
	Specific to NeuralNetwork. More...

PMMLLIB_EXPORT void	GetNormalisationOutput (int output_index, double *dnorm)
	Specific to NeuralNetwork. More...

PMMLLIB_EXPORT int	GetNbHiddenLayers ()
	Specific to NeuralNetwork. More...

PMMLLIB_EXPORT int	GetNbLayers ()

PMMLLIB_EXPORT int	GetNbNeuronsAtLayer (int layer_index)

PMMLLIB_EXPORT double	GetNeuronBias (int layer_index, int neu_index)
	Specific to NeuralNetwork. More...

PMMLLIB_EXPORT double	GetPrecNeuronSynapse (int layer_index, int neu_index, int prec_index)
	Specific to NeuralNetwork. More...

PMMLLIB_EXPORT void	SetNeuralNetName (int ann_index, std::string ann_name)
	Not tested. More...

PMMLLIB_EXPORT std::string	ReadNetworkStructure ()
	Specific to NeuralNetwork. More...

PMMLLIB_EXPORT void	AddRegressionModel (std::string modelName, PMMLMiningFunction functionName, std::string targetFieldName)
	Specific to RegressionModel. More...

PMMLLIB_EXPORT void	AddRegressionTable ()
	No property "intercept" will be set. More...

PMMLLIB_EXPORT void	AddRegressionTable (double intercept)
	Specific to RegressionModel. More...

PMMLLIB_EXPORT void	AddNumericPredictor (std::string neuronName, int exponent, double coefficient)
	Specific to RegressionModel. More...

PMMLLIB_EXPORT void	AddPredictorTerm (double coefficient, std::vector< std::string > fieldRef)
	Specific to RegressionModel More...

PMMLLIB_EXPORT bool	HasIntercept ()
	Specific to RegressionModel More...

PMMLLIB_EXPORT double	GetRegressionTableIntercept ()
	Specific to RegressionModel More...

PMMLLIB_EXPORT int	GetNumericPredictorNb ()
	Specific to RegressionModel More...

PMMLLIB_EXPORT int	GetPredictorTermNb ()
	Specific to RegressionModel More...

PMMLLIB_EXPORT std::string	GetNumericPredictorName (int num_pred_index)
	Specific to RegressionModel More...

PMMLLIB_EXPORT std::string	GetPredictorTermName (int num_pred_index)
	Specific to RegressionModel More...

PMMLLIB_EXPORT double	GetNumericPredictorCoefficient (int num_pred_index)
	(The coefficient is the value of property "coefficient") More...

PMMLLIB_EXPORT double	GetPredictorTermCoefficient (int pred_term_index)
	(The coefficient is the value of property "coefficient") More...

PMMLLIB_EXPORT int	GetPredictorTermFieldRefNb (int pred_term_index)
	Specific to RegressionModel More...

PMMLLIB_EXPORT std::string	GetPredictorTermFieldRefName (int pred_term_index, int field_index)
	(The name is the value of property "field") More...

PMMLLIB_EXPORT std::string	ReadRegressionStructure ()
	Specific to RegressionModel. More...

PMMLLIB_EXPORT void	ExportCpp (std::string file, std::string functionName, std::string header)

PMMLLIB_EXPORT void	ExportFortran (std::string file, std::string functionName, std::string header)

PMMLLIB_EXPORT void	ExportPython (std::string file, std::string functionName, std::string header)

PMMLLIB_EXPORT std::string	ExportPyStr (std::string functionName, std::string header)

Private Member Functions
xmlNodePtr	GetChildByName (xmlNodePtr node, std::string nodename)

xmlNodePtr	GetPtr (int ann_index, std::string name)

xmlNodePtr	GetPtr (std::string ann_name, std::string name)

void	CountModels ()

int	CountNeuralNetModels ()

int	CountRegressionModels ()

void	SetRootNode ()

std::string	GetModelName (xmlNodePtr node)

std::string	GetTypeString ()

xmlNodePtr	GetNeuralNetPtr (std::string ann_name)

xmlNodePtr	GetNeuralNetPtr (int ann_index)

void	CheckNeuralNetwork ()
	Called in all methods specific to the NeuralNetwork model. More...

xmlNodePtr	GetRegressionPtr (int reg_index)

xmlNodePtr	GetRegressionPtr (std::string reg_name)

void	CheckRegression ()
	Called in all methods specific to the RegressionModel model. More...

void	fillVectorsForExport (int nInput, int nOutput, int nHidden, int normType, std::vector< double > &minInput, std::vector< double > &maxInput, std::vector< double > &minOutput, std::vector< double > &maxOutput, std::vector< double > &valW)
	Specific to NeuralNetwork. More...

void	ExportNeuralNetworkCpp (std::string file, std::string functionName, std::string header)
	Specific to NeuralNetwork. More...

void	ExportNeuralNetworkFortran (std::string file, std::string functionName, std::string header)
	Specific to NeuralNetwork. More...

void	ExportNeuralNetworkPython (std::string file, std::string functionName, std::string header)
	Specific to NeuralNetwork. More...

std::string	ExportNeuralNetworkPyStr (std::string functionName, std::string header)
	Specific to NeuralNetwork. More...

void	ExportLinearRegressionCpp (std::string, std::string, std::string)
	Specific to RegressionModel More...

void	ExportLinearRegressionFortran (std::string, std::string, std::string)
	Specific to Regression. More...

void	ExportLinearRegressionPython (std::string, std::string, std::string)
	Specific to Regression. More...

std::string	ExportLinearRegressionPyStr (std::string functionName, std::string header)
	Specific to Regression. More...

std::string	_xmlCharToString (const xmlChar *xs) const

xmlChar *	_stringToXmlChar (const std::string &s) const

std::string	_getProp (const xmlNodePtr node, std::string const &prop) const

Private Attributes
bool	_log
	Log Printing. More...

std::string	_pmmlFile
	Name of the associated PMML file. More...

xmlDocPtr	_doc
	Associated DOM documents. More...

xmlNodePtr	_rootNode
	Root node of the document. More...

xmlNodePtr	_currentNode
	Pointer to the current node More...

int	_nbModels
	Number of models (all kinds) More...

std::string	_currentModelName
	Name of the current model More...

PMMLType	_currentModelType
	Type of the current model. More...

xmlNodePtr	_currentModelNode
	Pointer to the current model node More...

Detailed Description

Class PMMLlib

Definition at line 72 of file PMMLlib.hxx.

Member Function Documentation

◆ _getProp()

std::string PMMLlib::PMMLlib::_getProp	(	const xmlNodePtr	node,
		std::string const &	prop
	)		const

private

Get the value of a node property.

Parameters

node	Tag
prop	Property

Returns: Constant libxml string.

Definition at line 694 of file PMMLlib.cxx.

 {
     std::string name("");
     if (_doc != NULL)
     {
         xmlChar *xp = _stringToXmlChar(prop);
         xmlChar * attr ;
         attr = xmlGetProp(node, xp );
         if ( attr )
         {
             name = _xmlCharToString(attr );
             xmlFree(attr);
         }
         xmlFree(xp);
     }
     return name;
 }

◆ _stringToXmlChar()

xmlChar * PMMLlib::PMMLlib::_stringToXmlChar ( const std::string & s ) const

private

Conversion from a standard C++ string to a libxml2 string (xmlChar *)

Parameters

s	a constant C++ std::string.

Returns: a libxml string (contains the same text as s)

The caller of this function must free the result when it's not needed anymore (using xmlFree)

Conversion from a a standard C++ string to a libxml2 string (xmlChar *).

Parameters

s	Constant C++ std::string (contains the same text as xs)

Returns: Constant libxml string.

Definition at line 683 of file PMMLlib.cxx.

 {
     return xmlCharStrdup(s.c_str());
 }

◆ _xmlCharToString()

std::string PMMLlib::PMMLlib::_xmlCharToString ( const xmlChar * xs ) const

private

Conversion from a libxml2 string (xmlChar *) to a standard C++ string.

Parameters

xs	a constant libxml string.

Returns: a C++ std::string (contains the same text as xs).

Conversion from a libxml2 string (xmlChar *) to a standard C++ string.

Parameters

xs	a constant libxml string.

Returns: a C++ std::string (contains the same text as xs).

Definition at line 669 of file PMMLlib.cxx.

 {
     size_t i, L = xmlStrlen(xs);
     std::string s;
     s.resize(L);
     for (i=0; *xs; s[i++] = *xs++);
     return s;
 }

References yacsorb.CORBAEngineTest::i.

Member Data Documentation

◆ _currentModelName

std::string PMMLlib::PMMLlib::_currentModelName

private

Name of the current model

Definition at line 82 of file PMMLlib.hxx.

◆ _currentModelNode

xmlNodePtr PMMLlib::PMMLlib::_currentModelNode

private

Pointer to the current model node

Definition at line 84 of file PMMLlib.hxx.

◆ _currentModelType

PMMLType PMMLlib::PMMLlib::_currentModelType

private

Type of the current model.

Definition at line 83 of file PMMLlib.hxx.

◆ _currentNode

xmlNodePtr PMMLlib::PMMLlib::_currentNode

private

Pointer to the current node

Definition at line 80 of file PMMLlib.hxx.

◆ _doc

xmlDocPtr PMMLlib::PMMLlib::_doc

private

Associated DOM documents.

Definition at line 78 of file PMMLlib.hxx.

◆ _log

bool PMMLlib::PMMLlib::_log

private

Log Printing.

Definition at line 76 of file PMMLlib.hxx.

◆ _nbModels

int PMMLlib::PMMLlib::_nbModels

private

Number of models (all kinds)

Definition at line 81 of file PMMLlib.hxx.

◆ _pmmlFile

std::string PMMLlib::PMMLlib::_pmmlFile

private

Name of the associated PMML file.

Definition at line 77 of file PMMLlib.hxx.

◆ _rootNode

xmlNodePtr PMMLlib::PMMLlib::_rootNode

private

Root node of the document.

Definition at line 79 of file PMMLlib.hxx.

The documentation for this class was generated from the following files:

src/pmml/PMMLlib.hxx
src/pmml/PMMLlib.cxx
