#include <DeploymentTree.hxx>

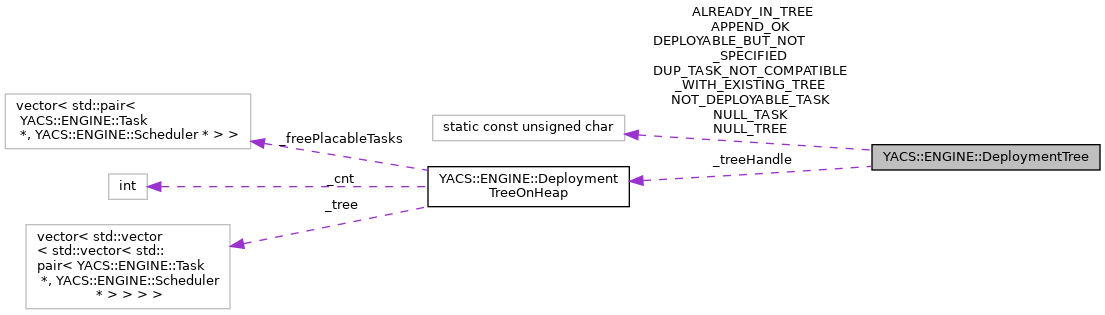

Collaboration diagram for YACS::ENGINE::DeploymentTree:

[legend]

Public Member Functions
	DeploymentTree ()

	~DeploymentTree ()

	DeploymentTree (const DeploymentTree &other)

const DeploymentTree &	operator= (const DeploymentTree &other)

unsigned char	appendTask (Task task, Scheduler cloner)

unsigned	getNumberOfCTDefContainer () const

unsigned	getNumberOfRTODefContainer () const

unsigned	getNumberOfCTDefComponentInstances () const

unsigned	getNumberOfRTODefComponentInstances () const

bool	presenceOfDefaultContainer () const

std::vector< Container * >	getAllContainers () const

std::vector< Container * >	getAllCTDefContainers () const

std::vector< Container * >	getAllRTODefContainers () const

std::vector< Task * >	getTasksLinkedToComponent (ComponentInstance *comp) const

std::vector< Task * >	getTasksLinkedToContainer (Container *cont) const

std::vector< ComponentInstance * >	getComponentsLinkedToContainer (Container *cont) const

bool	isNull () const

std::vector< Task * >	getFreeDeployableTasks () const

Static Public Attributes
static const unsigned char	NULL_TASK = 3

static const unsigned char	APPEND_OK = 0

static const unsigned char	NULL_TREE = 199

static const unsigned char	ALREADY_IN_TREE = 1

static const unsigned char	NOT_DEPLOYABLE_TASK = 2

static const unsigned char	DEPLOYABLE_BUT_NOT_SPECIFIED = 5

static const unsigned char	DUP_TASK_NOT_COMPATIBLE_WITH_EXISTING_TREE = 4

Private Attributes
DeploymentTreeOnHeap *	_treeHandle

Detailed Description

Definition at line 67 of file DeploymentTree.hxx.

Constructor & Destructor Documentation

◆ DeploymentTree() [1/2]

DeploymentTree::DeploymentTree ( )

Definition at line 399 of file DeploymentTree.cxx.

                               :_treeHandle(0)
 {
 }

◆ ~DeploymentTree()

DeploymentTree::~DeploymentTree ( )

Definition at line 403 of file DeploymentTree.cxx.

 {
   if(_treeHandle)
     _treeHandle->decrRef();
 }

References _treeHandle, and YACS::ENGINE::DeploymentTreeOnHeap::decrRef().

◆ DeploymentTree() [2/2]

DeploymentTree::DeploymentTree ( const DeploymentTree & other )

Definition at line 409 of file DeploymentTree.cxx.

 {
   _treeHandle=other._treeHandle;
   if(_treeHandle)
     _treeHandle->incrRef();
 }

References _treeHandle, and YACS::ENGINE::DeploymentTreeOnHeap::incrRef().

Member Function Documentation

◆ appendTask()

unsigned char DeploymentTree::appendTask	(	Task *	task,
		Scheduler *	cloner
	)

Definition at line 426 of file DeploymentTree.cxx.

 {
   if(_treeHandle)
     return _treeHandle->appendTask(task,cloner);
   if(!task)
     return DeploymentTree::NULL_TASK;
   if(!task->isDeployable())//Task not needed to be placed.
     return DeploymentTree::NOT_DEPLOYABLE_TASK;
   _treeHandle=new DeploymentTreeOnHeap;
   return _treeHandle->appendTask(task,cloner);
 }

References _treeHandle, YACS::ENGINE::DeploymentTreeOnHeap::appendTask(), YACS::ENGINE::Task::isDeployable(), NOT_DEPLOYABLE_TASK, and NULL_TASK.

Referenced by YACS::ENGINE::ComposedNode::checkDeploymentTree(), YACS::ENGINE::DynParaLoop::cloneAndPlaceNodesCoherently(), and YACS::ENGINE::ComposedNode::getDeploymentTree().

◆ getAllContainers()

std::vector< Container * > DeploymentTree::getAllContainers ( ) const

Returns all containers default included (0).

Definition at line 475 of file DeploymentTree.cxx.

 {
   if(_treeHandle)
     return _treeHandle->getAllContainers();
   return vector<Container *>();
 }

References _treeHandle, and YACS::ENGINE::DeploymentTreeOnHeap::getAllContainers().

Referenced by YACS::ENGINE::DynParaLoop::cloneAndPlaceNodesCoherently(), YACS::ENGINE::ComposedNode::performDuplicationOfPlacement(), YACS::ENGINE::ComposedNode::performShallowDuplicationOfPlacement(), and YACS::ENGINE::Proc::updateContainersAndComponents().

◆ getAllCTDefContainers()

std::vector< Container * > DeploymentTree::getAllCTDefContainers ( ) const

Returns containers predictably launchable without counting default container.

Definition at line 485 of file DeploymentTree.cxx.

 {
   if(_treeHandle)
     return _treeHandle->getAllCTDefContainers();
   return vector<Container *>();
 }

References _treeHandle, and YACS::ENGINE::DeploymentTreeOnHeap::getAllCTDefContainers().

◆ getAllRTODefContainers()

std::vector< Container * > DeploymentTree::getAllRTODefContainers ( ) const

Returns containers unpredictably launchable without counting default container.

Definition at line 495 of file DeploymentTree.cxx.

 {
   if(_treeHandle)
     return _treeHandle->getAllRTODefContainers();
   return vector<Container *>();
 }

References _treeHandle, and YACS::ENGINE::DeploymentTreeOnHeap::getAllRTODefContainers().

◆ getComponentsLinkedToContainer()

std::vector< ComponentInstance * > DeploymentTree::getComponentsLinkedToContainer ( Container * cont ) const

Definition at line 516 of file DeploymentTree.cxx.

 {
   if(_treeHandle)
     return _treeHandle->getComponentsLinkedToContainer(cont);
   return vector<ComponentInstance *>();
 }

References _treeHandle, and YACS::ENGINE::DeploymentTreeOnHeap::getComponentsLinkedToContainer().

Referenced by YACS::ENGINE::DynParaLoop::cloneAndPlaceNodesCoherently(), YACS::ENGINE::ComposedNode::performDuplicationOfPlacement(), YACS::ENGINE::ComposedNode::performShallowDuplicationOfPlacement(), and YACS::ENGINE::Proc::updateContainersAndComponents().

◆ getFreeDeployableTasks()

std::vector< Task * > DeploymentTree::getFreeDeployableTasks ( ) const

Definition at line 535 of file DeploymentTree.cxx.

 {
   if(_treeHandle)
     return _treeHandle->getFreeDeployableTasks();
   return vector<Task *>();
 }

References _treeHandle, and YACS::ENGINE::DeploymentTreeOnHeap::getFreeDeployableTasks().

◆ getNumberOfCTDefComponentInstances()

unsigned DeploymentTree::getNumberOfCTDefComponentInstances ( ) const

Definition at line 458 of file DeploymentTree.cxx.

 {
   if(_treeHandle)
     return _treeHandle->getNumberOfCTDefComponentInstances();
   return 0;
 }

References _treeHandle, and YACS::ENGINE::DeploymentTreeOnHeap::getNumberOfCTDefComponentInstances().

◆ getNumberOfCTDefContainer()

unsigned DeploymentTree::getNumberOfCTDefContainer ( ) const

Returns number of containers predictably launchable without counting default container.

Definition at line 441 of file DeploymentTree.cxx.

 {
   if(_treeHandle)
     return _treeHandle->getNumberOfCTDefContainer();
   return 0;
 }

References _treeHandle, and YACS::ENGINE::DeploymentTreeOnHeap::getNumberOfCTDefContainer().

◆ getNumberOfRTODefComponentInstances()

unsigned DeploymentTree::getNumberOfRTODefComponentInstances ( ) const

Definition at line 465 of file DeploymentTree.cxx.

 {
   if(_treeHandle)
     return _treeHandle->getNumberOfRTODefComponentInstances();
   return 0;
 }

References _treeHandle, and YACS::ENGINE::DeploymentTreeOnHeap::getNumberOfRTODefComponentInstances().

◆ getNumberOfRTODefContainer()

unsigned DeploymentTree::getNumberOfRTODefContainer ( ) const

Returns number of containers unpredictably launchable without counting default container.

Definition at line 451 of file DeploymentTree.cxx.

 {
   if(_treeHandle)
     return _treeHandle->getNumberOfRTODefContainer();
   return 0;
 }

References _treeHandle, and YACS::ENGINE::DeploymentTreeOnHeap::getNumberOfRTODefContainer().

◆ getTasksLinkedToComponent()

std::vector< Task * > DeploymentTree::getTasksLinkedToComponent ( ComponentInstance * comp ) const

Definition at line 509 of file DeploymentTree.cxx.

 {
   if(_treeHandle)
     return _treeHandle->getTasksLinkedToComponent(comp);
   return vector<Task *>();
 }

References _treeHandle, yacsorb.CORBAEngineTest::comp, and YACS::ENGINE::DeploymentTreeOnHeap::getTasksLinkedToComponent().

Referenced by YACS::ENGINE::DynParaLoop::cloneAndPlaceNodesCoherently(), YACS::ENGINE::ComposedNode::performDuplicationOfPlacement(), and YACS::ENGINE::ComposedNode::performShallowDuplicationOfPlacement().

◆ getTasksLinkedToContainer()

std::vector< Task * > DeploymentTree::getTasksLinkedToContainer ( Container * cont ) const

Definition at line 502 of file DeploymentTree.cxx.

 {
   if(_treeHandle)
     return _treeHandle->getTasksLinkedToContainer(cont);
   return vector<Task *>();
 }

References _treeHandle, and YACS::ENGINE::DeploymentTreeOnHeap::getTasksLinkedToContainer().

Referenced by YACS::ENGINE::DynParaLoop::cloneAndPlaceNodesCoherently(), YACS::ENGINE::ComposedNode::performDuplicationOfPlacement(), and YACS::ENGINE::ComposedNode::performShallowDuplicationOfPlacement().

◆ isNull()

bool DeploymentTree::isNull ( ) const

Definition at line 530 of file DeploymentTree.cxx.

 {
   return _treeHandle==0;
 }

References _treeHandle.

◆ operator=()

const DeploymentTree & DeploymentTree::operator= ( const DeploymentTree & other )

Definition at line 416 of file DeploymentTree.cxx.

 {
   if(_treeHandle)
     _treeHandle->decrRef();
   _treeHandle=other._treeHandle;
   if(_treeHandle)
     _treeHandle->incrRef();
   return *this;
 }

References _treeHandle, YACS::ENGINE::DeploymentTreeOnHeap::decrRef(), and YACS::ENGINE::DeploymentTreeOnHeap::incrRef().

◆ presenceOfDefaultContainer()

bool DeploymentTree::presenceOfDefaultContainer ( ) const

Definition at line 523 of file DeploymentTree.cxx.

 {
   if(_treeHandle)
     return _treeHandle->presenceOfDefaultContainer();
   return false;
 }

References _treeHandle, and YACS::ENGINE::DeploymentTreeOnHeap::presenceOfDefaultContainer().

Member Data Documentation

◆ _treeHandle

DeploymentTreeOnHeap* YACS::ENGINE::DeploymentTree::_treeHandle

private

Definition at line 101 of file DeploymentTree.hxx.

Referenced by appendTask(), DeploymentTree(), getAllContainers(), getAllCTDefContainers(), getAllRTODefContainers(), getComponentsLinkedToContainer(), getFreeDeployableTasks(), getNumberOfCTDefComponentInstances(), getNumberOfCTDefContainer(), getNumberOfRTODefComponentInstances(), getNumberOfRTODefContainer(), getTasksLinkedToComponent(), getTasksLinkedToContainer(), isNull(), operator=(), presenceOfDefaultContainer(), and ~DeploymentTree().

◆ ALREADY_IN_TREE

const unsigned char YACS::ENGINE::DeploymentTree::ALREADY_IN_TREE = 1

static

Definition at line 96 of file DeploymentTree.hxx.

Referenced by YACS::ENGINE::DeploymentTreeOnHeap::appendTask().

◆ APPEND_OK

const unsigned char YACS::ENGINE::DeploymentTree::APPEND_OK = 0

static

Definition at line 94 of file DeploymentTree.hxx.

Referenced by YACS::ENGINE::DeploymentTreeOnHeap::appendTask().

◆ DEPLOYABLE_BUT_NOT_SPECIFIED

const unsigned char YACS::ENGINE::DeploymentTree::DEPLOYABLE_BUT_NOT_SPECIFIED = 5

static

Definition at line 98 of file DeploymentTree.hxx.

Referenced by YACS::ENGINE::DeploymentTreeOnHeap::appendTask(), and YACS::ENGINE::ComposedNode::checkDeploymentTree().

◆ DUP_TASK_NOT_COMPATIBLE_WITH_EXISTING_TREE

const unsigned char YACS::ENGINE::DeploymentTree::DUP_TASK_NOT_COMPATIBLE_WITH_EXISTING_TREE = 4

static

Definition at line 99 of file DeploymentTree.hxx.

Referenced by YACS::ENGINE::ComposedNode::checkDeploymentTree().

◆ NOT_DEPLOYABLE_TASK

const unsigned char YACS::ENGINE::DeploymentTree::NOT_DEPLOYABLE_TASK = 2

static

Definition at line 97 of file DeploymentTree.hxx.

Referenced by YACS::ENGINE::DeploymentTreeOnHeap::appendTask(), and appendTask().

◆ NULL_TASK

const unsigned char YACS::ENGINE::DeploymentTree::NULL_TASK = 3

static

Definition at line 93 of file DeploymentTree.hxx.

Referenced by YACS::ENGINE::DeploymentTreeOnHeap::appendTask(), and appendTask().

◆ NULL_TREE

const unsigned char YACS::ENGINE::DeploymentTree::NULL_TREE = 199

static

Definition at line 95 of file DeploymentTree.hxx.

The documentation for this class was generated from the following files:

src/engine/DeploymentTree.hxx
src/engine/DeploymentTree.cxx
