YACS::ENGINE::NoNbBranches Class Reference

#include <NbBranches.hxx>

Inheritance diagram for YACS::ENGINE::NoNbBranches:

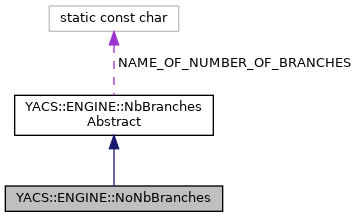

Collaboration diagram for YACS::ENGINE::NoNbBranches:

Public Member Functions
	NoNbBranches ()=default
std::unique_ptr< NbBranchesAbstract >	copy (Node *node) const override
int	getNumberOfBranches (int nbOfElems) const override
bool	isMyName (const std::string &name) const override
void	exInit (bool start) override
InputPort *	getPort () const override
bool	isMultiplicitySpecified (unsigned &value) const override
void	forceMultiplicity (unsigned value) override
int	getIntValue () const override

Additional Inherited Members
Static Public Member Functions inherited from YACS::ENGINE::NbBranchesAbstract
static bool	IsBranchPortName (const std::string &name)
Static Protected Attributes inherited from YACS::ENGINE::NbBranchesAbstract
static const char	NAME_OF_NUMBER_OF_BRANCHES [] ="nbBranches"

Detailed Description

Definition at line 65 of file NbBranches.hxx.

Constructor & Destructor Documentation

NoNbBranches()

YACS::ENGINE::NoNbBranches::NoNbBranches ( )

default

Member Function Documentation

copy()

std::unique_ptr< NbBranchesAbstract > NoNbBranches::copy ( Node *  node ) const

overridevirtual

Implements YACS::ENGINE::NbBranchesAbstract.

Definition at line 73 of file NbBranches.cxx.

{
  return std::unique_ptr<NbBranchesAbstract>(new NoNbBranches);
}

exInit()

void NoNbBranches::exInit ( bool  start )

overridevirtual

Implements YACS::ENGINE::NbBranchesAbstract.

Definition at line 83 of file NbBranches.cxx.

{
}

forceMultiplicity()

void NoNbBranches::forceMultiplicity ( unsigned  value )

overridevirtual

Implements YACS::ENGINE::NbBranchesAbstract.

Definition at line 97 of file NbBranches.cxx.

{
  throw Exception("NoNbBranches::forceMultiplicity : impossible to be forced !");
}

getIntValue()

int NoNbBranches::getIntValue ( ) const

overridevirtual

Implements YACS::ENGINE::NbBranchesAbstract.

Definition at line 102 of file NbBranches.cxx.

{
  throw Exception("NoNbBranches::getIntValue : no value stored !");
}

getNumberOfBranches()

int NoNbBranches::getNumberOfBranches ( int  nbOfElems ) const

overridevirtual

Implements YACS::ENGINE::NbBranchesAbstract.

Definition at line 78 of file NbBranches.cxx.

{
  return nbOfElems;
}

getPort()

InputPort * NoNbBranches::getPort ( ) const

overridevirtual

Implements YACS::ENGINE::NbBranchesAbstract.

Definition at line 87 of file NbBranches.cxx.

{
  return nullptr;
}

isMultiplicitySpecified()

bool NoNbBranches::isMultiplicitySpecified ( unsigned &  value ) const

overridevirtual

Implements YACS::ENGINE::NbBranchesAbstract.

Definition at line 92 of file NbBranches.cxx.

{
  return false;
}

isMyName()

bool YACS::ENGINE::NoNbBranches::isMyName ( const std::string &  name ) const

inlineoverridevirtual

Implements YACS::ENGINE::NbBranchesAbstract.

Definition at line 71 of file NbBranches.hxx.

{ return false; }

---

The documentation for this class was generated from the following files:

• src/engine/NbBranches.hxx
• src/engine/NbBranches.cxx
